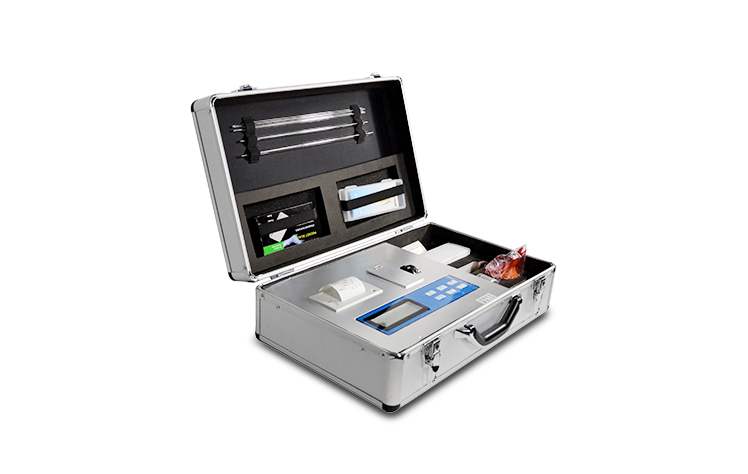

Soil heavy metal detector (YT-ZJB)

Food, soil, and water quality are gradually being polluted by industrial waste gas, wastewater, and slag. Some people even directly use industrial waste water to irrigate crops, causing a large accumulation and accumulation of heavy metals such as cadmium, copper, arsenic, chromium, mercury, nickel, iron, aluminum, zinc, manganese, and copper in the soil cultivation layer, especially in urban suburbs; In addition, the excessive use of inorganic chemical pesticides and other substances has led to serious excessive heavy metal content in vegetables and fish, continuously accumulating in the human body, resulting in chronic heavy metal poisoning among consumers. Multiple incidents of collective heavy metal poisoning have occurred in China, which has attracted high attention from the government and various sectors of society. However, the current heavy metal determination methods have slow measurement speed, cumbersome steps, and expensive instruments. Based on this situation, we have developed a rapid method for the determination of heavy metals, which can quickly and jointly determine lead, arsenic, chromium, cadmium, mercury, etc. in samples such as vegetables, food, soil, organic fertilizers, tobacco, etc.

The detection principle of soil heavy metal detector:

（1） After digestion of the sample, all forms of heavy metals (including arsenic, lead, cadmium, chromium, mercury, nickel, iron, aluminum, zinc, manganese, copper, etc.) are transformed into ionic forms. After adding relevant detection reagents, the color is developed. Within a certain concentration range, the depth of the solution color is proportional to the content of heavy metals, following the Lambert Beer law. The content value is then determined by instruments, Compare with the national standard for the safety and quality of agricultural products, as well as the allowable limit for the safety requirements of pollution-free vegetables, to determine the heavy metal content of vegetable samples.

（2） The detection principles and standards for various heavy metals

1. The detection principle and adopted standards of heavy metal arsenic

The national standard (GB/T5009.11-2003) borohydride reduction colorimetric method is adopted. After digestion of the sample, potassium iodide thiourea is added and heated to reduce pentavalent arsenic to trivalent arsenic. Under acidic conditions, potassium borohydride reduces trivalent arsenic to negative trivalent, forming arsine that is introduced into the absorption solution and turns yellow. The arsenic content is detected by the instrument.

2. The detection principle and standards for heavy metal lead

The national standard (GB/T5009.12-2003) dithizone colorimetric method is adopted, which means that after digestion of the sample, under weak alkaline conditions, lead ions and dithizone form a red complex, which is dissolved in trichloromethane and then determined by colorimetry.

3. The detection principle and adopted standards of heavy metal chromium

After digestion, in the presence of divalent manganese, chromium ions react with diphenylcarbazide to form a purple red complex. The color of the complex is directly proportional to the content of hexavalent chromium, and colorimetric determination can determine the chromium content.

4. The detection principle and adopted standards of heavy metal cadmium

The national standard (GB/T5009.15-2003) colorimetric method is adopted, which means that after digestion of the sample, under alkaline conditions, cadmium ions and 6-bromophenyl propionazole azonaphthol form a red complex, which is dissolved in trichloromethane for colorimetric determination.

5. The detection principle and adopted standards of heavy metal mercury

The national standard (GB/T5009.17-2003) dithizone colorimetric method is adopted, which means that after digestion of the sample, under acidic conditions, mercury ions and dithizone form an orange red complex, which is dissolved in trichloromethane for colorimetric determination.

 Detection process：

Refer to the user manual

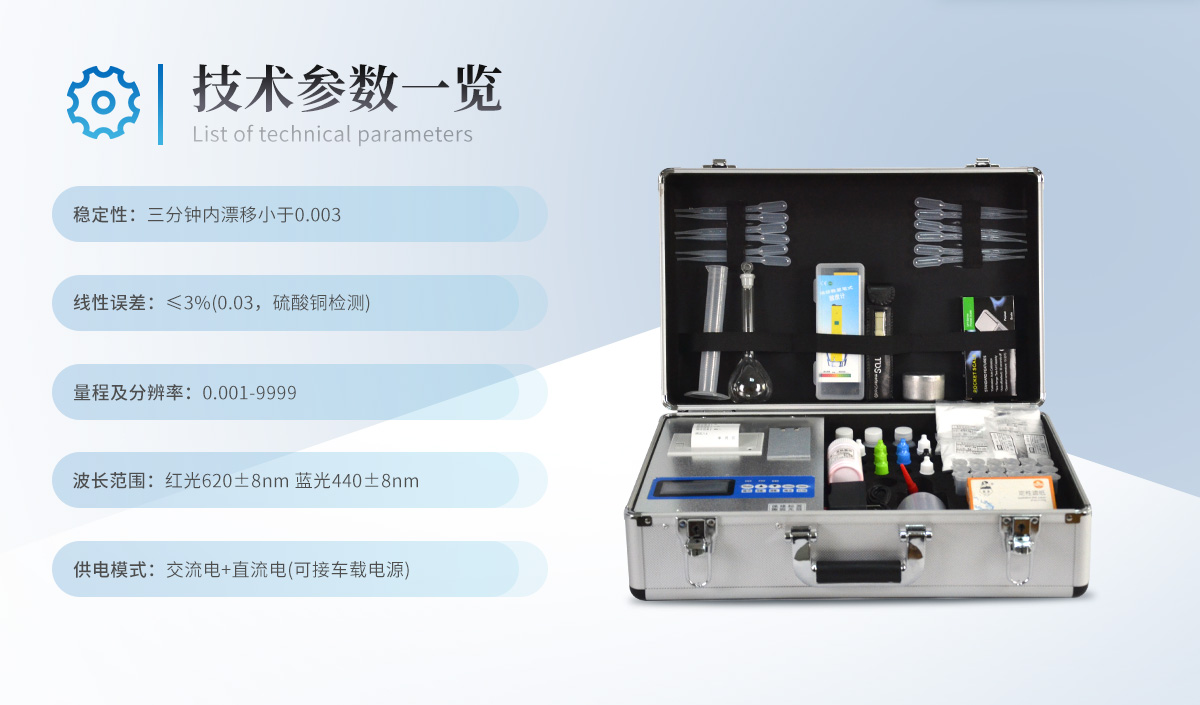

Instrument technical specifications：

1. Instrument transmittance accuracy ≥ ± 0.4%

2. Instrument repeatability ≤ ± 0.3%

3. Instrument stability ≤ 0.003A/5 minutes (after preheating the instrument for 5 minutes)

4. Linear error ≤ 1%

5. Instrument power consumption ≤ 5W

6. Power supply AC220V/50Hz or DC12V

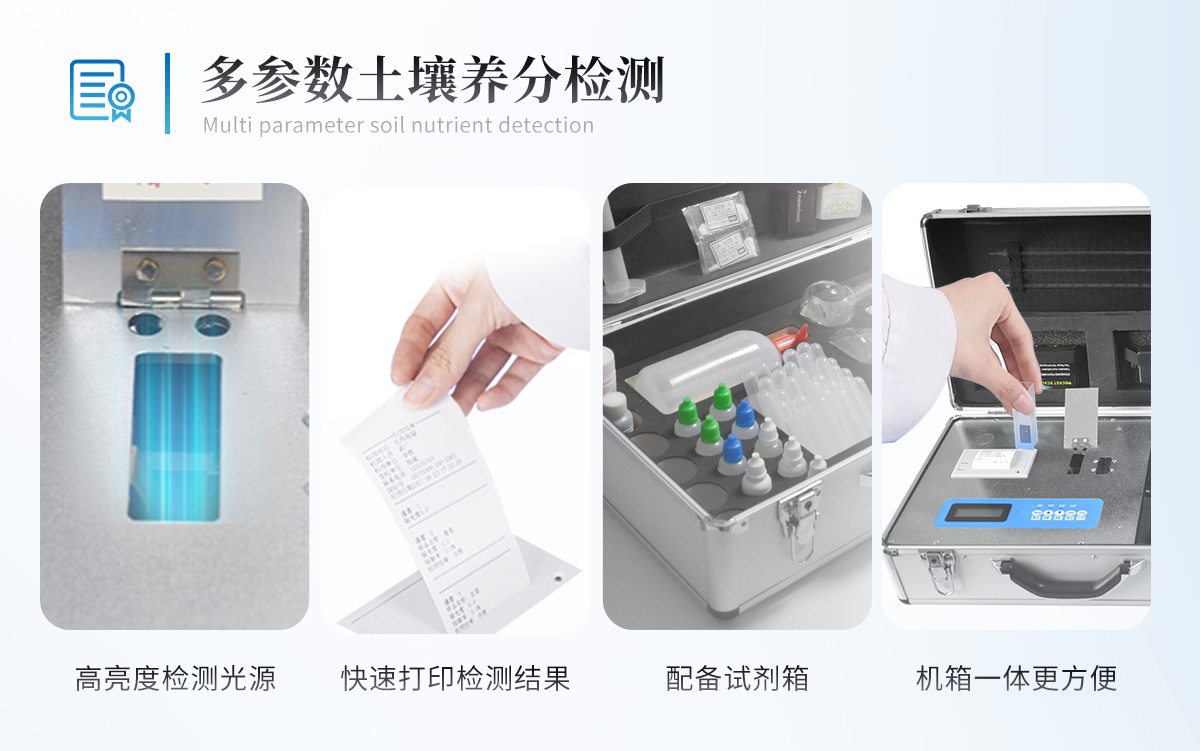

7. The result output is equipped with an advanced thermal printer that can automatically print out the detection results, making it convenient and intuitive.

 Instrument measurement items：

1. Instrument measurement items

Measure heavy metals (lead, arsenic, chromium, cadmium, mercury, iron, zinc, manganese, copper) in soil, fertilizers, food, vegetables, and fruits.

2. Instrument extension testing project

The instrument can expand the measurement of soil and fertilizer nutrient content.

 Instrument testing characteristics：

1. The performance is reliable, and the working stability is 5-6 times better than the national standard JJG79-90. The repeatability meets the indicators of grating spectrophotometers. It adopts microprocessor technology, microcontroller control, touch buttons, and is easy to operate.

2. The heavy metal testing adopts combined digestion and sub item testing techniques to simplify the testing process, reduce testing time, greatly improve testing efficiency, and improve testing accuracy.

3. Strong scalability, this instrument can not only be dedicated to the detection of heavy metals, but also expand the testing of nutrients in soil, fertilizers, and plants, making it versatile.

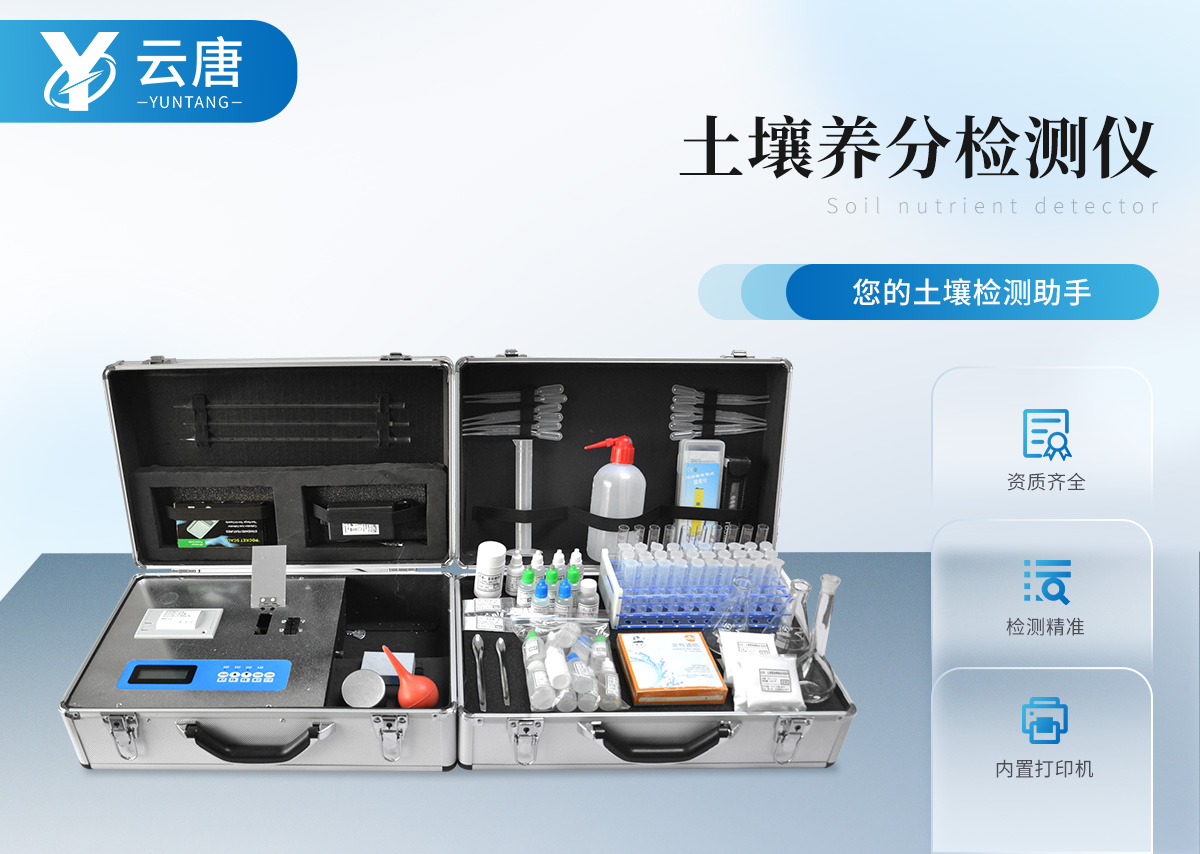

4. The soil heavy metal detector integrates medicine, equipment, and instrument, which is equivalent to a small laboratory with two aluminum alloy boxes. It is easy to carry, convenient for on-site testing, and provides mobile services. Suitable for grassroots testing departments to screen vegetables, fruits, and other foods containing heavy metal pollution.
