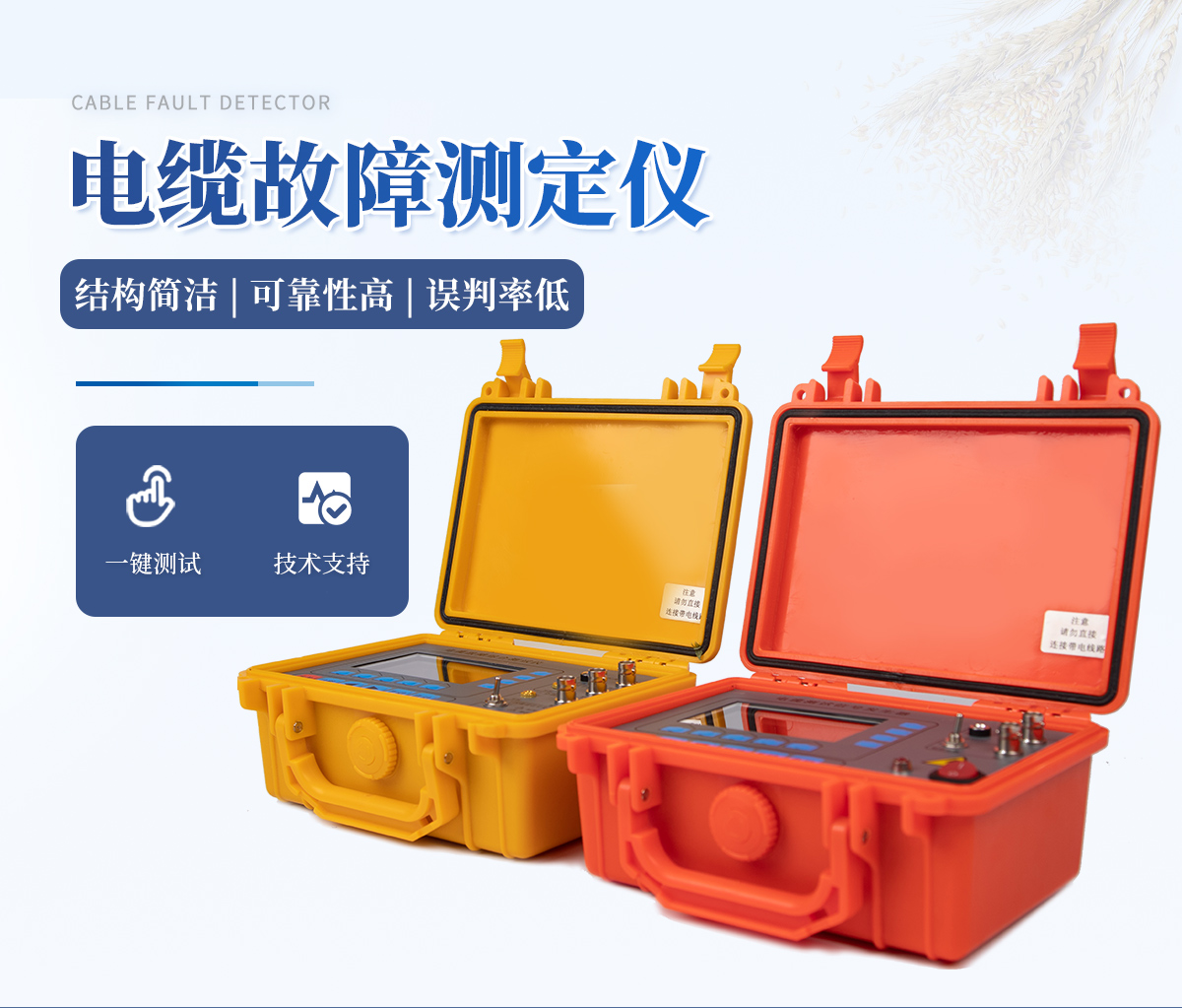

Cable fault tester

Overview:

This tester is mainly used for locating broken wires, short circuits, and ground leakage faults (insulation resistance to ground within 0.5 megaohms) of high and low voltage buried power cables within 10KV level (which can be extended to 50kV), as well as detecting the depth and path direction of buried cables.

Suitable for maintenance of streetlight cables, troubleshooting of cable faults in agricultural irrigation fields, troubleshooting of buried armored iron sheet power cables in residential properties and landscaping belts, outdoor power cables, highways, factories and mining enterprises, and troubleshooting of buried power supply cables for tower communication base stations.

This instrument adopts advanced integrated circuit technology, cutting-edge calculation methods, simple circuit structure, high reliability, and low misjudgment rate.

Three channel design:

1. Length testing: Under power off conditions, it is possible to directly test the distance of cable breakage and short circuit faults.

2. Cooperate with a signal generator to locate the position of ground leakage of buried cables under power outage, and measure the direction and depth of the buried cable path.

3. Full frequency channel: Use a probe to test the location of minor ground leakage faults in buried low-voltage cables when powered on. It is a powerful tool for shortening fault finding time, improving work efficiency, and reducing the labor intensity of line maintenance personnel.

Technical parameters:

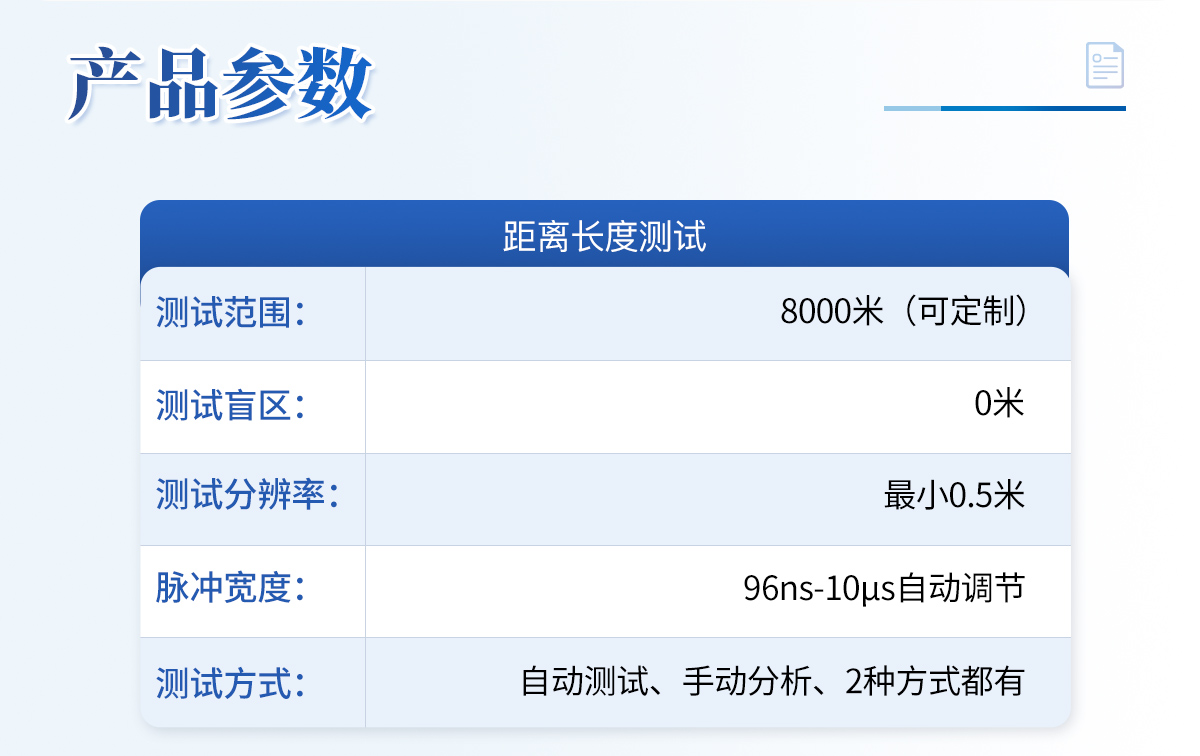

Comprehensive tester distance length test:

Test range: 8000 meters (customizable)

Test blind spot: 0 meters

Test resolution: minimum 0.5 meters

Pulse width: 96ns-10 μ Automatic adjustment

Testing methods: automatic testing, manual analysis, both available

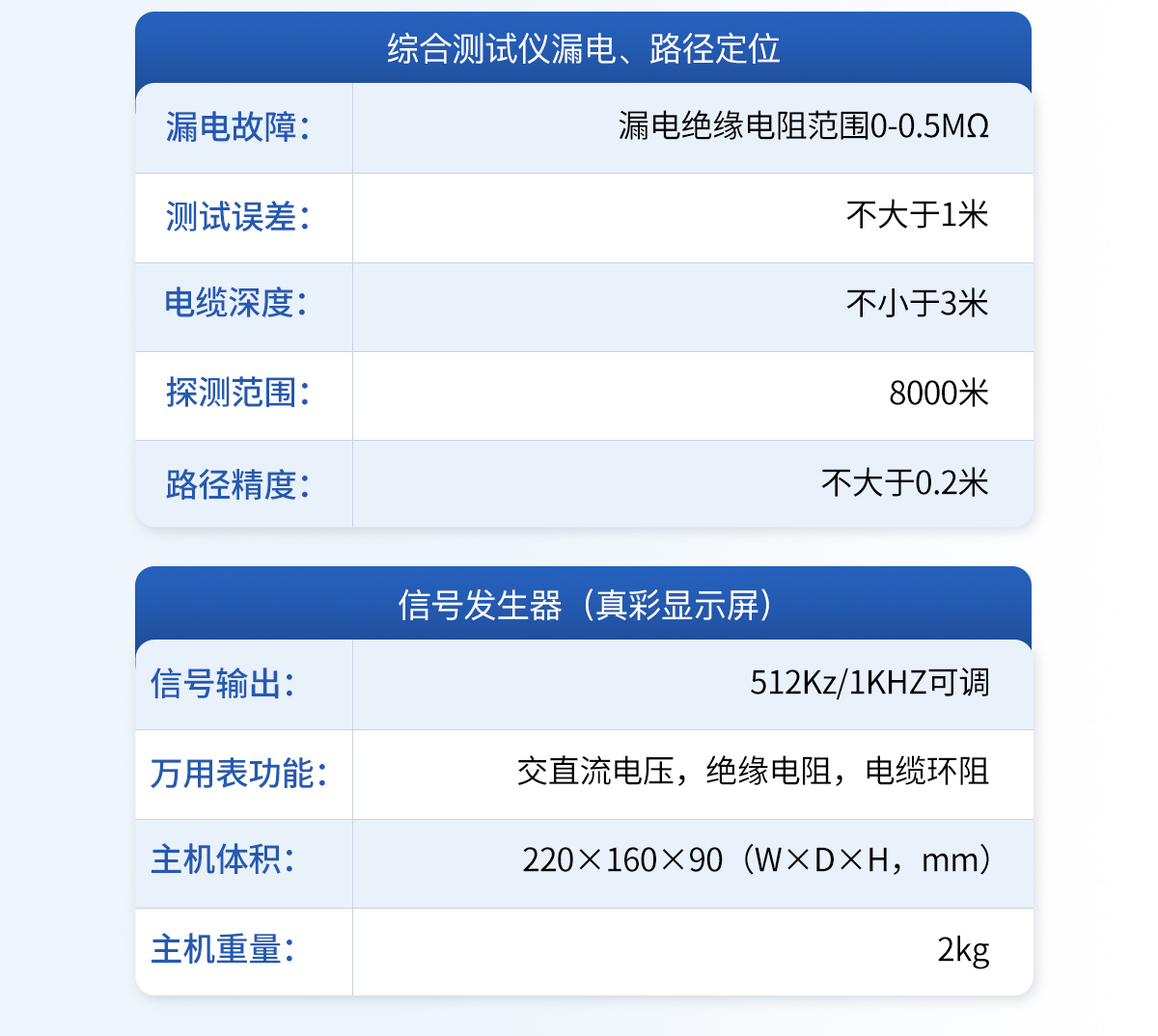

Integrated tester leakage and path positioning:

Leakage fault: Leakage insulation resistance range 0-0.5M Ω

Test error: no more than 1 meter

Cable depth: not less than 3 meters

Detection range: 8000 meters

Path accuracy: not greater than 0.2 meters

Signal generator (true color display screen):

Signal output: 1KHZ adjustable

Multimeter functions: AC/DC voltage, insulation resistance, cable ring resistance

Host volume: 220 * 1 60 * 90 (W * D * H, mm)

Host weight: 2kg

Product features:

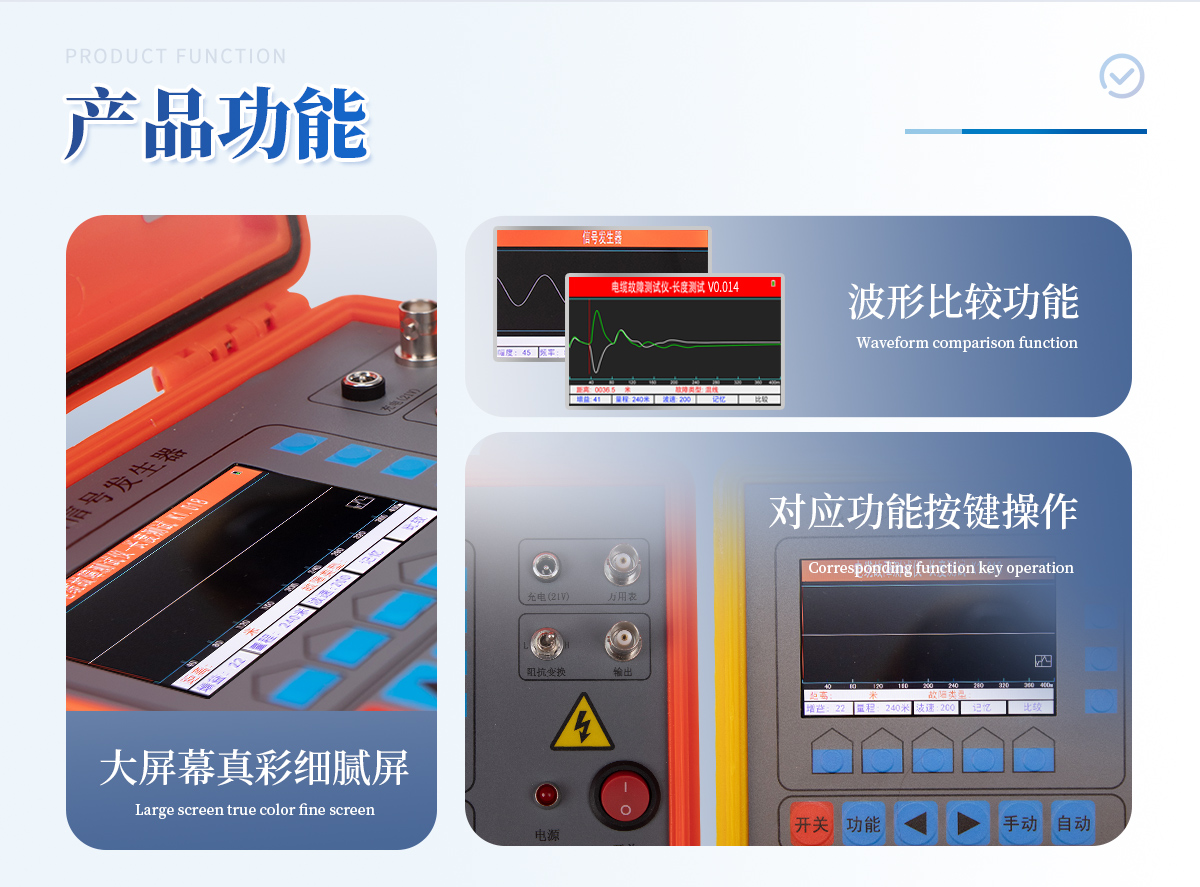

The 1.480 * 800 large screen true color mobile phone has a delicate screen that can be clearly distinguished even in sunlight.

2. It comes with a built-in data interface and supports remote upgrades for customers.

3. By using ARM CPU combined with FPGA technology, the fault waveform can be quickly and accurately determined.

4. Waveform comparison function, especially suitable for backend voltage caused by oxidation at a certain point in the circuit

Low fault testing positioning.

5. The concise corresponding function buttons are easy to learn, intuitive, and convenient.

6. High energy lithium batteries can last for 6-8 hours of use.

7. The signal comes with a multimeter function for convenient testing of voltage resistance and insulation.

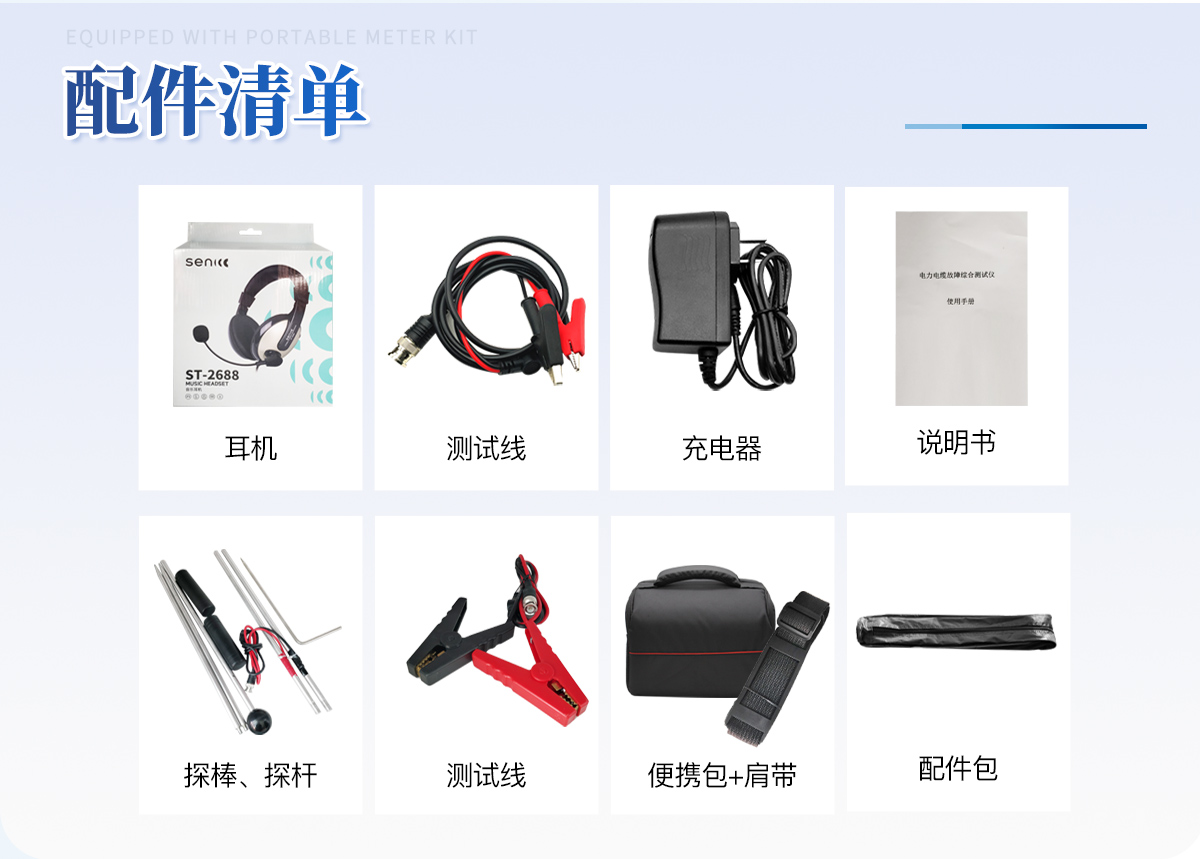

Standard configuration:

Tester host 1 unit

Signal Generator 1 unit

Test headphones 1 unit

Dedicated charger Two

Path probe 1 pair

Leakage detection rod 1 pair

Length testing line (signal connection line... common to length testing)... 1 piece

Grounding rod 1 unit

Instrument package Two

Instruction manual 1 unit

Certificate of conformity warranty card 1 set
