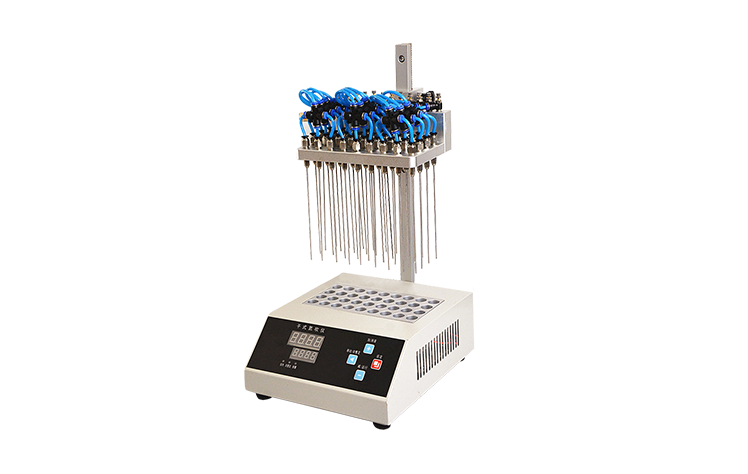

Dry nitrogen blowing instrument

Introduction:

Dry nitrogen blowing instrument is the abbreviation of nitrogen concentration device or nitrogen blowing instrument, mainly used for the concentration or preparation of large quantities of samples under anaerobic conditions. Widely used in industries such as pesticide residue analysis, commercial inspection, food, environment, pharmaceuticals, and biological products, the nitrogen blowing instrument is controlled by microcomputer technology and heated using high-purity aluminum material as the heating medium. The heating speed is fast, achieving more accurate temperature control and a wide temperature control range. It can process 36 sets of samples at the same time

Product features:

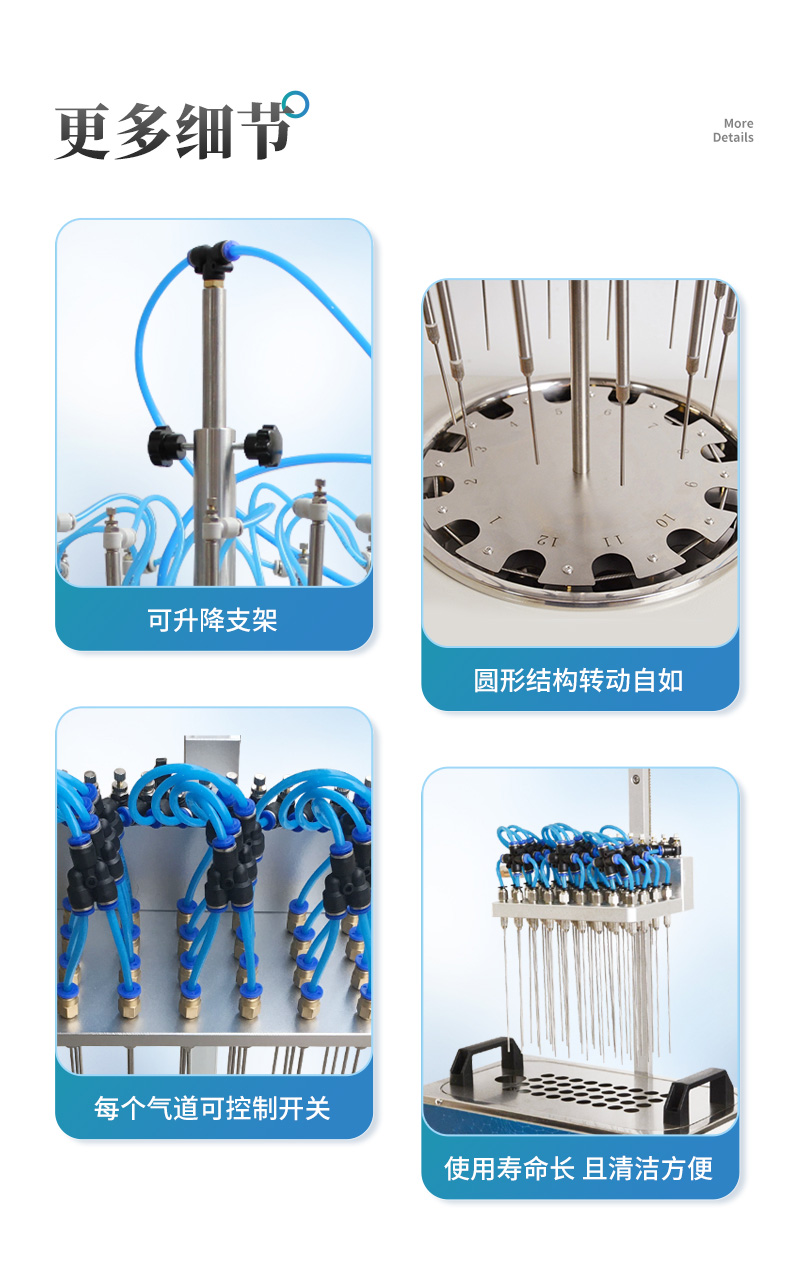

1. Each blowing needle can be independently controlled to avoid cross contamination.

2. The height of the instrument chamber can be adjusted by itself, and it is equipped with a standard needle length of 15 centimeters.

3. The nitrogen blowing instrument has 36 airway control switches to save gas. The position of each blowing needle can be independently changed to make it suitable for different sample containers and sample positions

4. When concentrating toxic solvents, the entire system can be placed in a fume hood to reduce danger.

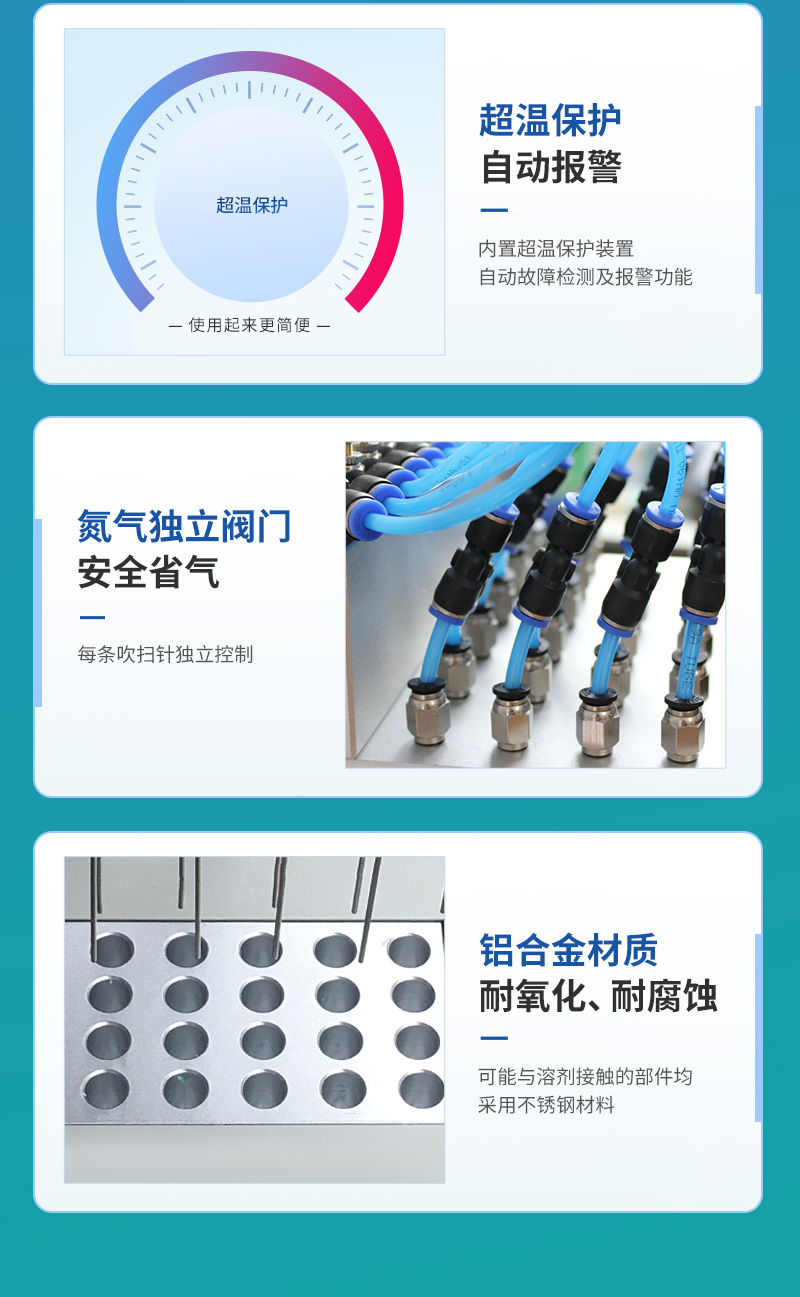

5. Built in over temperature protection device, automatic fault detection and alarm function, convenient and practical.

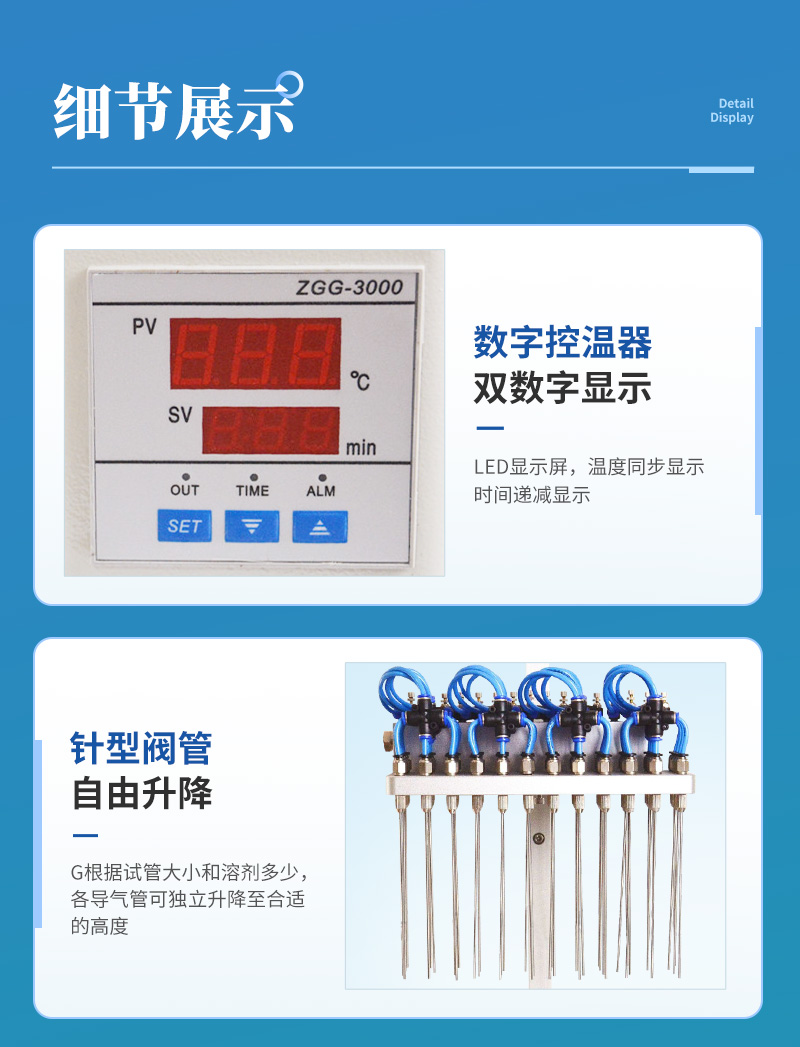

6. The instrument has an LED display screen, which displays temperature synchronously and time decreases, allowing for constant observation of temperature changes.

7. Has a more uniform overall temperature and fast heating speed

8. This product can also be used as a regular dry thermostat

9. It is more convenient to use, and the temperature can also reach 150 ℃, which can better concentrate the sample

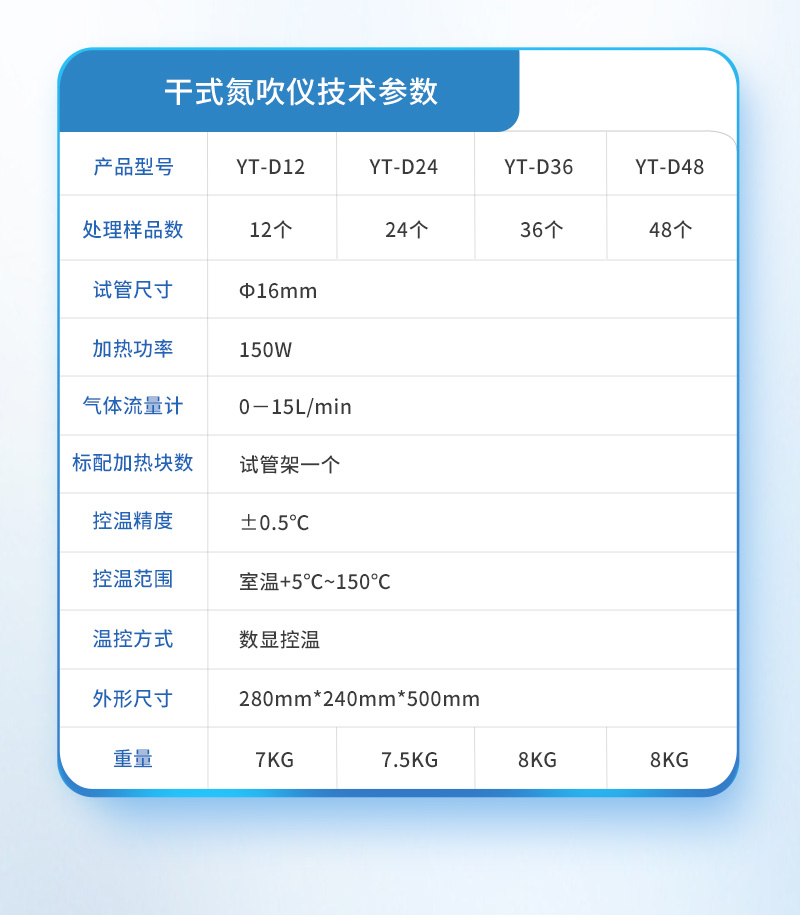

technical parameter:

Product model YT-D12 (12 holes) YT-D24 (24 holes) YT-D36 (36 holes)

Processing 12 samples, 24 samples, 36 samples

Test tube size Ф 16mm Ф 16mm Ф 16mm

Heating power 150W 150W 150W

Gas flow meter 0-15L/min 0-15L/min 0-15L/min

Standard number of heating blocks, one test tube rack, one test tube rack, one test tube rack

Temperature control accuracy ± 0.5 ℃ ± 0.5 ℃ ± 0.5 ℃ ± 0.5 ℃

Temperature control range: Room temperature+5 ℃~150 ℃ Room temperature+5 ℃~150 ℃ Room temperature+5 ℃~150 ℃ Room temperature+5 ℃~150 ℃

Temperature control method digital display temperature control digital display temperature control digital display temperature control

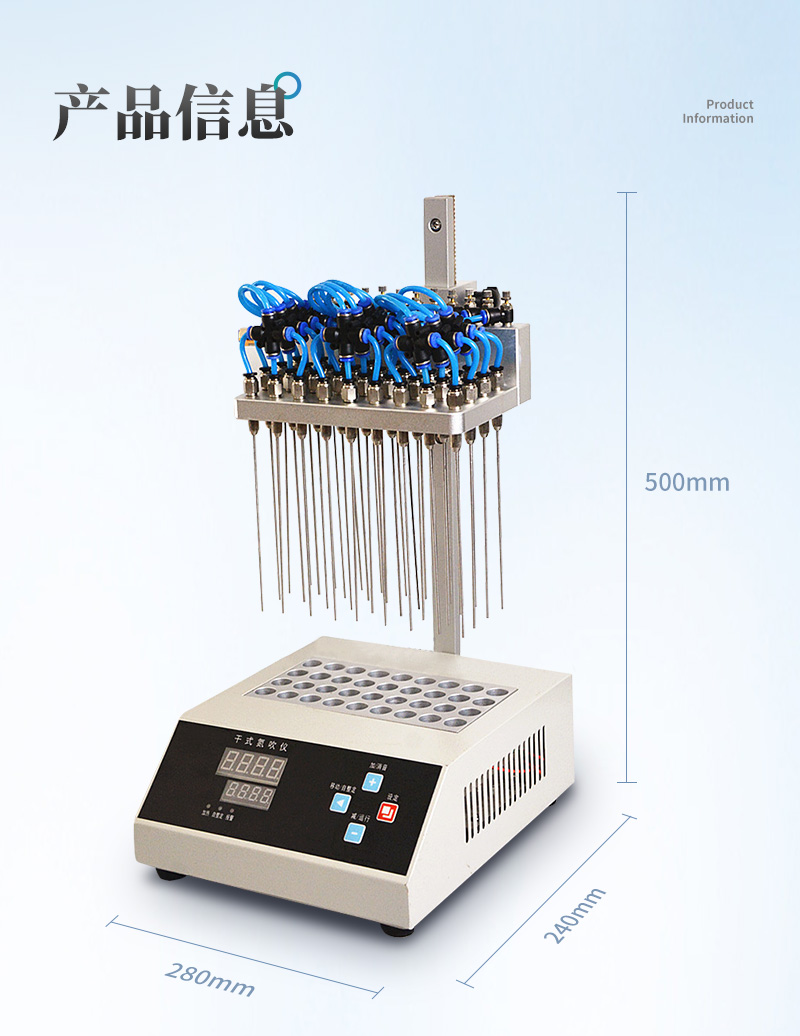

External dimensions 280mm * 240mm * 500mm 280mm * 240mm * 500mm 280mm * 240mm * 500mm

Weight 7KG 7.5KG 8KG
