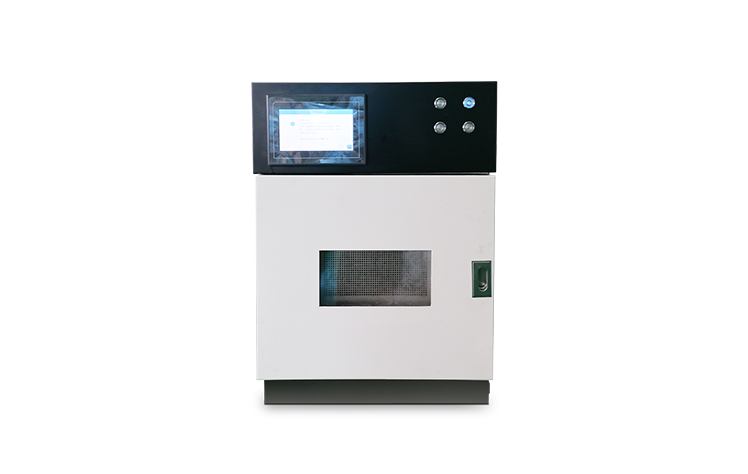

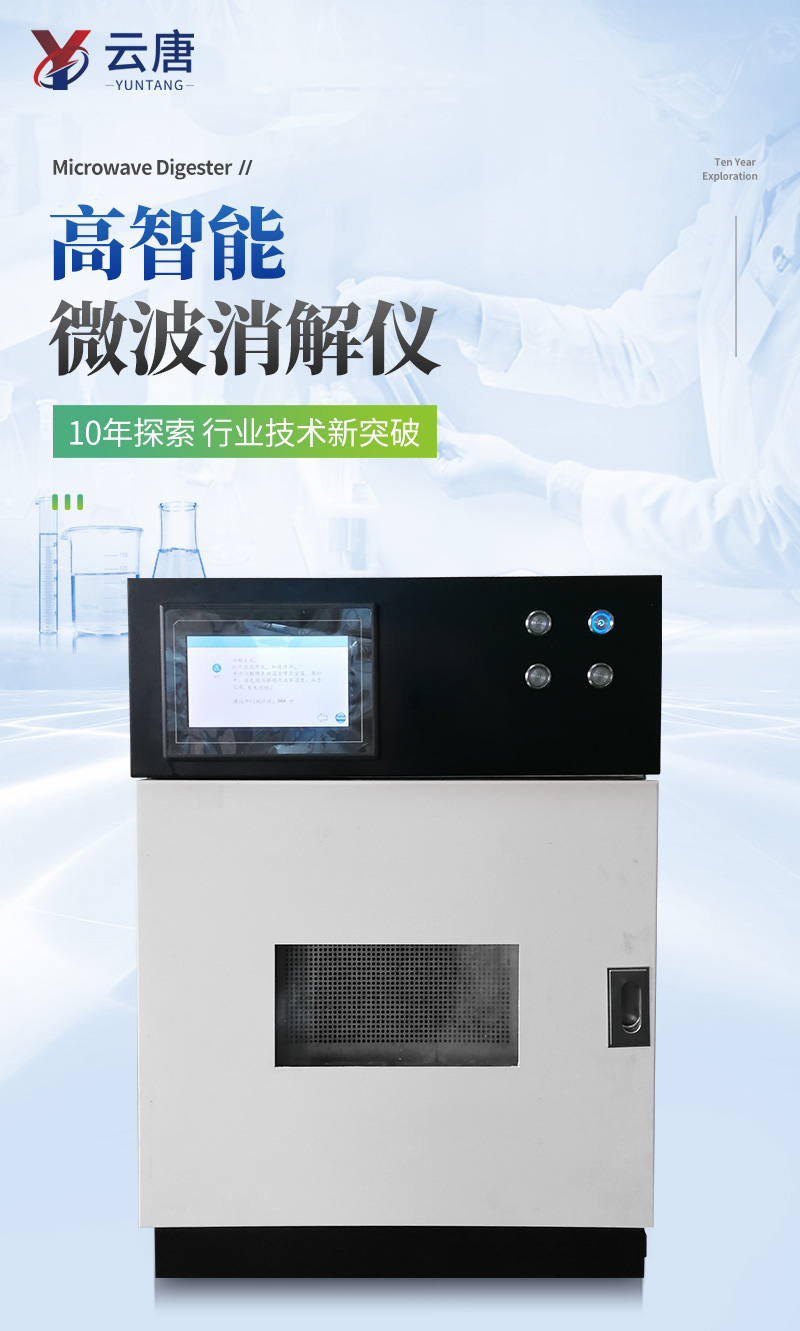

Microwave digestion instrument

Product Description:

The YT-WB20 high-throughput intelligent microwave digestion instrument provides a fast, safe, and automated solution for samples, accelerating the speed of sample digestion reaction under high pressure conditions. It is widely used in fields such as food, environmental protection, disease control, quality supervision, commodity inspection, and scientific research institutions.

Product features:

The instrument adopts microwave non pulse continuous automatic frequency conversion control, which extends the service life of the instrument and the uniformity of electromagnetic waves. The chamber is made of 52L large volume 316L stainless steel chamber material, with a self-locking buffer explosion-proof furnace door. When the reaction is abnormal, the buffer structure ensures the personal safety of operators and the furnace door structure is intact and undamaged. The furnace door and chamber are tightly combined, and microwave leakage meets national standards. The instrument adopts a temperature and pressure dual control system to control the pressure and temperature of the digestion experiment, with real-time display. 360 ° continuous rotation in the same direction, uniform microwave, ensuring the same microwave environment for each sample, and improving the consistency of experimental results. When the pressure inside the tank exceeds the set protection value, the microwave will automatically stop heating. The safety explosion-proof film has a dual safety function. When the pressure inside the tank exceeds the pressure that the explosion-proof film can withstand, the explosion-proof film will rupture first, causing gas to escape, preventing damage to the tank and harm to the human body.

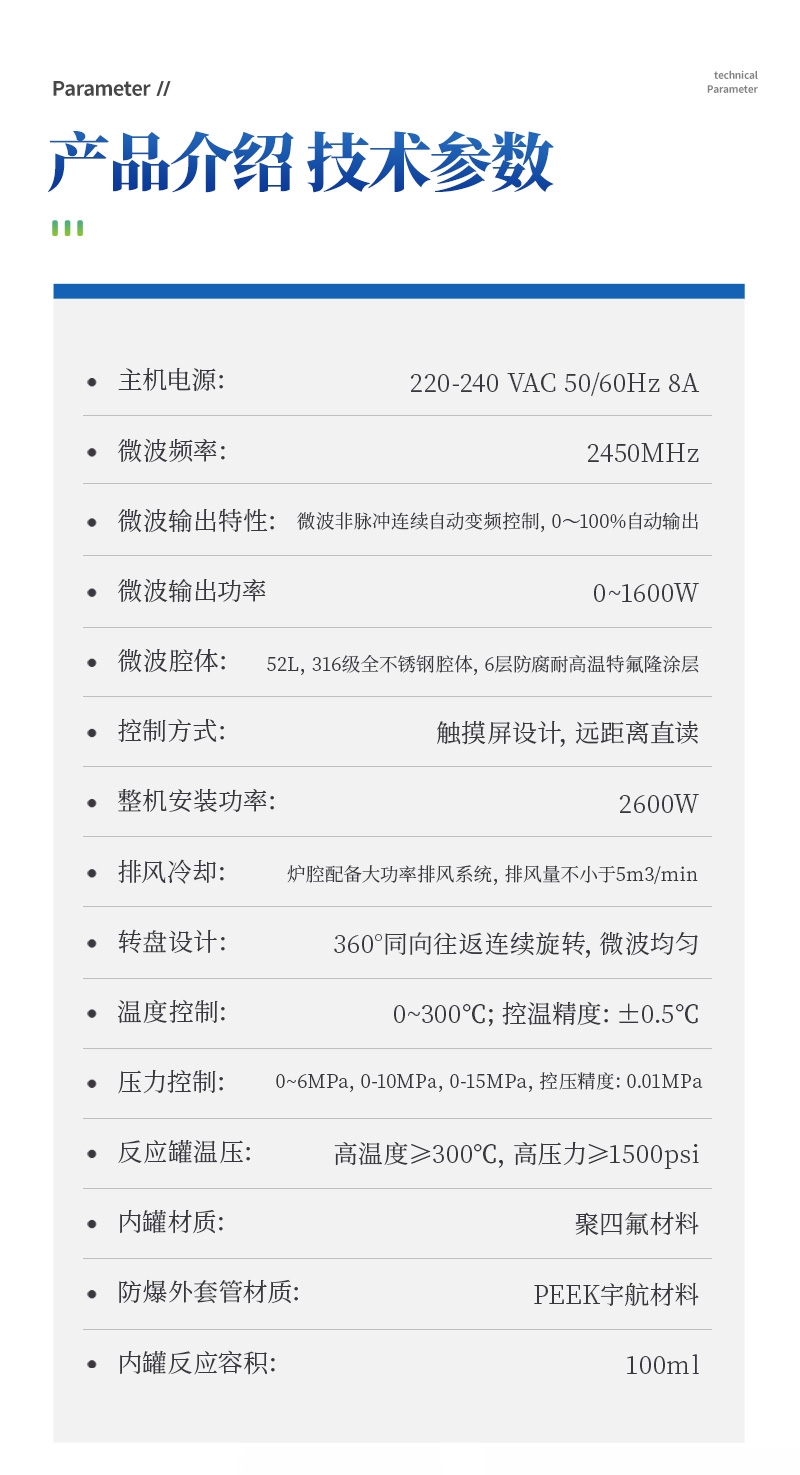

Technical parameters:

Host parameters; 1.1 Power supply: 220-240 VAC 50/60Hz 8A;

Microwave frequency: 2450MHz;

Installation power of the whole machine: 2600W;

(1) Power requirement: 220 VAC 50 Hz 15A;

(2) Microwave source:

(3) Microwave output power: 0-1600W;

(4) Microwave output characteristics: Microwave non pulse continuous automatic frequency conversion control, 0-100% automatic output;

(5) Microwave uniformity: Vertical bidirectional waveguide design, three-dimensional output technology, matched with harmonic power frequency to achieve high field uniformity;

(6) Microwave chamber: 52L, 316 grade all stainless steel chamber, 6 layers of anti-corrosion and high-temperature resistant Teflon coating;

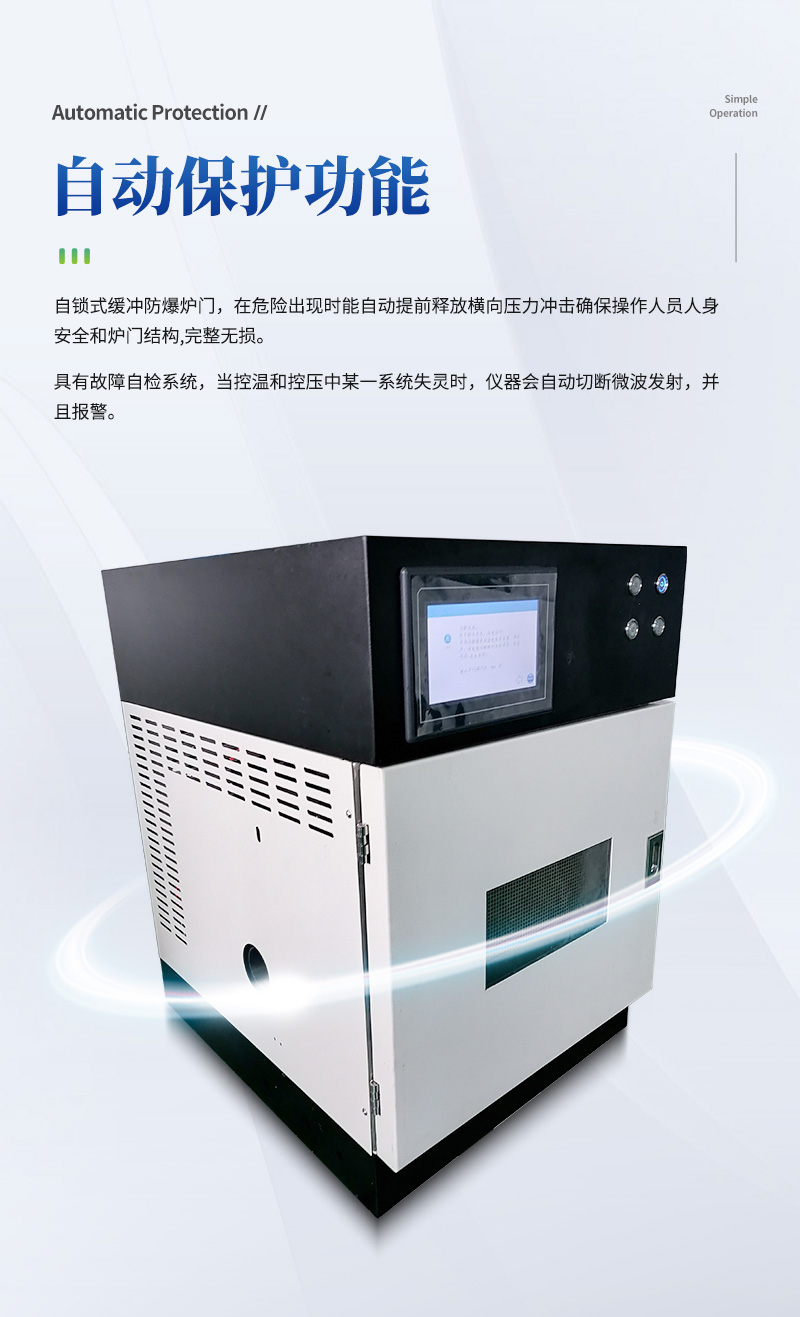

(7) The self-locking buffer explosion-proof furnace door can automatically release lateral pressure impact in advance in case of danger, ensuring the personal safety of operators and the integrity of the furnace door structure;

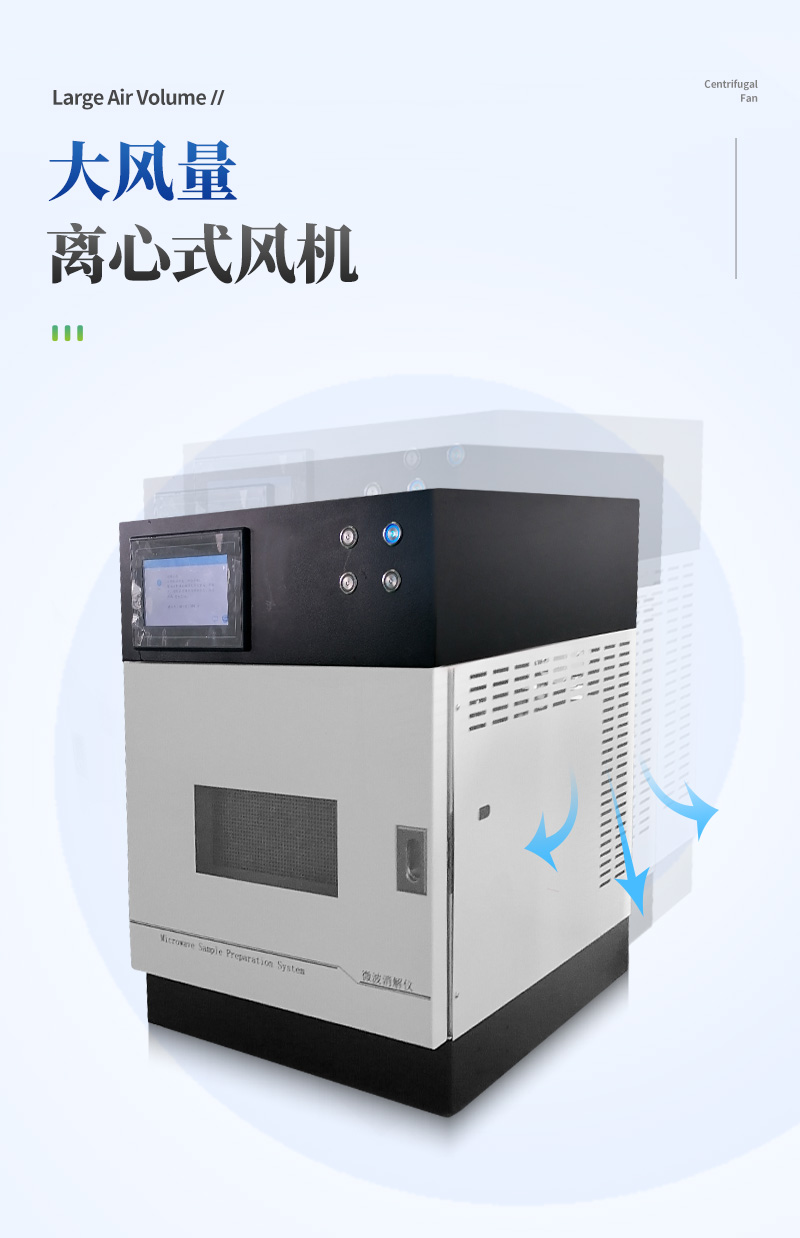

(8) Exhaust and cooling system: The furnace chamber is equipped with a high-power exhaust system, and various reactions can be carried out continuously for a long time in a ventilated, safe, and easily observable environment. The ventilation of the furnace chamber adopts acid resistant and high air volume centrifugal fans, with an exhaust volume of no less than 5m3/min; The furnace chamber has an air cooling function, which continuously cools the reaction tank and displays temperature and pressure in real-time.

(9) Rotary table design: 360 ° continuous rotation in the same direction, uniform microwave, ensuring the same microwave environment for each sample and improving the consistency of experimental results.

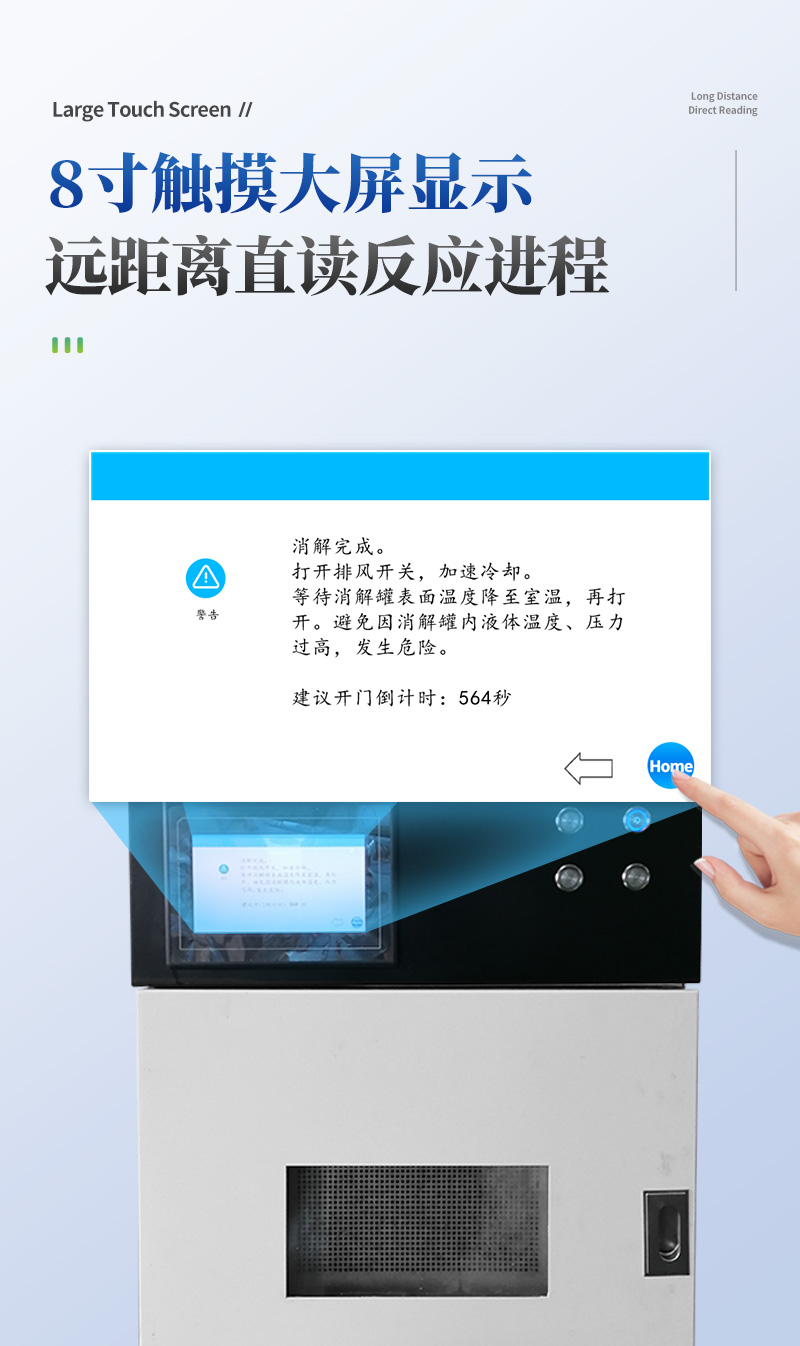

(10) Control method: Touch screen design, 8-inch TFT-LED (800X480 color) large screen display, remote direct reading of reaction process, real-time display of closed reaction tank temperature and pressure, and real-time display of temperature and pressure curve;

(11) Operating language: Simplified Chinese

(12) Automatic protection function: equipped with a fault self-test system; When a system fails in temperature and pressure control, the instrument will automatically cut off microwave emission and give an alarm;

Control system parameters:

(1) Temperature control system: adopts a contact type temperature control method, with accurate and error free temperature control, and uses high-precision platinum resistance temperature sensors; Real time detection control and display of temperature and curve inside the microwave digestion reaction tank;

(2) Temperature control range: 0-300 ℃; Temperature control accuracy: ± 0.5 ℃;

(3) Temperature control capability: rate heating function.

(4) Pressure control system: Adopting non-contact pressure control method, the pressure control is accurate and error free, and it is a mature pressure control method that has been used for 100 years. Real time detection control and display of pressure and curve inside the microwave digestion reaction tank;

(5) Pressure control range: 0~6MPa, 0-10MPa. 0-15MPa, optional.; Pressure control accuracy: 0.01MPa;

(6) Pressure protection: Automatic adjustment/stop of microwave emission and automatic alarm for overpressure;

Reaction tank parameters:

(1) High temperature ≥ 300 ℃, high pressure ≥ 1500psi;

(2) Inner tank material: PTFE material;

(3) Explosion proof outer sleeve material: PEEK aerospace material;

(4) Inner tank reaction volume: 100ml;

(5) The batch processing capacity of the high-pressure digestion tank is ≥ 20 samples/batch (the rotor can be upgraded to 40 positions without replacement);

(6) The explosion-proof membrane is compressed with ceramic components, which do not deform when heated, while PTFE deforms when heated and cannot function as an explosion-proof membrane.

(7) The working mode of the digestion tank is 360 ° continuous rotation in the same direction, with uniform microwave and the same microwave environment for each sample, improving the consistency of experimental results
