Distillation apparatus

brief introduction：

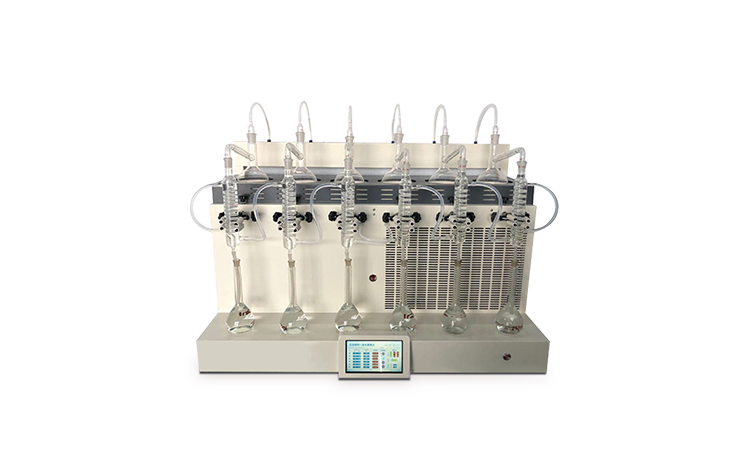

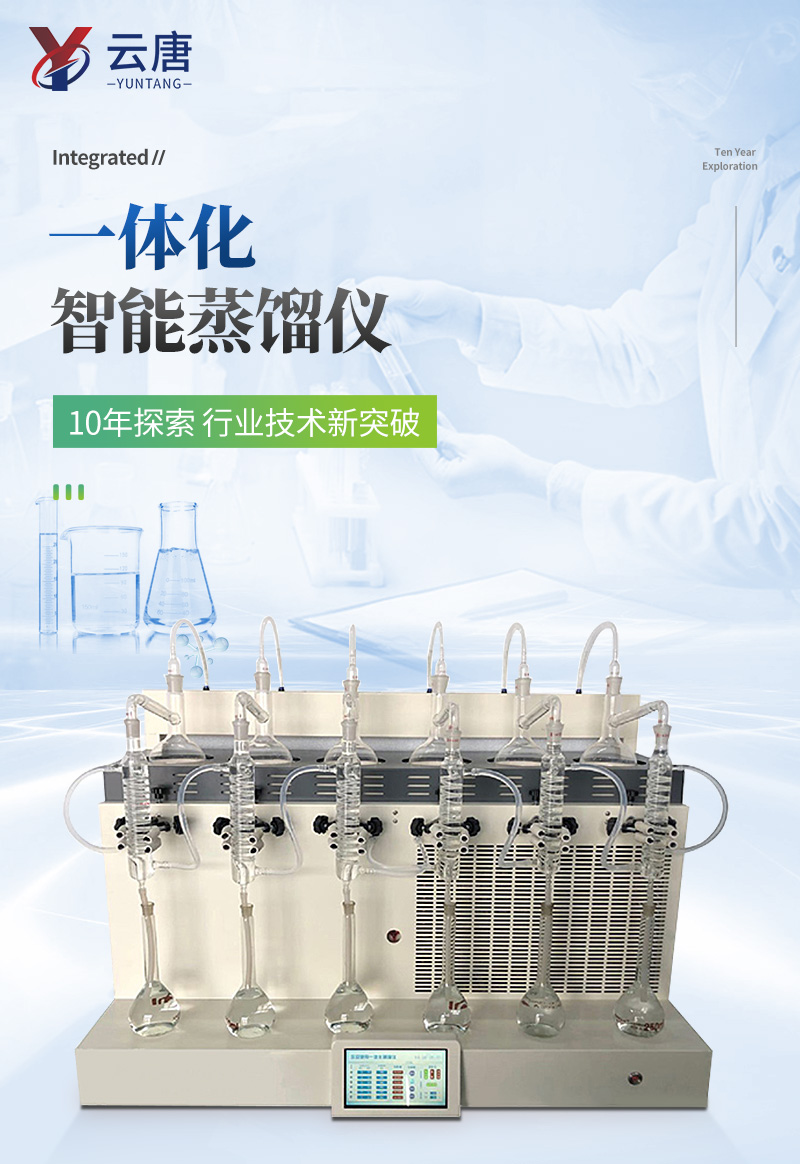

The YT-ZL6 intelligent integrated distiller is a new type of intelligent distillation processing device that integrates constant temperature heating, automatic control of distillation endpoint, and cooling water circulation according to the laboratory distillation pretreatment operating procedures.

This instrument has tested functions such as temperature control, automatic anti backflow, uniform heating, prevention of boiling, and intelligent endpoint control. Easy to use, energy-saving and environmentally friendly. After laboratory distillation recovery rate comparison and verification, the results are accurate, with a recovery rate of over 95%. This instrument can be widely used in various chemical laboratories that require distillation treatment, such as environmental protection, disease control, aquaculture, water supply and drainage, universities, research institutes, factories and mining enterprises, etc., such as distillation treatment of volatile phenols, ammonia nitrogen, and water in Kjeldahl nitrogen oil.

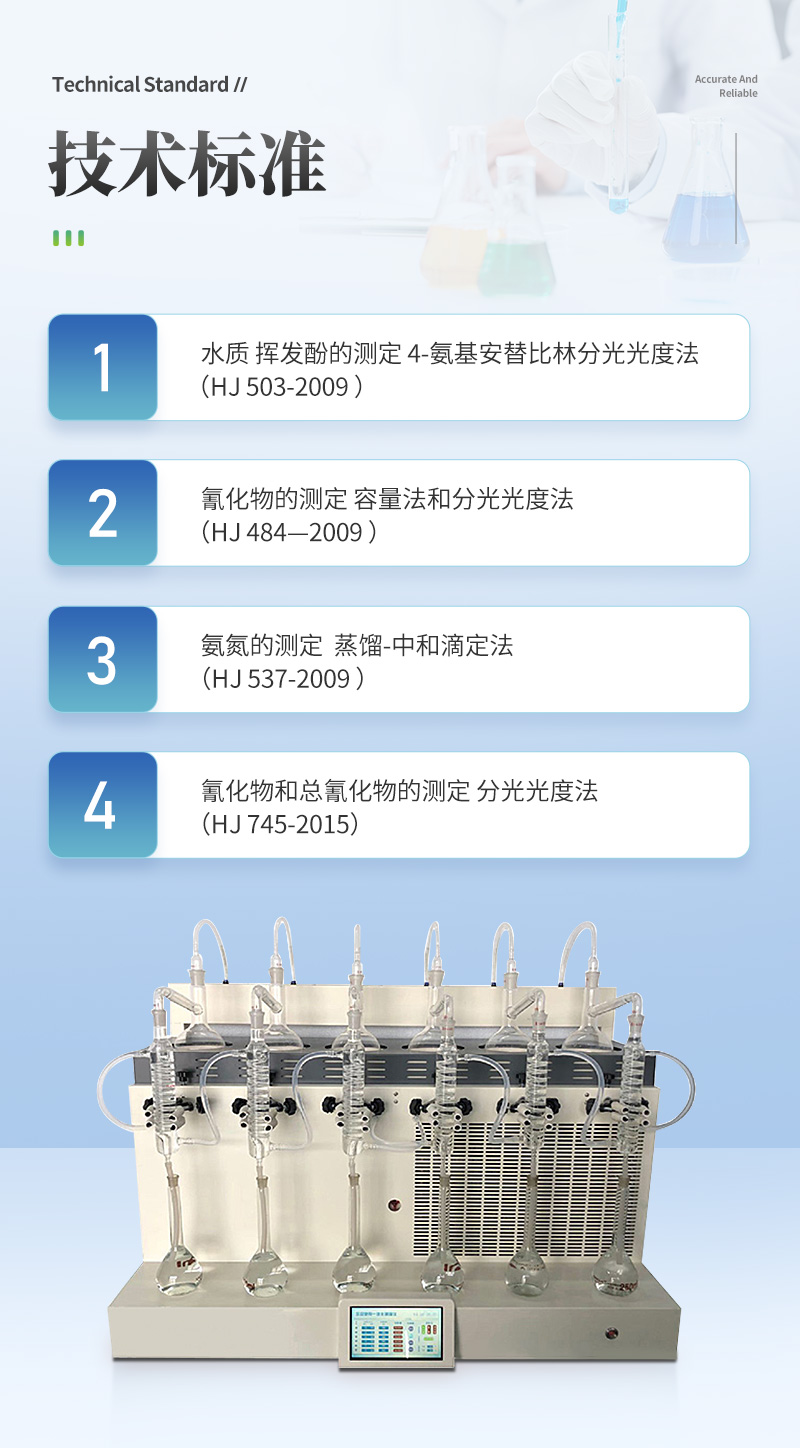

Complies with relevant standards GB5009.34-2016：

Scope of application: Distillation pretreatment projects for residual sulfur dioxide and alcohol content in food

1. Water quality - Determination of volatile phenols -4-aminoantipyrine spectrophotometric method (HJ 503-2009)

2. Water quality - Determination of cyanides - volumetric and spectrophotometric methods (HJ 484-2009)

3. Water quality - Determination of ammonia nitrogen - Distillation neutralization titration method (HJ 537-2009)

4. Determination of soil cyanides and total cyanides by spectrophotometric method (HJ 745-2015)

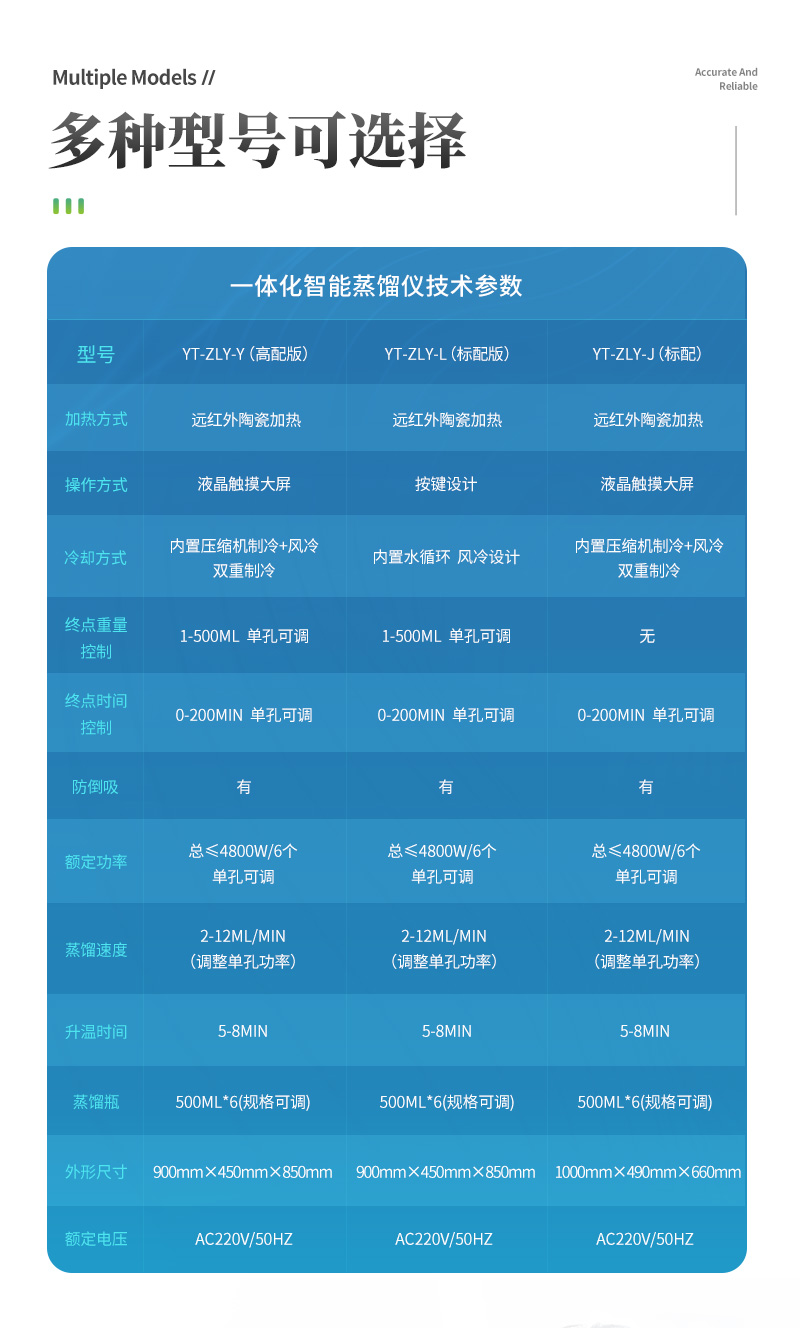

Main technical indicators:

1. Heating method: Using far-infrared ceramic heating furnace, infrared radiation heating (no open flame heating, waterproof);

2. Heating units: 6, single hole and single control;

3. Heating time: 5-8 minutes;

4. Distillation speed: 2-12ml/min;

5. Distillation endpoint control: Automatic detection of distillation endpoint function, using dual control of weighing and time, distillation volume controlled within ± 2ml, high degree of automation;

6. Single furnace heating power: 0-450W (single hole adjustable);

7. Heating power: 0-2700W (adjustable);

8. Cooling method: Closed internal circulation reflux system, or external cooling water source can be connected;

9. Anti backsuction: equipped with an anti vacuum solenoid valve, with anti backsuction function;

10. Time control: adjustable from 0-200 minutes;

11. Distillation bottle specifications: 500mlX6250 X6, more specifications available;

12. Rated voltage/frequency: 220V/50Hz;
