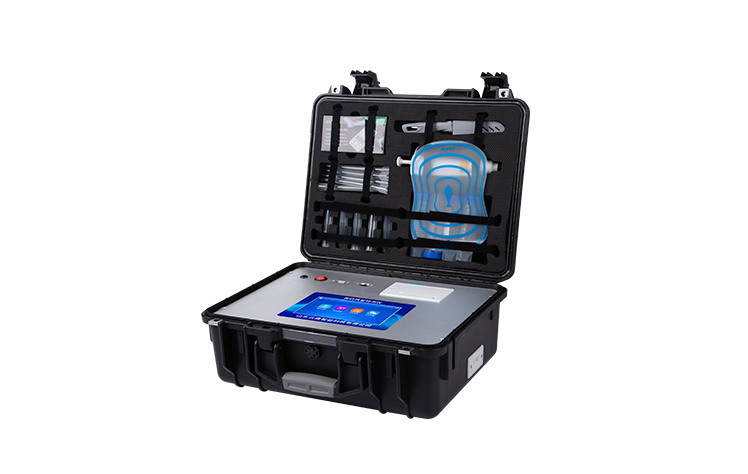

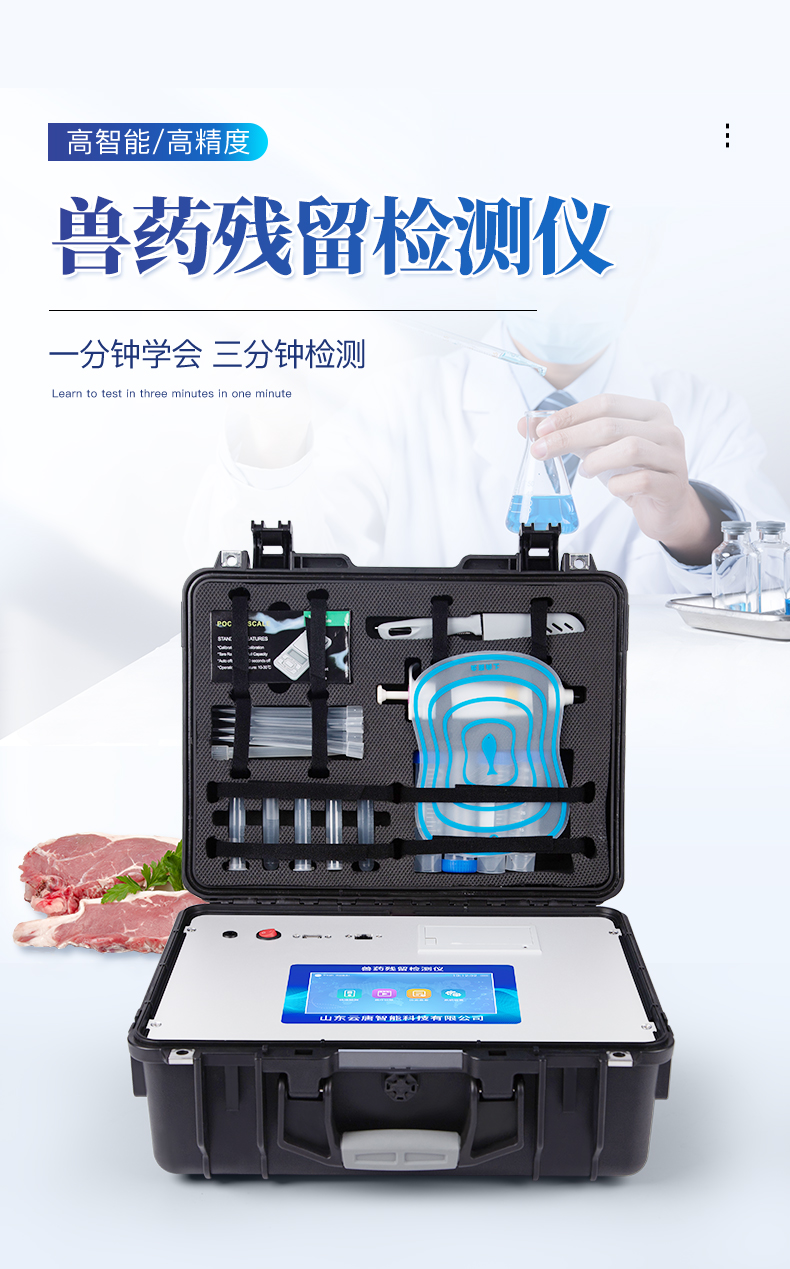

Colloidal gold detector

Product Overview:

The Gold Label Card Reader is a detection product launched by our company for veterinary drug residues, antibiotic residues, toxin residues, non edible chemicals, abused food additives, heavy metals, hormone residues, chemical residues, and animal diseases. The instrument uses colloidal gold to absorb specific wavelengths of light to obtain light absorption peak signals on the T and C lines of the chromatographic test paper. Based on this, the ratio of two peak areas/heights is calculated. Then, a standard curve is created based on the ratio of standard concentration and peak area/height. In the actual testing process, the ratio of two peak areas/heights is obtained through a multifunctional quantitative analyzer, and the quantitative results of the test item can be obtained based on the drawn standard curve. The instrument adopts an intelligent operating platform, advanced light source driving and detection technology, with convenient operation methods and excellent detection accuracy, achieving a perfect unity of reliable and efficient measurement results.

Users can easily complete the entire test through a few simple steps guided by a large color touch screen and a graphical operating interface. The instrument directly displays the content of the tested substance and automatically determines whether the result is qualified by comparing it with the built-in standard. Support for editing and creating new detection methods, which can fully meet the needs of customers with higher accuracy requirements.

Product Usage:

This instrument is widely used by the Food and Drug Administration, health supervision departments, higher education institutions, research institutes, agricultural departments, commercial breeding farms, slaughterhouses, food and meat product deep processing enterprises, animal husbandry and veterinary, inspection and quarantine departments, food production enterprises, agricultural and sideline product wholesale markets, agricultural production bases, supermarkets, restaurants, canteens, and other units to monitor and use unsafe indicators in food.

Application scope:

The gold scale analyzer can quickly detect veterinary drug residues, antibiotic residues, hormone residues, toxin residues, chemical residues, and more than 200 other items on site, such as food additives, pigments, clenbuterol hydrochloride, salbutamol, ractopamine, poppy shell, tetracyclines, nitrofurans, sulfonamides, floxacin, chloramphenicol, melamine, fluoroquinolones, malachite green, porcine blue ear virus, swine fever virus Rapid detection of aflatoxin B1, porcine pseudorabies virus, porcine pseudorabies virus gE protein, porcine foot and mouth disease 3ABC protein, porcine foot and mouth disease virus IgG, porcine parvovirus, avian influenza, etc.

Product performance:

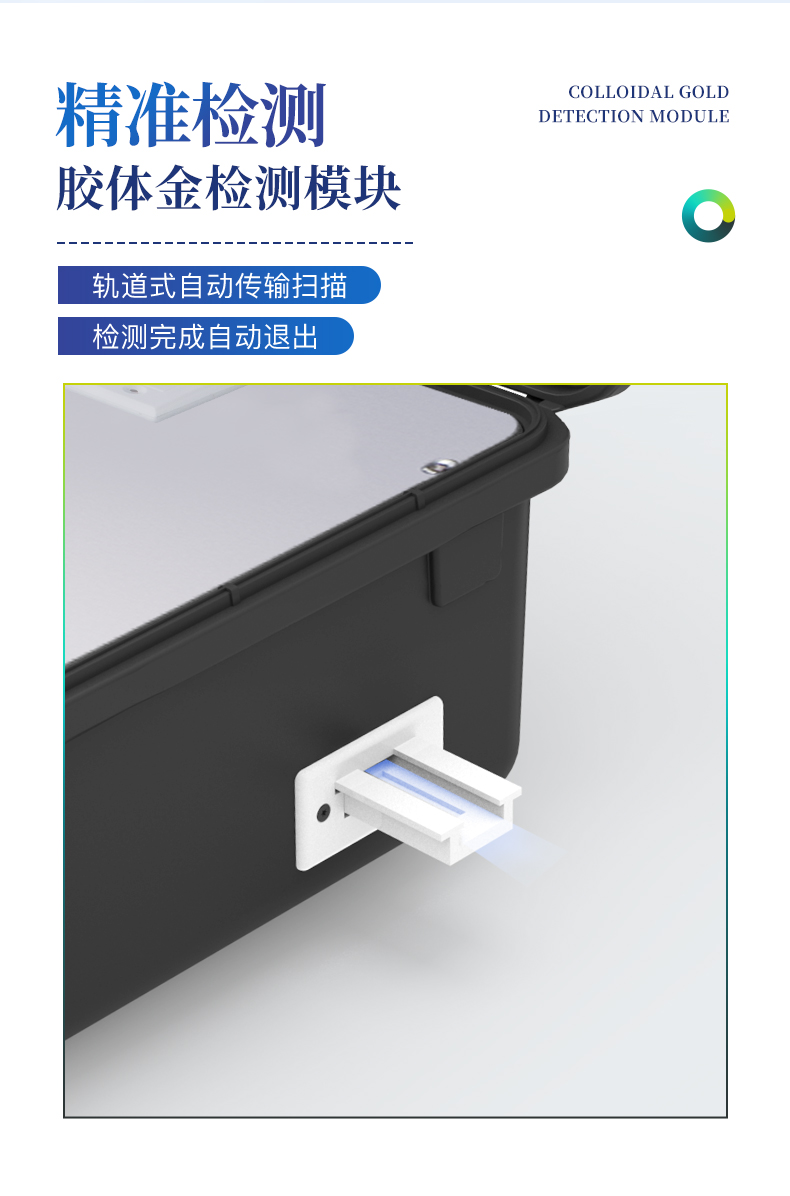

Colloidal gold module detection method: track type automatic transmission scanning, and automatically exit the test paper after the detection is completed.

CT line automatic recognition without manual adjustment.

The sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

High sensitivity, high detection accuracy, high repeatability accuracy, scanning type high-precision optical sensor.

Equipped with a powerful database, you can directly select sample names, testing indicators, testing units, and other information on the instrument. You can also directly edit and enter sample names, testing indicators, testing units, and other information on the instrument and save them in the sample database.

Compatible with all colloidal gold cards in the market, with unrestricted use of consumables, greatly enhancing the user experience.

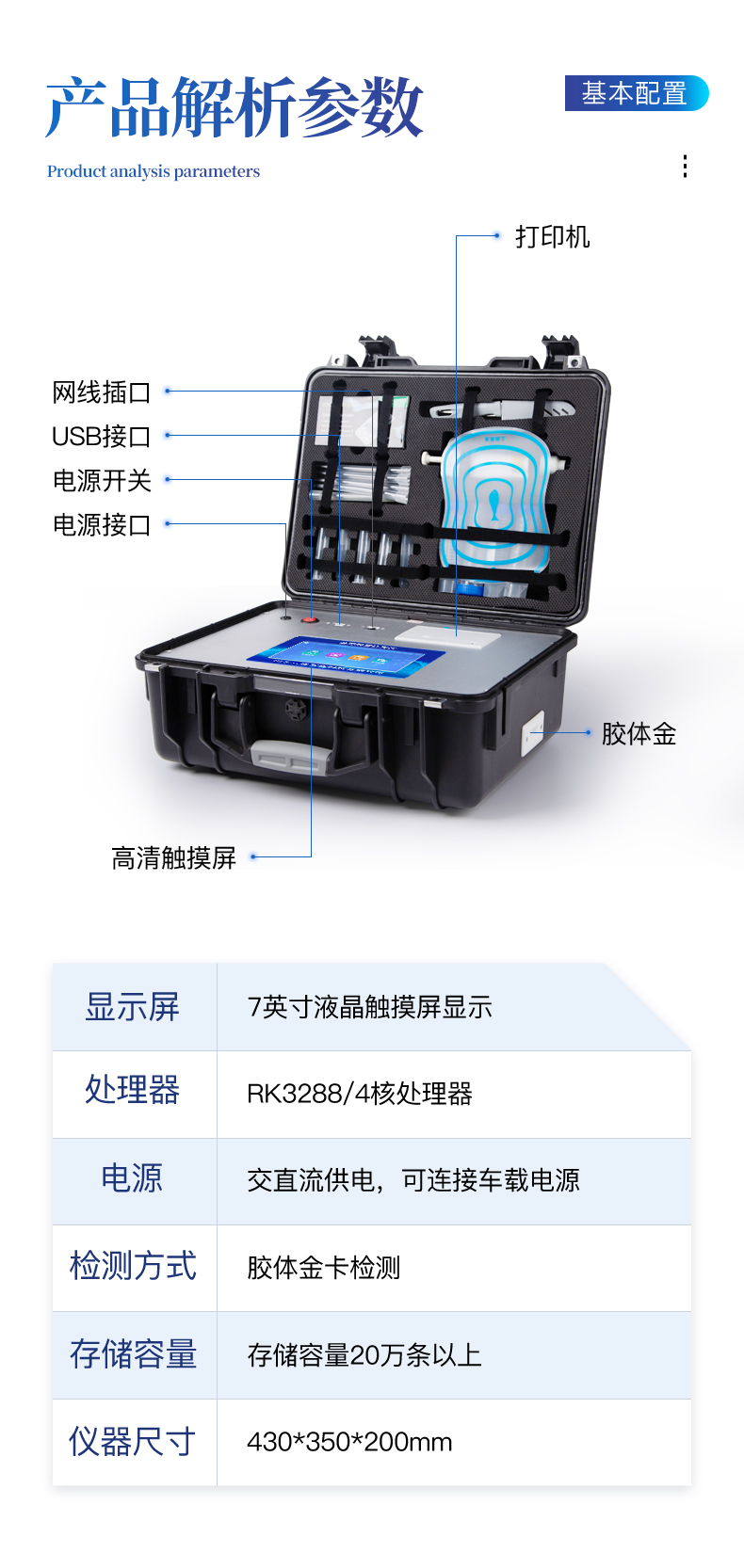

Main parameters:

1. The main control chip adopts a 32-bit processor, which runs faster and has strong stability.

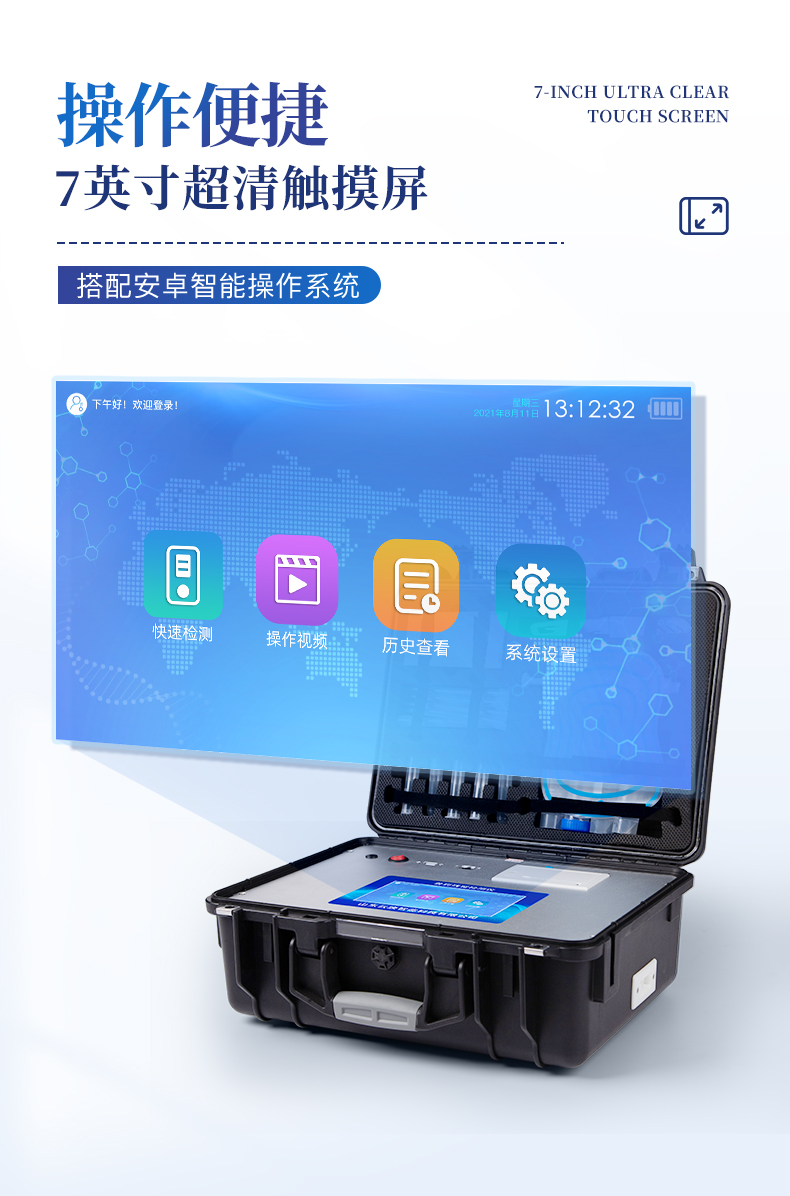

2. Display method: 7-inch liquid

3. DC 12V power supply, can be connected to on-board power supply.

4. Pulse type constant current drive, avoiding continuous luminescence causing light decay and temperature drift.

5. The latest national limited edition standards are built-in and can be continuously updated.

6. Password login can be set

7. Continuous injection and detection

8. Sample numbers are automatically accumulated.

9. The detection items can be expanded.

10. The detection results can be printed and uploaded in batches.

11. The test results are in an Excel spreadsheet, which can be copied by connecting to a computer.

12. Storage capacity of 200000 test results

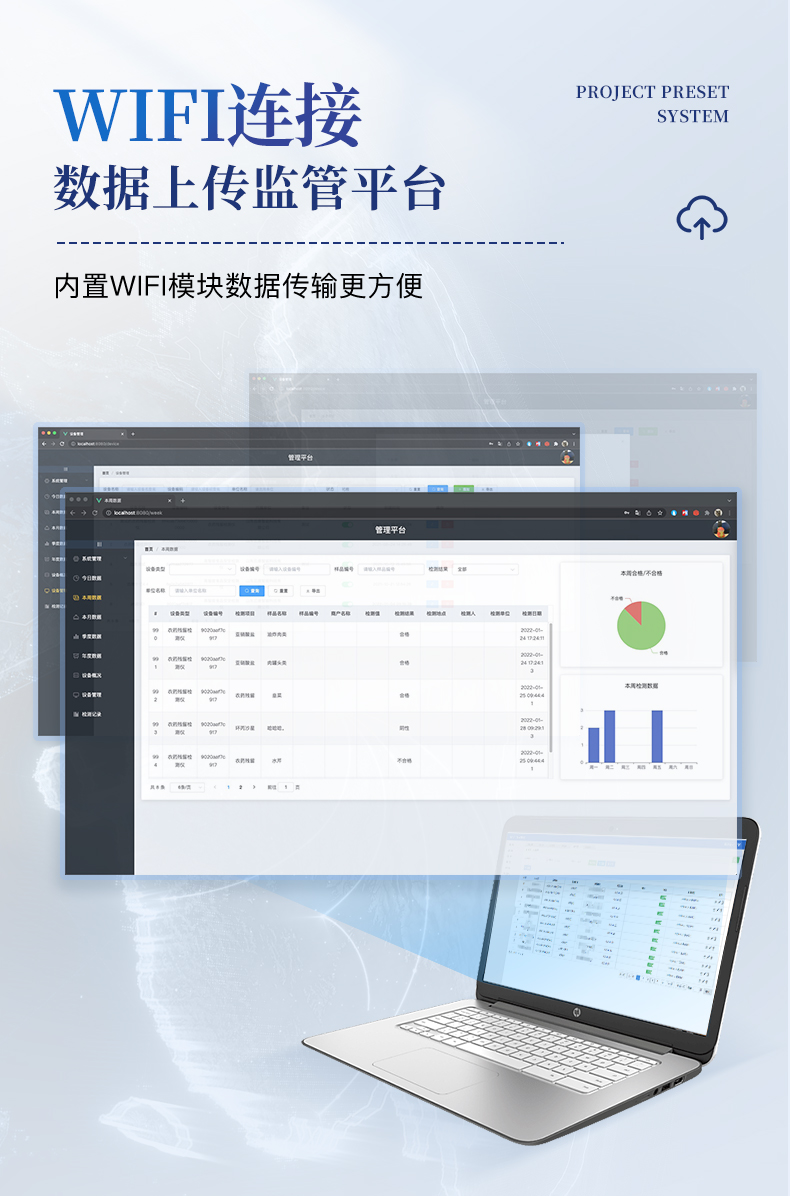

13. Support WiFi network, data can be wirelessly uploaded on LAN and Internet, and test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision and big data analysis and processing, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and warning.

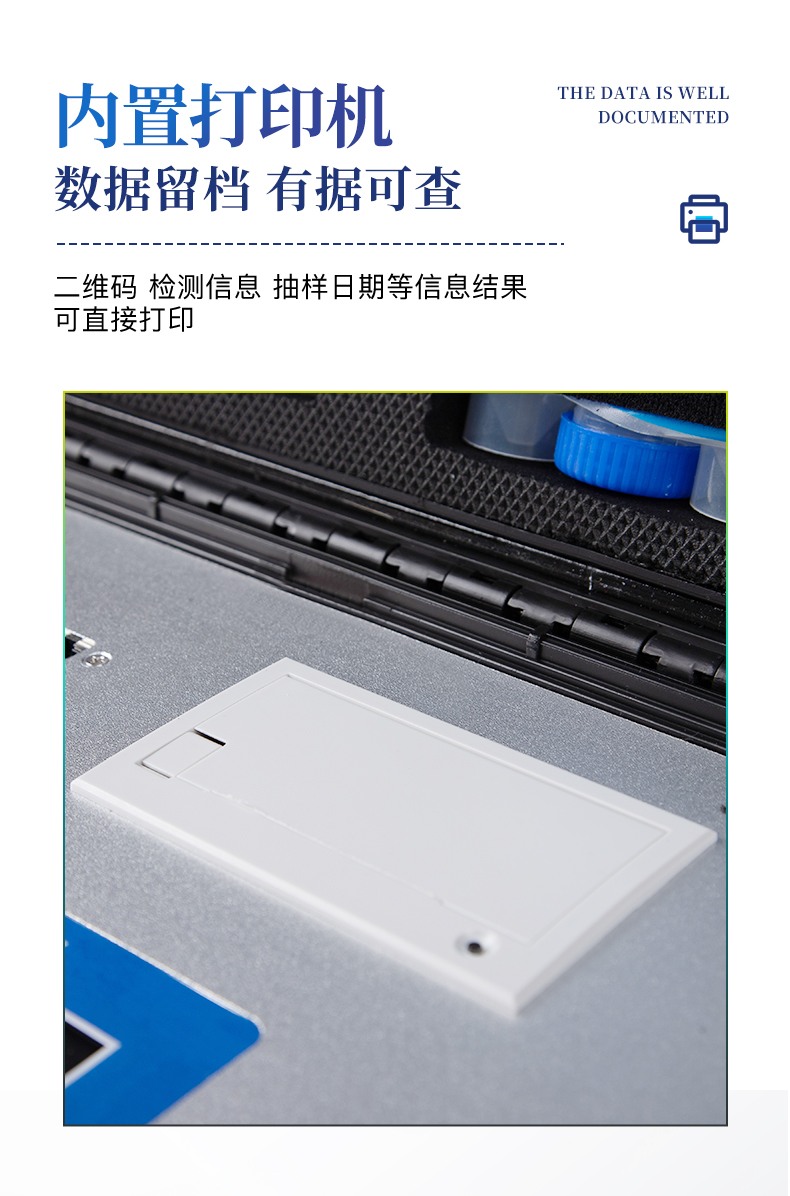

14. High speed thermal printer, which can automatically print detection reports after detection is completed.

15. Standard USB interface, driver free installation.

16. Firmware Upgradable
