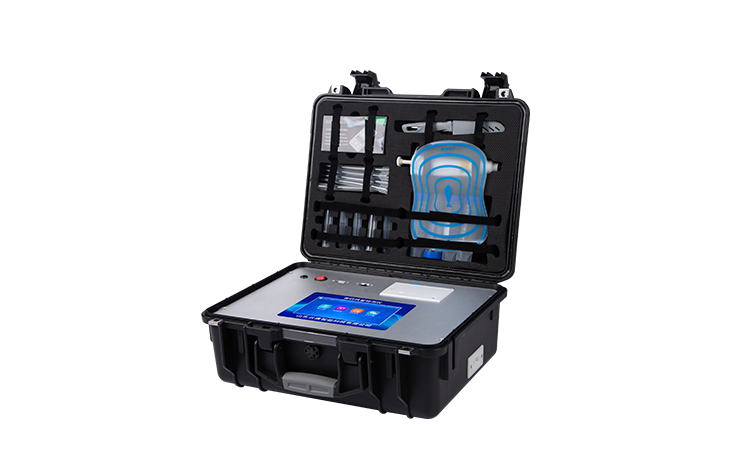

Aquatic product safety detector

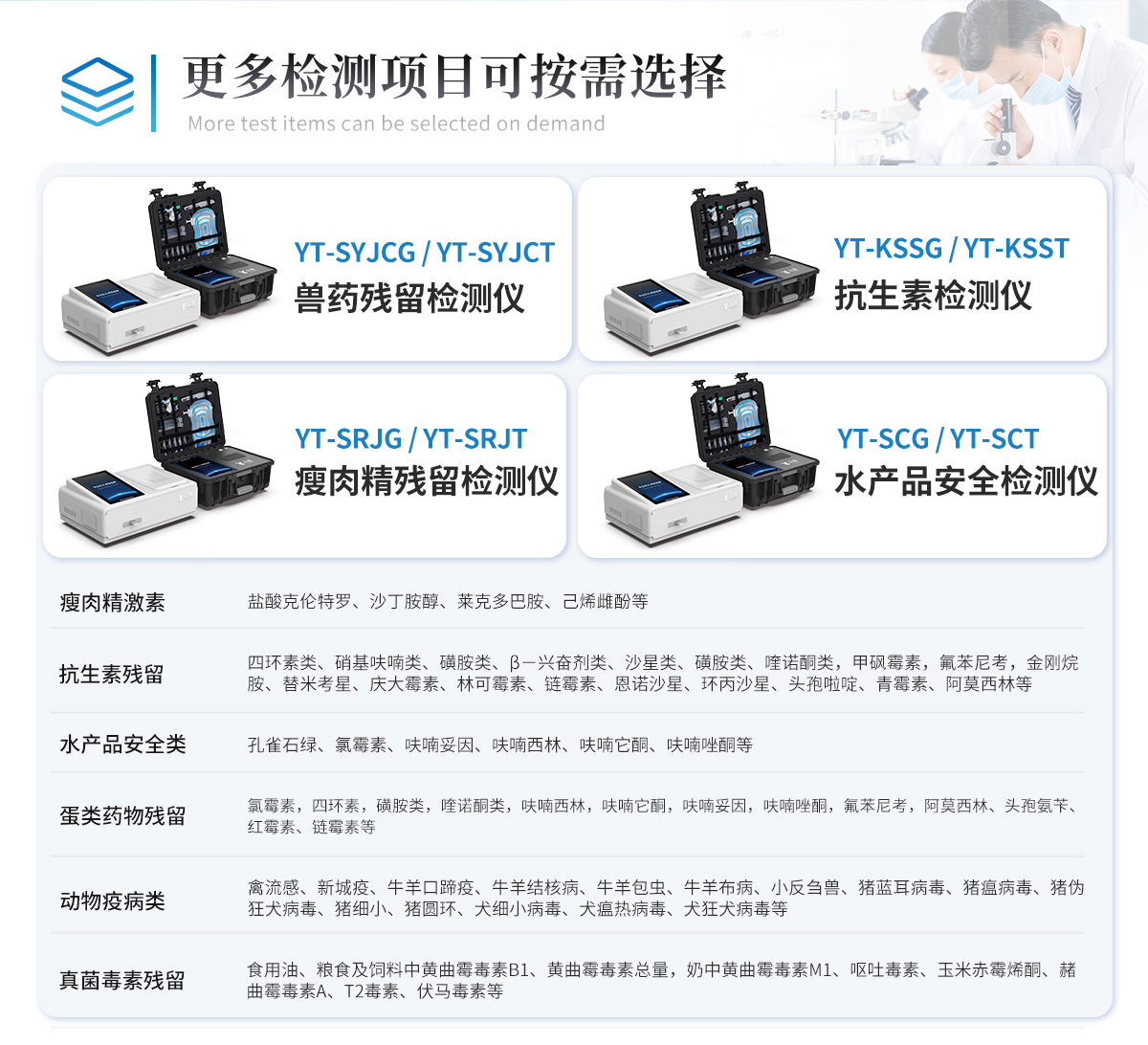

The aquatic product safety detector produced by Shandong Yuntang Intelligent Technology Co., Ltd. can be applied to malachite green, chloramphenicol, nitrofurans in fish, shrimp and other aquatic products: furazolidone (AOZ), furanone (AMOZ), furantoin (AHD), furacilin (SEM), furanas, sulfonamides, hormones, tetracyclines, chloramphenicol, oxytetracycline, thiamphenicol, flufenicol, quinolone drugs: oxquinic acid, norfloxacin, enrofloxacin, etc Qualitative detection of drug residues such as ciprofloxacin and ofloxacin

This instrument is widely used by the Food and Drug Administration, health supervision departments, agricultural departments, commercial breeding farms, slaughterhouses, deep processing enterprises of food and meat products, animal husbandry and veterinary, inspection and quarantine departments, food production enterprises, wholesale markets of agricultural and sideline products, agricultural production bases, supermarkets, restaurants, higher education institutions, canteens and other units to monitor and use unsafe indicators in food.

Main technical performance of the instrument:

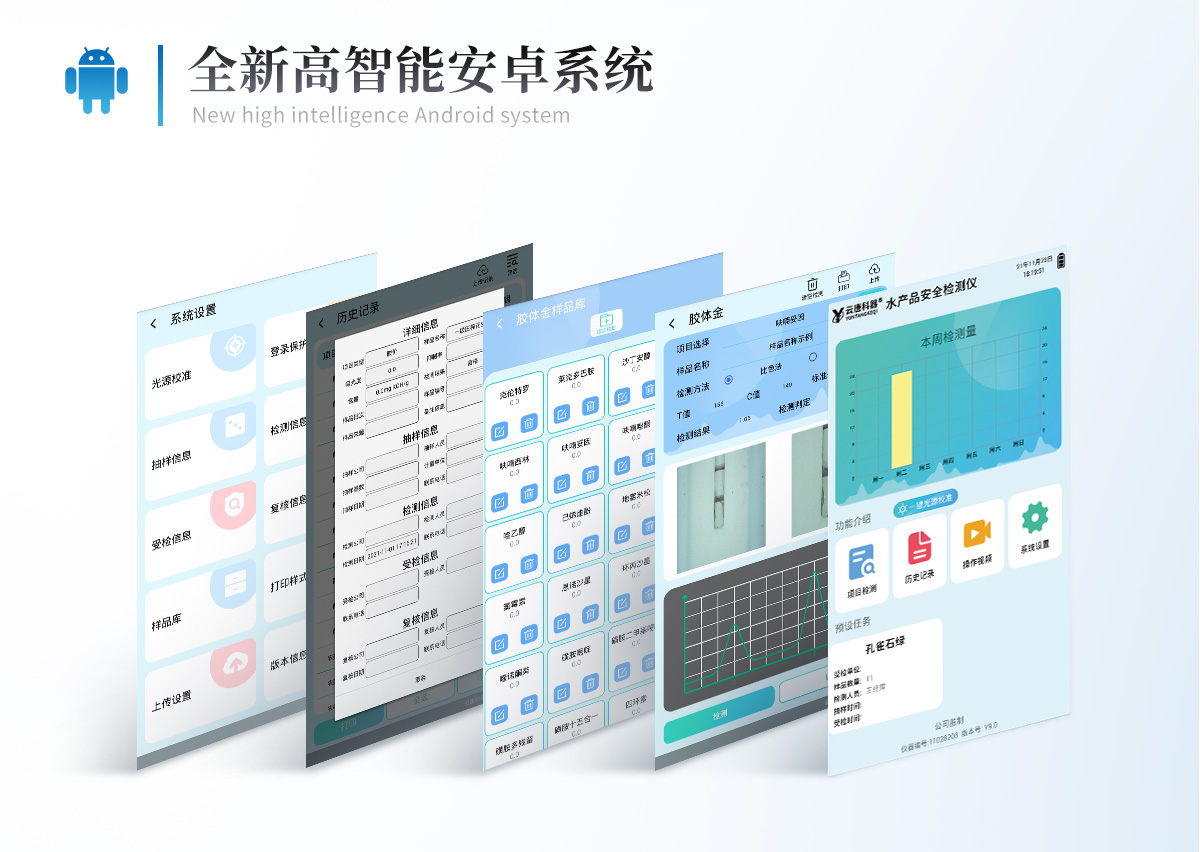

1. The instrument adopts a 10.1-inch LCD touch screen display, paired with the Android intelligent operating system. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, which runs faster and has stronger performance.

2. The instrument functions include: colloidal gold detection module, digital management module, wireless communication module, etc. It can achieve the detection of all detection items under the same software and display the detection results in the same window.

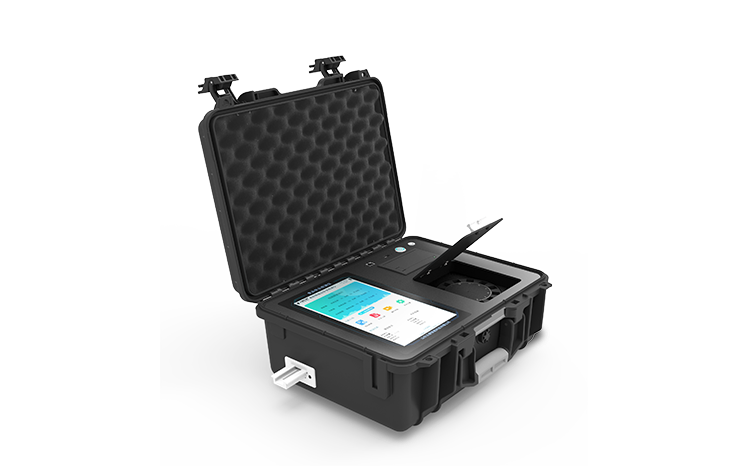

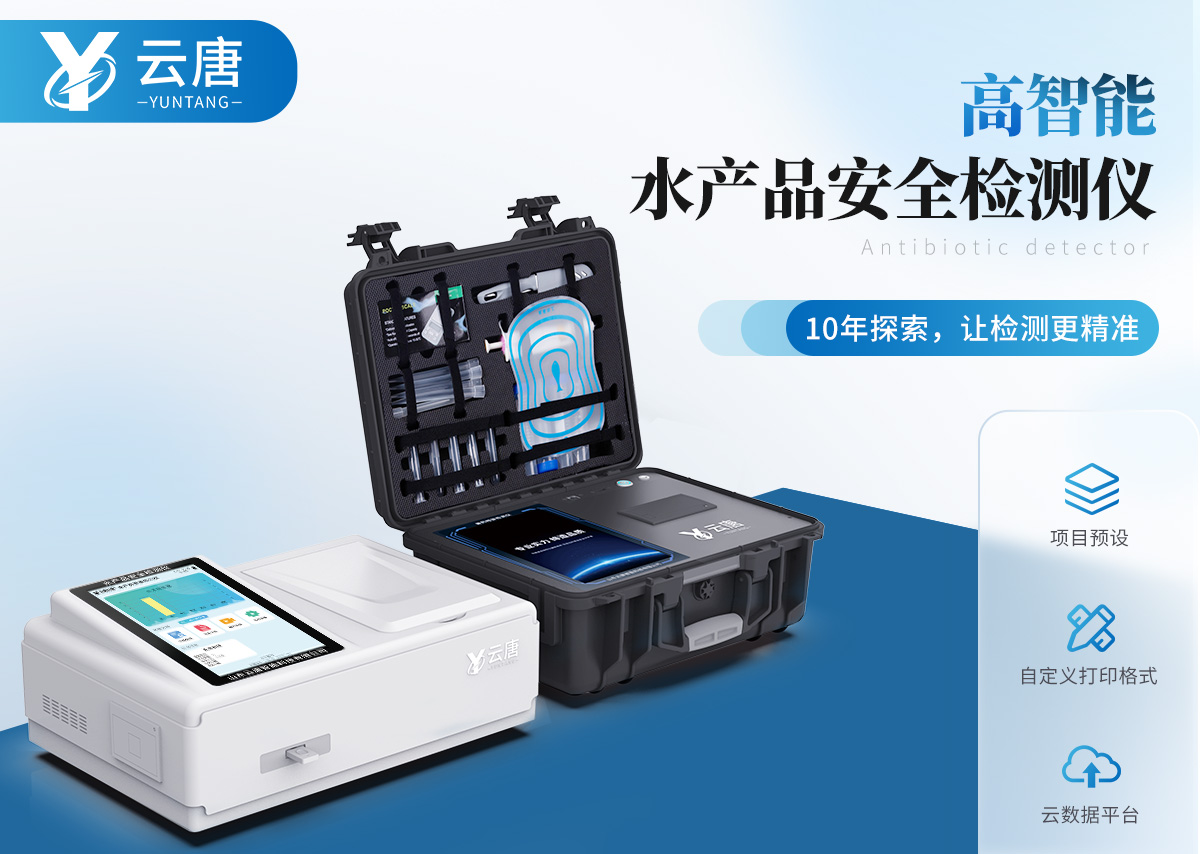

3. Integrated portable quick inspection equipment, using AC and DC dual power supply, can be connected to on-board power supply, equipped with a 6Ah large capacity rechargeable lithium battery, which can meet the needs of on-site and mobile detection use. Instrument size: 43 × thirty-five × 20cm, net weight of host: 5.1kg

4. The system comes with a data integration module, and the device homepage automatically calculates the detection data, including weekly and monthly detection data, total number of all detections, including the total number of detections, qualified and unqualified numbers, as well as relevant column analysis charts. It has a clear grasp of various detection data without the need for computer queries, making it faster and more intuitive.

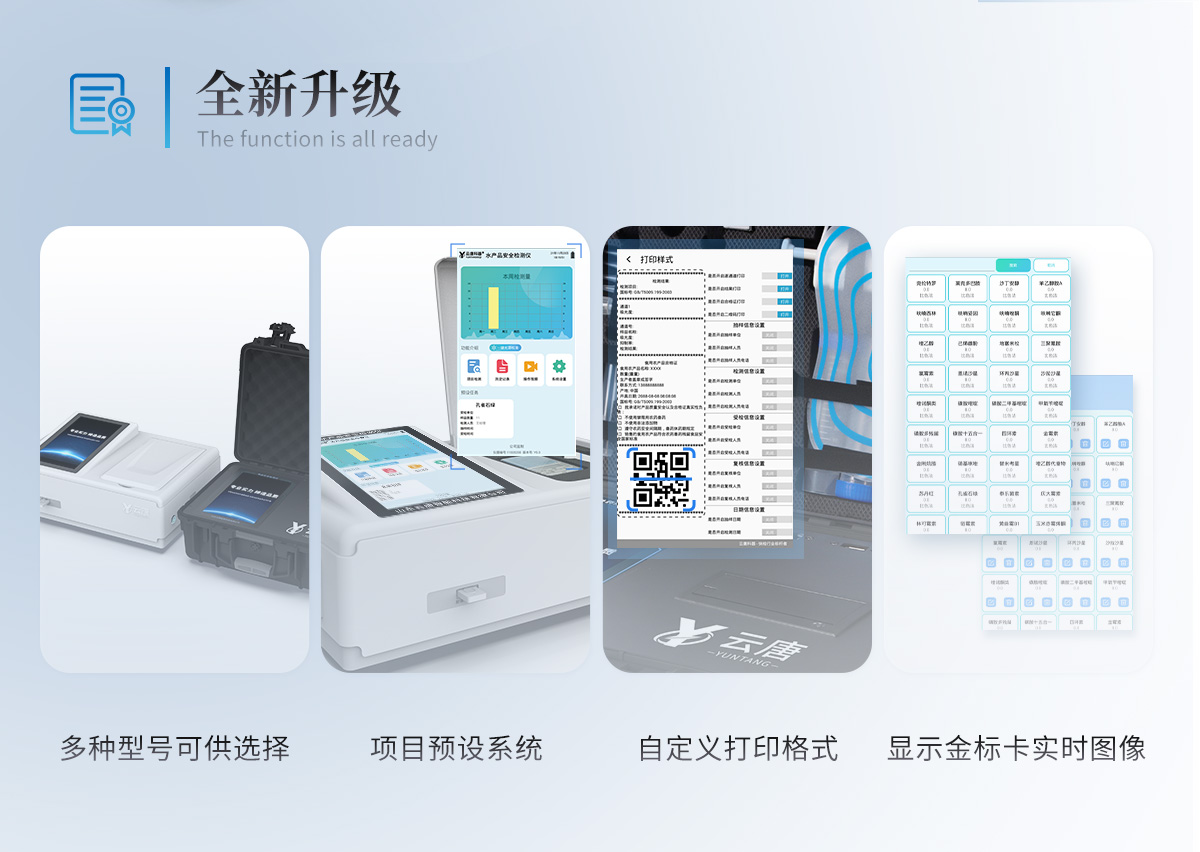

5. The instrument has a task preset module that allows for preset information such as sample name, testing indicators, and testing unit before sample submission for testing. When samples are submitted for testing, the saved information can be retrieved with one click, making testing more convenient and efficient.

Colloidal gold detection module:

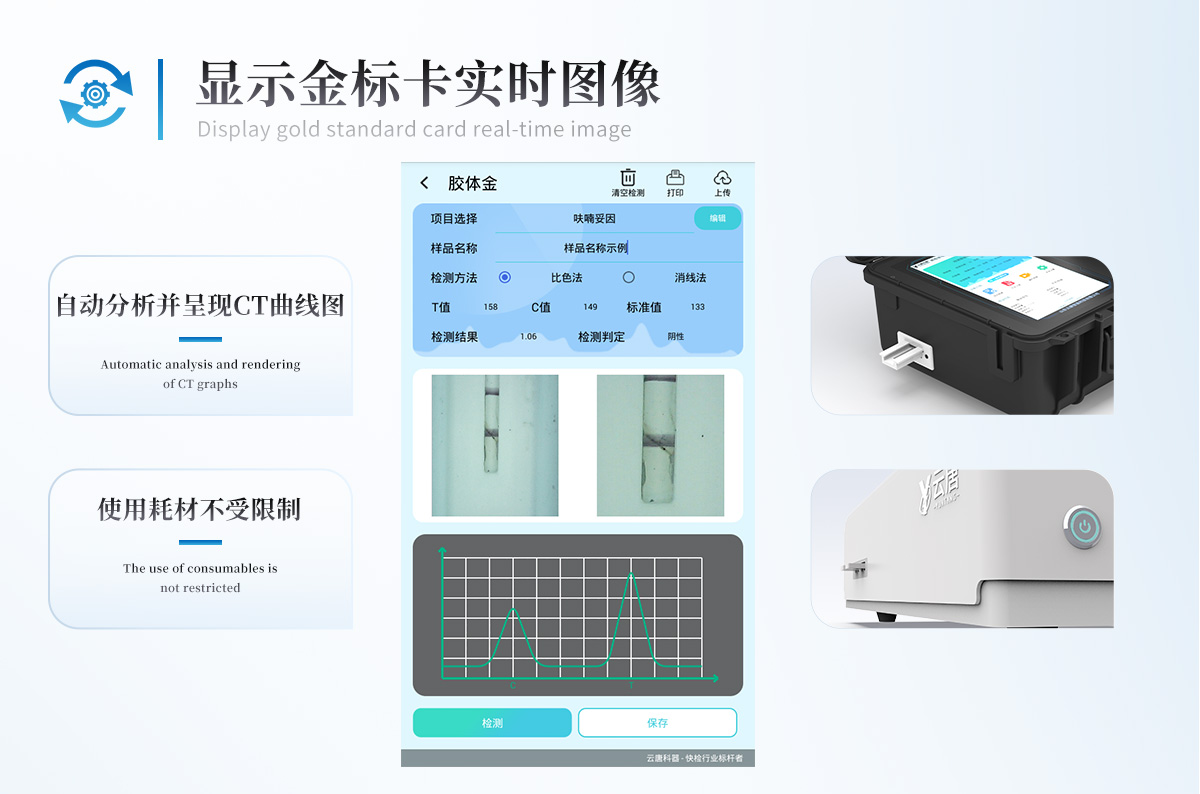

The track type automatic transmission scanning method can display real-time images of gold standard cards, and the system automatically analyzes and presents CT curve graphs. The CT lines are automatically recognized without manual adjustment, and the detection card is automatically exited after completion of the detection.

The result judgment line can be modified, the calibration value of the reference value can be saved, and data will not be lost after power outage.

Compatible with other colloidal gold cards in the market, with unrestricted use of consumables, greatly enhancing the user experience.

 The instrument detection system has a huge database and has built comprehensive retrieval and revision functions. The food library covers a variety of sample names, which can be added, deleted, or edited as needed; The product database and historical inspection records support one click retrieval function.

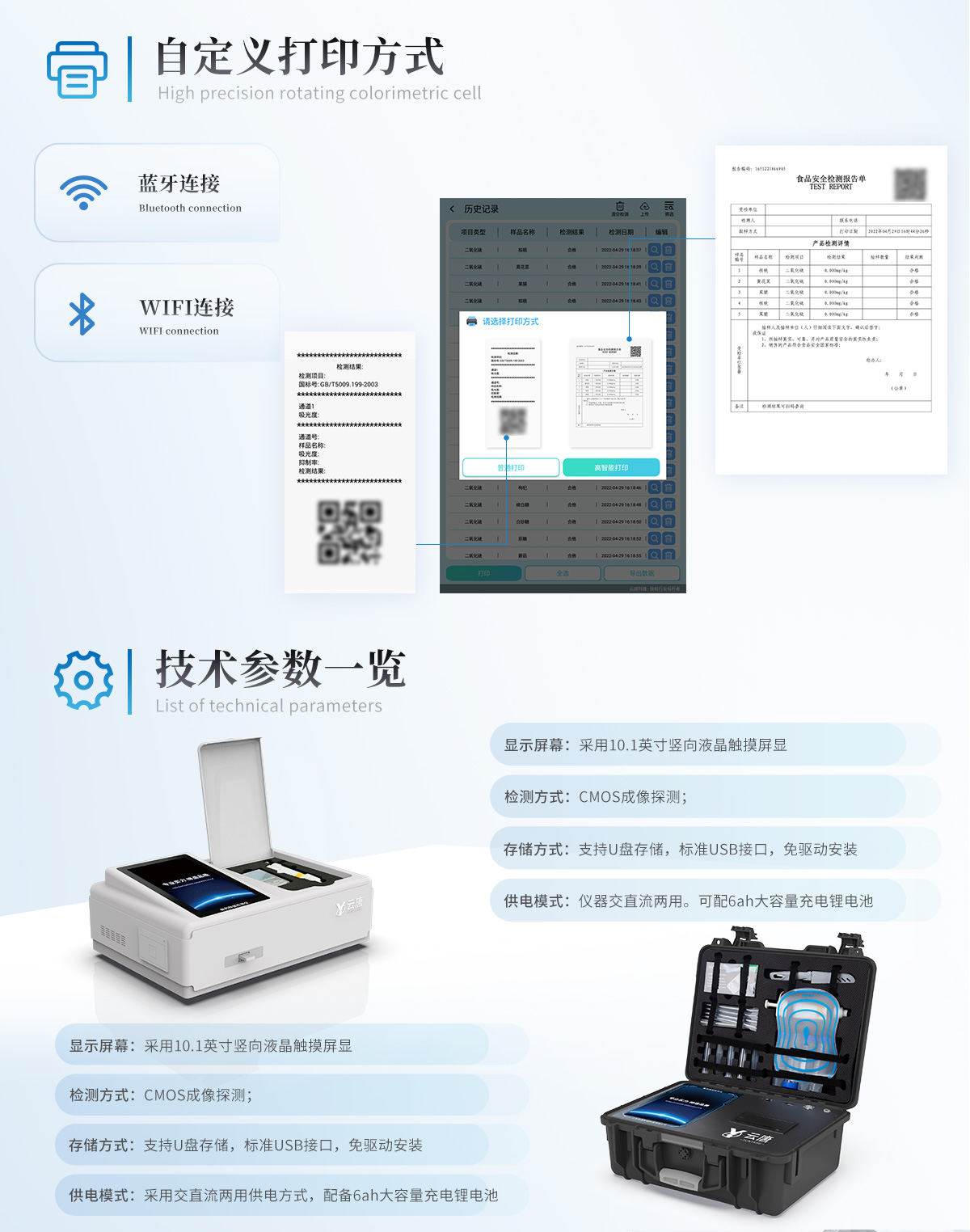

 Customization of system printing, diversified printing formats, product qualification certificate (national standard requirements), QR code, sampling information
