High precision pesticide residue detector

High precision pesticide residue detector

The highly intelligent pesticide residue detector produced by Shandong Yuntang IntelligentTechnology Co., Ltd. adopts a desktop integrated design, which can quickly detectorganophosphorus and carbamate pesticide residues. At present, it is widely used in market supervision bureaus, testing centers, healthsupervision departments, agricultural departments, colleges and universities and canteens ofvarious units, food and meat products deep processing enterprises, supermarkets, judicialdepartments, catering institutions, farms, slaughterhouses, inspection and quarantine departmentsand other units

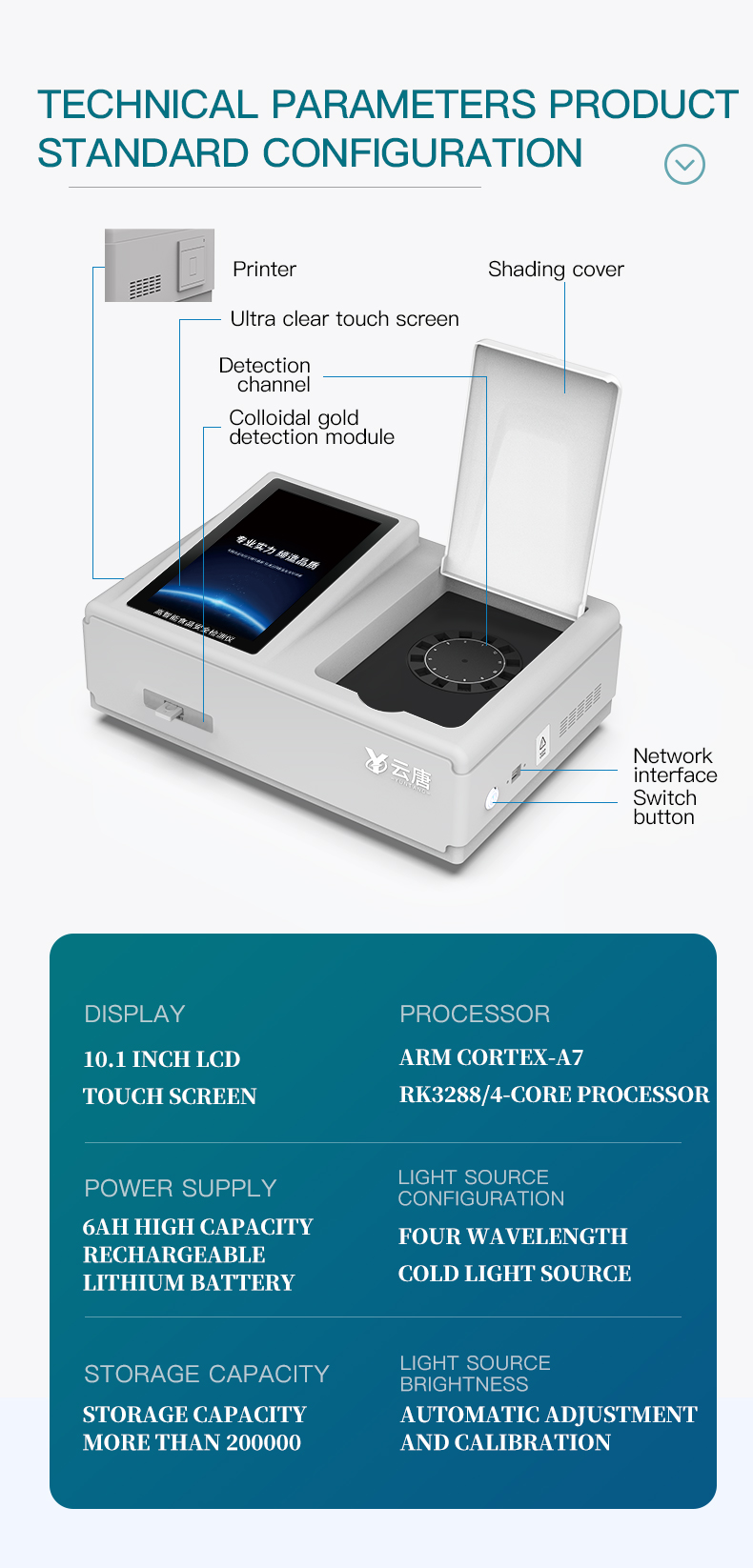

technical parameter:

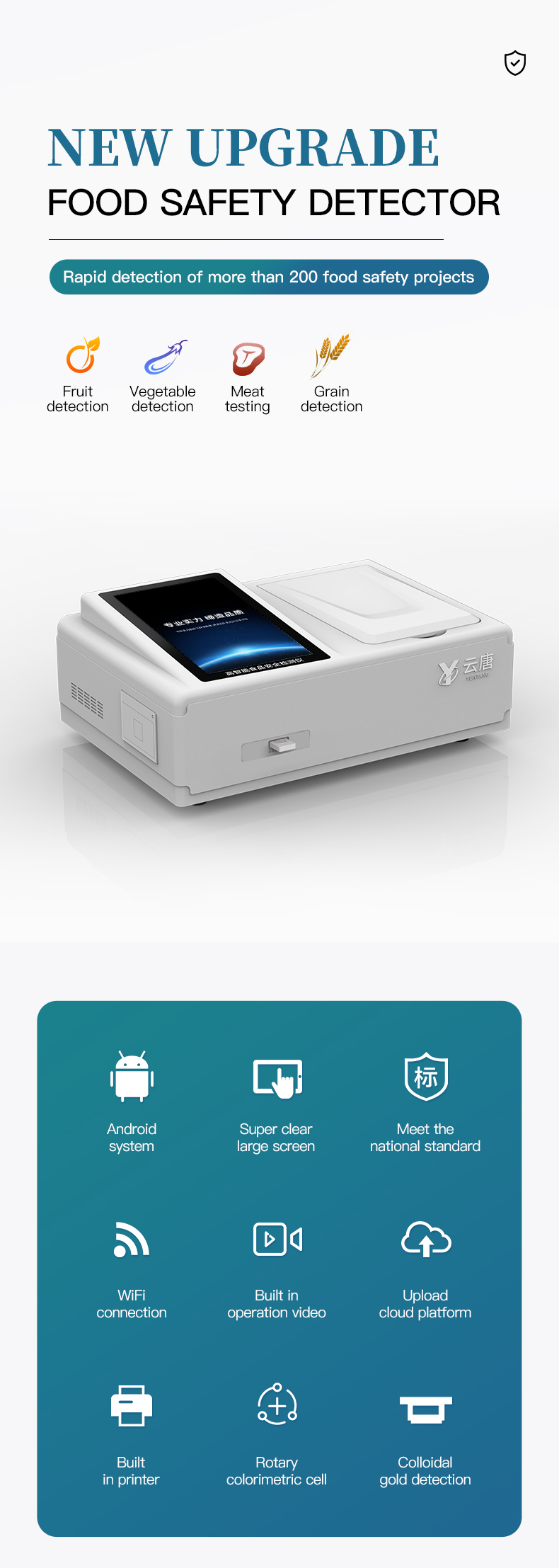

1. The instrument adopts the desktop integrated system detection technology, which highlyintegrates the spectrophotometric module, the digital management module and the wirelesscommunication module, supports the detection of 200 kinds of food safety detection items, andreserves the upgrade detection method at the same time.

2. The instrument detection module is standardized and intelligent, and the detection items can befreely combined. The detection box has built-in multiple standard detection units, and thedetection module can be adjusted in configuration.

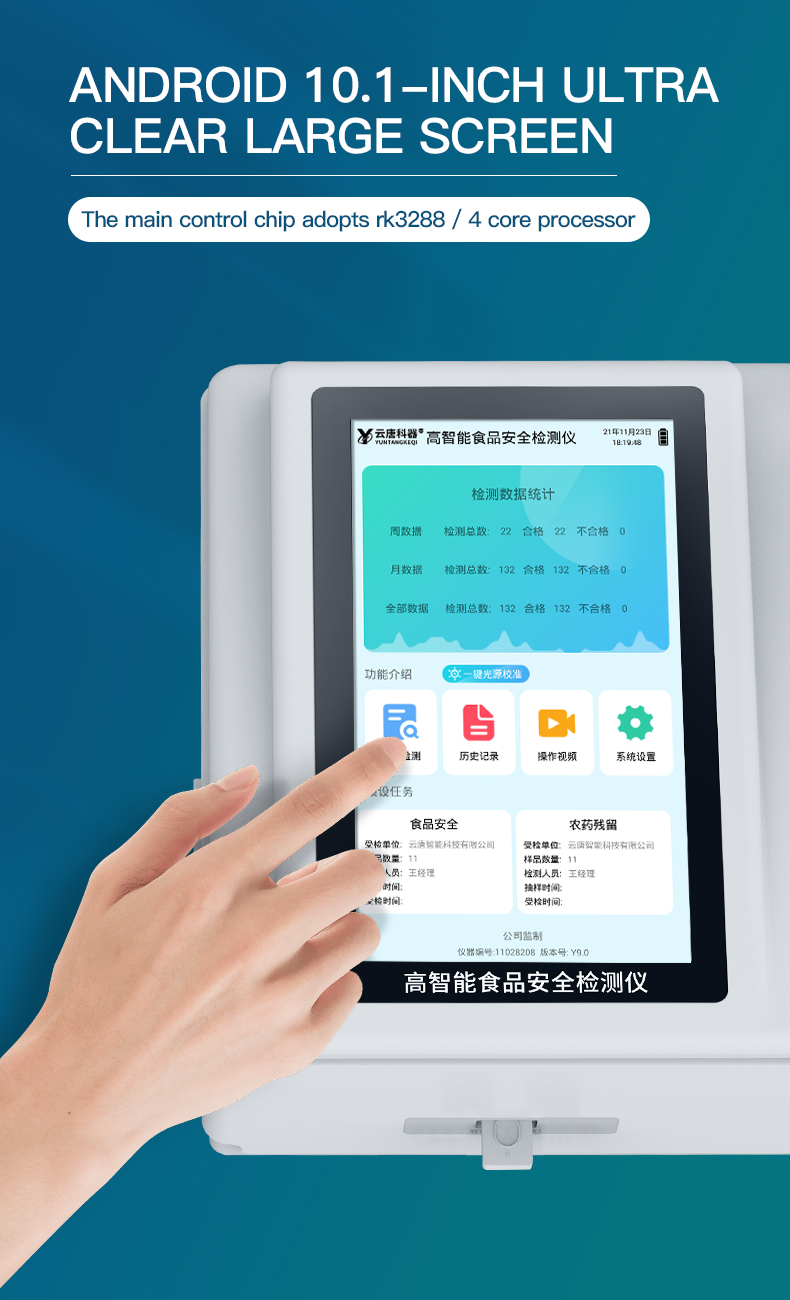

3. Display screen: The instrument adopts a 10.1-inch vertical LCD touch screen display, and runsAndroid intelligent operating system. The main control chip adopts ARMCortex-A7, RK3288/4-core processor, main frequency 1.88Ghz, convenient operation and strongerperformance.

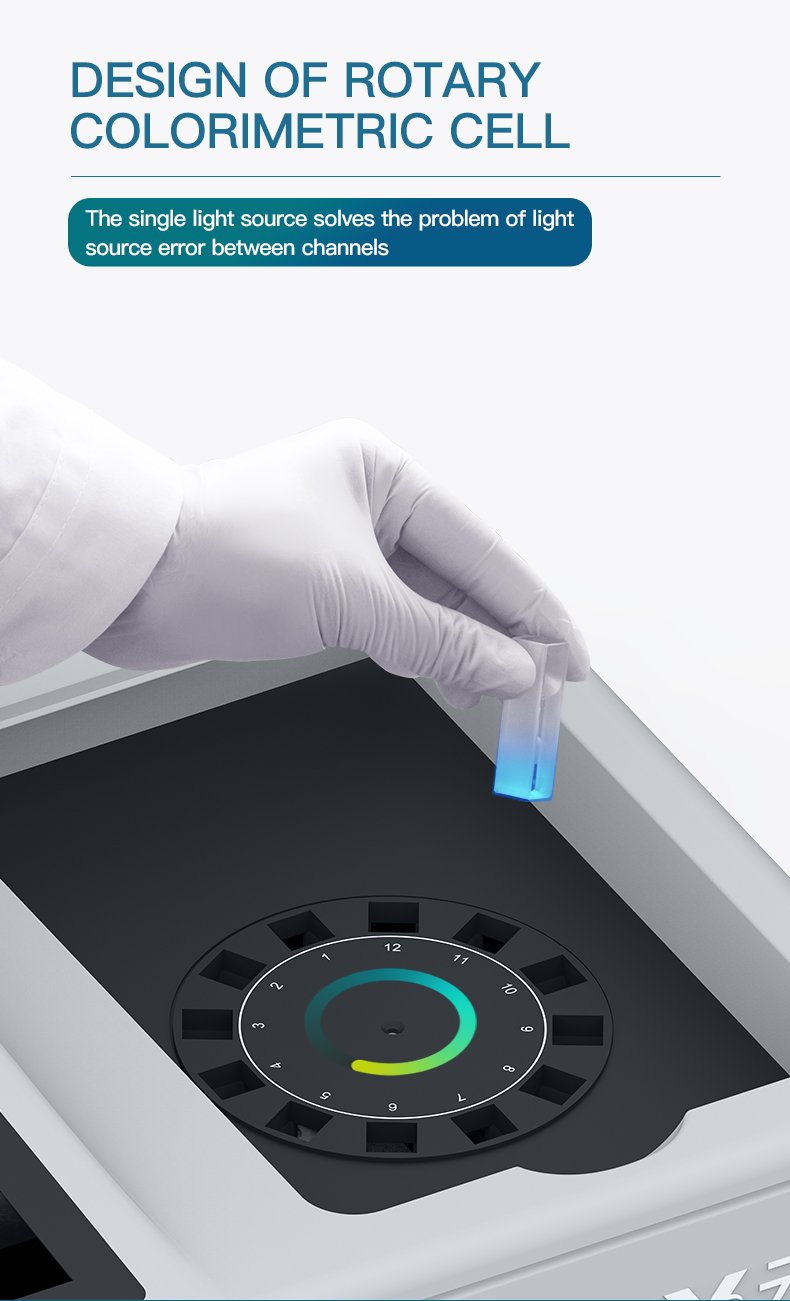

 4. Detection channel: ≥12 channels; adopting the design of precision rotating colorimetric cell, using the same chip and the same light source to calibrate the accuracy, to solve the error valuebetween different light sources, more accurate and efficient. (The error between 1-12 channels is0.1%, patent number: ZL202022821055.2)

5. Instrument light source: high-precision imported four-wavelength cold light source, eachchannel is equipped with 410, 520, 590, 630 nm wavelength light sources, equipped withadvanced optical path switching device as standard, the patented optical path switching functioncan achieve 64 wavelengths, and all detection items can be To achieve simultaneous detection ofall channels.

 6. The device can be calibrated with one key, automatically save the calibration data, andautomatically compare and verify to obtain accurate light sources. Android SP is used to store data, and the light source data will never be lost, which is convenient for every use.

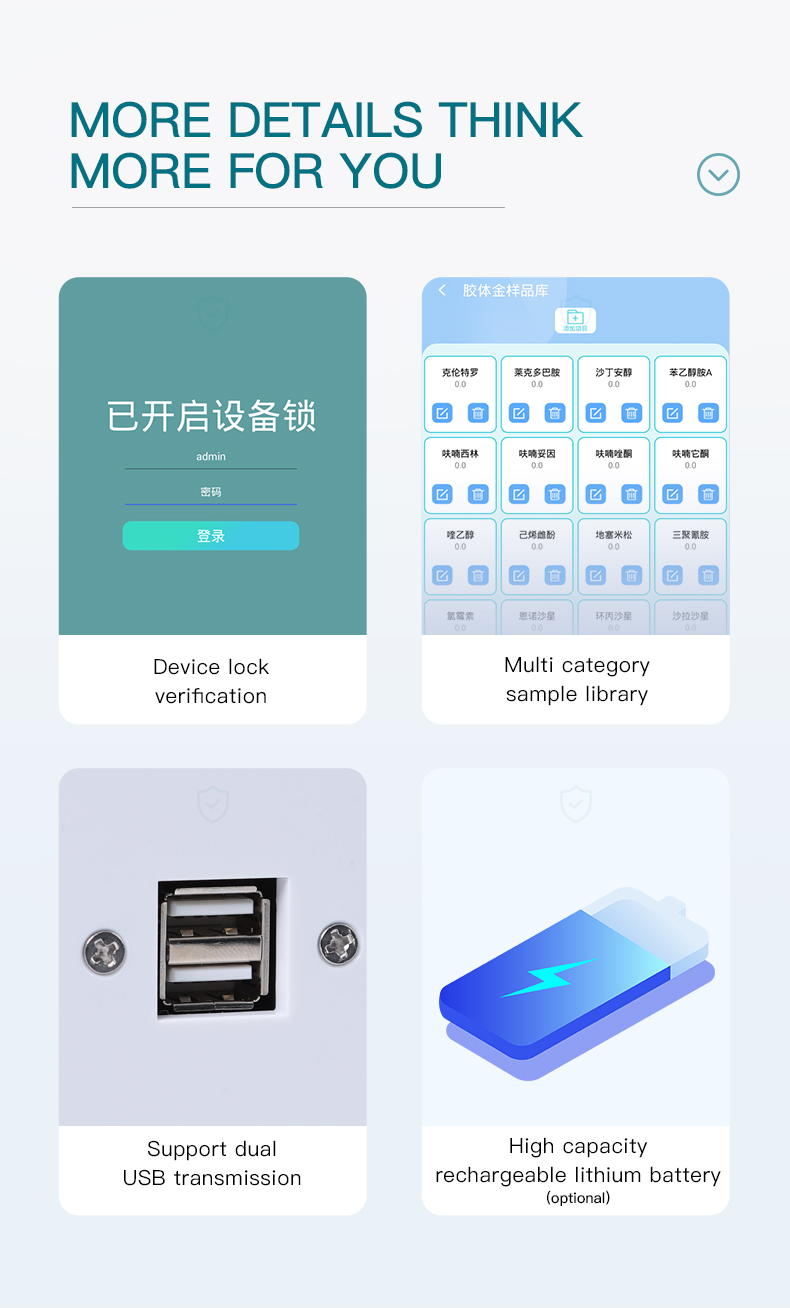

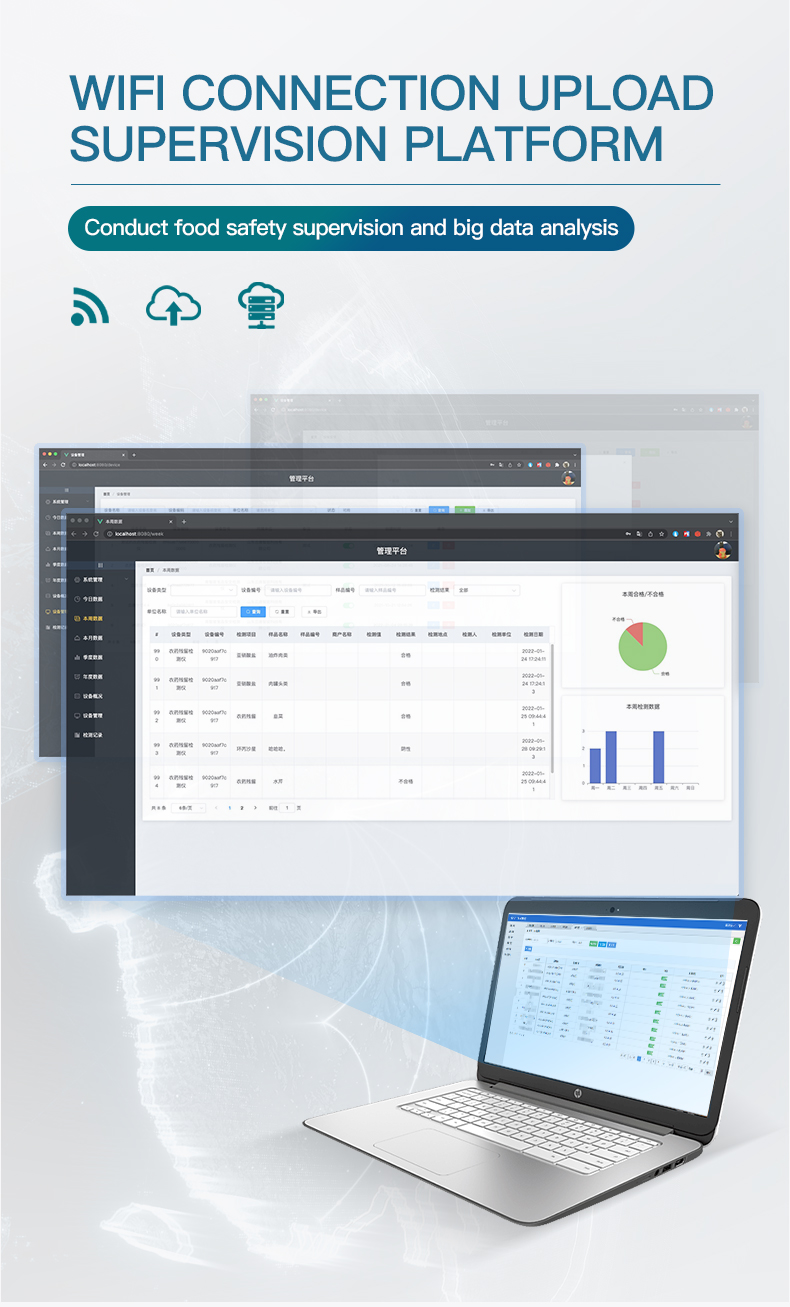

7. Communication interface: Equipped with wireless communication module, 4G(APN)communication module, Bluetooth transmission, dual USB interface and RJ45 network cableinterface, which can realize data storage and data transmission in multiple ways.

8. Storage method: support U disk storage, standard USB interface, driver-free installation. Thestorage capacity of the test results is more than 200,000, and the Excel table can be generated forcopying, and it has the function of login protection.

9. Intelligent operating system:

9.1. Operating system: The instrument can automatically correspond to the relevant detectionchannels on the same detection interface, and select 1-12 sample names at one time, withoutexiting the interface, saving operation time. And you can edit the attributes and sampleinformation of each channel separately, such as the inspection unit, personnel, inspectionpersonnel, etc., check the print display when printing.

9.2. Data integration system: The home page of the equipment automatically summarizes andanalyzes the test data, including: weekly test data, monthly test data, and total number of tests, including the total number of tests, qualified numbers, unqualified numbers, and related columnanalysis charts, various The test data is clear at a glance, no computer query is required, and it isfaster and more intuitive.

9.3. Database system: dozens of database classification management instruments: includingproject type, project data, test data, historical record, national standard information, curveinformation, sampling information, test information, inspection information, review information, chart information, light source calibration Information, printing style information, sample libraryinformation, etc., the databases coordinate and link with each other to ensure the true integrity ofthe data. At the same time, the product database and historical inspection records support one-clickretrieval function.

 9.4. Limitation Judgment System: It has a limit query and a compliance judgment systemforadded substances. After detecting the results, the system automatically calls the relevant nationalstandards in the system database for comparison and judgment, and objectively displays whetherthe judgment results are qualified.

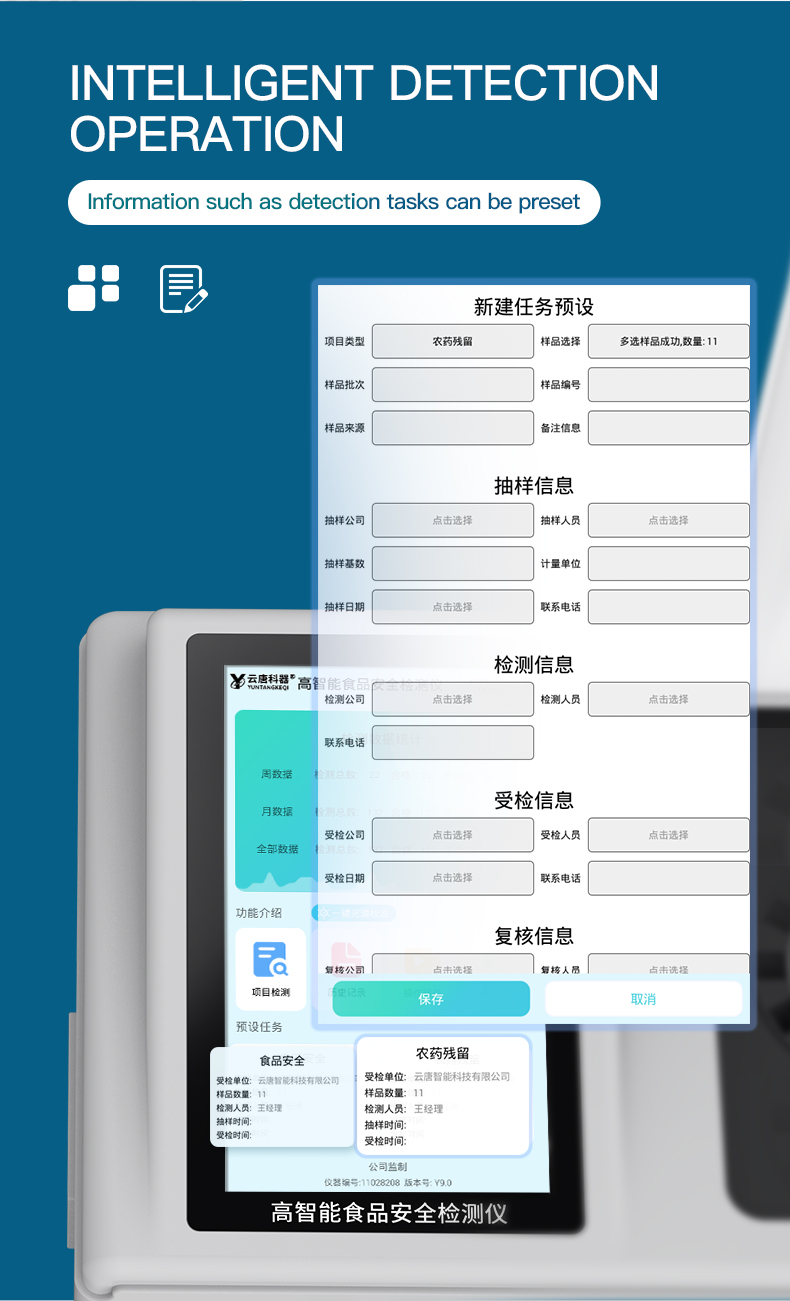

9.5. Project preset system: The instrument has a task preset module, which can be preset inadvance with one key, and provides a convenient and fast new detection scheme. Each task can beset with different samples, batches, numbers, sources, remarks, and sampling information. , testinformation, inspection information, review information and more. When the sample is submittedfor inspection, the saved information can be retrieved with one key, and can be retrieved multipletimes, which greatly improves the detection efficiency.

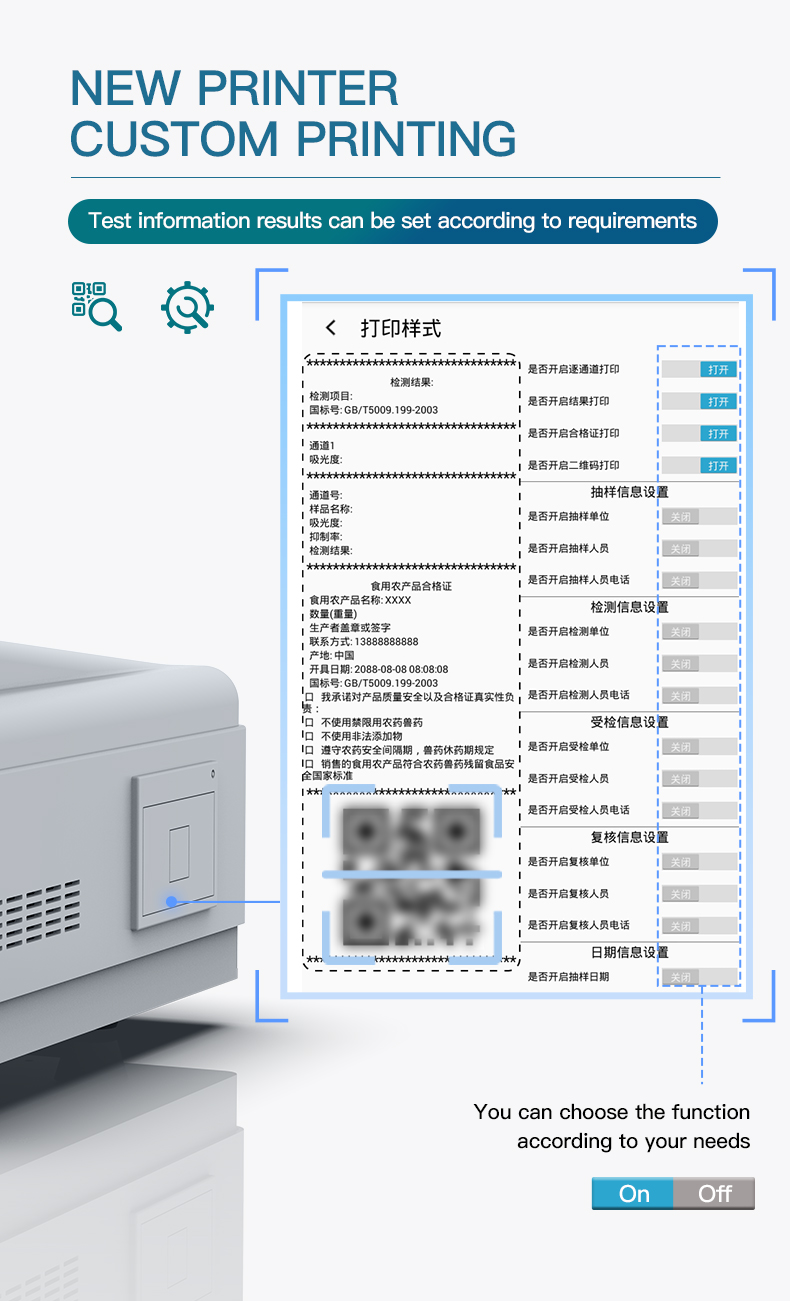

9.6. Printing system: Built-in brand new printer, newly created custom printing method, can beflexibly selected as needed Control: product certificate (standard requirements of the Ministry ofAgriculture), two-dimensional code, sampling information, testing information, inspectioninformation, review Printing of information, sampling date, testing date, etc.

10. Power supply mode: The instrument is AC and DC dual-use, DC 12V power supply, can beconnected to the vehicle power supply, can be equipped with a 6ah large-capacity rechargeablelithium battery, and the power can be displayed in real time, which is convenient for outdoormobile testing.

11. Equipment size: (L*W*H) 440*300*180mm

12. The instrument has added the remote upgrade function, which can be updated according to thespecific customer and the instrument. It will be automatically updated after starting up, and thecustomer can upgrade the new project without any operation. Real-time remote upgrade of testinginstruments can be achieved without returning or replacing the machine.
