Rotary food safety detector (double gold label)

Product Introduction Materials:

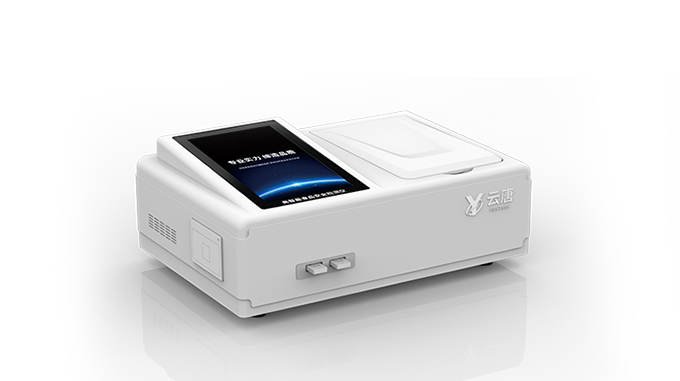

The highly intelligent food safety detector produced by Shandong Yuntang Intelligent Technology Co., Ltd. is an integrated fast detection and analysis equipment for food safety. It adopts a desktop integrated design and can quickly detect over 200 food safety items, including non edible chemicals, abused food additives, pesticide residues, veterinary drug residues, heavy metals, diseased meat, nutritional fortifiers, antibiotic residues, hormone residues, fungal toxin residues Qualitative and quantitative detection of chemical residues and other items.

This highly intelligent food safety detector is an integrated fast detection and analysis equipment for food safety. It is currently widely used in units such as the Food and Drug Administration, health departments, higher education institutions, research institutes, agricultural departments, breeding farms, slaughterhouses, food and meat product deep processing enterprises, and inspection and quarantine departments.

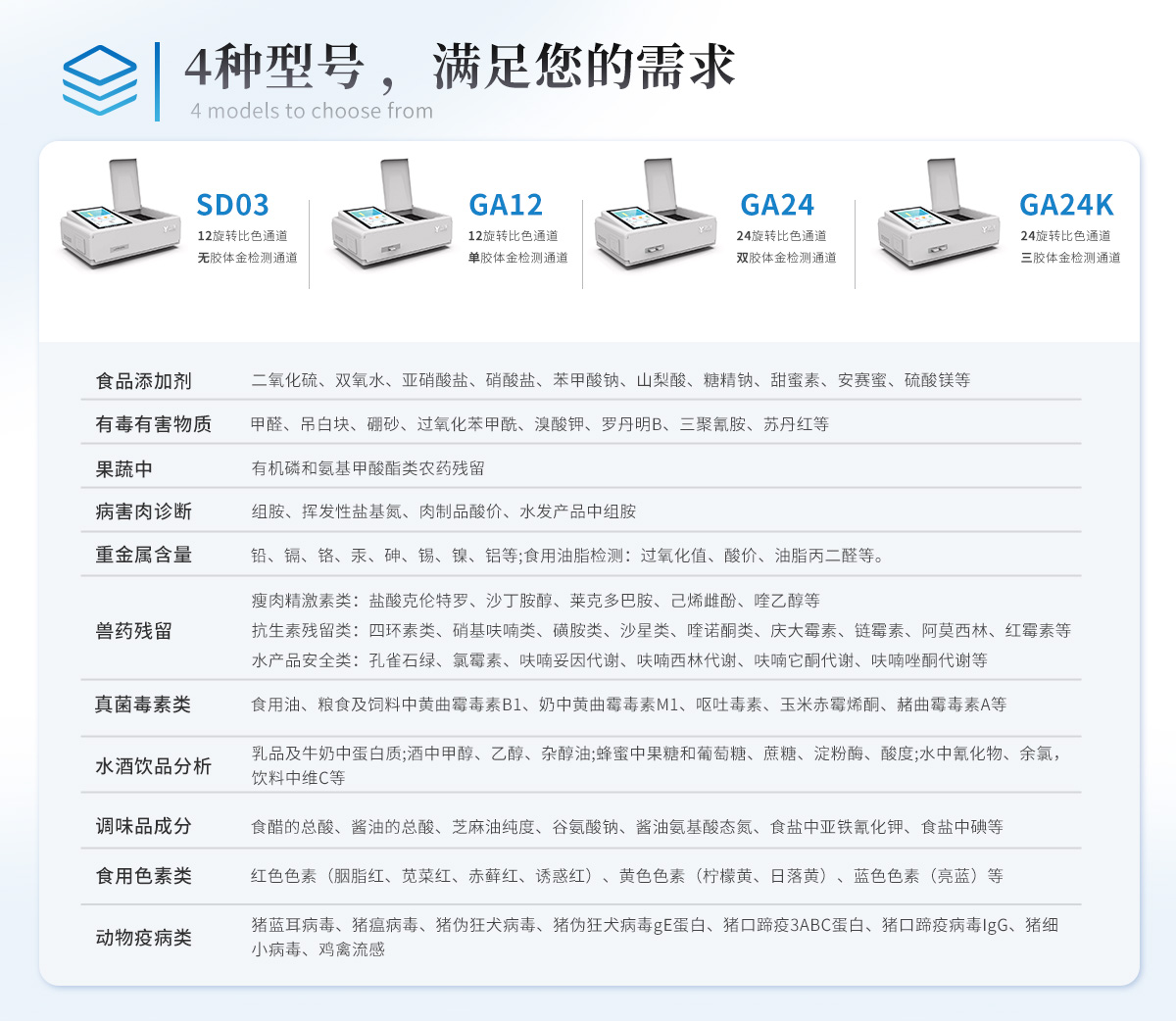

Instrument testing items:

Food additives: sulfur dioxide, hydrogen peroxide, nitrite, sodium benzoate, nitrate, potassium sorbate, sorbic acid, acesulfame, saccharin sodium, sodium cyclamate, agaric magnesium sulfate, tea polyphenols, etc

Toxic and harmful substances such as formaldehyde, sodium carbonate, borax, aluminum in flour, potassium aluminum sulfate, benzoyl peroxide, potassium bromate, rhodamine B, Sudan red, industrial alkali, urea, alum, etc

Edible oil detection for peroxide value, acid value, etc

Pesticide residues in fruits and vegetables

Diagnosis of Disease Meat Histamine and Volatile Base Nitrogen

Heavy metal content: lead, cadmium, hexavalent chromium, mercury, arsenic, tin, nickel, aluminum, etc

Alcohol and protein in milk, methanol and ethanol in wine, protein in dairy and milk, sodium thiocyanate and melamine in dairy,

Fructose and glucose, sucrose, amylase, acidity, etc. in honey

Seasoning ingredients: total acid of vinegar, total acid of soy sauce, sodium sulfide of monosodium glutamate, sodium glutamate of monosodium glutamate, amino acid nitrogen of soy sauce, potassium ferrocyanide in table salt, iodine in table salt, etc

Food pigments such as red pigments (carmine, amaranth, allure red), yellow pigments (lemon yellow, sunset yellow, alkaline orange), blue pigments (bright blue, indigo), etc

Leptin hormone (veterinary medicine) clenbuterol hydrochloride, salbutamol, ractopamine, diethylstilbestrol, etc

Antibiotic residues (veterinary drugs) tetracyclines, nitrofurans, sulfonamides β－ Stimulants, floxacin, sulfonamides, quinolones, thiamphenicol, flufenicol, amantadine, temicoxacin, gentamicin, lincomycin, streptomycin, enrofloxacin, ciprofloxacin, cefradime, penicillin, amoxicillin, etc

Aquatic product safety category: malachite green, chloramphenicol, furantoin, furacilin, furanone, furazolidone, etc

Egg drug residues such as chloramphenicol, tetracycline, sulfonamides, quinolones, furacilin, furantazone, furantoin, furazolidone, flufenicol, amoxicillin, cephalexin, erythromycin, streptomycin, etc

Residual fungal toxins in edible oil, grains, and feed, including aflatoxin B1 and total aflatoxin content, as well as aflatoxin M1, vomiting toxin, zearalenone, ochratoxin A, T2 toxin, fumatoxin, etc. in milk

Animal epidemics: avian influenza, newcastle disease, foot and mouth disease of cattle and sheep, tuberculosis of cattle and sheep, hydatid disease of cattle and sheep, brucellosis of cattle and sheep, small ruminants, porcine blue ear virus, swine fever virus, swine pseudorabies virus, porcine parvovirus, porcine circovirus, canine parvovirus, canine distemper virus, canine rabies virus, etc

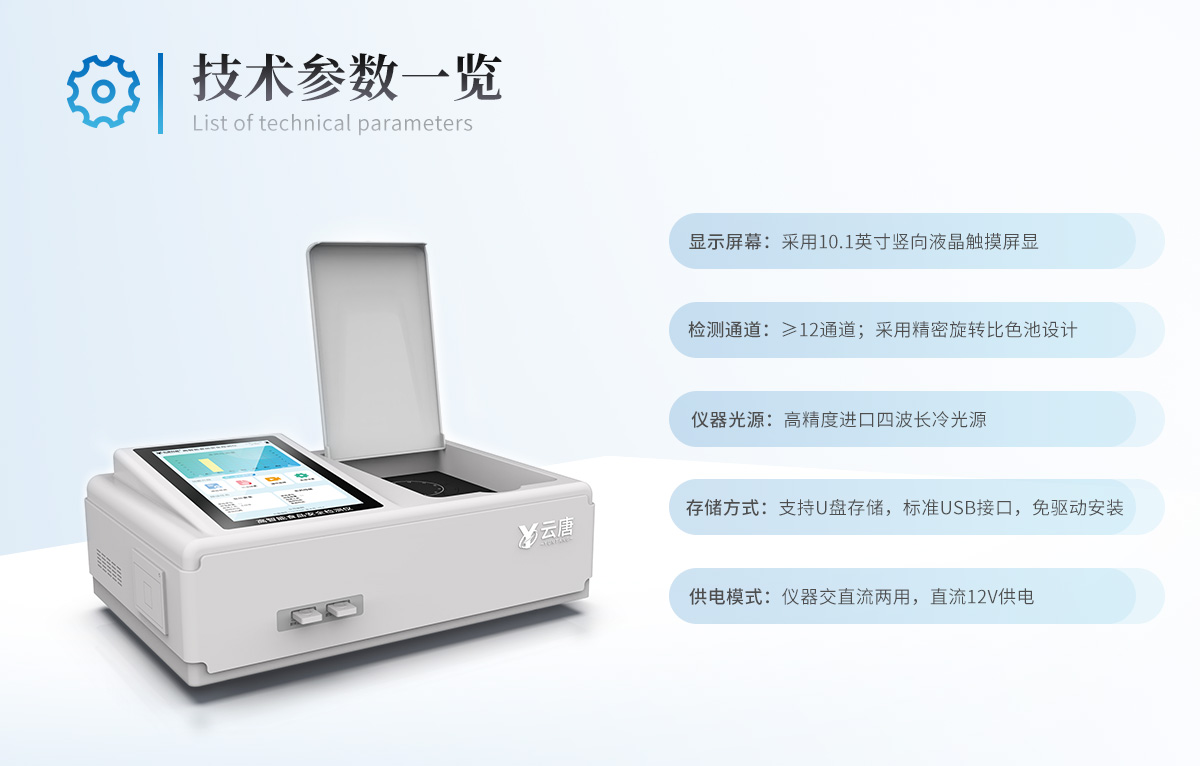

 Technical parameters:

1. The instrument adopts desktop integrated system detection technology, which highly integrates spectrophotometry module, colloidal gold detection module, new pesticide residue detection module, digital management module, and wireless communication module. It supports the detection of 200 food safety detection items, while reserving upgraded detection methods.

2. The instrument detection module is standardized and intelligent, and the detection items can be freely combined. The detection box is equipped with multiple standard detection units, and the detection module can be adjusted and configured.

3. Display screen: The instrument adopts a 10.1-inch vertical LCD touch screen display, paired with the Android intelligent operating system. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, which is easy to operate and has stronger performance.

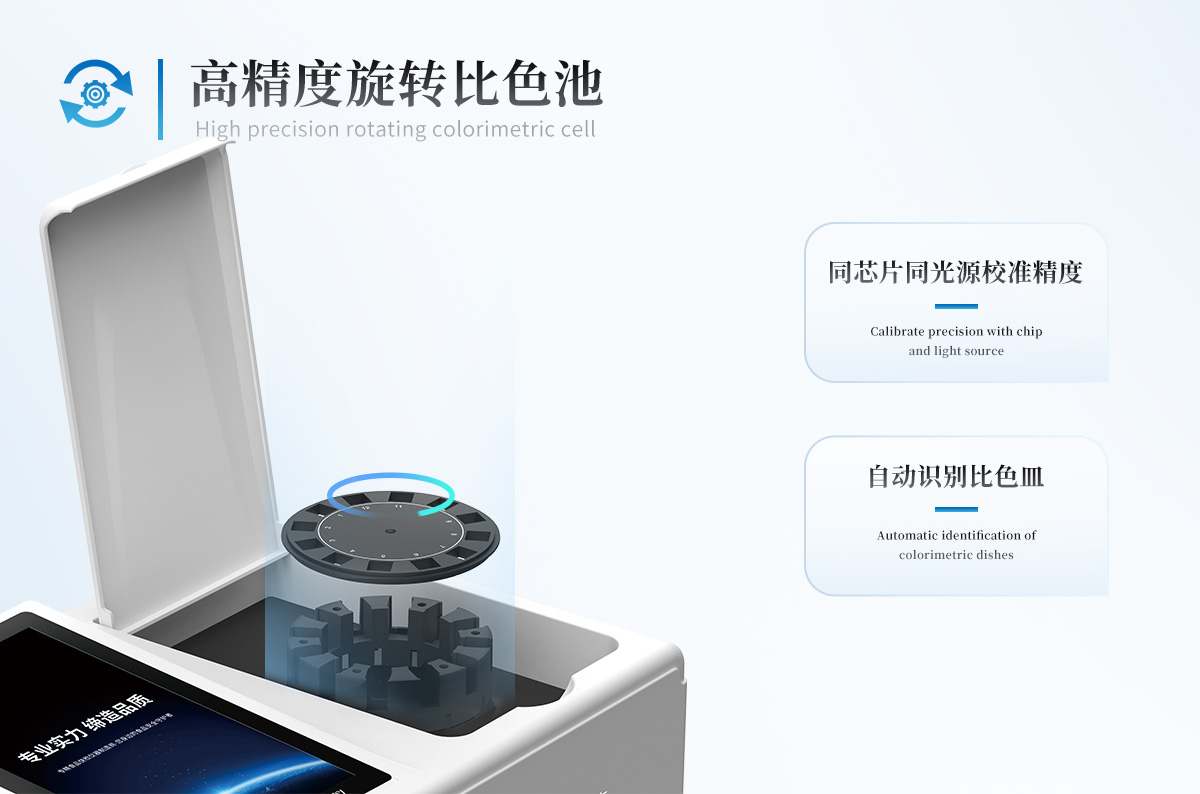

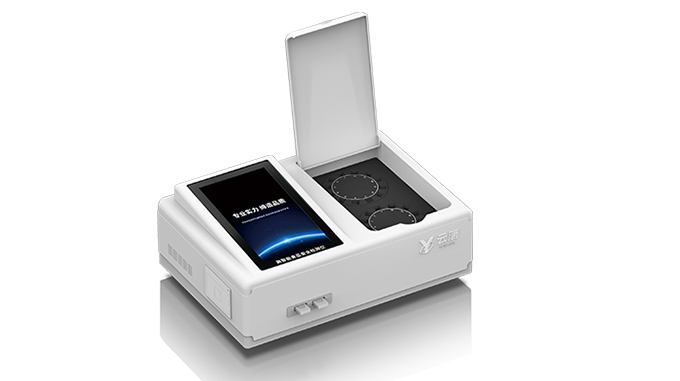

4. Detection channel: ≥ 12 channels; Adopting a precision rotating colorimetric cell design, using the same chip and light source to calibrate accuracy, solving the error values between different light sources, making it more accurate and efficient. (0.1% error between channels 1-12, patent number: ZL2022821055.2)

5. Instrument light source: high-precision imported four wavelength cold light source, each channel is equipped with 410, 520, 590, and 630nm wavelength light sources, and is equipped with advanced optical path switching devices as standard. The patented optical path switching function can achieve 64 wavelengths, and all detection items can achieve simultaneous detection of all channels.

6. The device can be calibrated with one click, automatically saving calibration data, automatically comparing and verifying to obtain accurate light sources. It uses Android SP to store data, and the light source data is never lost, making it convenient for every use.

7. Communication interface: Equipped with wireless communication module, optional 4G (APN) communication module, Bluetooth transmission, and dual USB interface and RJ45 network cable interface, it can achieve data storage and transmission in multiple ways.

8. Storage method: Supports USB storage, standard USB interface, and driver free installation. The storage capacity of the test results is over 200000, which can generate Excel spreadsheets for copying and has login protection function.

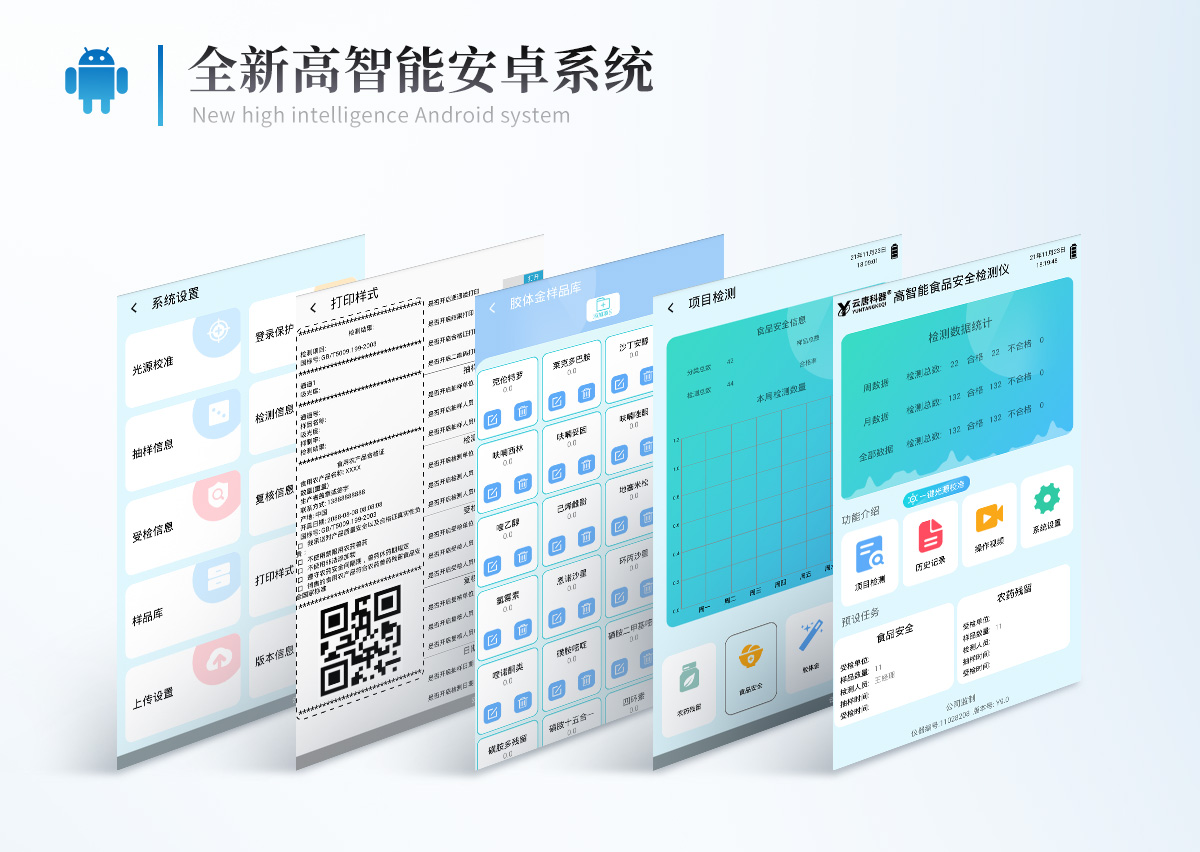

9. Intelligent operating system:

9.1 Operating System: The instrument can automatically correspond to relevant detection channels on the same detection interface, selecting 1-12 sample names at once, without the need to exit the interface, saving operation time. And each channel attribute and sample information can be edited separately, such as the inspection unit, personnel, testing personnel, etc. When printing, check the print display.

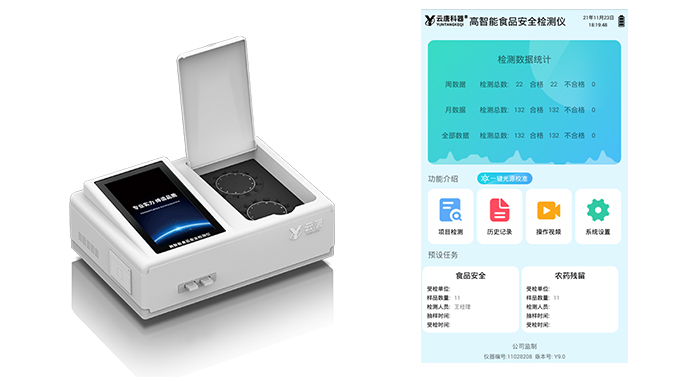

9.2. Data integration system: The device homepage automatically summarizes and analyzes testing data, including weekly and monthly testing data, the total number of all tests, including the total number of tests, qualified and unqualified numbers, as well as relevant column analysis charts. All testing data is clear at a glance, without the need for computer queries, making it faster and more intuitive.

9.3. Database system: More than ten database classification management instruments: including project type, project data, testing data, historical records, national standard information, curve information, sampling information, testing information, inspection information, review information, chart information, light source calibration information, print style information, sample library information, etc. The databases are coordinated with each other

9.4. Limit determination system: With a limit inquiry and compliance determination system for added substances. After detecting the results, the system automatically calls the relevant national standards in the system database for comparison and judgment, objectively displaying whether the judgment results are qualified.

9.5 Project preset system: The instrument has a task preset module, which can be preset in advance with one click to provide a convenient and fast new testing plan. Each task can be set with different samples, batches, numbers, sources, remarks, sampling information, testing information, inspection information, re audit information, and more. When sending samples for inspection, one click retrieval and storage information can be accessed multiple times, greatly improving detection efficiency.

9.6. Data supervision system: Synchronized with the supervision platform, data can be uploaded on local area networks and the internet, and test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis and processing, and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and warning.

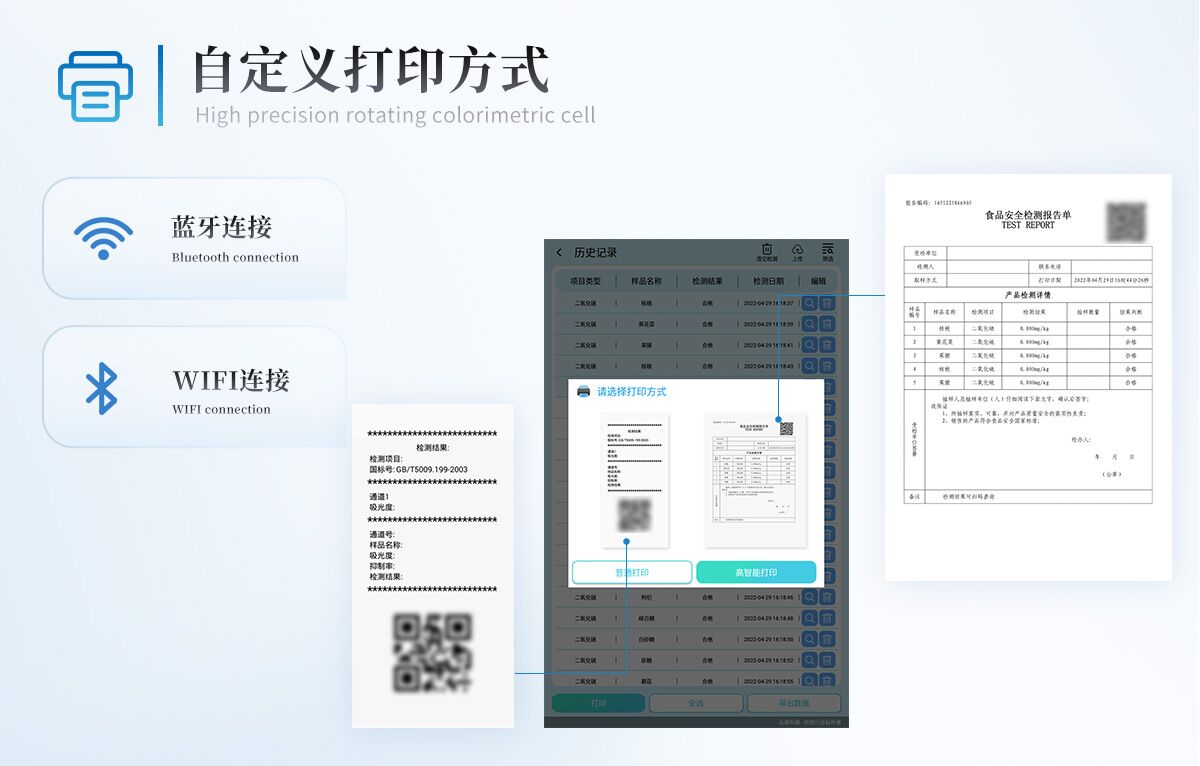

9.7.1 New Printing System: Equipped with a built-in new printer and a newly created custom printing method, it can flexibly select and control as needed: product certificate (required by the National Ministry of Agriculture standard), QR code, sampling information, testing information, inspection information, review information, sampling date, testing date, and other information printing.

9.7.2 A4 paper version report printing function (optional): The device has two display methods for results, which can automatically generate A4 printing templates and small ticket printing templates. External printers can be linked through WiFi and network cables for printing.

10. Power supply mode: The instrument is used for both AC and DC, with a DC 12V power supply. It can be connected to a car power supply and can be equipped with a 6Ah large capacity rechargeable lithium battery. The power level can be displayed in real-time, making it convenient for outdoor flow testing.

11. Colloidal gold detection module: Adopting single channel CMOS imaging processing technology and colloidal gold immunochromatography technology, it can read colloidal gold card data, automatically collect and process analysis, display detection results, and automatically judge detection results based on reference limits. It can detect common veterinary drug residues, biological toxins, antibiotics, prohibited additives, etc.

11.1. Detection technology: CMOS imaging detection;

11.2. Detection channel: dual detection channels, increasing the number of detections, making it convenient and fast;

11.3. Detection methods: elimination method and colorimetric method;

11.4. Display mode: negative or positive;

11.5. Curve form: Inline scanning method, displaying gold standard card images, real-time generation and recognition of CT curve maps, without manual adjustment, automatically exiting the detection card after completion of the detection. Compatible with other gold standard cards in the market, with unrestricted use of consumables.

12. The instrument has a remote upgrade function, which can be targeted to customers for instrument updates. It automatically updates after startup and sustainably updates the system version for free. There is no need for traditional products to be updated at the factory, saving time and labor costs, and avoiding the potential risk of equipment damage caused by logistics transportation and upgrading at the factory.
