Food comprehensive analyzer

product details:

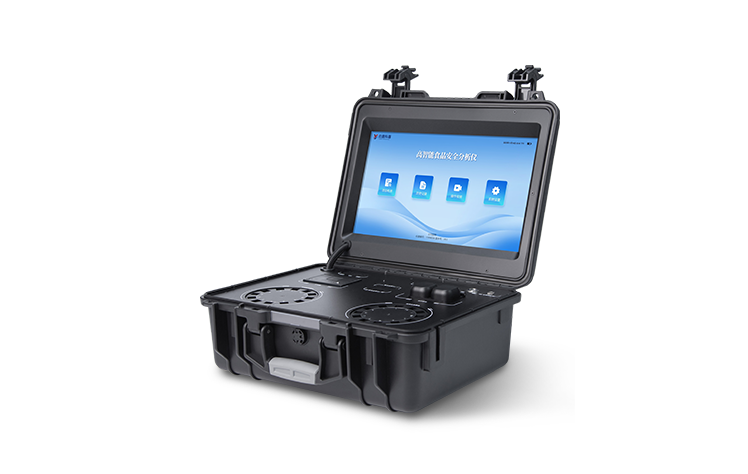

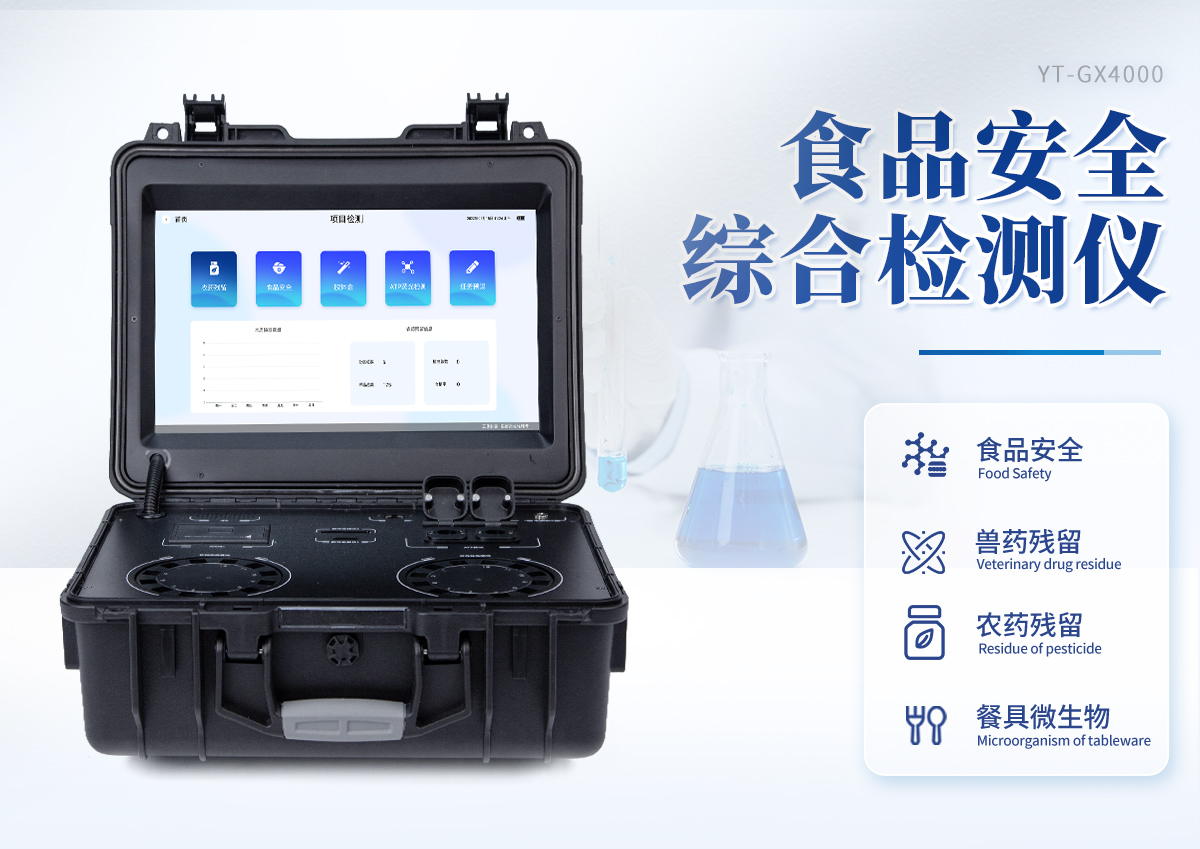

The food safety comprehensive analyzer produced by Shandong Yuntang Intelligent Technology Co., Ltd. adopts a multifunctional integration and box instrument integration design, using a high-strength safety protection box as the carrier and integrating multiple detection functions internally. It is suitable for units such as the Food and Drug Administration, health departments, higher education institutions, research institutes, agricultural and rural bureaus, food deep processing enterprises, and inspection and quarantine departments.

Technical Parameter:

1.Functional composition: mainly including spectrophotometry module, new pesticide residue detection module, colloidal gold detection module, fluorescence detection module, digital management module, etc. All modules are integrated and can quickly detect over 200 food safety items, such as veterinary drug residues, pesticide residues, illegal additives, bacterial values and other indicators.

2. Types of test samples: tableware and kitchen supplies, fruits and vegetables and their products, aquatic products and their products, livestock and poultry products and their products, infant and young children's dairy and milk powder products, honey, grain and oil and their products, seasonings (vinegar, soy sauce, monosodium glutamate, salt, etc.), alcoholic tea and its products, edible mushrooms, beverages, egg drug residues (eggs, duck eggs, etc.), rice and bean flour products, candy and pastry products (small foods), potato and puffed foods Bottles (barrels) of drinking water, food with added food coloring, food with additives, and related food containing toxic and harmful substances.

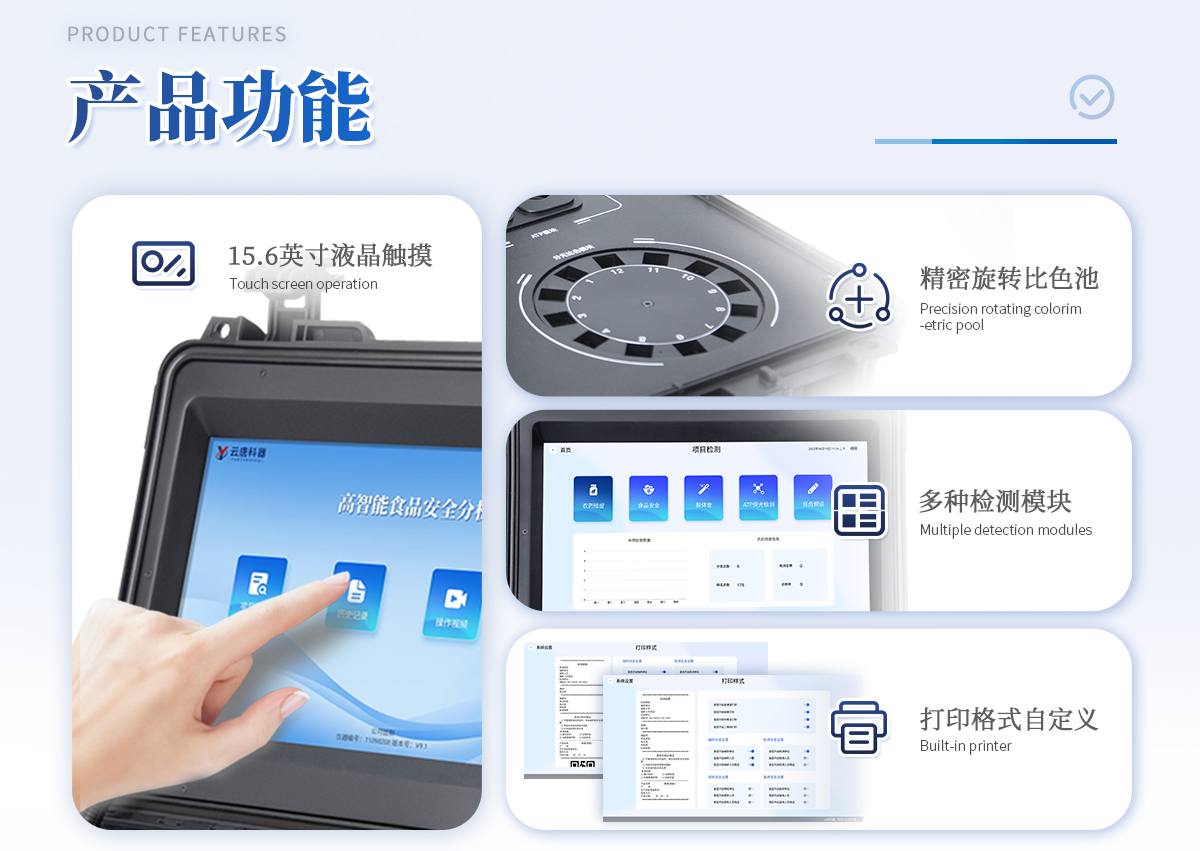

3. Display screen: The instrument adopts a 15.6-inch LCD touch screen display, paired with the Android intelligent operating system. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, which is easy to operate and has stronger performance.

4. Power supply mode: The instrument is AC/DC dual-purpose, with a DC 12V power supply, which can be connected to the vehicle power supply. It is equipped with an 18Ah large capacity rechargeable lithium battery, and the power can be displayed in real-time. It can work continuously for at least 4 hours without external power supply.

5. Detection channel: ≥ 24 channels; Adopting a precision rotating colorimetric cell design and using the same chip and light source to calibrate accuracy, it solves the error values between different light sources, making it more accurate and efficient. It adopts high-precision imported four wavelength cold light sources, each channel is equipped with 410, 520, 590, and 630nm wavelength light sources, and is equipped with advanced optical path switching devices as standard. The patented optical path switching function can achieve 64 wavelengths, and all detection items can achieve simultaneous detection of all channels

6. Communication interface: Equipped with wireless communication module, 4G (APN) communication module, Bluetooth transmission, and dual USB interface and RJ45 network cable interface, it can achieve data storage and transmission in multiple ways

7. Storage method: Supports USB storage, two standard USB interfaces, and driver free installation. The storage capacity of the test results is over 200000, which can generate Excel spreadsheets for copying and has login protection function.

8. Operating system: The instrument can automatically correspond to relevant detection channels on the same detection interface, selecting no less than 11 sample names at once, without the need to exit the interface, saving operation time. And each channel attribute and sample information can be edited separately, such as the inspection unit, personnel, testing personnel, etc. When printing, check the print display.

9. Data integration system: The device homepage automatically summarizes and analyzes detection data, including weekly and monthly detection data, total number of all detections, including total number of detections, qualified and unqualified numbers, as well as relevant column analysis charts. All detection data is clear at a glance, without the need for computer queries, making it faster and more intuitive.

10. Database system: More than ten database classification management instruments: including project type, project data, testing data, historical records, national standard information, curve information, sampling information, testing information, inspection information, review information, chart information, light source calibration information, printing style information, sample library information, etc. The databases coordinate and link with each other to ensure the authenticity and integrity of the data. At the same time, the product database and historical detection records support one click retrieval function.

11. Limited quantity judgment system: With a limited quantity query and added substance compliance judgment system. After detecting the results, the system automatically calls the relevant national standards in the system database for comparison and judgment, objectively displaying whether the judgment results are qualified.

12. Project preset system: The instrument has a task preset module, which can be preset in advance with one click to provide a convenient and fast new testing plan. Each task can be set with different samples, batches, numbers, sources, remarks, sampling information, testing information, inspection information, review information, and more. When sending samples for inspection, the saved information can be retrieved with one click and can be retrieved multiple times, making it suitable for large-scale testing business and greatly improving testing efficiency.

13. Data supervision system: Synchronized with the supervision platform, data can be uploaded on local area networks and the internet, and test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis, processing, and data statistics, monitor the long-term and short-term dynamics of regional food safety, and predict and warn problems.

14.1. Brand New Printing System: Equipped with a brand new printer and a newly created custom printing method, it can be flexibly selected and controlled according to needs. The printing includes product qualification certificate (required by the National Ministry of Agriculture standard), QR code, sampling information, testing information, inspection information, review information, sampling date, testing date, and other information.

14.2. A4 paper version report printing function: The device has two methods of displaying results, which can automatically generate A4 printing templates and small ticket printing templates. It can be connected to external printers through WiFi and network cables for printing.

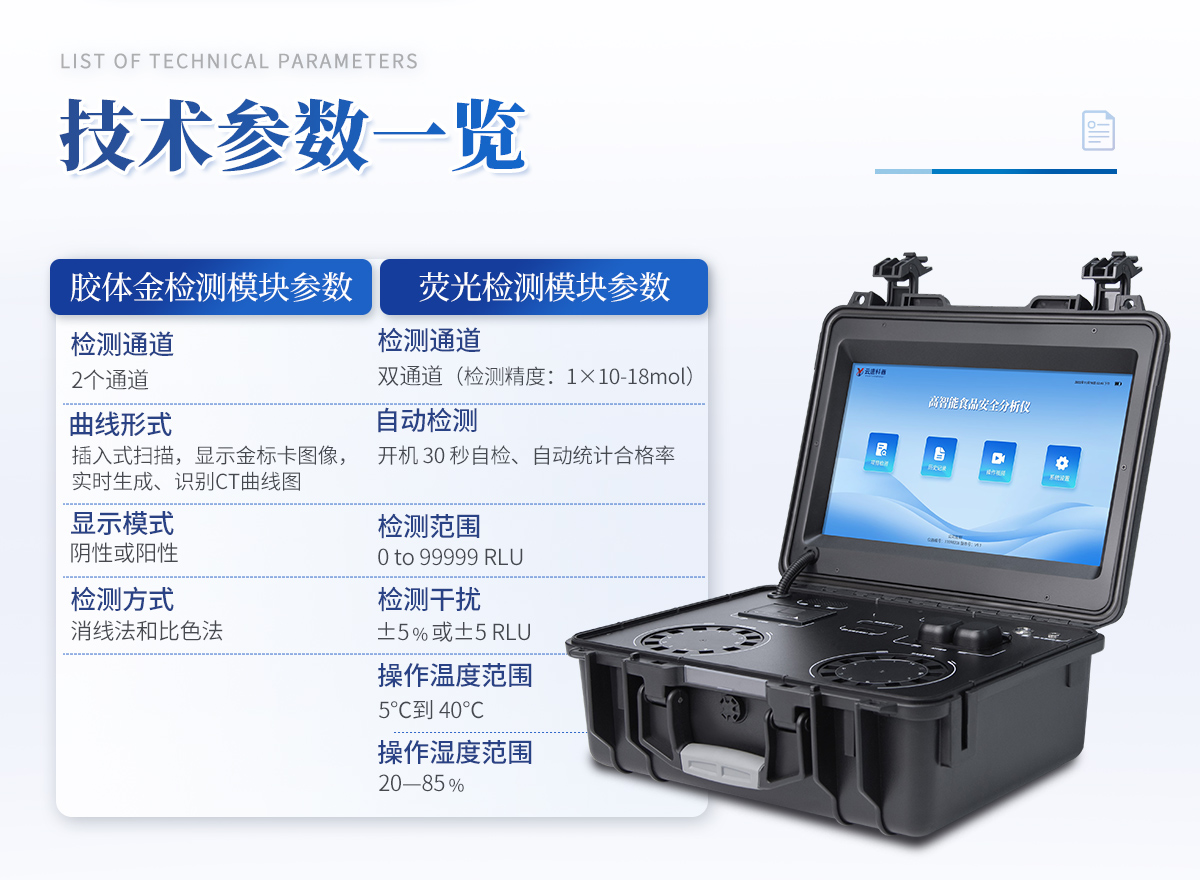

15. Colloidal gold detection module: Adopting single channel CMOS imaging processing technology and colloidal gold immunochromatography technology, it can read colloidal gold card data, automatically collect and process analysis, display detection results, and automatically judge detection results based on reference limits. It can detect common veterinary drug residues, biological toxins, antibiotics, prohibited additives, etc.

15.1. It can detect single and triple cards in real-time;

15.2. Detection channels: 2 channels;

15.3. Detection methods: elimination method and colorimetric method;

15.4. Display mode: negative or positive;

15.5. Curve form: Insertion scanning method, displaying gold card images, real-time generation and recognition of CT curve graphs, without manual adjustment. Compatible with other gold standard cards in the market, with unrestricted use of consumables.

16. Fluorescence detection module: Quickly detect the content of microorganisms and solid matter bacteria in water quality. Rapid detection of adenosine triphosphate (ATP) using the "luciferase luciferin system". The ATP content indicates the amount of microorganisms and other biological residues in the sample, which is used to determine the hygiene status. Suitable for testing the surface and water quality cleanliness of food, tableware, hands, liquids, etc.

16.1. Detection channel: dual channel

Detection accuracy: 1 × 10-18mol

16.2. Detection range: 0 to 99999 RLU

16.3. Detection time: 15 seconds

16.4. Detection interference: ± 5% or ± 5 RLU

16.5. Operating temperature range: 5 ℃ to 40 ℃

16.6. Operating humidity range: 20-85%

16.7. Power on for 30 seconds self check, built-in self calibration light source, automatic judgment of pass and fail, and automatic statistics of pass rate.

17. The instrument has a remote upgrade function, which can be targeted to customers for instrument updates. It automatically updates after startup and sustainably updates the system version for free. There is no need for traditional products to be updated at the factory, saving time and labor costs, and avoiding the potential risk of equipment damage caused by logistics transportation and upgrading at the factory.
