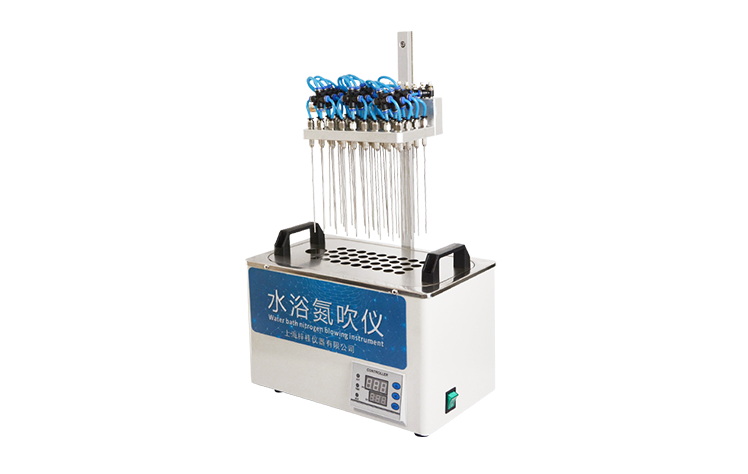

Water bath nitrogen blowing instrument

Introduction:

The water bath nitrogen blowing instrument adopts blowing and trapping technology, and can control temperature and heat the sample. It uses inert gases such as nitrogen to quickly, controllably, and continuously blow to the surface of the sample to achieve rapid oxygen free concentration of the sample solution. This method has the characteristics of time-saving, convenience, and accuracy. Widely used in food safety, medicine, pesticide residue detection, clinical pharmacokinetics and other fields.

Product features:

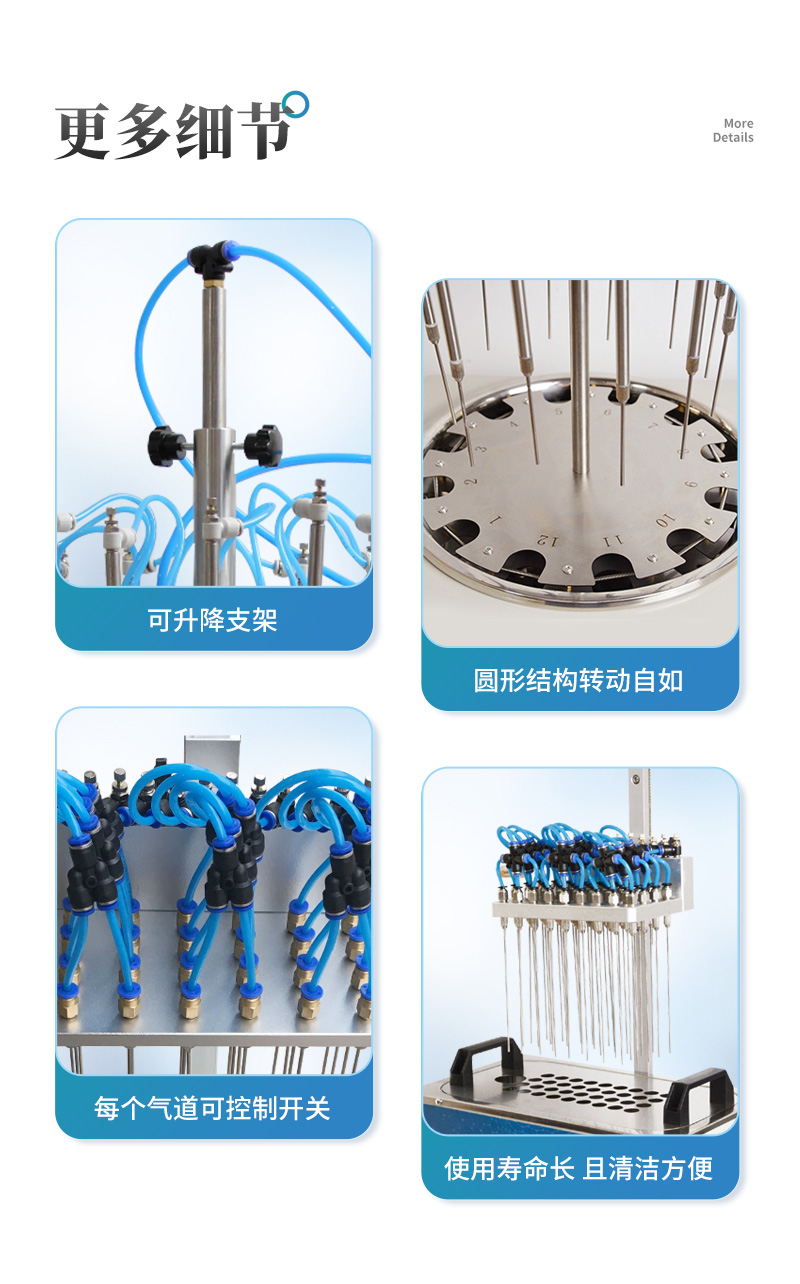

1. Each air needle channel on the distribution room can be combined or used separately, and each air needle can be switched on and off separately. The height of the distribution room can be adjusted as needed.

2. Each gas flow rate can be adjusted separately, overcoming the weakness of the non adjustable nitrogen blowing instrument with different gas flow rates in each gas path.

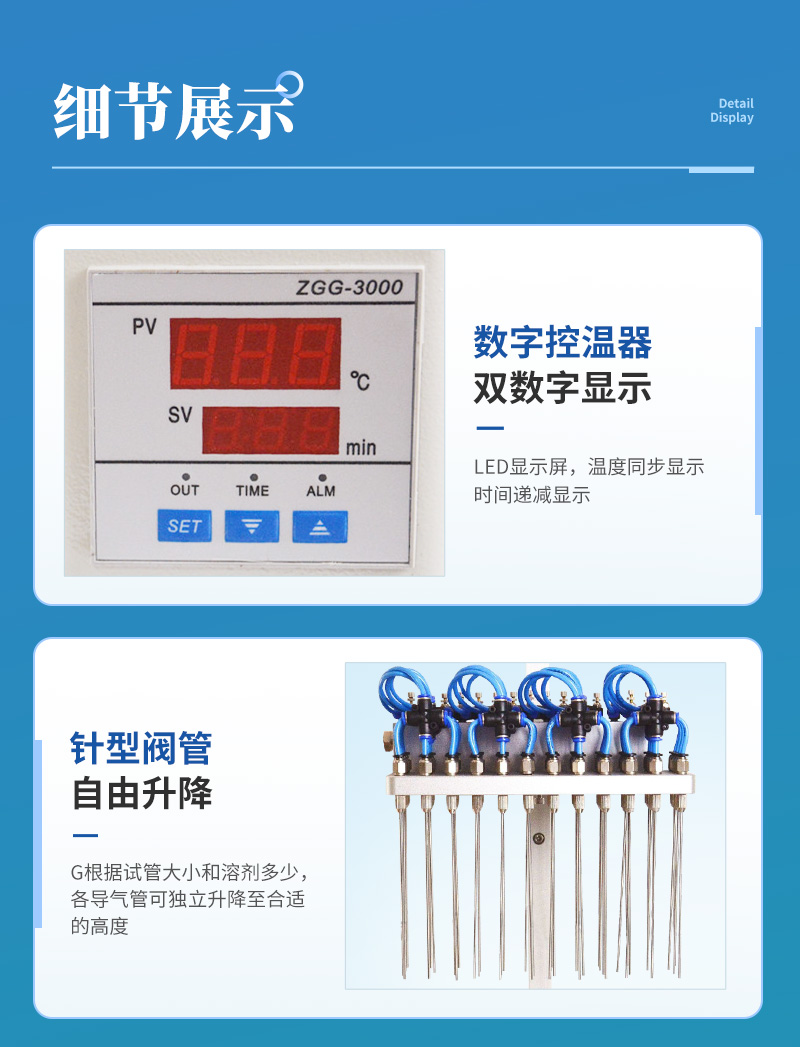

3. Digital thermostat with dual digital display

4. The components that may come into contact with solvents are made of stainless steel, alloy aluminum, and coated with plastic on the surface, which has a long service life and is easy to clean.

5. The entire machine can be placed in a fume hood for use.

6. The standard specification for heating blocks is generally a diameter of less than 16mm.

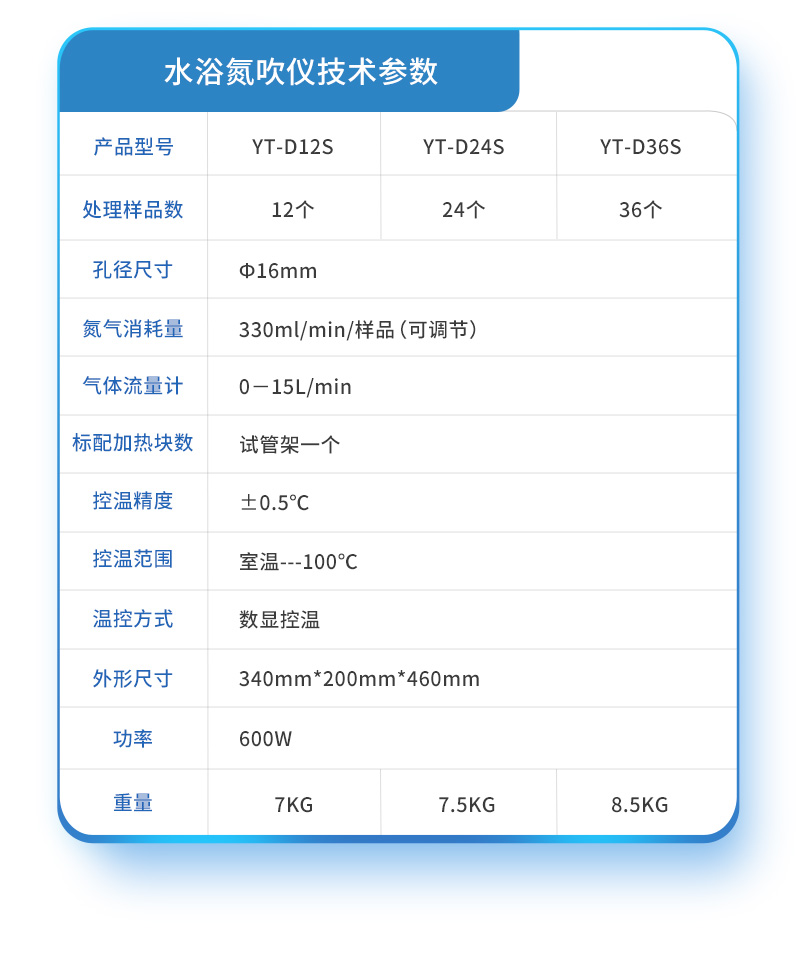

Technical parameters:

Product model YT-D12S YT-D24S YT-D36S

Processing 12 samples, 24 samples, 36 samples

Aperture size Ф 16mm Ф 16mm Ф 16mm

Nitrogen consumption 330ml/min/sample (adjustable) 330ml/min/sample (adjustable) 330ml/min/sample (adjustable)

Gas flow meter 0-15L/min 0-15L/min 0-15L/min

Standard number of heating blocks, one test tube rack, one test tube rack, one test tube rack

Temperature control accuracy ± 0.5 ℃ ± 0.5 ℃ ± 0.5 ℃ ± 0.5 ℃

Temperature control range: Room temperature -100 ℃ Room temperature -100 ℃ Room temperature -100 ℃ Room temperature -100 ℃

Temperature control method digital display temperature control digital display temperature control digital display temperature control

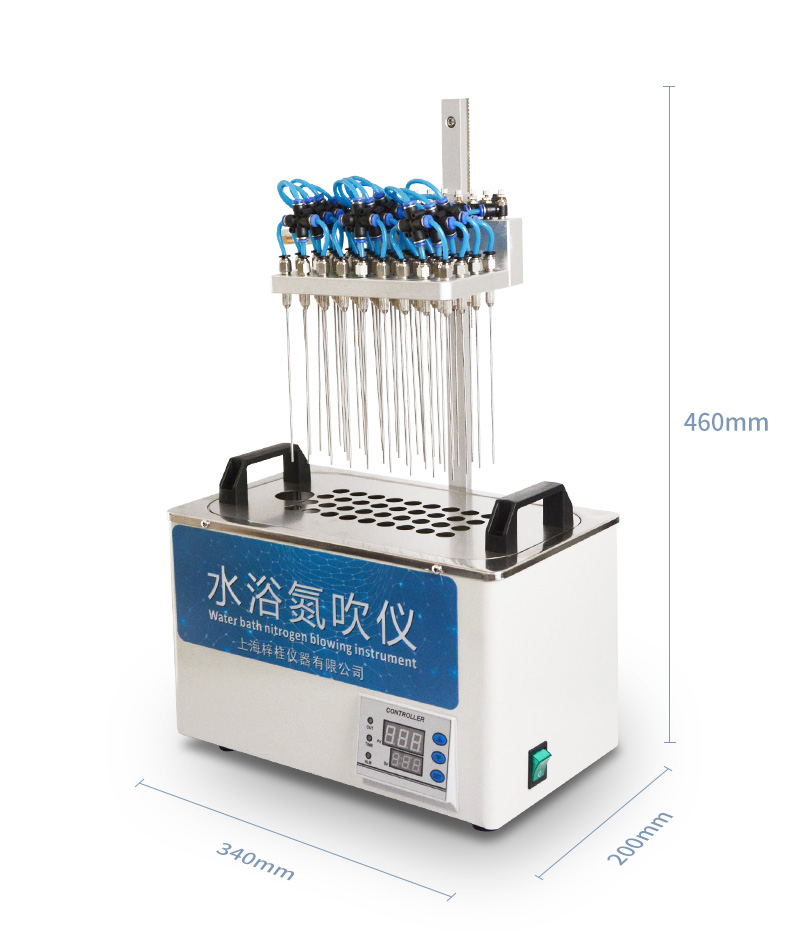

External dimensions 340 * 200 * 460 340 * 200 * 460 340 * 200 * 460

Power 600W 600W 600W

Weight 7KG 7.5KG 8.5KG
