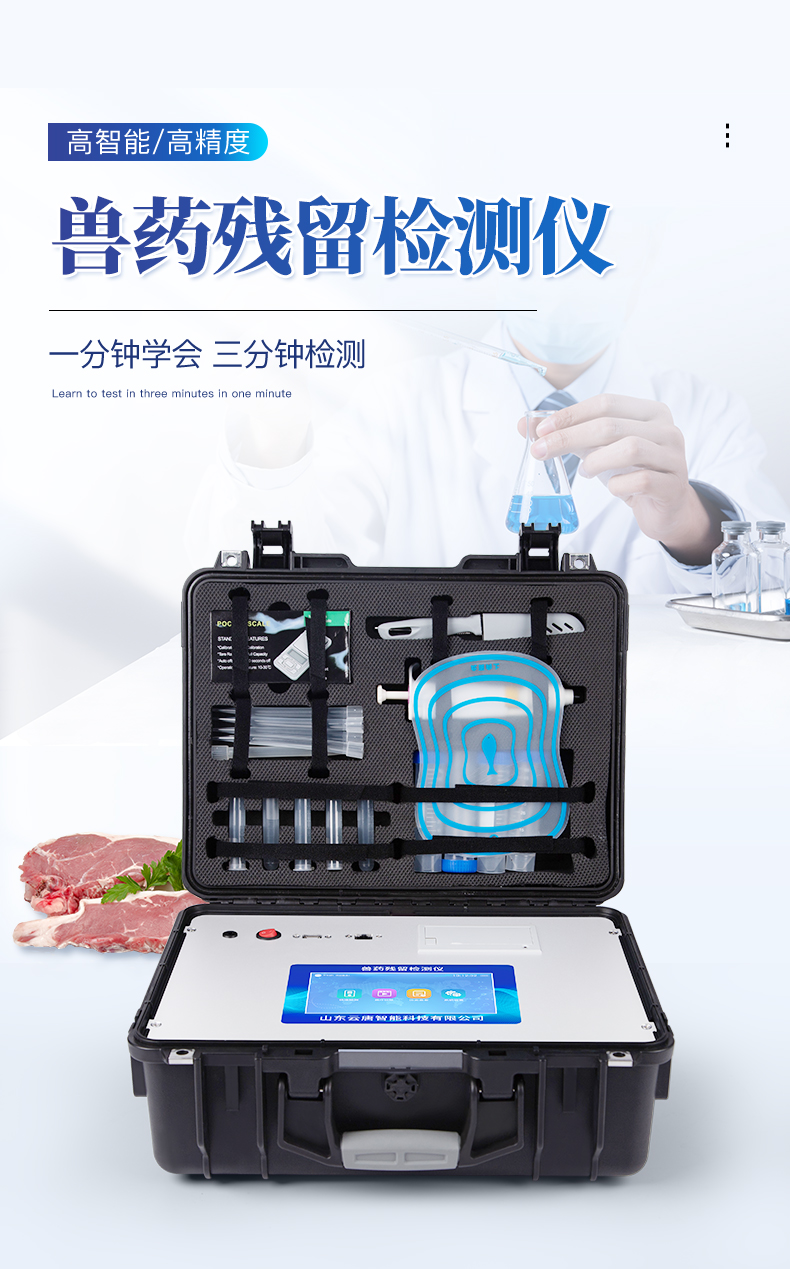

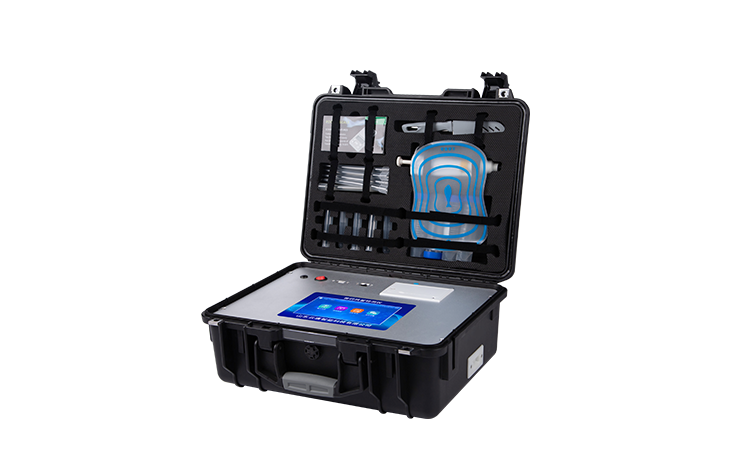

Animal disease detector

Product Usage:

This animal disease diagnostic instrument is suitable for detecting animal diseases, veterinary drug residues, toxic and harmful substances, and antibiotic residues in livestock and poultry products such as pigs, chickens, ducks, sheep, cows, milk, etc. It can be widely used in units such as the Food and Drug Administration, health departments, higher education institutions, research institutes, agricultural departments, animal husbandry and veterinary, breeding farms, slaughterhouses, food and meat product deep processing enterprises, inspection and quarantine departments, etc.

Application scope:

The animal disease diagnostic instrument can quickly detect pig blue ear virus, swine fever virus, aflatoxin B1, pig pseudorabies virus, pig pseudorabies virus gE protein, pig foot and mouth disease 3ABC protein, pig foot and mouth disease virus IgG, porcine parvovirus, chicken avian influenza, and other rapid tests on site, clenbuterol hydrochloride, ractopamine, salbutamol, enrofloxacin, chloramphenicol, streptomycin, melamine, gentamicin, sulfonamides, quinolones Furans, tetracyclines, amoxicillin, malachite green, aflatoxins (B1, B2, G1, G2, M1, M2), disease diagnosis, ciprofloxacin, erythromycin, oxytetracycline, quinoline, diethylstilbestrol, etc.

Product performance:

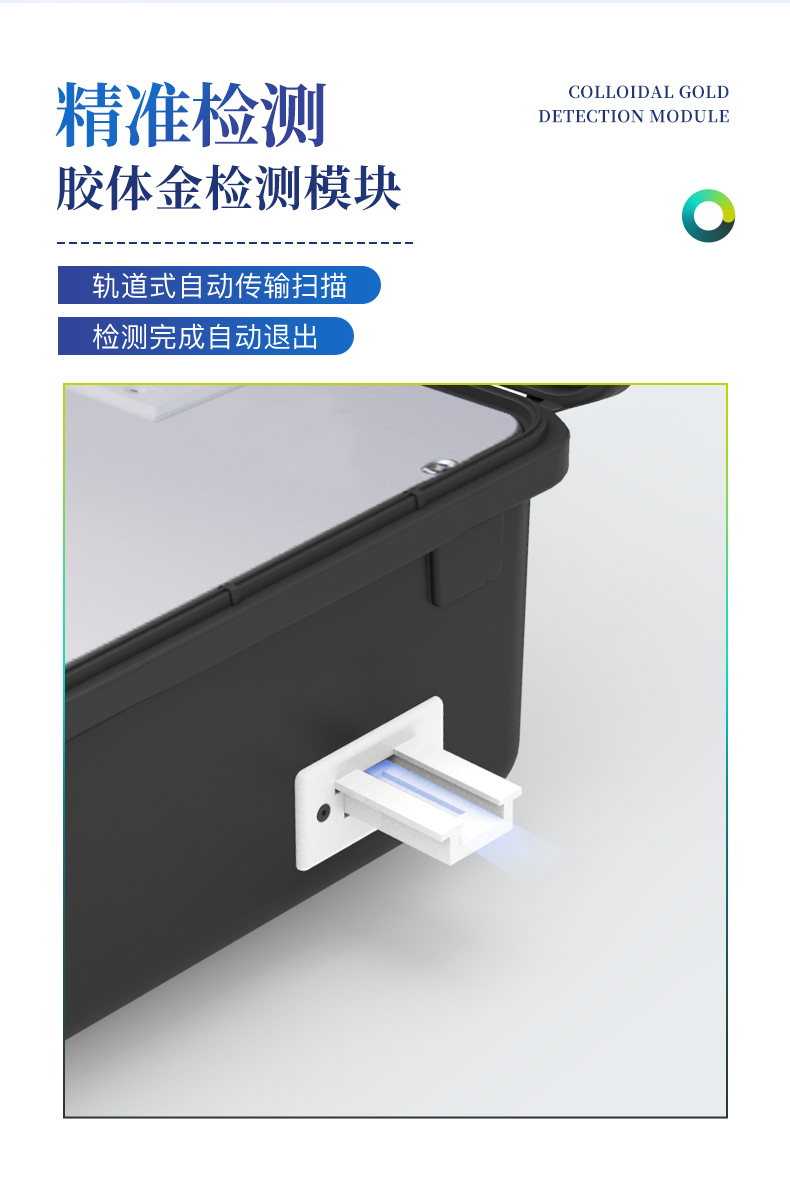

Colloidal gold module detection method: track type automatic transmission scanning, and automatically exit the test paper after the detection is completed.

CT line automatic recognition without manual adjustment.

The sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

High sensitivity, high detection accuracy, high repeatability accuracy, scanning type high-precision optical sensor.

Equipped with a powerful database, you can directly select sample names, testing indicators, testing units, and other information on the instrument. You can also directly edit and enter sample names, testing indicators, testing units, and other information on the instrument and save them in the sample database.

Compatible with all colloidal gold cards in the market, with unrestricted use of consumables, greatly enhancing the user experience.

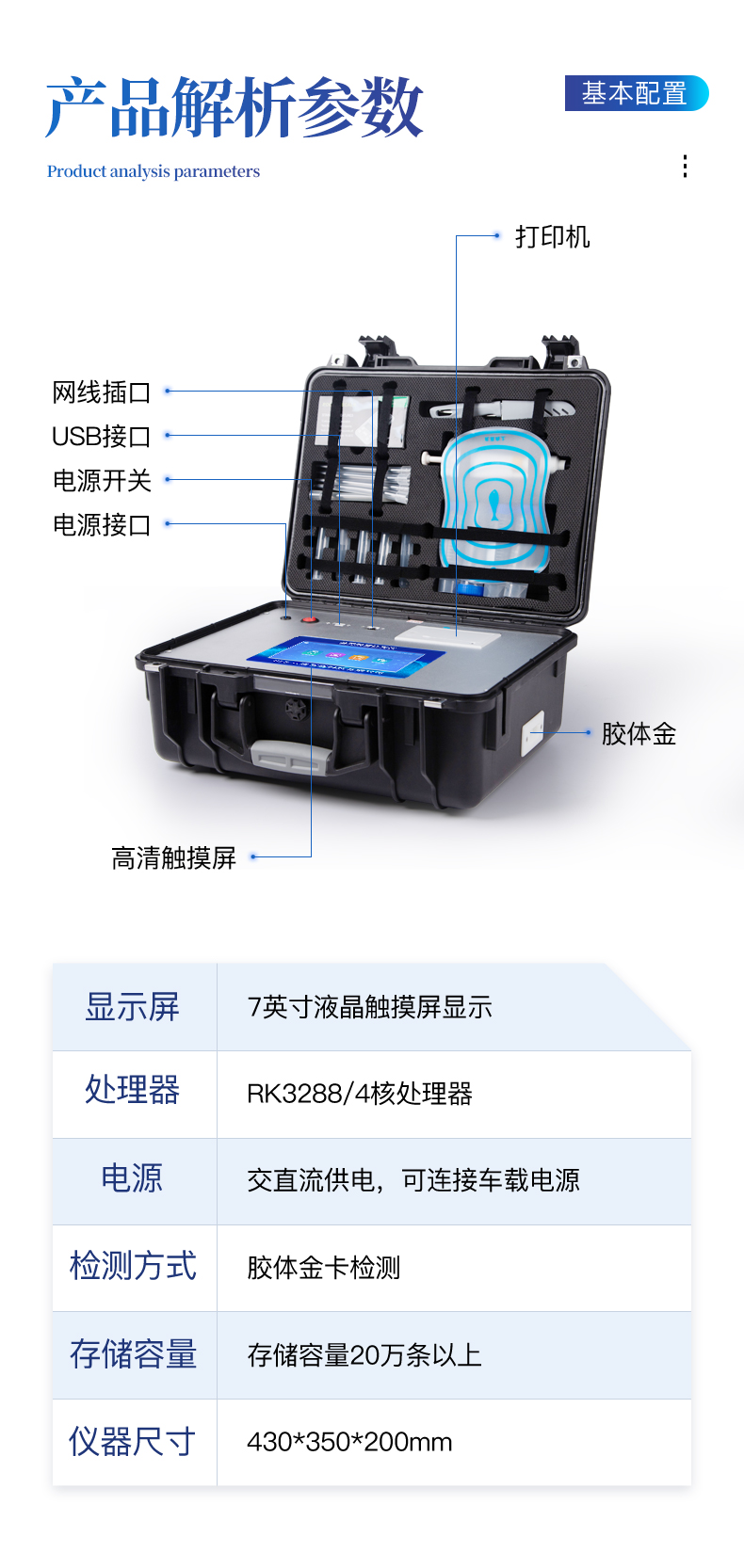

Main parameters:

1. The main control chip adopts a 32-bit processor, which runs faster and has strong stability.

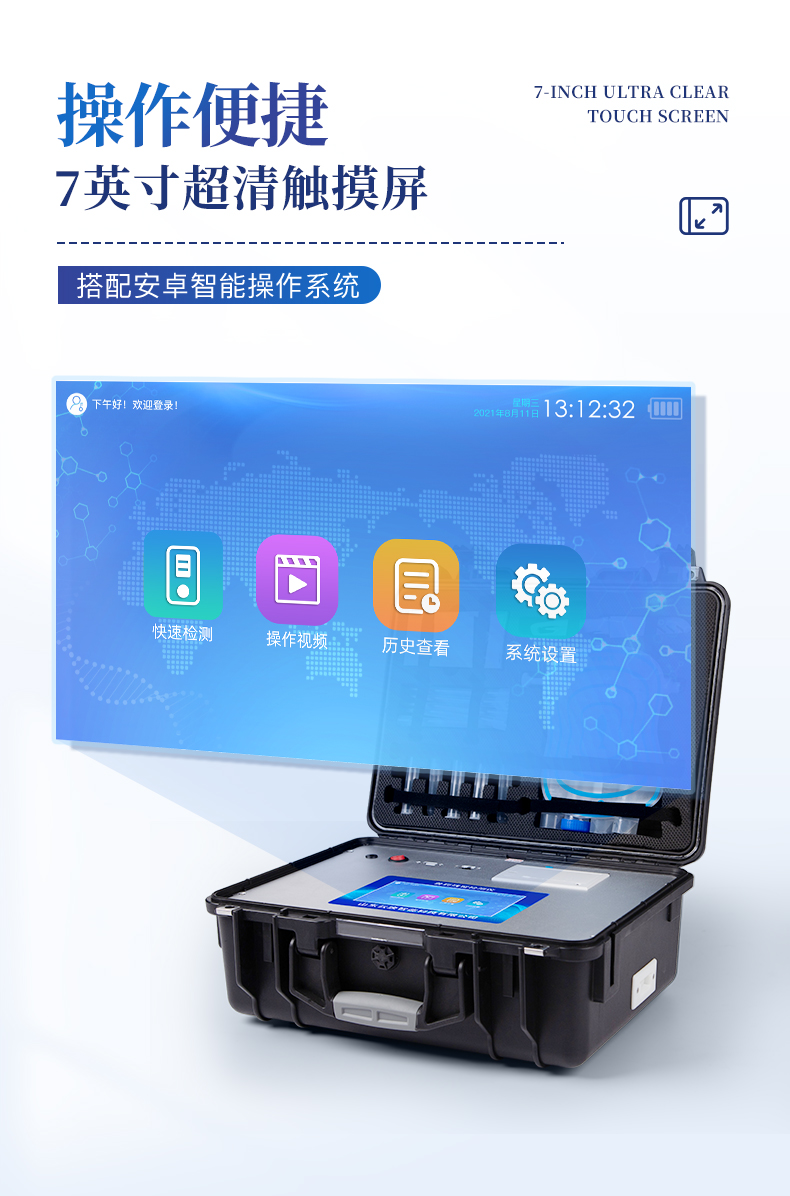

2. Display method: 7-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

3. DC 12V power supply, can be connected to on-board power supply.

4. Pulse type constant current drive, avoiding continuous luminescence causing light decay and temperature drift.

5. The latest national limited edition standards are built-in and can be continuously updated.

6. Password login can be set

7. Continuous injection and detection

8. Sample numbers are automatically accumulated.

9. The detection items can be expanded.

10. The detection results can be printed and uploaded in batches.

11. The test results are in an Excel spreadsheet, which can be copied by connecting to a computer.

12. Storage capacity of 200000 test results

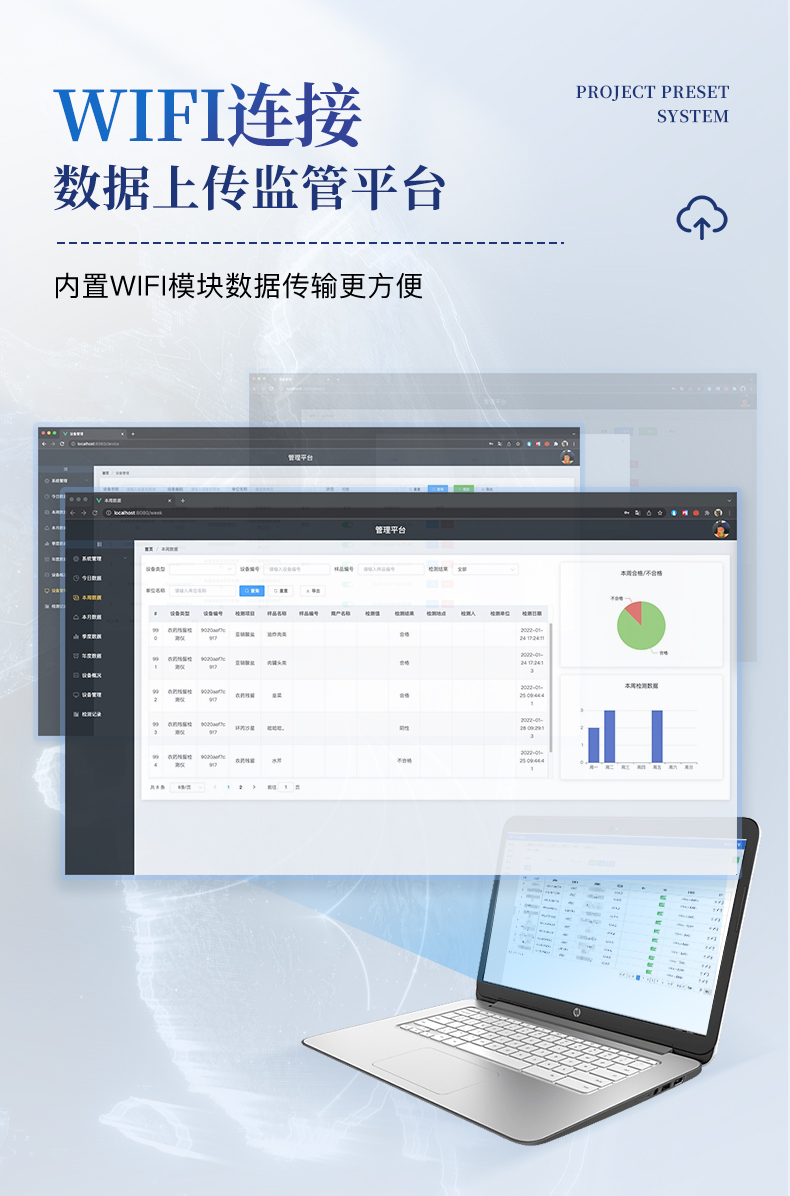

13. Support WiFi network, data can be uploaded on LAN and internet, and test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision and big data analysis and processing, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and warning

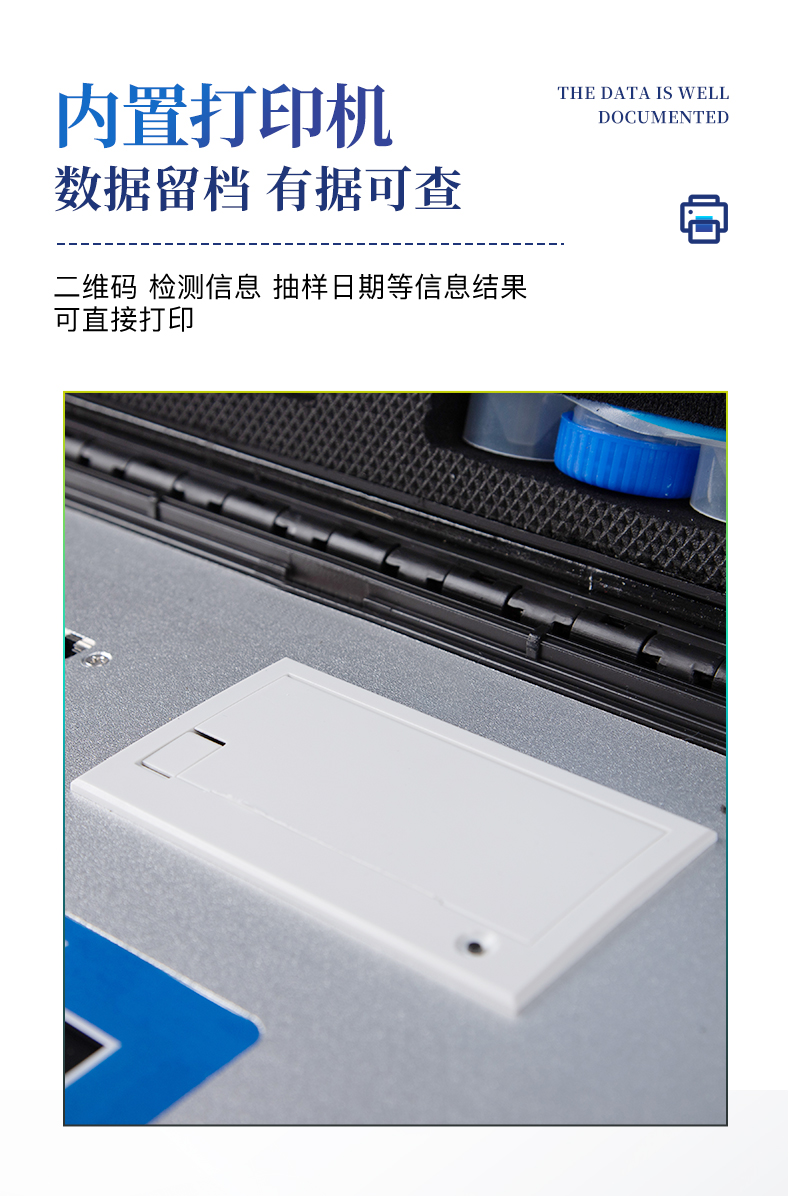

14. High speed thermal printer, which can automatically print detection reports after detection is completed.

15. Standard USB interface, driver free installation.

16. Firmware Upgradable
