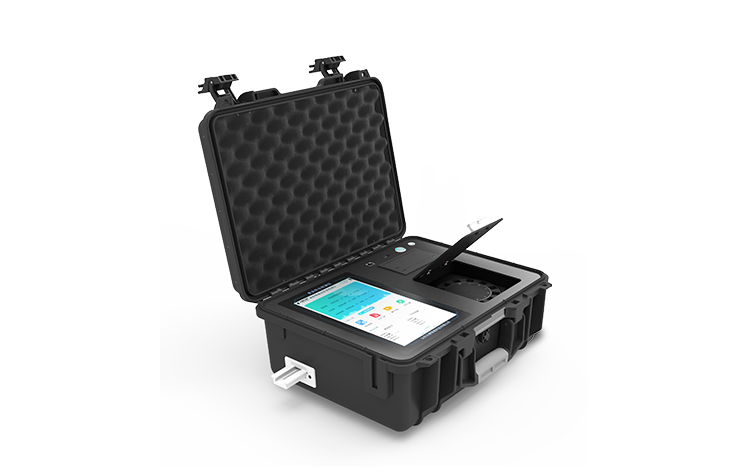

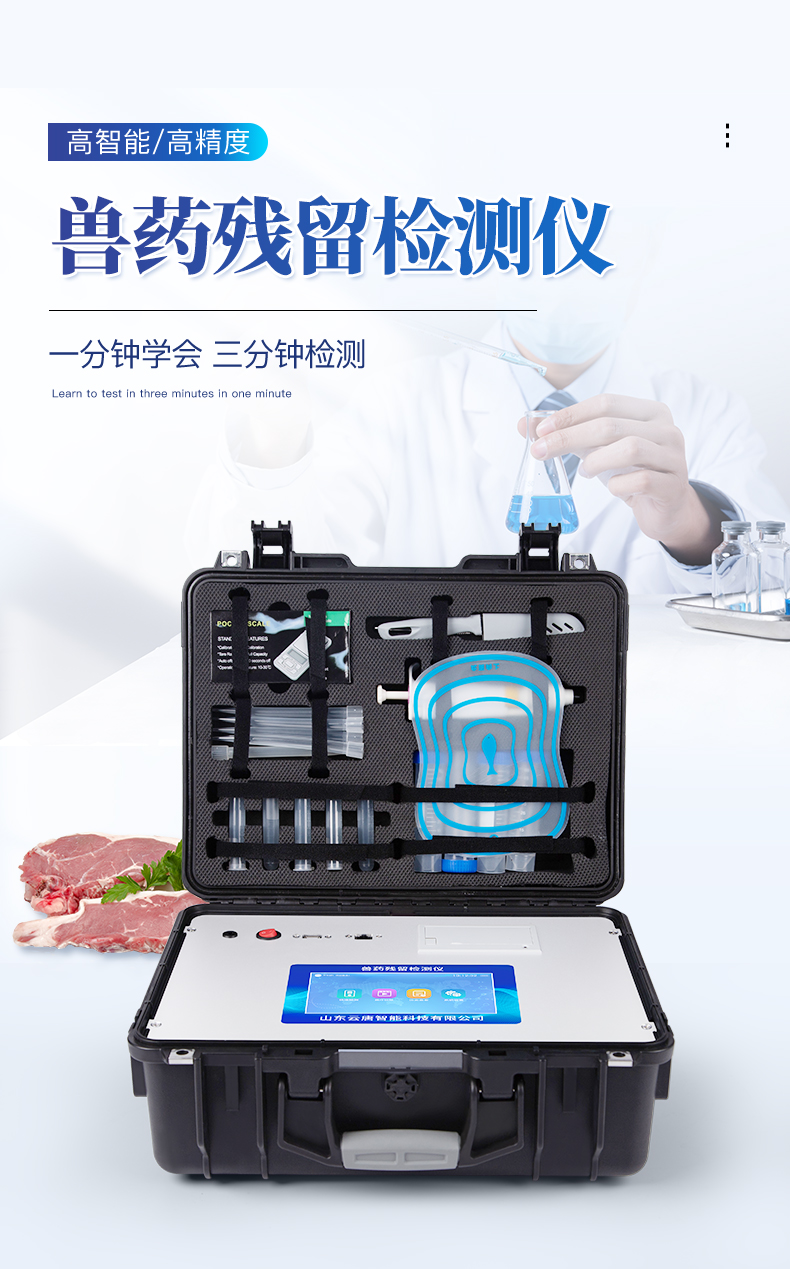

Veterinary drug residue detector

 Product Usage:

This veterinary drug residue detector is suitable for on-site rapid screening and quantitative detection of veterinary drug residues in livestock and poultry meat products such as pigs, chickens, ducks, sheep, cows, milk, etc., including antibiotic residues, leptin hormone residues, and toxic and harmful substances in aquatic products.

This multifunctional veterinary drug residue detector is an integrated and fast detection and analysis equipment for meat safety, which can be widely used in animal husbandry farms, slaughterhouses, food and meat product deep processing enterprises, food and drug supervision bureaus, inspection and quarantine departments, health departments, higher education institutions, research institutes, agricultural departments, and other units.

 Test items:

Leptin hormones (veterinary drugs): clenbuterol hydrochloride, salbutamol, ractopamine, diethylstilbestrol, quinoline, etc

Antibiotic residues (veterinary drugs): tetracyclines, nitrofurans, sulfonamides, floxacin, quinolones, flufenicol, gentamicin, streptomycin, amoxicillin, erythromycin, etc

Aquatic product safety category: malachite green, chloramphenicol, furantoin metabolism, furacilin metabolism, furanone metabolism, furazolidone metabolism, diazepam, etc

And extended testing of diseased meat and meat freshness.

 Product performance:

★ 1. The Android intelligent operating system adopts a more efficient UI interactive interface, and the instrument has functions such as WiFi network upload, 4G network transmission, GPRS wireless remote transmission, and network cable connection, allowing for quick batch data upload.

2. High degree of intelligence, the instrument has self checking function: it has power on self checking and zero setting functions, and has automatic detection of repeatability.

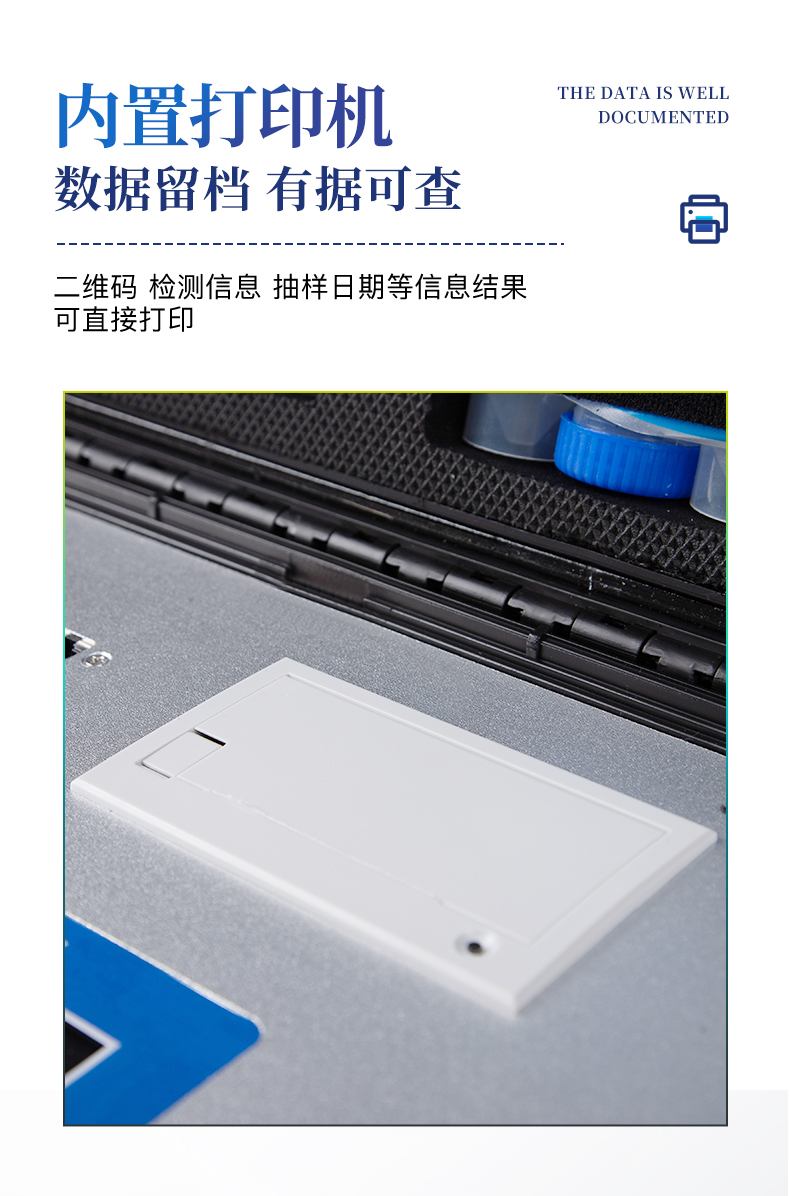

★ 3. The new generation of high-speed thermal printer can automatically print detection reports and QR codes after detection is completed.

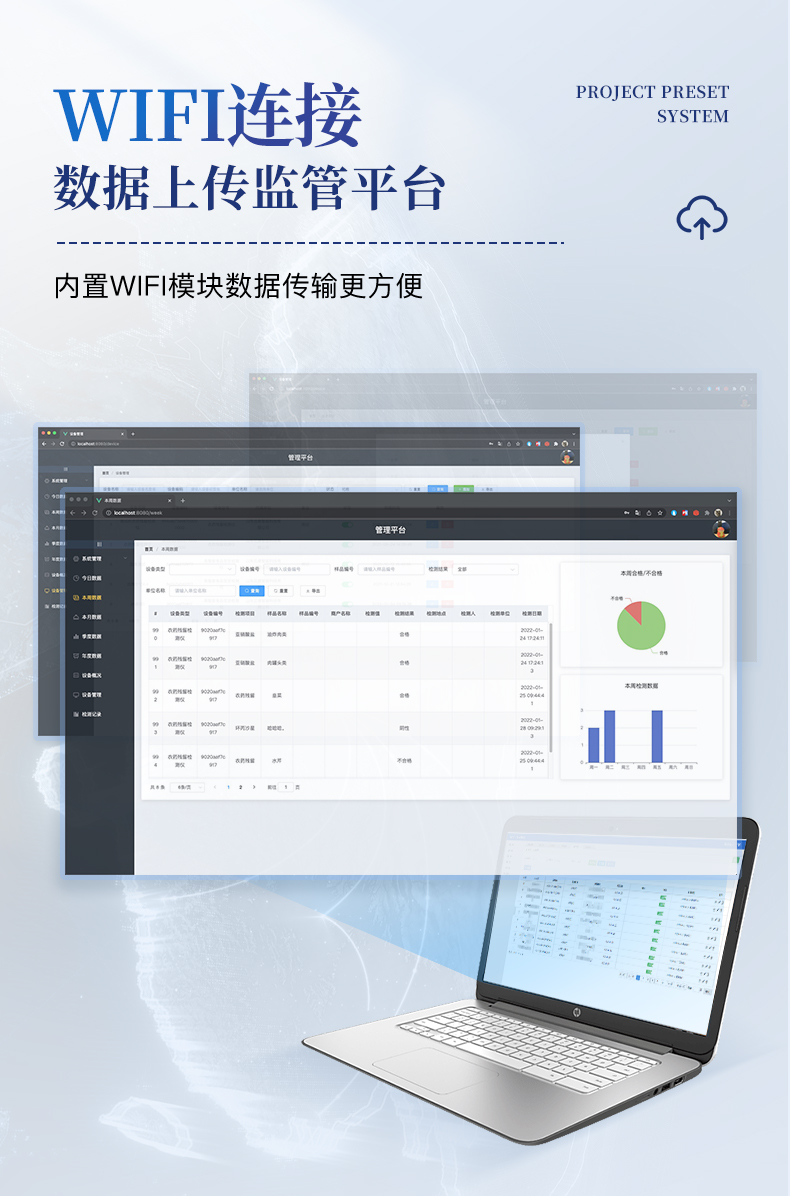

★ 4. The instrument is equipped with a regulatory platform, and data can be uploaded on both the local area network and the internet. The test results are directly transmitted to the food safety regulatory platform. Conduct regional food safety supervision, big data analysis, processing, and data statistics, detect long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and warning

5. An integrated portable rapid inspection device that meets the needs of on-site and mobile detection, can achieve the detection of all detection items under the same software, and can visually display the detection results through the same window.

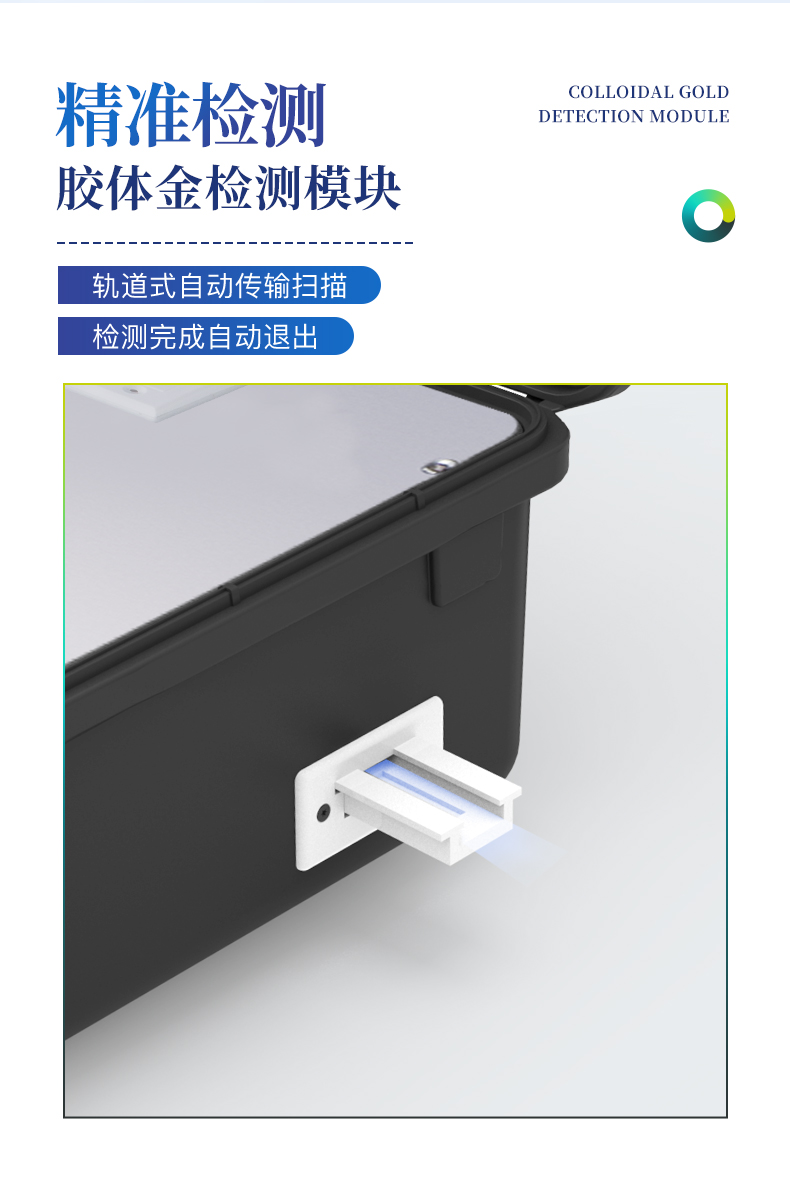

6. Colloidal gold module detection method: track type automatic transmission scanning, automatically exiting the detection card after the detection is completed.

★ 7. The instrument is equipped with a built-in camera for taking photos, which can display real-time images of gold standard cards. The system automatically analyzes and presents CT curves, and the CT lines are automatically recognized without manual adjustment.

8. The instrument has a menu library of multiple types of samples, allowing for flexible selection of testing samples. Different testing channels can simultaneously test different sample items.

★ 9. The instrument has built-in operation teaching videos, which can be quickly viewed by clicking on the video module, making it convenient for users to use.

10. The sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

★ 11. The instrument can be configured with identity recognition function, which can be turned on through password or ID swiping to prevent non staff operations.

12. High sensitivity, high detection accuracy, high repeatability accuracy, scanning type high-precision optical sensor.

13. Equipped with a powerful database, you can directly select sample names, testing indicators, testing units, and other information on the instrument, or edit and record them directly on the instrument

13. Equipped with a powerful database, you can directly select sample names, testing indicators, testing units, and other information on the instrument. You can also directly edit and enter sample names, testing indicators, testing units, and other information on the instrument and save them in the sample database.

14. The instrument has functions of recalibration, locking, and restoring factory settings.

15. The result judgment line can be modified, the calibration value of the reference value can be saved, and data will not be lost after power outage.

16. Compatible with all veterinary drug detection colloidal gold cards on the market, with unrestricted use of consumables, greatly enhancing the user experience.

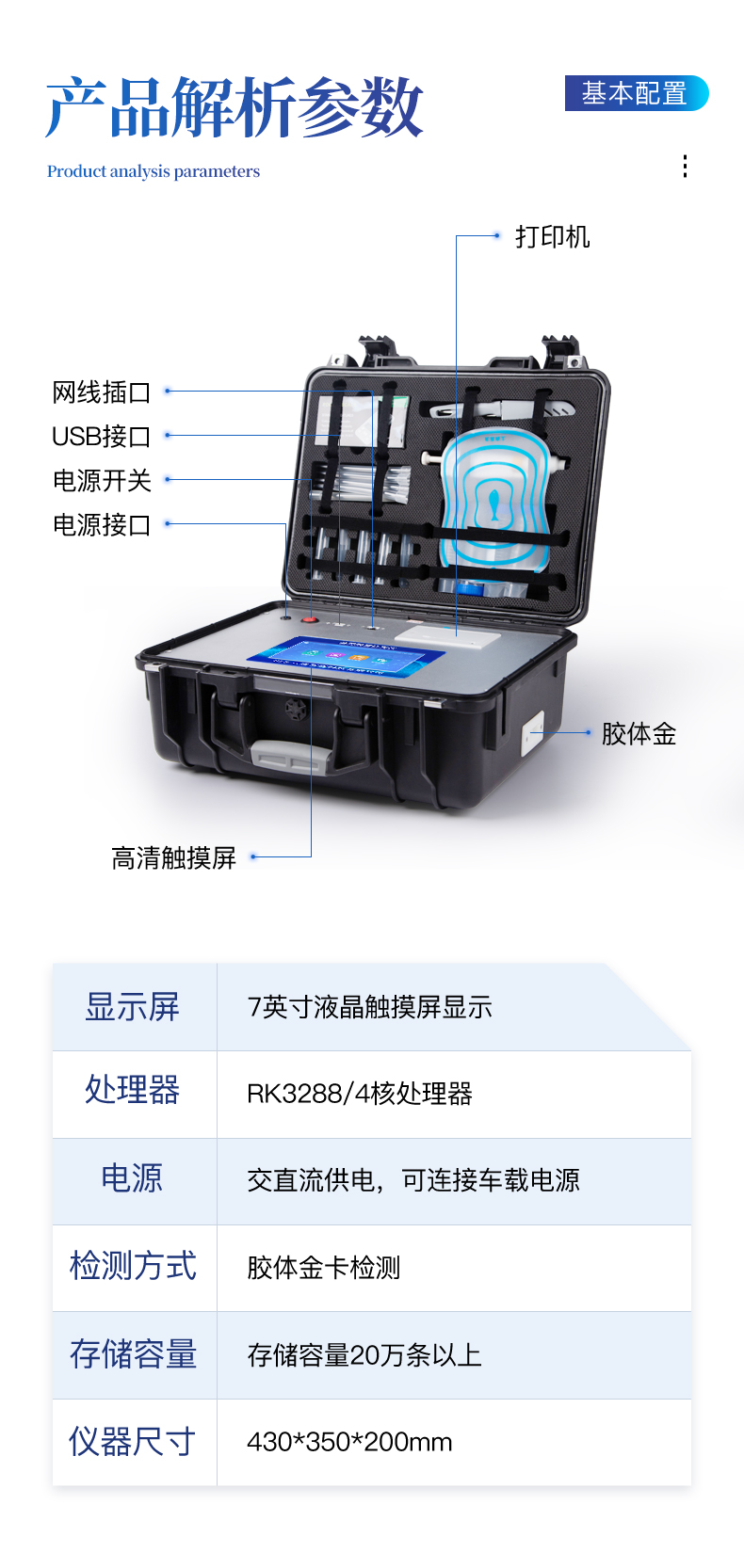

 Main parameters:

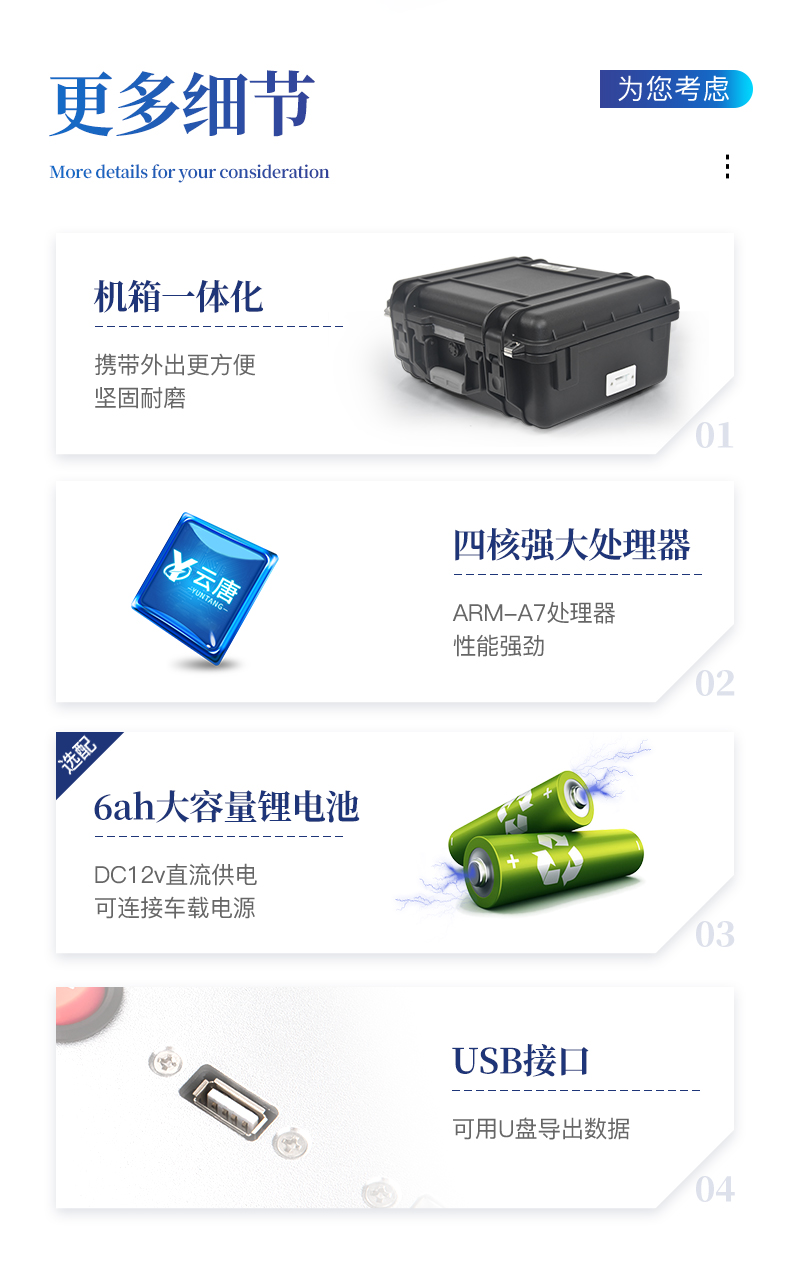

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, faster operation speed, and stronger stability.

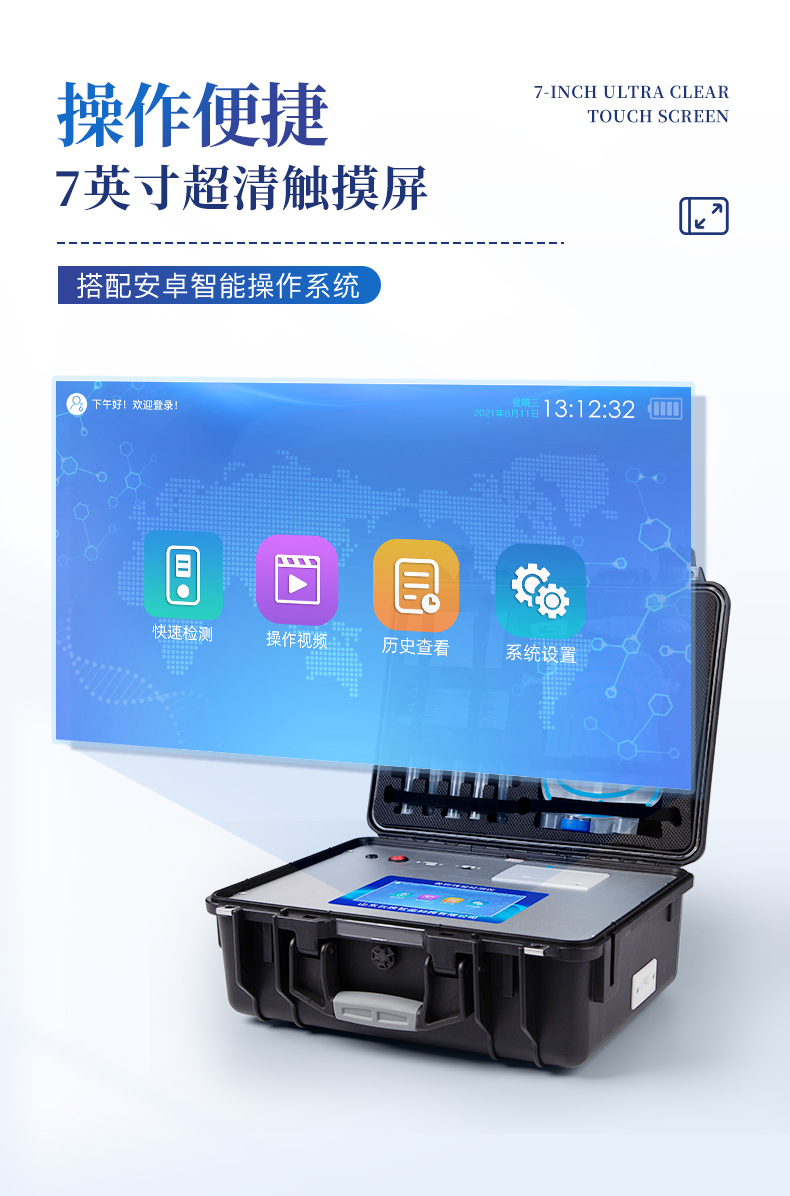

2. Display method: 7-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

3. AC/DC dual purpose, DC 12V power supply, can be connected to car power supply, and can be equipped with a 6Ah large capacity rechargeable lithium battery, convenient for outdoor flow testing.

4. Four wavelength cold light source, each channel is equipped with 410, 520, 590, and 630nm wavelength light sources, equipped with advanced optical path switching devices as standard. The patented optical path switching function can achieve up to 64 wavelengths, and all detection items can achieve simultaneous detection of all channels.

5. Automatic adjustment and calibration of light source brightness

6. Intelligent constant current voltage regulation, automatic calibration of light intensity, long-term continuous operation of the light source without temperature drift phenomenon.

7. Built-in new national limit standards, on-site comparison with measured results, and continuous updating of standards.

8. Continuous injection and detection

9. Sample numbers are automatically accumulated.

10. The data can be wirelessly uploaded to the platform and exported as an Excel spreadsheet from the platform.

11. Storage capacity of 200000 test results

12. Simultaneously supports USB drive copying, standard USB interface, and no driver plugging.

13. The detection items can be expanded and the firmware can be upgraded

14. Instrument size: 43 × thirty-five × 20cm, net weight of host: 5.2kg

★ The manufacturer must have a food safety testing intellectual property management system certification certificate

★ The manufacturer has high-tech enterprise certification

★ The instrument has the copyright of food safety transfer

★ The instrument has a measurement report issued by a national metrology research institute

★ The reagent has a reagent testing report issued by a national metrological research institute

★ With ISO9001 quality management system certification

★ Manufacturers must have independent trademark intellectual property rights
