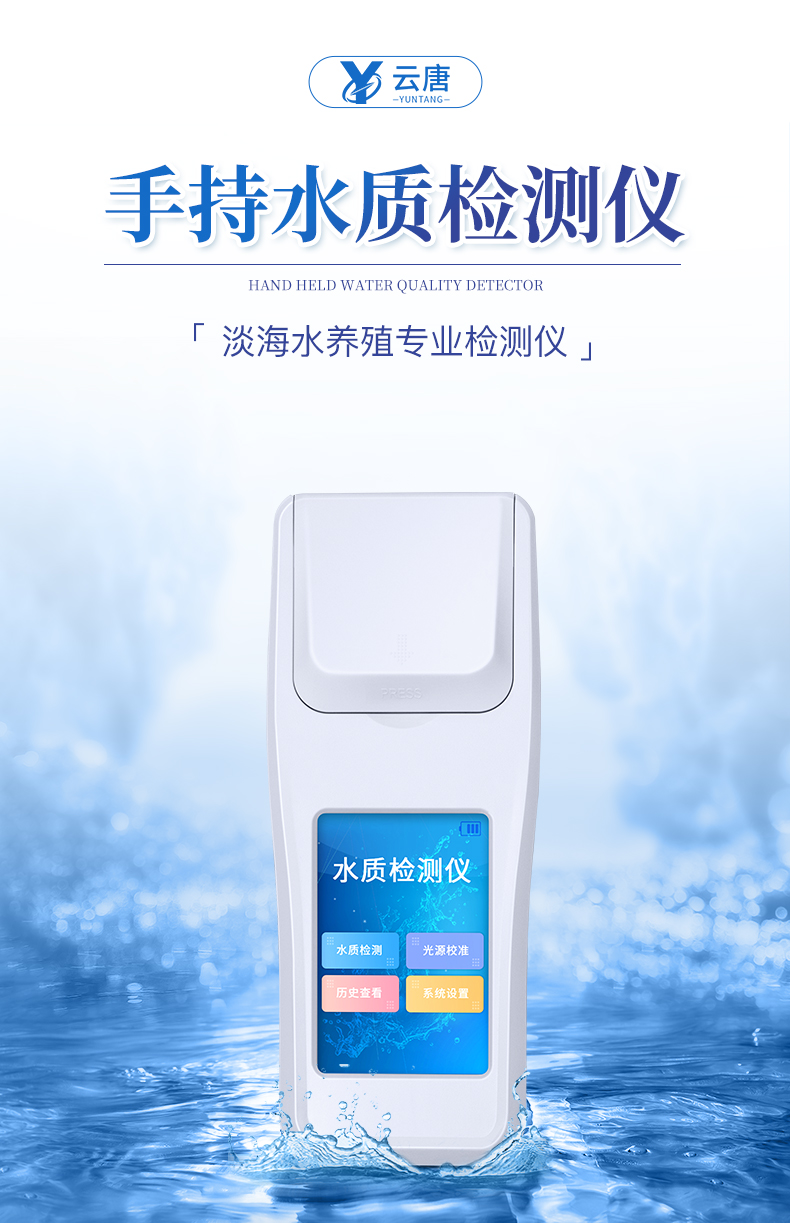

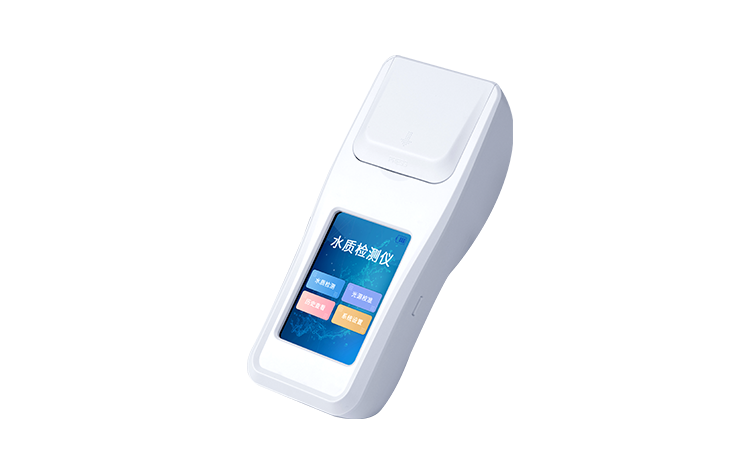

Handheld water quality detector

Product Overview:

The YT-SS11 water quality detector is a detection device suitable for aquaculture, river monitoring, industrial wastewater, swimming venues and other fields. Coupled with fast color detection reagents, it can measure quickly, simply, accurately, and stably. It has a beautiful appearance, a simple operating interface, and an accurate detection system, helping users obtain precise data, analyze water conditions more accurately and effectively, and prevent aquaculture risks in advance, Timely avoid losses.

Test items:

PH, dissolved oxygen, ammonia nitrogen, nitrite, total alkalinity, hydrogen sulfide, salinity, phosphate, total hardness, water temperature, residual chlorine, detection indicators, etc

Application industry:

Suitable for aquaculture, river monitoring, production monitoring, purified water plants, water supply plants, domestic sewage treatment plants, industrial wastewater, swimming venues, water source protection, scientific research experiments, etc.

Detection principle:

Extract a certain amount of water sample, and after pre-treatment, drop the detection reagent according to the reagent instructions according to different detection items. The detection reagent will react with the tested substance in the water, and the reaction solution will present a specific color.

Instrument features:

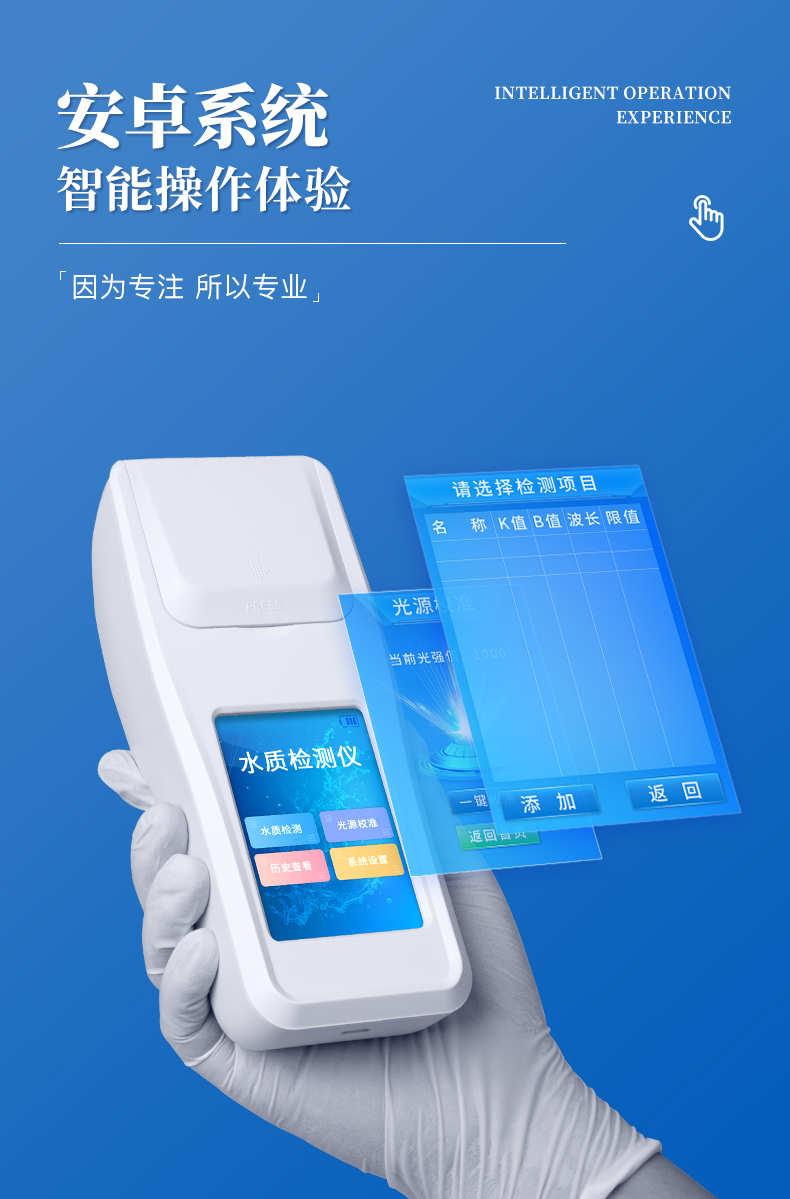

The Android intelligent system provides a better interactive experience, making it easier and faster to operate;

3.5-inch high-definition touch screen for more intuitive data;

Configure a regulatory platform, and the detection results can be directly transmitted wirelessly to the platform for water quality long-term and short-term analysis, assisting management.

Built in operation process, simple operation, no need for training, and easy to get started;

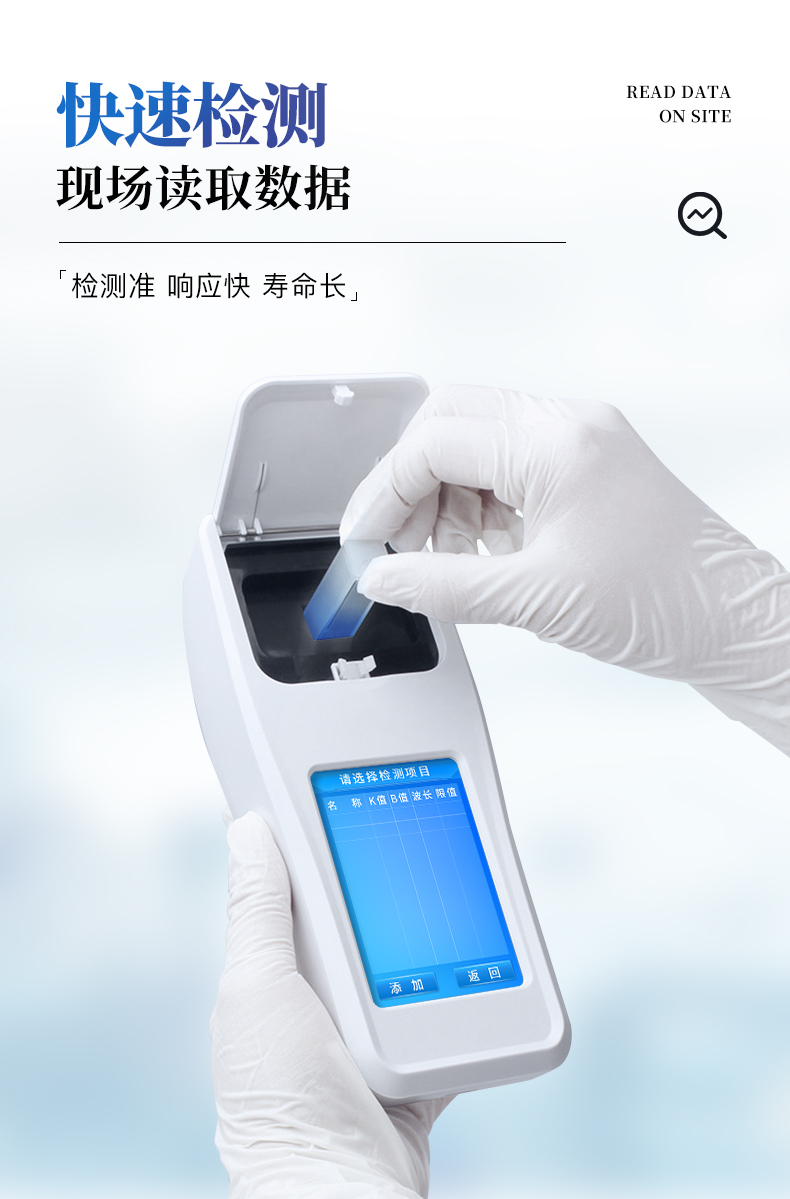

Faster detection speed, on-site data reading;

Portable with small size and light weight, convenient for outdoor testing;

Compact and beautiful in appearance, stable in operation and maintenance free, with good cost-effectiveness;

Adopting imported cold light sources, with stable optical performance and a lifespan of up to 100000 hours;

Dual purpose AC/DC, with built-in rechargeable lithium battery, environmentally friendly and durable, capable of supporting continuous indoor and outdoor work.

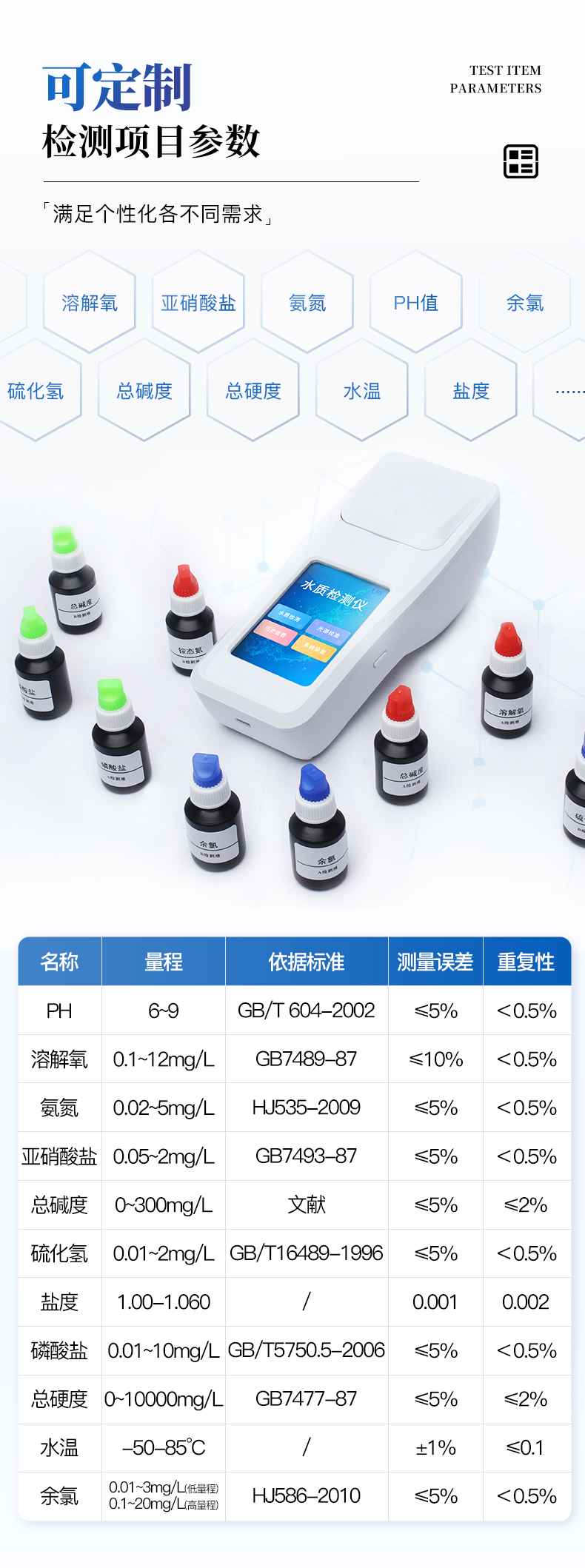

Testing items:

Parameter Name Range Measurement Error Repeatability Based on Standard Measurement Methods

PH 6-10 acid-base indicator colorimetric photoelectric colorimetry ≤ 5%<0.5%

Dissolved oxygen 0-12 mg/L GB 7489-87 photoelectric colorimetry ≤ 10%<0.5%

Ammonia nitrogen 0-4mg/L HJ 586-2010 photoelectric colorimetric ratio ≤ 5%<0.5%

Nitrite 0-2 mg/L GBT 7493-1987 photoelectric colorimetric ≤ 5%<0.5%

Total alkalinity 0-500 mg/L, literature titration method ≤ 5% ≤ 2%

Hydrogen sulfide 0-4 mg/L GB-T 16489-1996 photoelectric colorimetric ratio ≤ 5%<0.5%

Salinity 1.00-1.060/Specific gravity 0.001 0.002

Phosphate 0-2 mg/L GB11893-89 photoelectric colorimetry ≤ 5%<0.5%

Total hardness 0~10000mg/L GB7747-87 titration method ≤ 10% ≤ 2%

Water temperature -50-85 ℃/sensor ± 1% ≤ 0.1

Residual chlorine 0-10 mg/L HJ586-2010 photoelectric colorimetric ratio ≤ 5%<0.5%

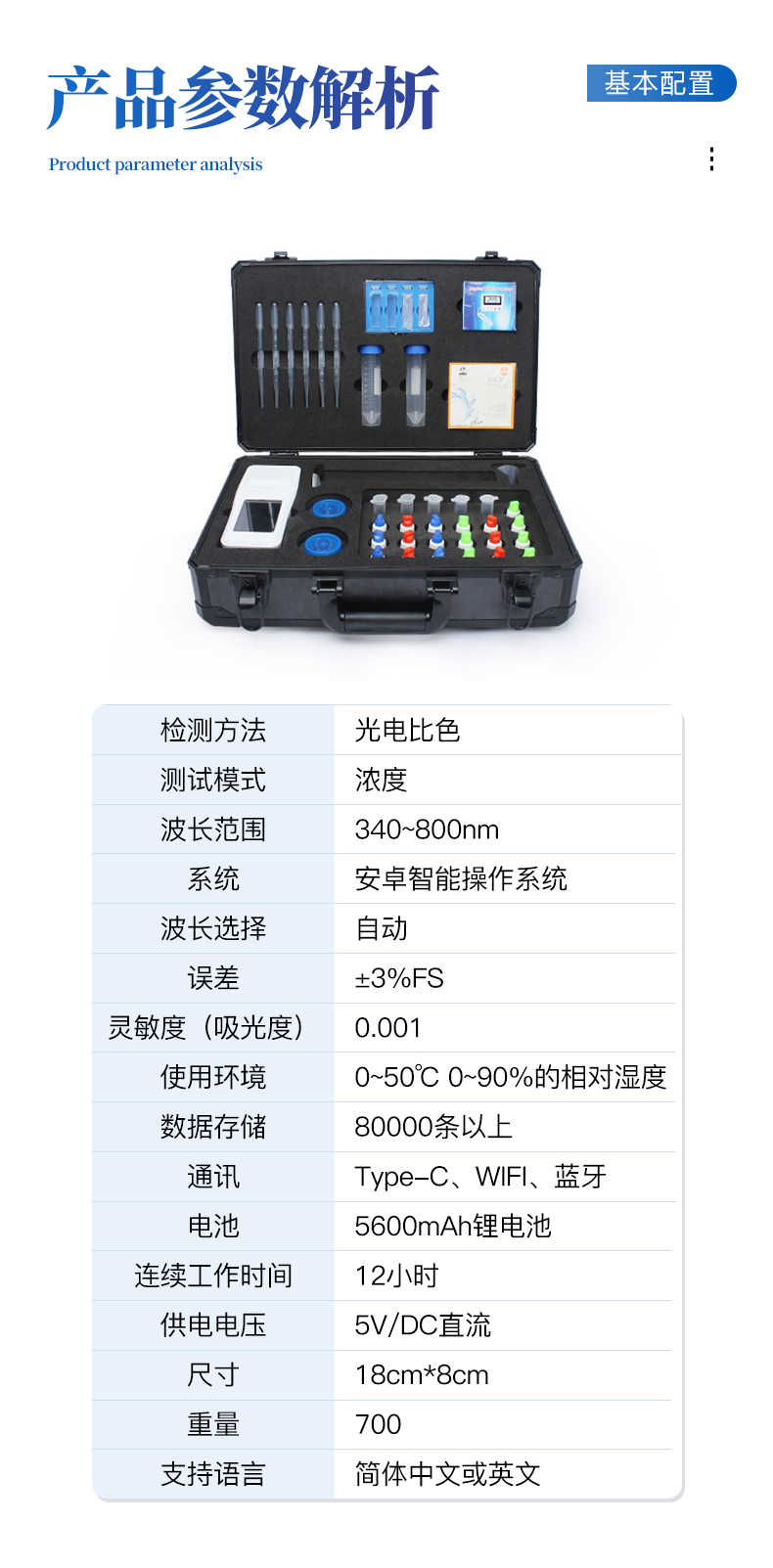

Parameter indicators:

Detection method photoelectric colorimetry

Test mode concentration

Wavelength range 340~800nm

System Android Intelligent Operating System

Automatic wavelength selection

Display screen 3.5-inch color LCD screen

Stability<0.5%

Sensitivity (absorbance) 0.001

Operating environment: 0-50 ℃, 0-90% relative humidity

Store over 80000 pieces of data

Communication Type-C, WIFI, Bluetooth

5600mAh lithium battery

Continuous working time of 12 hours

Supply voltage 5V/DC DC

Size 18cm * 8cm

Weight 700g

Support languages Simplified Chinese or English

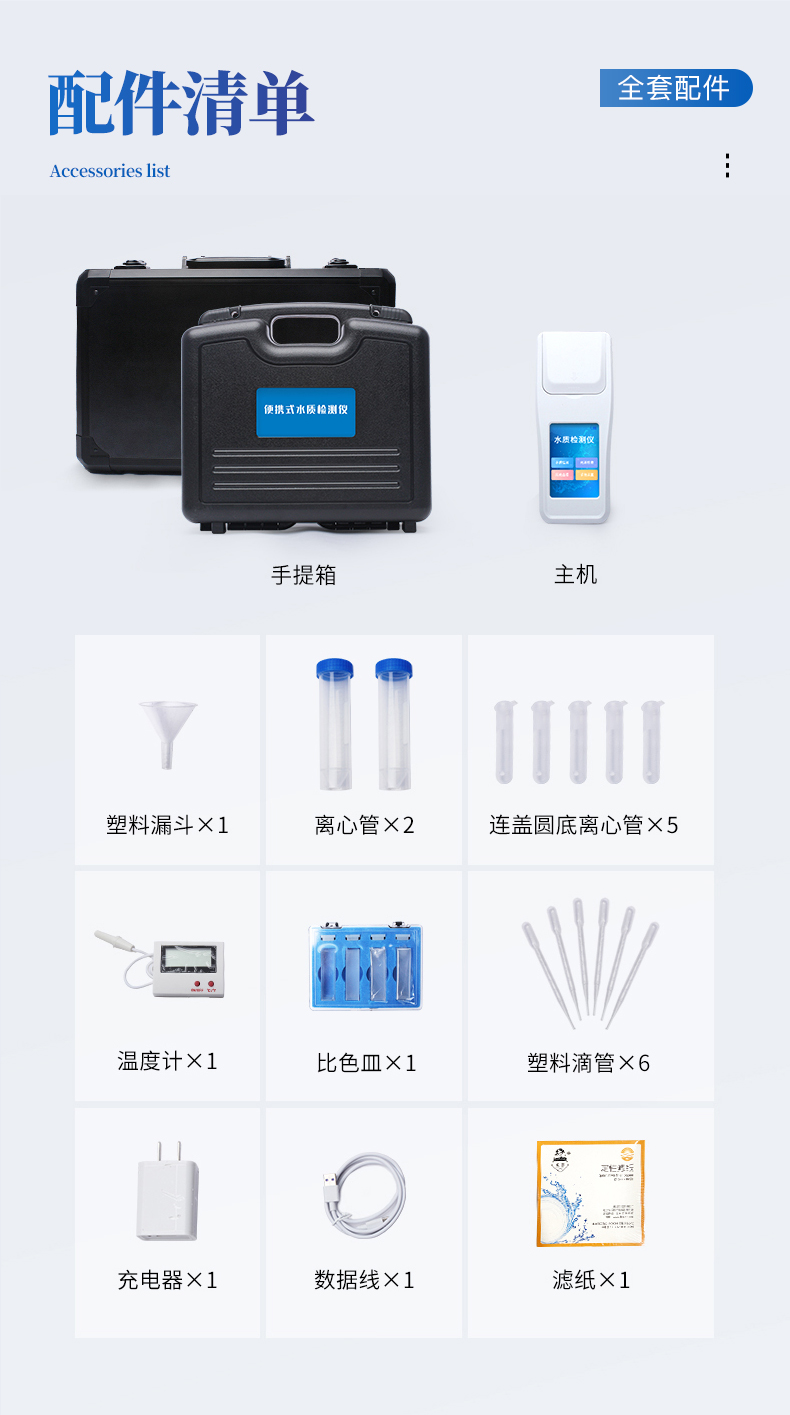

Configuration list:

Number Name Unit Quantity:

1 Instrument main console 1

2 measuring cups 1

3 centrifuge tubes 2

4 round bottomed centrifuge tubes with 4 covers, 5

5 plastic funnels only 1

6 Color comparison container 1

7 plastic droppers only 6

8 filter paper boxes 1

9 data cable roots 1

10 chargers 1
