Water quality detector

Product Overview:

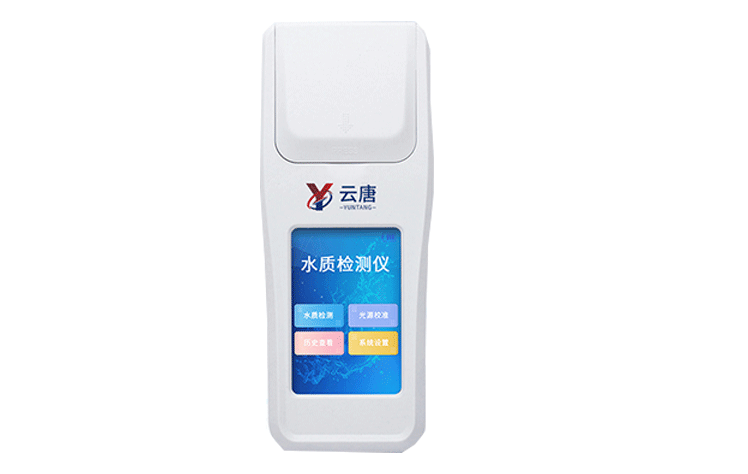

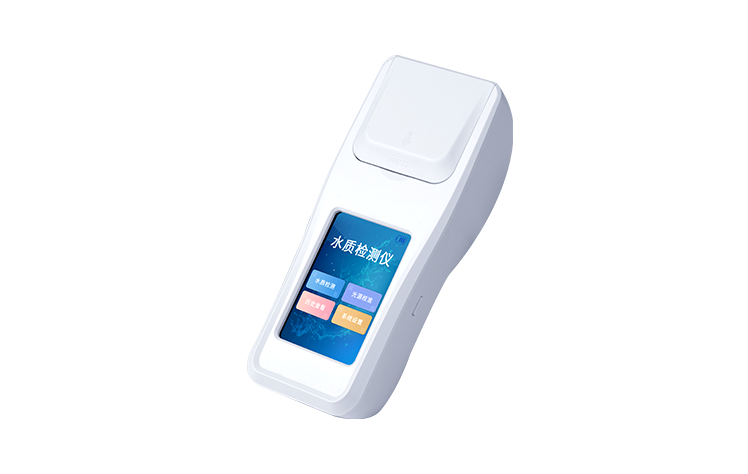

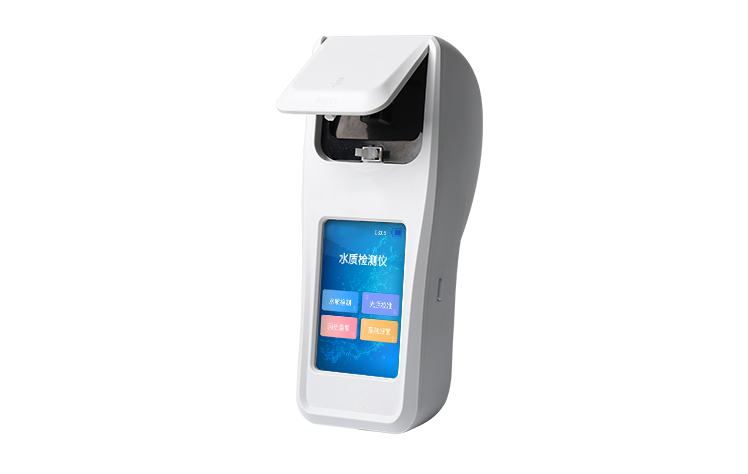

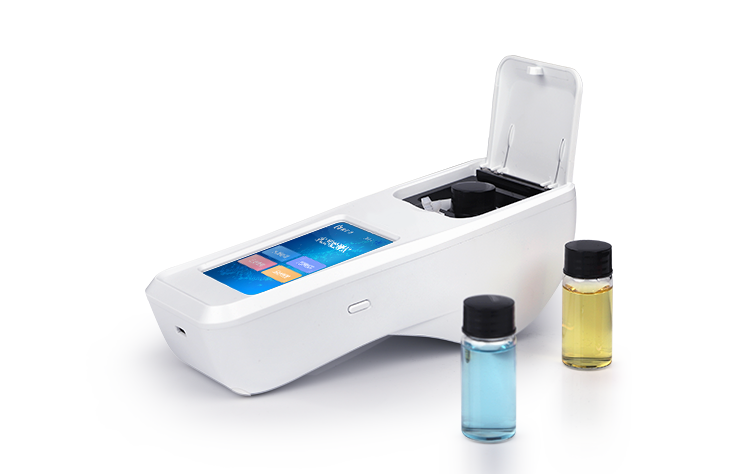

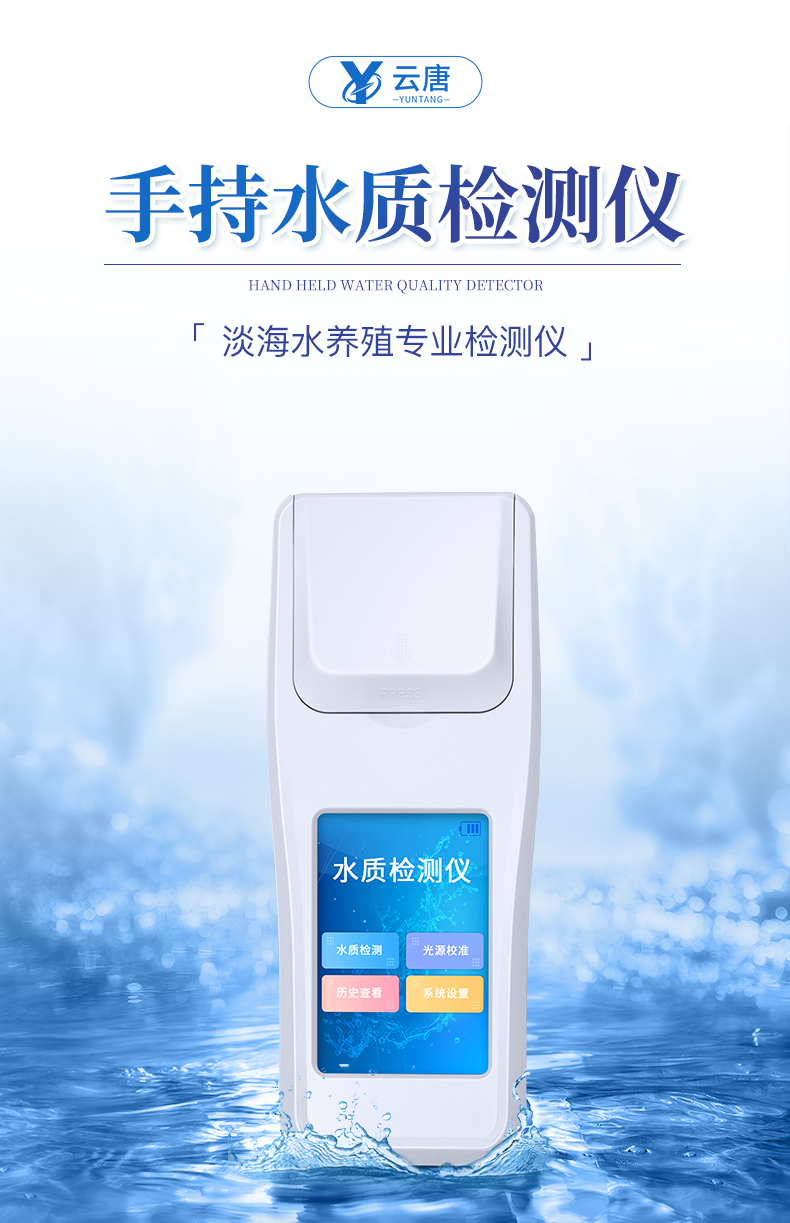

The YT-SS9 portable water quality detector is a detection device suitable for aquaculture, river monitoring, industrial wastewater, swimming venues and other fields. Combined with fast color detection reagents, it can measure quickly, simply, accurately, and stably. It has a beautiful appearance, a simple operation interface, and an accurate detection system, helping users obtain precise data and analyze water conditions more accurately and effectively, Prevent breeding risks in advance and avoid losses in a timely manner.

Testing items: Can detect 9 indicators including pH, dissolved oxygen, ammonia nitrogen, nitrite, total alkalinity, hydrogen sulfide, salinity, phosphate, and total hardness

Application industry:

Suitable for aquaculture, water source protection, production monitoring, river monitoring, purified water plants, water treatment plants, domestic sewage treatment plants, industrial wastewater, swimming venues, scientific research experiments, etc.

Instrument features:

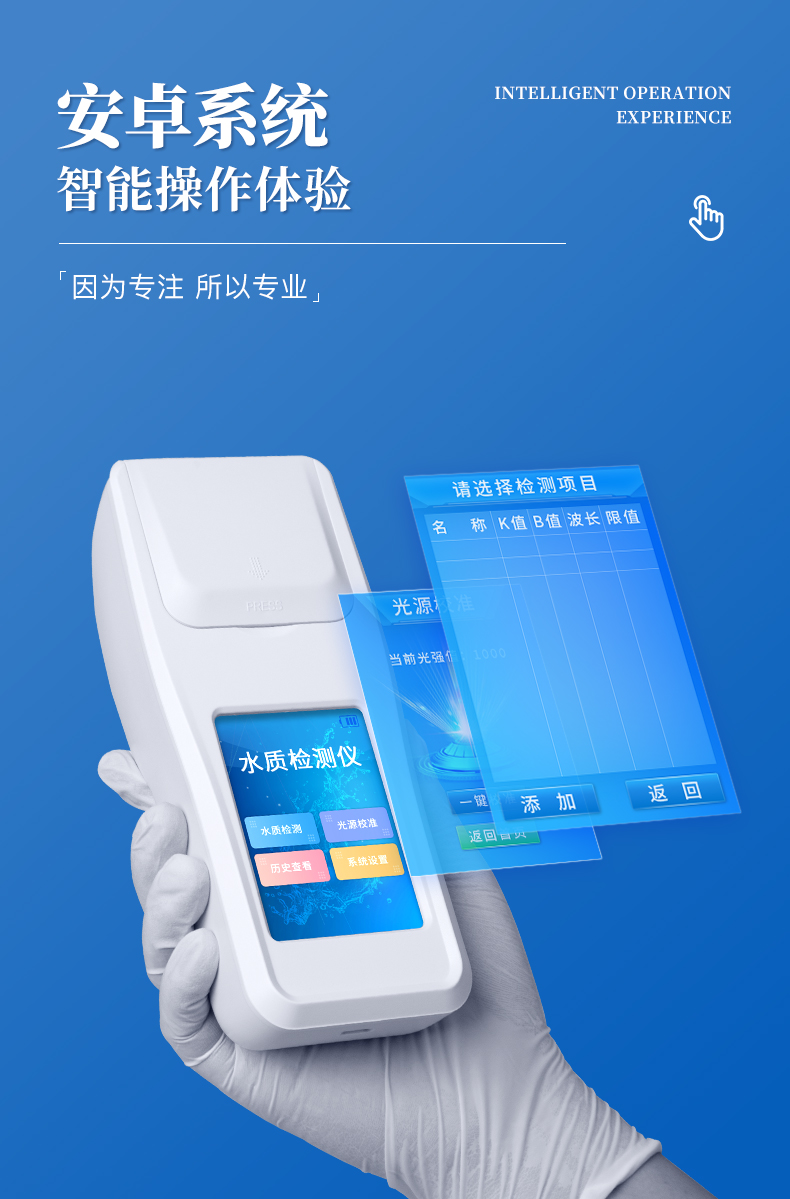

The Android intelligent system provides a better interactive experience, making it easier and faster to operate;

3.5-inch high-definition touch screen for more intuitive data;

Configure a regulatory platform, and the detection results can be directly transmitted wirelessly to the platform for water quality long-term and short-term analysis, assisting management.

Built in operation process, simple operation, no need for training, and easy to get started;

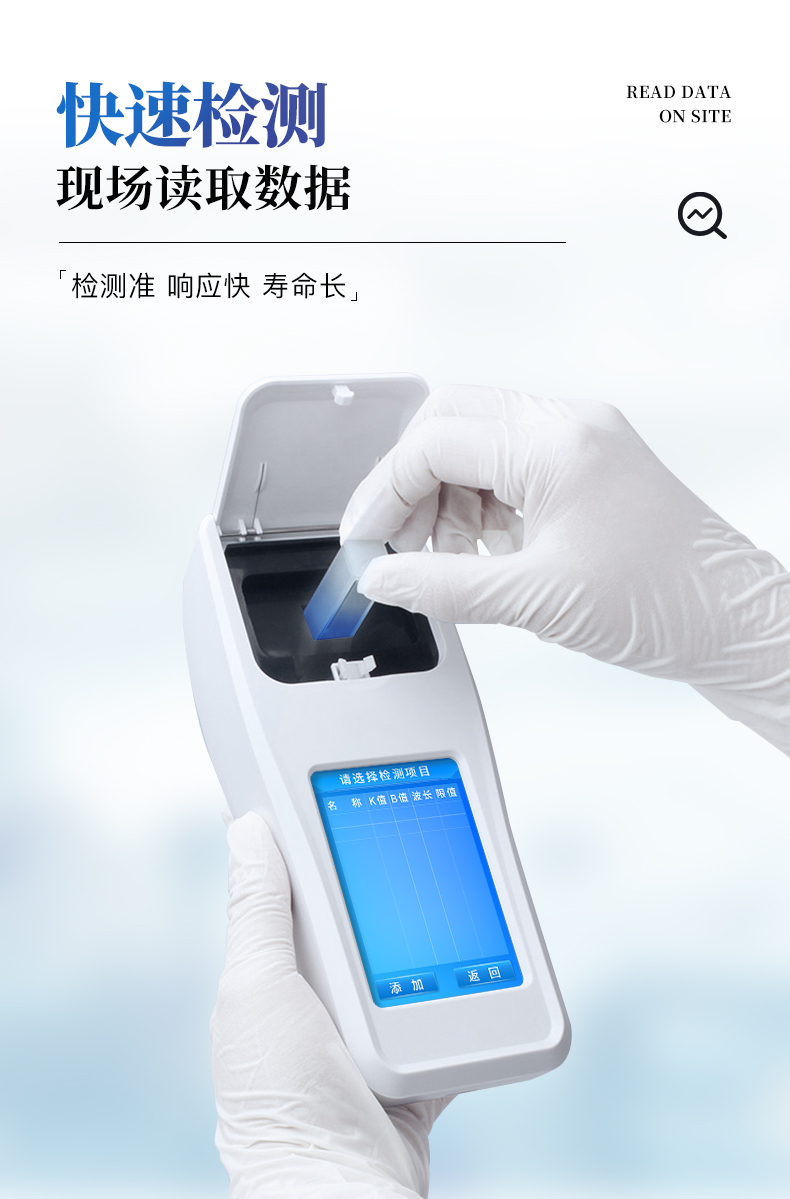

Faster detection speed, on-site data reading;

Portable with small size and light weight, convenient for outdoor testing;

Compact and beautiful in appearance, stable in operation and maintenance free, with good cost-effectiveness;

Adopting imported cold light sources, with stable optical performance and a lifespan of up to 100000 hours;

Dual purpose AC/DC, with built-in rechargeable lithium battery, environmentally friendly and durable, capable of supporting continuous indoor and outdoor work.

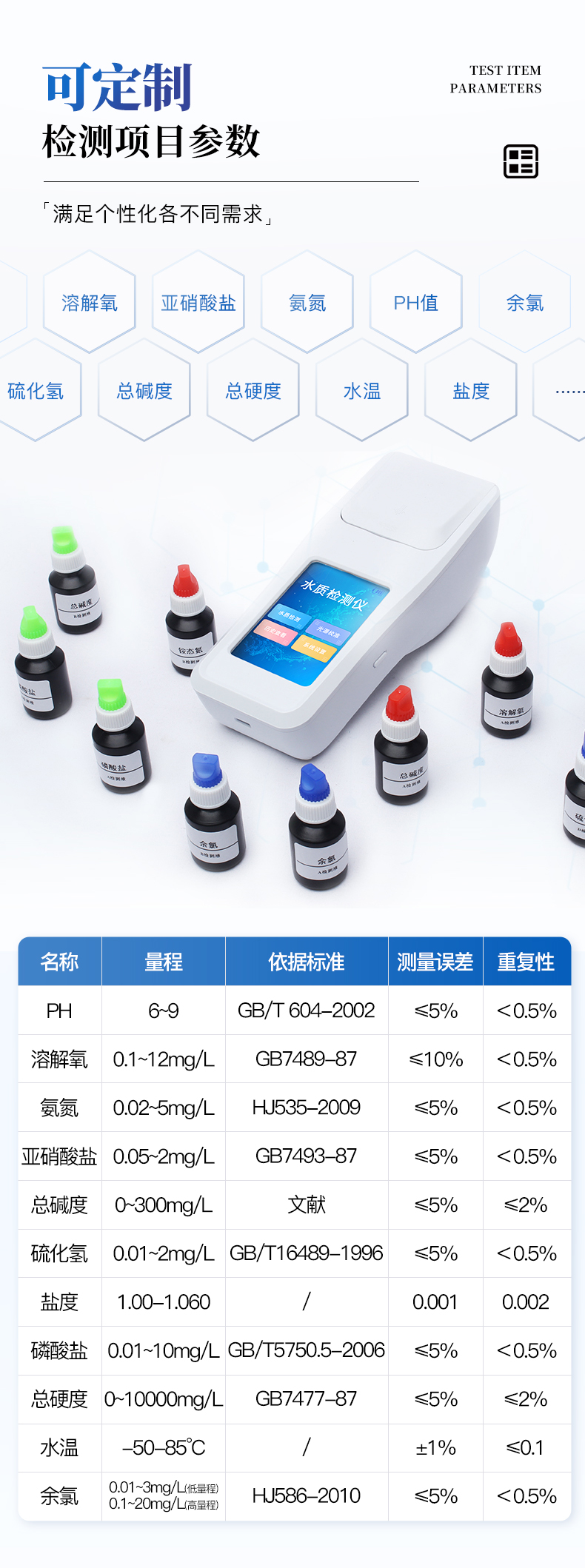

Testing items:

Parameter Name Range Measurement Error Repeatability Based on Standard Measurement Methods

PH 44575 acid-base indicator colorimetric photoelectric colorimetry ≤ 5%<0.5%

Dissolved oxygen 0-12 mg/L GB 7489-87 photoelectric colorimetry ≤ 10%<0.5%

Ammonia nitrogen 0-4mg/L HJ 586-2010 photoelectric colorimetric ratio ≤ 5%<0.5%

Nitrite 0-2 mg/L GBT 7493-1987 photoelectric colorimetric ≤ 5%<0.5%

Total alkalinity 0-500 mg/L, literature titration method ≤ 5% ≤ 2%

Hydrogen sulfide 0-4 mg/L GB-T 16489-1996 photoelectric colorimetric ratio ≤ 5%<0.5%

Salinity 1.00-1.060/Specific gravity method 0.001 0.002

Phosphate 0-2 mg/L GB11893-89 photoelectric colorimetry ≤ 5%<0.5%

Total hardness 0~10000mg/L GB7747-87 titration method ≤ 10% ≤ 2%

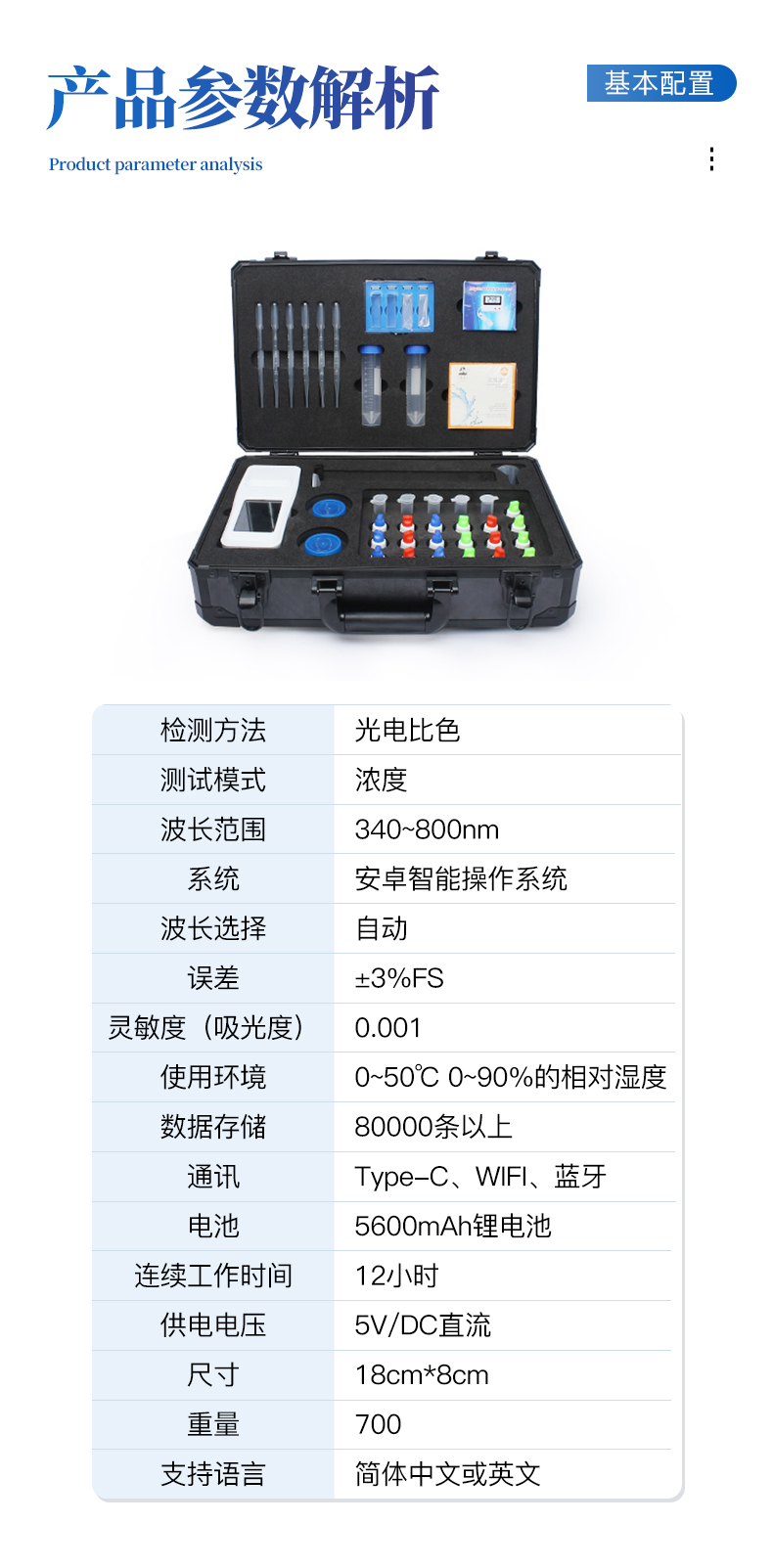

Detection method photoelectric colorimetry

Test mode concentration:

Wavelength range 340~800nm

System Android Intelligent Operating System

Automatic wavelength selection

Display screen 3.5-inch color LCD touch screen

Stability<0.5%

Sensitivity (absorbance) 0.001

Operating environment: 0-50 ℃, 0-90% relative humidity

Store over 80000 pieces of data

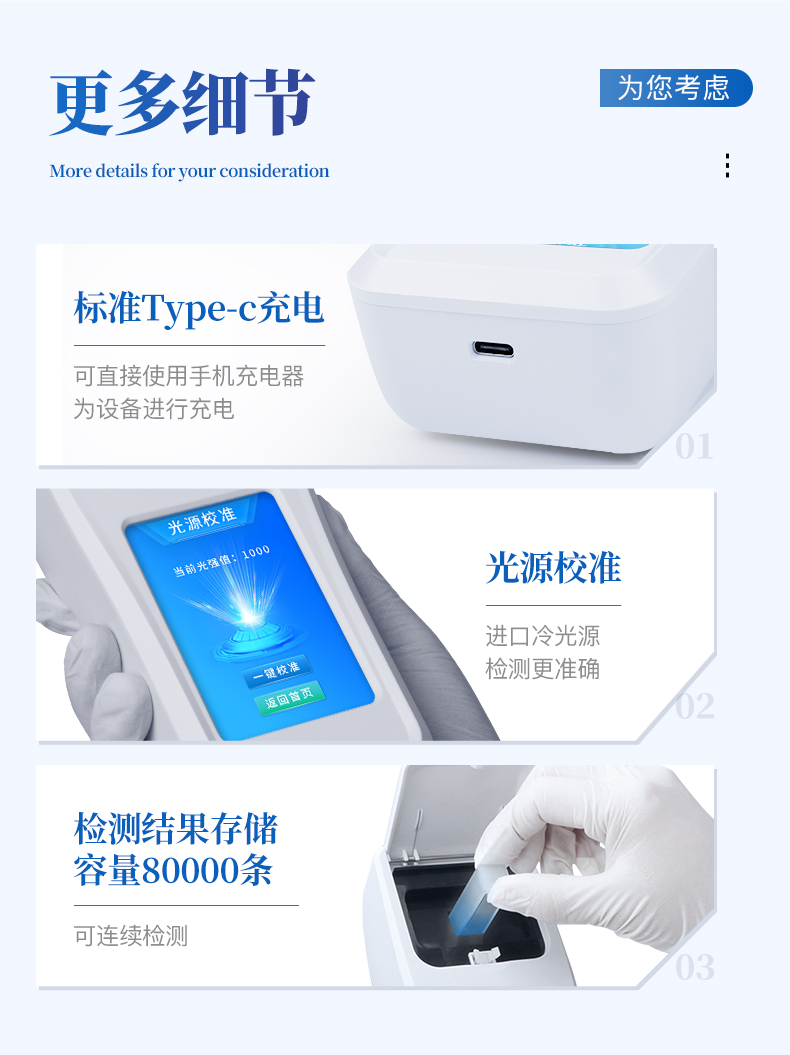

Communication Type-C, WIFI, Bluetooth

5600mAh lithium battery

Continuous working time of 12 hours

Supply voltage 5V/DC DC

Size 18cm * 8cm

Weight 700g

Support languages Simplified Chinese or English

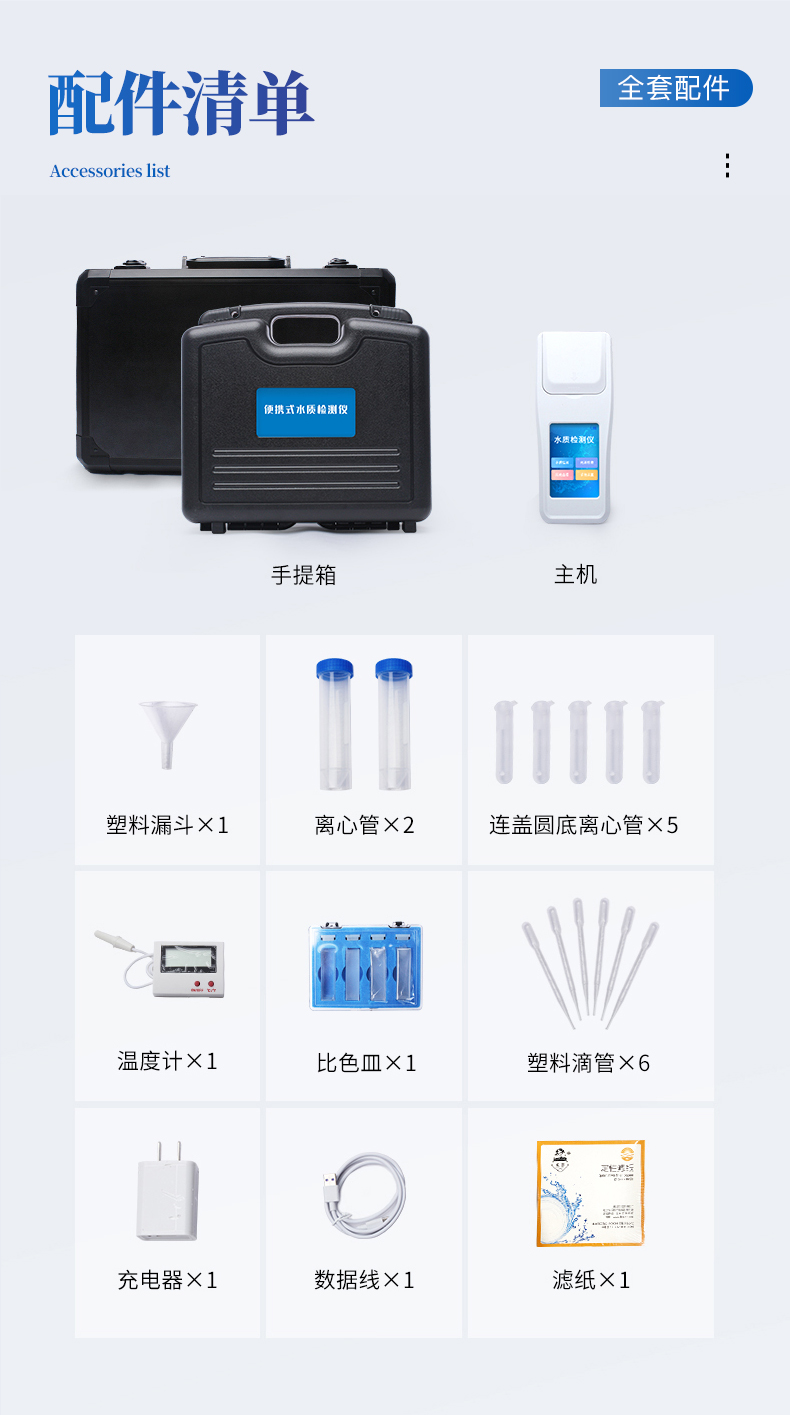

Configuration list:

Number Name Unit Quantity

1 Instrument main console 1

2 measuring cups 1

3 centrifuge tubes 2

4 round bottomed centrifuge tubes with 4 covers, 5

5 plastic funnels only 1

6 Color comparison container 1

7 plastic droppers only 6

8 filter paper boxes 1

9 data cable roots 1

10 chargers 1
