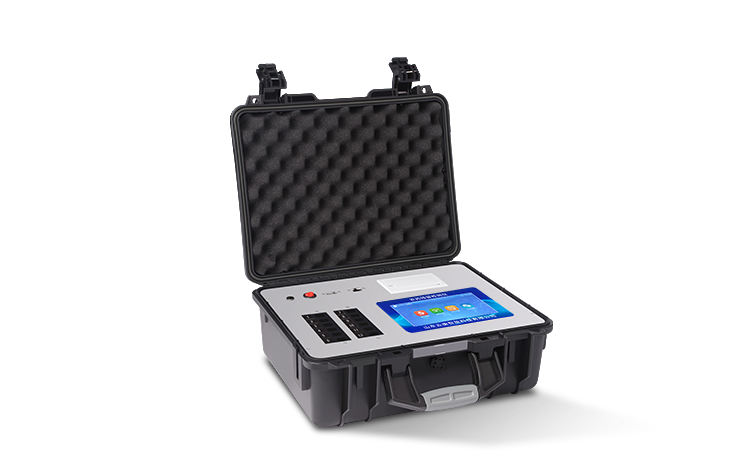

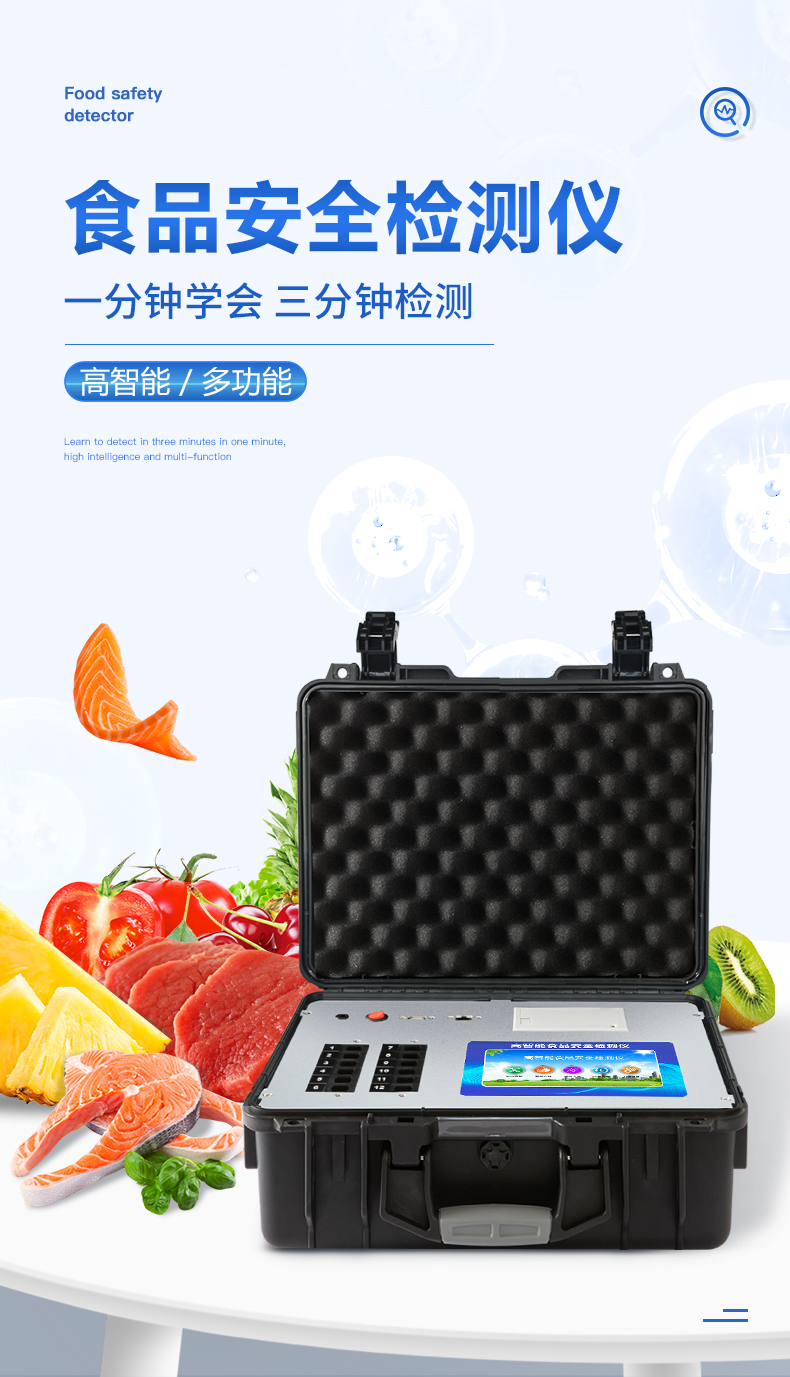

Fast detection instrument for fruits, vegetables, and meat

Product introduction of multifunctional meat food detector:

The multifunctional fruit and vegetable meat detector can quickly detect dozens of items, including organic phosphorus and carbamate pesticides in various vegetables and fruits. Diagnosis of diseased meat includes freshness of meat, histamines in meat, and volatile base nitrogen; Leptin hormone residues in various meat products; Qualitative and quantitative testing of antibiotic residues and other drugs on site.

This multifunctional meat detector is an integrated meat safety rapid detection and analysis equipment, widely used in various supermarkets, wholesale markets, breeding farms, slaughterhouses, food and meat product deep processing enterprises, inspection and quarantine departments, food and drug supervision bureaus, health departments, higher education institutions, research institutes, agricultural departments, and other units.

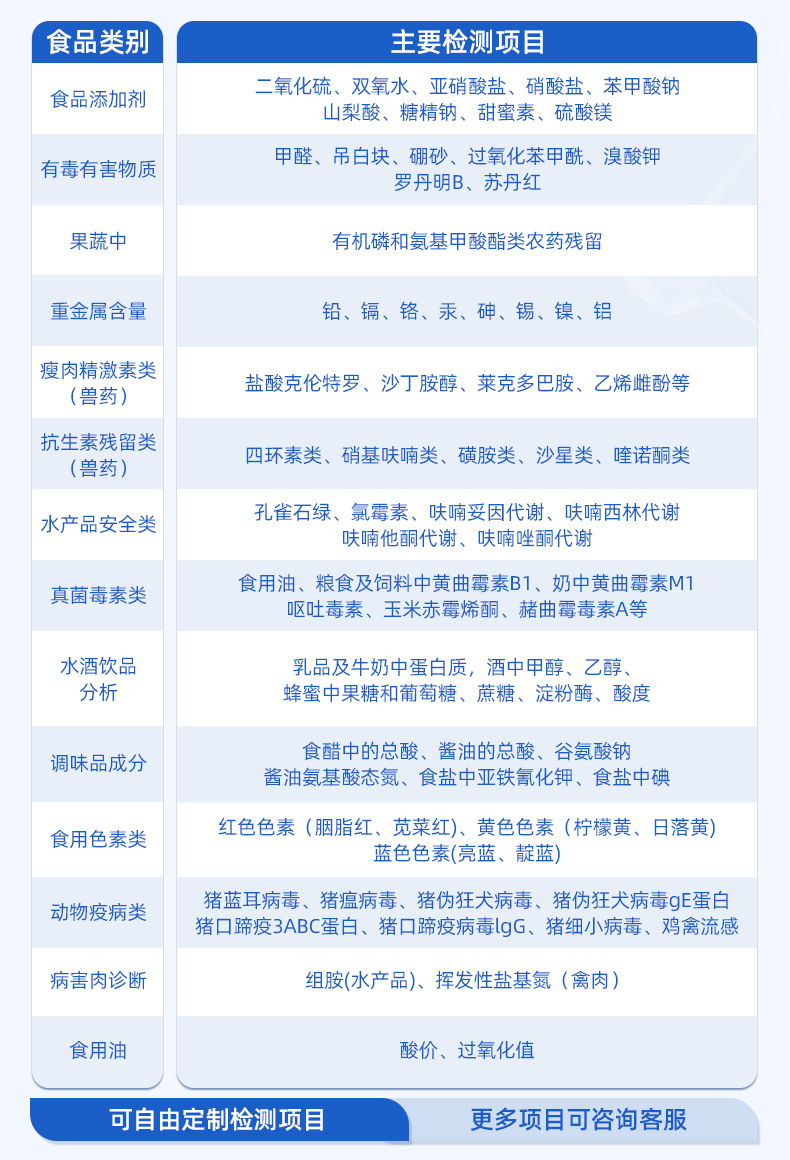

Test items:

Organic phosphorus and carbamate pesticides in various vegetables and fruits

Diagnosis of diseased meat: histamine, volatile salt nitrogen, acid value of meat products, histamine in aquatic products, etc

Leptin (hormone based veterinary drugs): clenbuterol hydrochloride, salbutamol, ractopamine, diethylstilbestrol, quinoline, etc

Antibiotics (residual veterinary drugs): tetracyclines, nitrofurans, sulfonamides, floxacin, quinolones, gentamicin, streptomycin, amoxicillin, erythromycin, etc

Aquatic product safety category: malachite green, chloramphenicol, furantoin metabolism, furacilin metabolism, furanone metabolism, furazolidone metabolism, etc

Product performance:

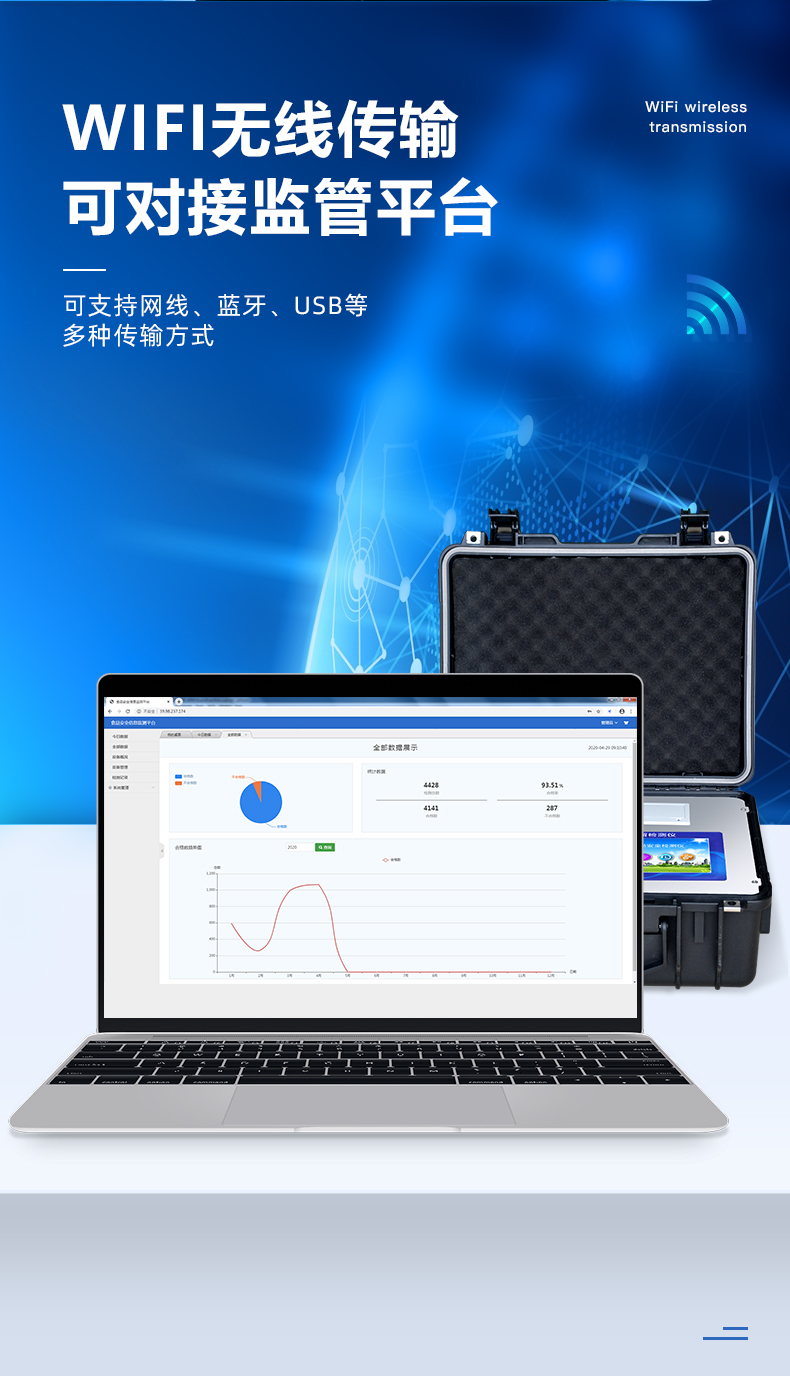

1. The Android intelligent operating system adopts a more efficient UI interface, and the instrument has functions such as WiFi network upload, 4G network transmission, GPRS wireless remote transmission, and network cable connection, allowing for quick batch data upload.

2. High degree of intelligence, the instrument has self checking function: it has power on self checking and zero setting functions, and has automatic detection of repeatability.

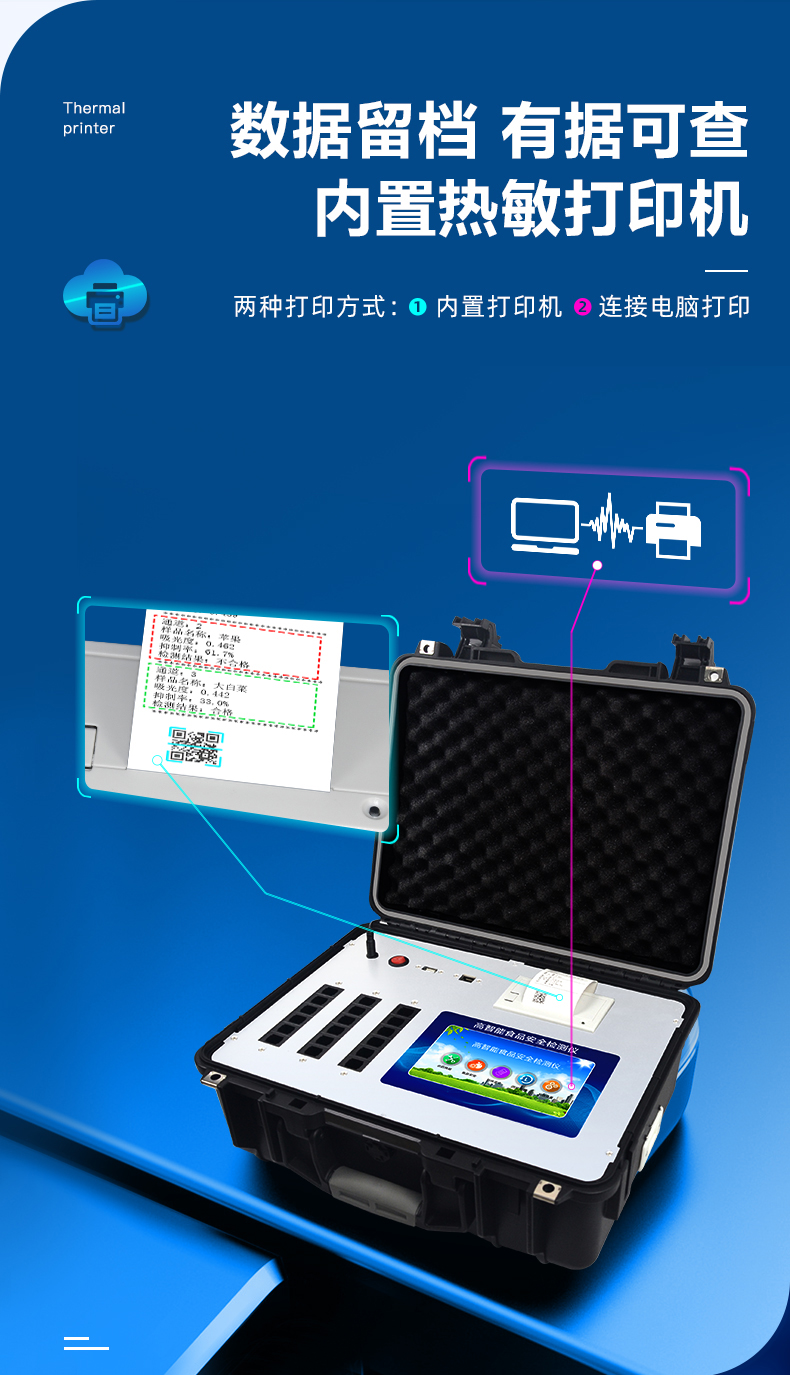

3. The new generation of high-speed thermal printer can automatically print or batch print test reports and QR codes after testing is completed.

4. The instrument is equipped with a regulatory platform, and data can be uploaded on both local area networks and the internet. The test results are directly transmitted to the food safety regulatory platform. Conduct regional food safety supervision, big data analysis, processing, and data statistics, detect long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and warning

5. Integrated host, including food safety detection module, multi-channel pesticide residue detection module, and colloidal gold immunochromatographic detection module.

6. Integrated portable rapid inspection equipment, meeting the needs of on-site and mobile detection, can achieve the detection of all detection items under the same software, and can visually display the detection results through the same window.

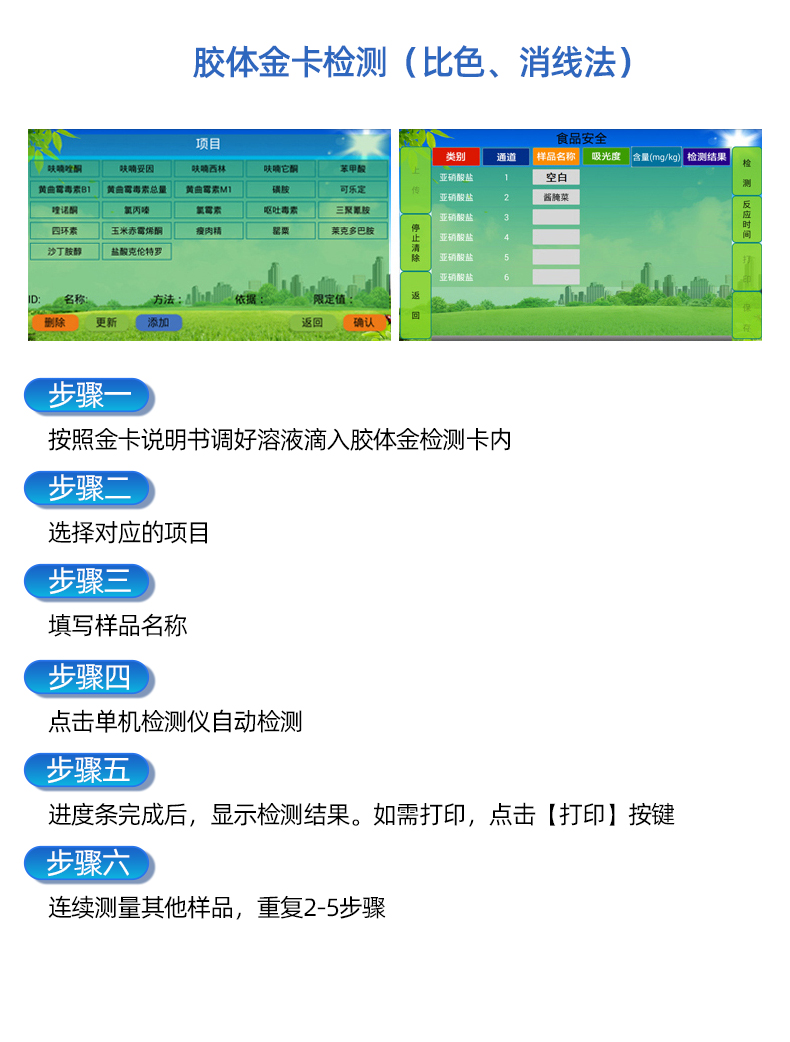

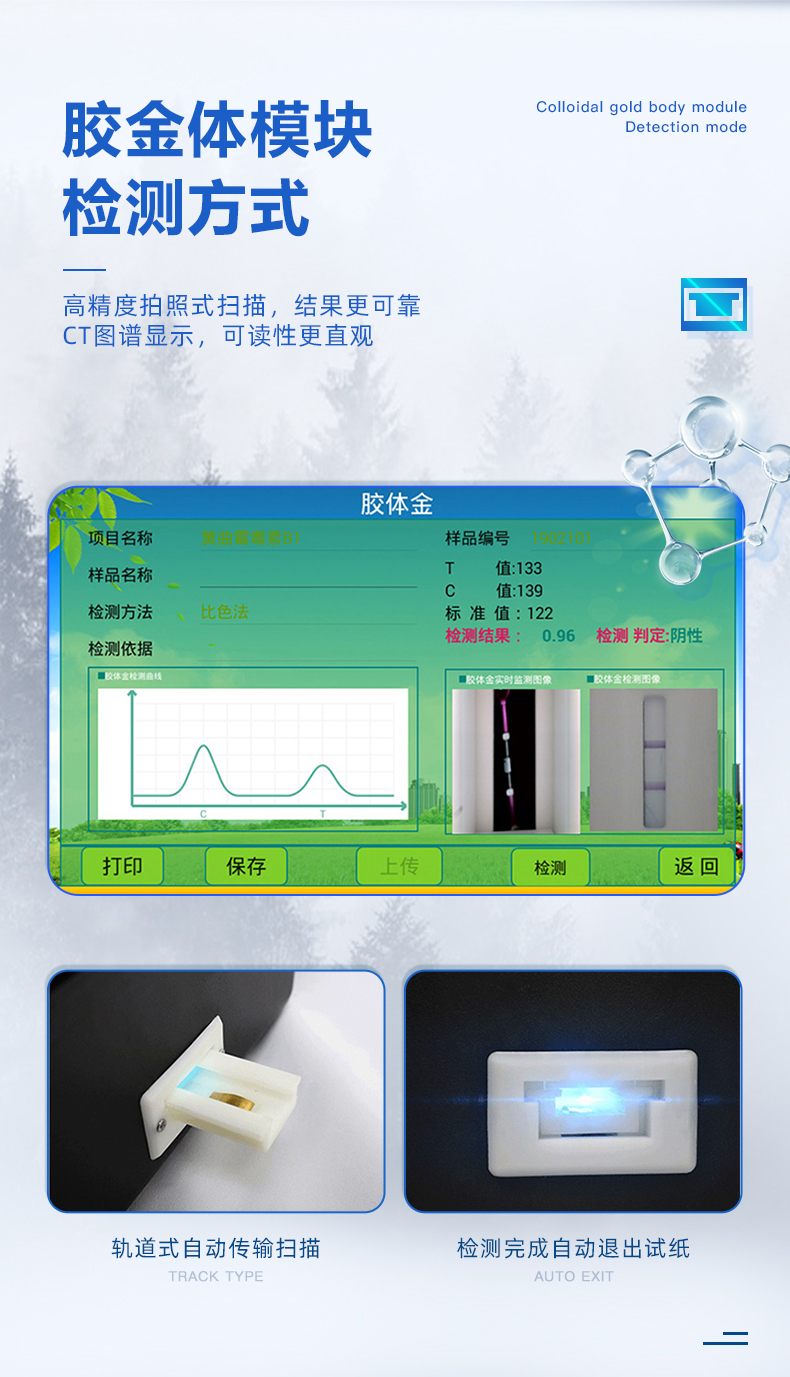

7. Colloidal gold module detection method: track type automatic transmission scanning, automatically exiting the detection card after the detection is completed.

8. CT line automatic recognition without manual adjustment.

9. The instrument has a menu library of multiple categories and types of samples, allowing for flexible selection of detection samples. Different detection channels can simultaneously detect different sample items. You can also directly edit and input sample names, testing indicators, testing units, and other information on the instrument and save them in the sample database.

10. The built-in operation video of the instrument is your laboratory guidance expert.

11. The sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

12. The instrument has its own protection function, which can be set with a username and password to prevent non staff operations, etc.

13. High sensitivity, high detection accuracy, high repeatability accuracy, scanning type high-precision optical sensor.

14. The instrument has functions of recalibration, locking, and restoring factory settings.

15. The result judgment line can be modified, the calibration value of the reference value can be saved, and data will not be lost after power outage.

16. Compatible with all colloidal gold cards on the market, with unrestricted use of consumables, greatly enhancing the user experience.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, faster operation speed, and stronger stability.

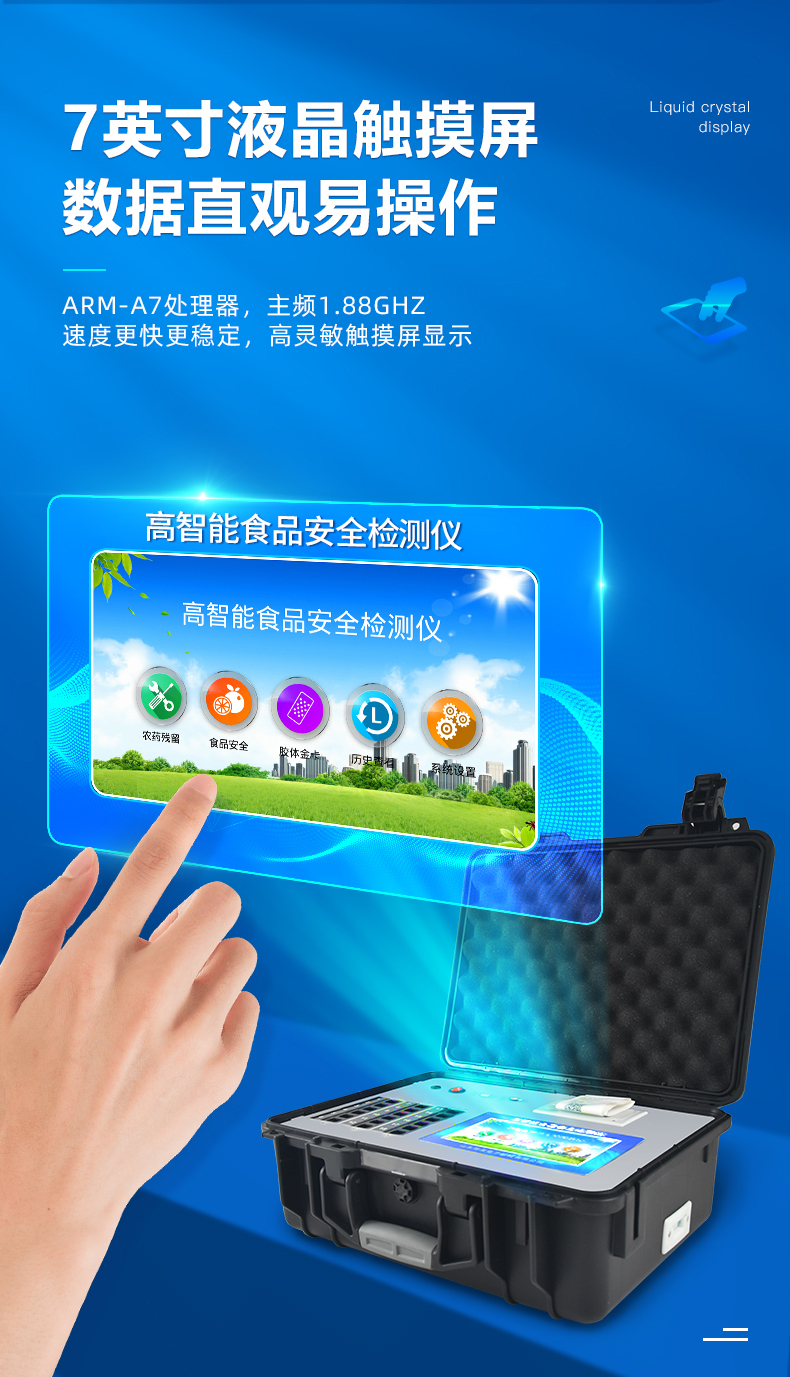

2. Display method: 7-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

3. AC/DC dual purpose, DC 12V power supply, can be connected to car power supply, and can be equipped with a 6Ah large capacity rechargeable lithium battery, convenient for outdoor flow testing.

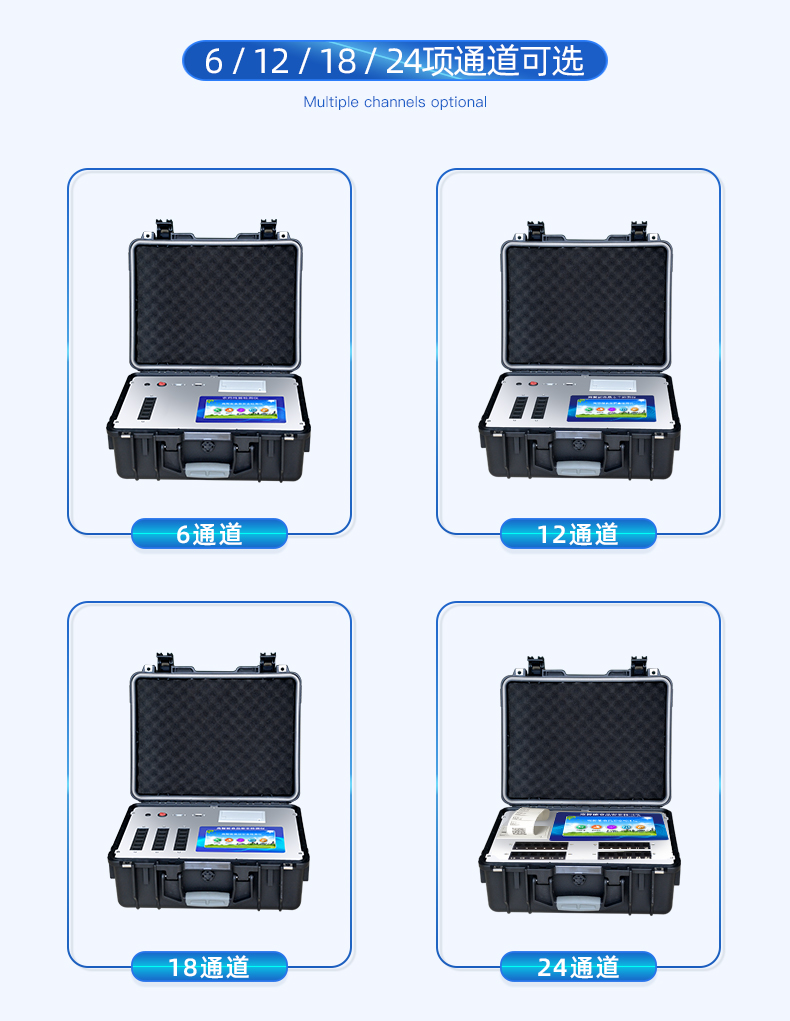

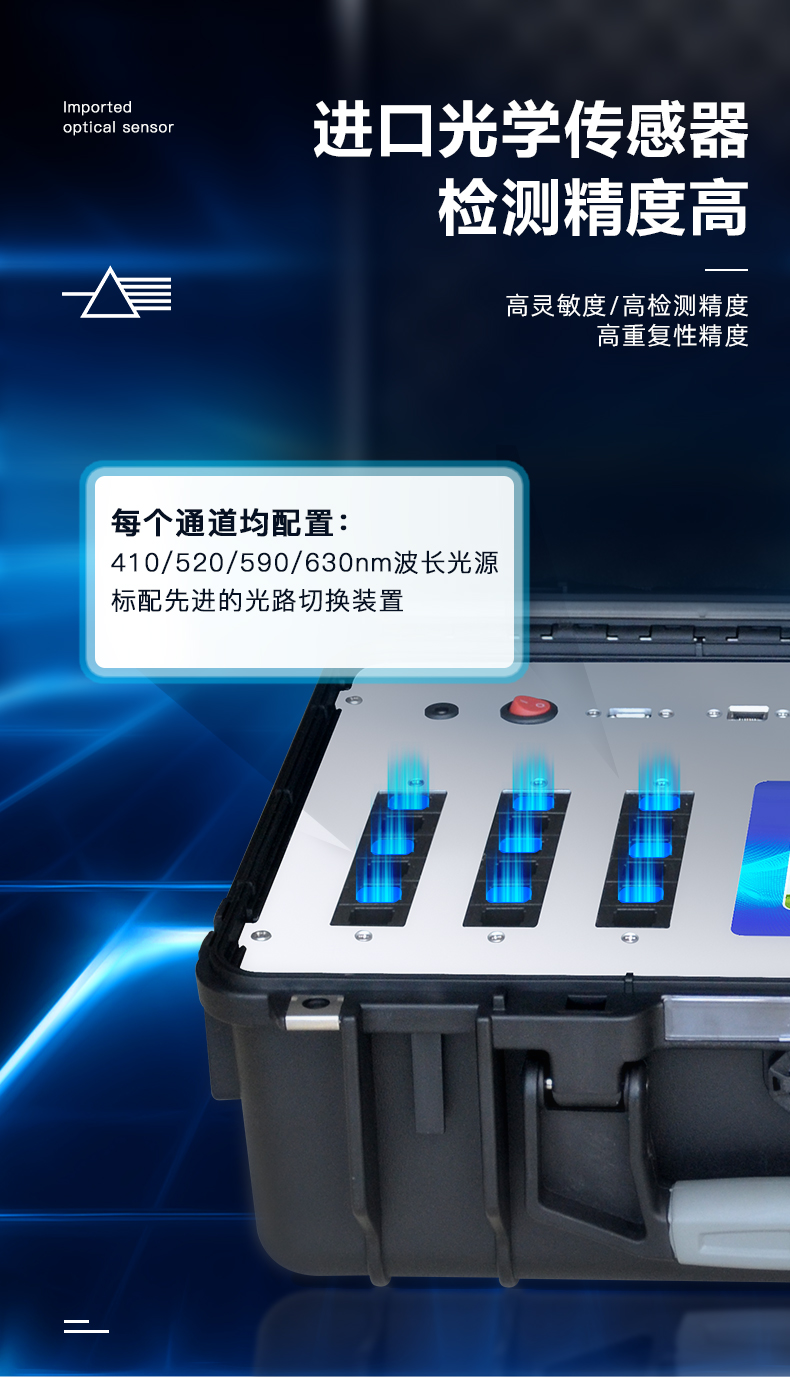

4. Four wavelength cold light source, 12 detection channels, each equipped with 410, 520, 590, and 630nm wavelength light sources, equipped with advanced optical path switching devices as standard, professional optical path switching function can achieve up to 64 wavelengths, and all detection items can achieve simultaneous detection of all channels.

5. Automatic adjustment and calibration of light source brightness

6. Intelligent constant current voltage regulation, automatic calibration of light intensity, long-term continuous operation of the light source without temperature drift phenomenon.

7. Built-in new national limit standards, on-site comparison with measured results, and continuous updating of standards.

8. Continuous injection and detection

9. Sample numbers are automatically accumulated.

10. The test results are in an Excel spreadsheet, which can be copied by connecting to a computer.

11. Storage capacity of 200000 test results

12. Supports USB storage, standard USB interface, and driver free installation.

13. The detection items can be expanded and the firmware can be upgraded

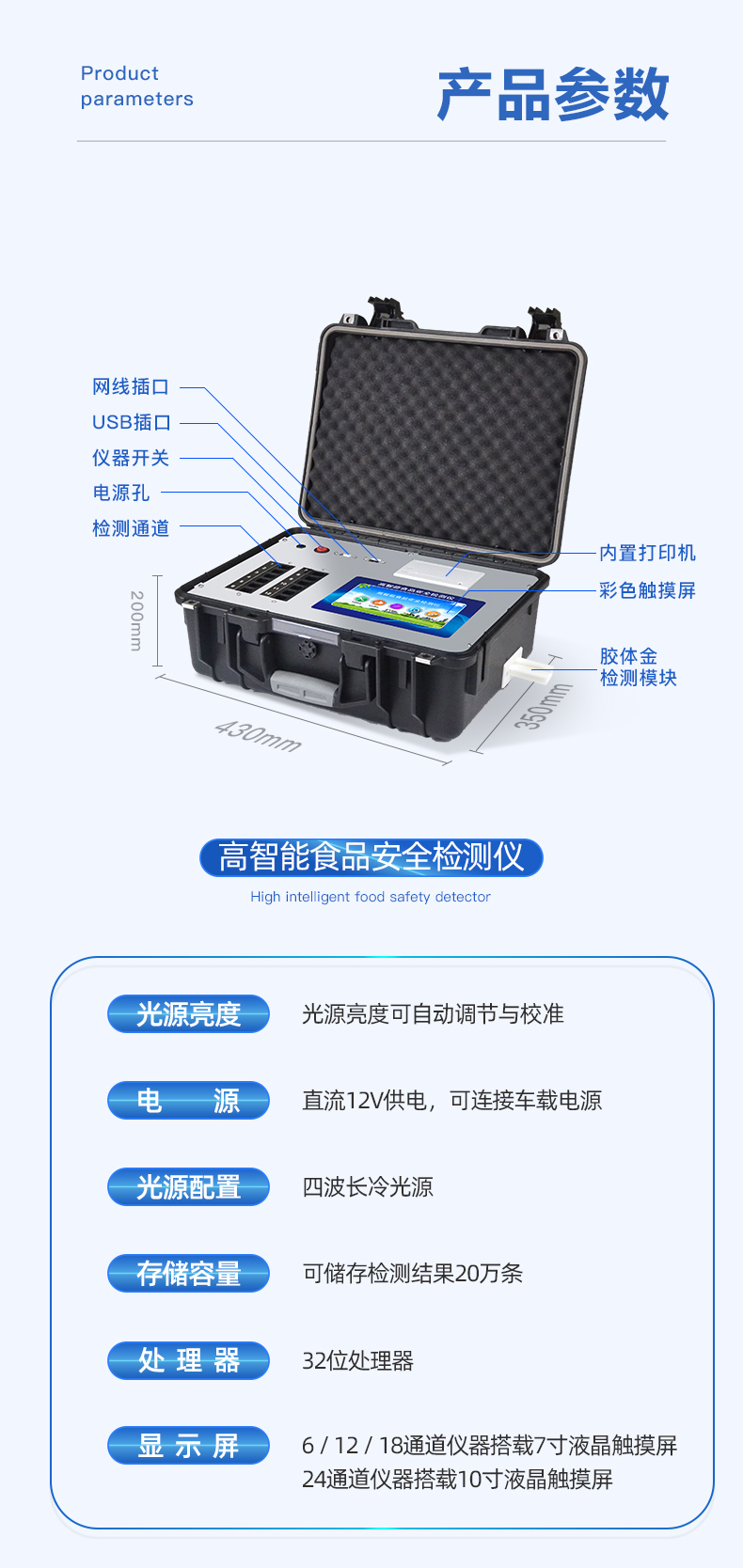

14. Instrument size: 43 × thirty-five × 20cm, net weight of the host: 5.2kg
