Fruit and vegetable meat detector

Product Introduction Materials：

The fruit and vegetable meat detector produced by Shandong Yuntang Intelligent Technology Co., Ltd. adopts a portable integrated design, which can quickly detect dozens of items, including organic phosphorus and carbamate pesticide residues in various vegetables and fruits. Diagnosis of diseased meat: histamine and volatile salt nitrogen in meat; Qualitative and quantitative on-site detection of leptin hormone residues, antibiotics, veterinary drug residues, etc. in various meat products.

The fruit, vegetable, and meat detector is an integrated food safety rapid detection and analysis equipment, which is currently widely used in units such as the Food and Drug Administration, health departments, higher education institutions, research institutes, agricultural departments, breeding farms, slaughterhouses, food and meat product deep processing enterprises, and inspection and quarantine departments.

Instrument testing items:

Pesticide residues in fruits and vegetables

Diagnosis of diseased meat: histamine and volatile base nitrogen

Leptin hormone (veterinary medicine): clenbuterol hydrochloride, salbutamol, ractopamine, diethylstilbestrol, etc

Antibiotic residues (veterinary drugs): tetracyclines, nitrofurans, sulfonamides β－ Stimulants, floxacin, sulfonamides, quinolones, thiamphenicol, flufenicol, amantadine, temicoxacin, gentamicin, lincomycin, streptomycin, enrofloxacin, ciprofloxacin, cefradime, penicillin, amoxicillin, etc

Aquatic product safety category: Malachite green, chloramphenicol, furantoin, furacillin, furanone, furazolidone, etc

Egg drug residues: chloramphenicol, tetracycline, sulfonamides, quinolones, furacilin, furantazone, furantoin, furazolidone, flufenicol, amoxicillin, cephalexin, erythromycin, streptomycin, etc

Mycotoxin residues: Aflatoxin B1, total amount of aflatoxin in edible oil, grains, and feed, aflatoxin M1, vomiting toxin, zearalenone, ochratoxin A, T2 toxin, fumatoxin, etc. in milk

Animal epidemics: avian influenza, newcastle disease, foot and mouth disease of cattle and sheep, tuberculosis of cattle and sheep, hydatid disease of cattle and sheep, brucellosis of cattle and sheep, small ruminants, porcine blue ear virus, swine fever virus, swine pseudorabies virus, porcine parvovirus, porcine circovirus, canine parvovirus, canine distemper virus, canine rabies virus, etc

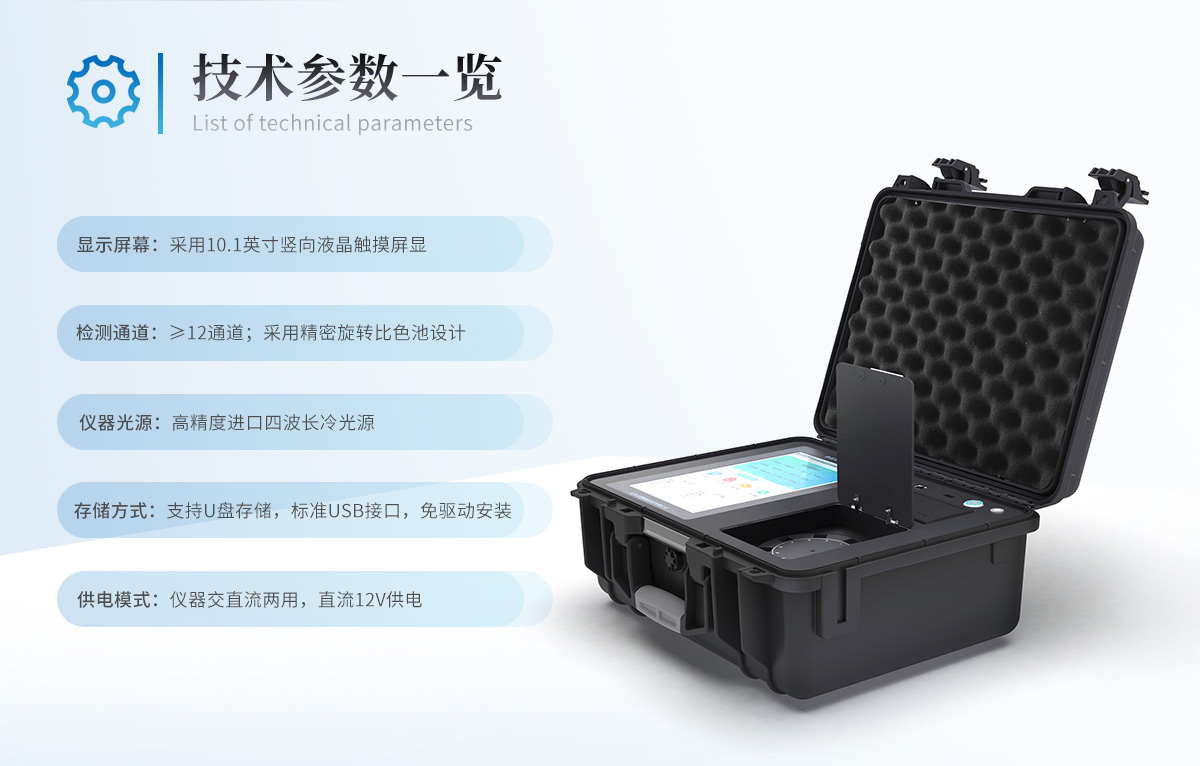

technical parameter：

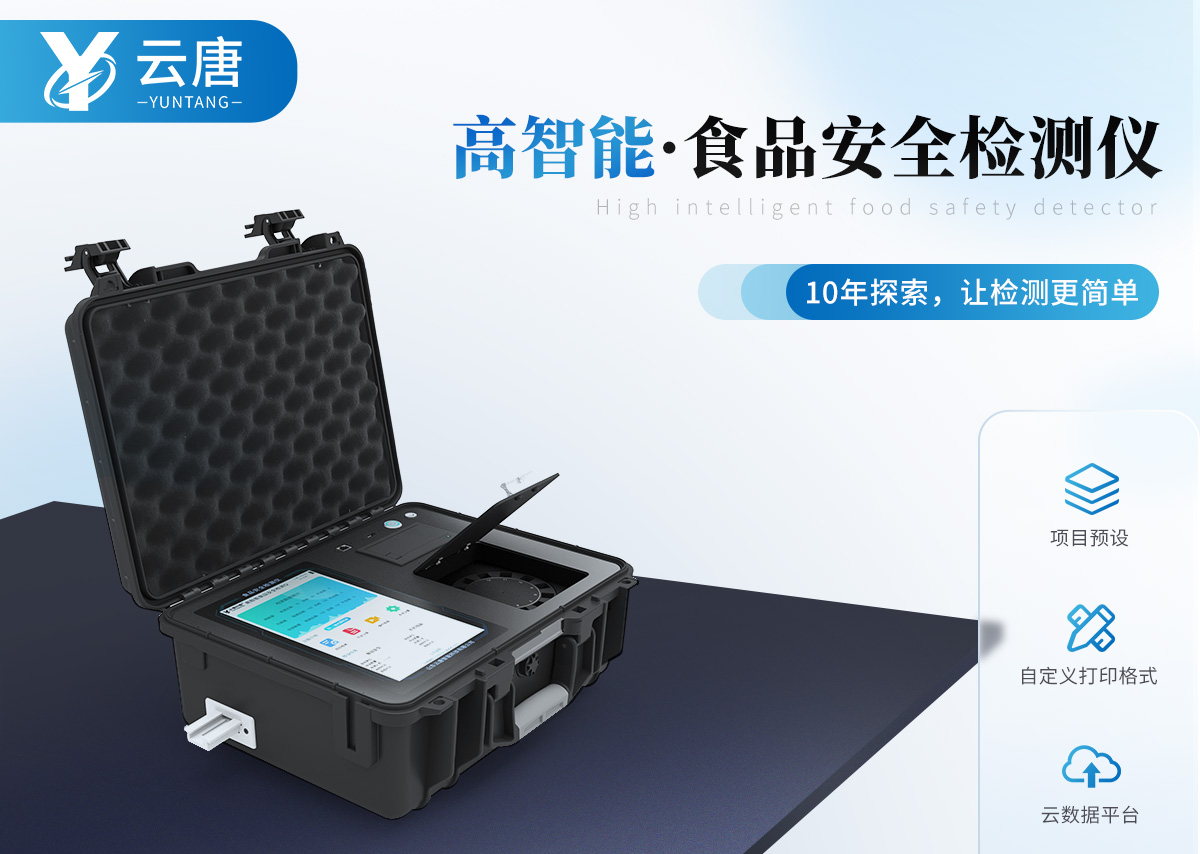

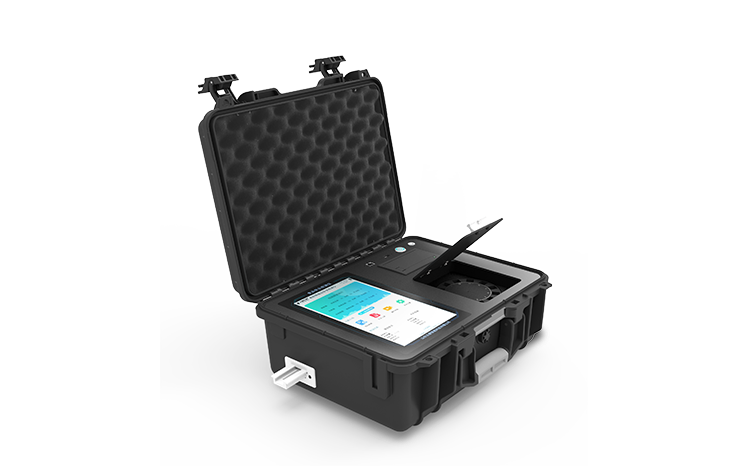

1. The instrument adopts an integrated design of a suitcase, which highly integrates the spectrophotometry module, colloidal gold detection module, new pesticide residue detection module, digital management module, and wireless communication module. At the same time, an upgrade detection method is reserved for remote system upgrade.

2. The instrument detection module is standardized and intelligent, and the detection items can be freely combined. The detection box is equipped with multiple standard detection units, and the detection module can be adjusted and configured.

3. Display screen: The instrument adopts a 10.1-inch vertical LCD touch screen display, paired with the Android intelligent operating system. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, which is easy to operate and has stronger performance.

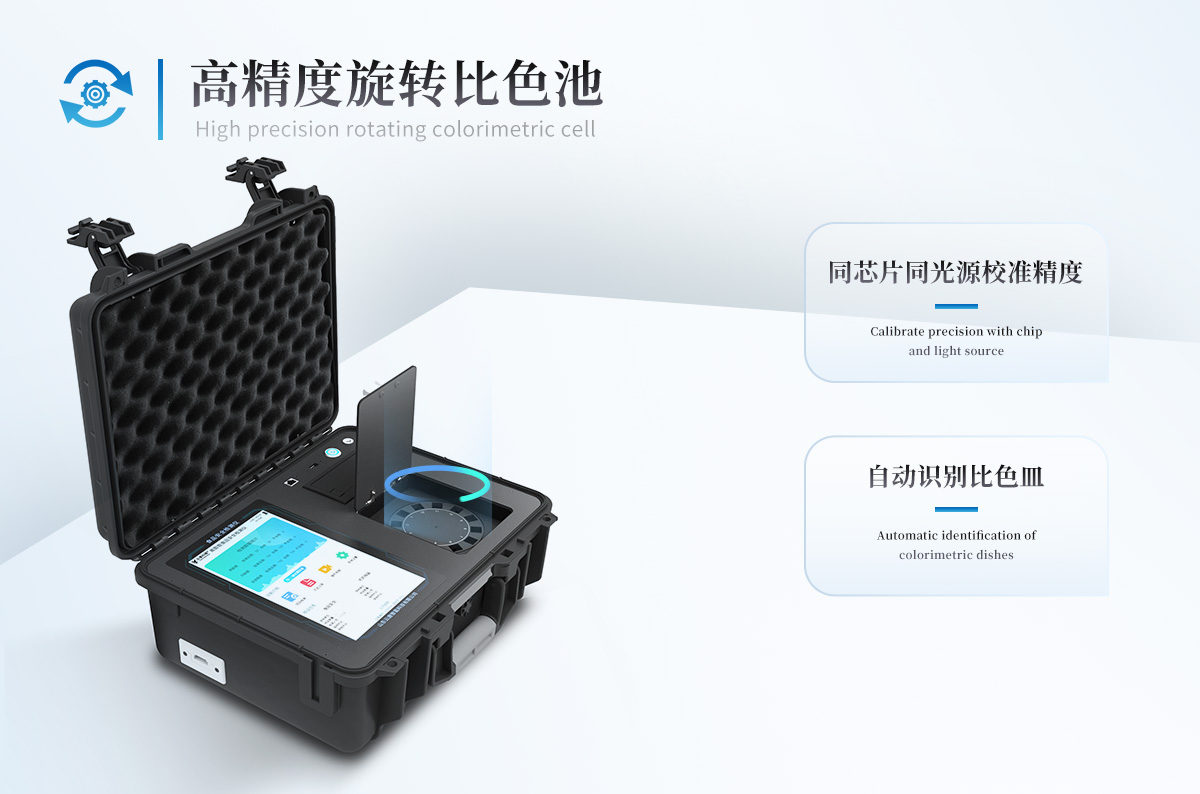

4. Detection channel: ≥ 12 channels; Adopting a precision rotating colorimetric cell design, using the same chip and light source to calibrate accuracy, solving the error values between different light sources, making it more accurate and efficient. (0.1% error between channels 1-12, patent number: ZL2022821055.2)

5. Instrument light source: high-precision imported four wavelength cold light source, each channel is equipped with 410, 520, 590, and 630nm wavelength light sources, and is equipped with advanced optical path switching devices as standard. The patented optical path switching function can achieve 64 wavelengths, and all detection items can achieve simultaneous detection of all channels.

6. The device can be calibrated with one click, automatically saving calibration data, automatically comparing and verifying to obtain accurate light sources. It uses Android SP to store data, and the light source data is never lost, making it convenient for every use.

7. Communication interface: Equipped with wireless communication module, 4G (APN) communication module, Bluetooth transmission, and dual USB interface and RJ45 network cable interface, it can achieve data storage and transmission in multiple ways.

8. Storage method: Supports USB storage, standard USB interface, and driver free installation. The storage capacity of the test results is over 200000, which can generate Excel spreadsheets for copying and has login protection function.

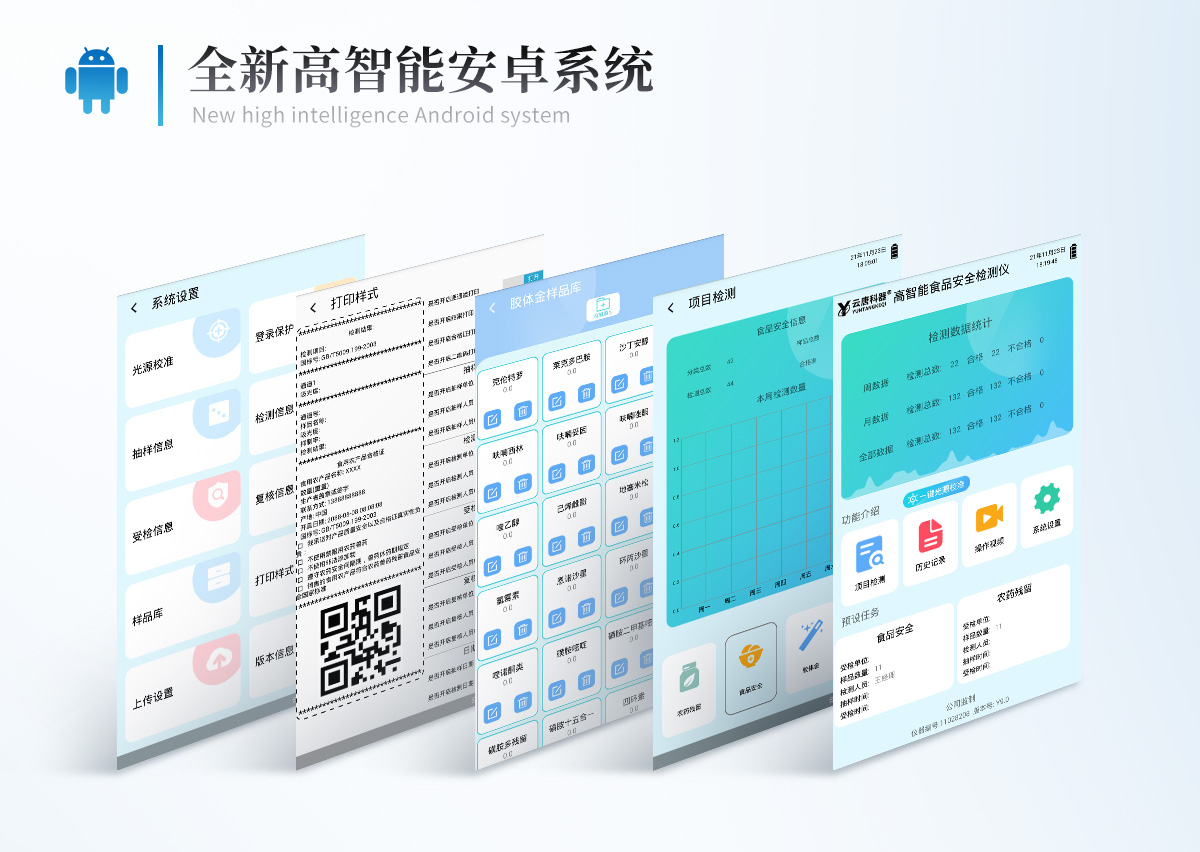

9. Intelligent operating system:

9.1 Operating System: The instrument can automatically correspond to relevant detection channels on the same detection interface, selecting 1-12 sample names at once, without the need to exit the interface, saving operation time. And each channel attribute and sample information can be edited separately, such as the inspection unit, personnel, testing personnel, etc. When printing, check the print display.

9.2. Data Integration System: The device homepage automatically summarizes and analyzes testing data, including weekly and monthly testing data, total number of tests, including total number of tests, qualified and unqualified numbers, as well as relevant column analysis charts. All testing data is clear at a glance, without the need for computer queries, making it faster and more intuitive.

9.3. Database system: More than ten database classification management instruments: including project type, project data, testing data, historical records, national standard information, curve information, sampling information, testing information, inspection information, review information, chart information, light source calibration information, print style information, sample library information, etc. The databases coordinate and interact with each other to ensure the authenticity and integrity of the data. At the same time, the product database and historical detection records support one click retrieval function.

9.4. Limit determination system: With a limit inquiry and compliance determination system for added substances. After detecting the results, the system automatically calls the relevant national standards in the system database for comparison and judgment, objectively displaying whether the judgment results are qualified.

9.5 Project preset system: The instrument has a task preset module, which can be preset in advance with one click to provide a convenient and fast new testing plan. Each task can be set with different samples, batches, numbers, sources, remarks, sampling information, testing information, inspection information, re audit information, and more. When sending samples for inspection, one click retrieval and storage information can be accessed multiple times, greatly improving detection efficiency.

9.6. Data supervision system: Synchronized with the supervision platform, data can be uploaded on both local area networks and the internet, and test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis, processing, and data statistics, monitor the long-term and short-term dynamics of regional food safety, and predict and warn problems.

9.7.1 New Printing System: Equipped with a built-in new printer and a newly created custom printing method, it can flexibly select and control as needed: product certificate (required by the National Ministry of Agriculture standard), QR code, sampling information, testing information, inspection information, review information, sampling date, testing date, and other information printing.

9.7.2 A4 paper version report printing function (optional): The device has two display methods for results, which can automatically generate A4 printing templates and small ticket printing templates. External printers can be linked through WiFi and network cables for printing.

10. Power supply mode: The instrument can be used for both AC and DC, with a DC 12V power supply that can be connected to the vehicle power supply. It is equipped with a 6Ah large capacity rechargeable lithium battery, and the power level can be displayed in real time, making it convenient for outdoor flow testing.

11. Colloidal gold detection module: using CMOS imaging processing technology and colloidal gold immunochromatography technology, it can read colloidal gold card data, automatically collect, process and analyze, display detection results, and automatically judge detection results based on reference limits. It can detect common veterinary drug residues, biological toxins, antibiotics, prohibited additives, etc.

11.1. Detection technology: CMOS imaging detection;

11.2. Detection channel: 1 channel;

11.3. Detection methods: elimination method and colorimetric method;

11.4. Display mode: negative or positive;

11.5. Curve form: Track type scanning mode, displaying gold standard card images, real-time generation and recognition of CT curve graphs, without manual adjustment, automatically exiting the detection card after completion of detection. Compatible with other gold standard cards in the market, with unrestricted use of consumables.

12. The instrument has remote upgrade function, which can be targeted to customers for instrument updates. It automatically updates after startup and sustainably updates the system version for free, without the need for traditional products to be returned to the factory for updates. This saves time and labor costs and avoids the potential risk of equipment damage caused by logistics transportation returning to the factory for upgrades.
