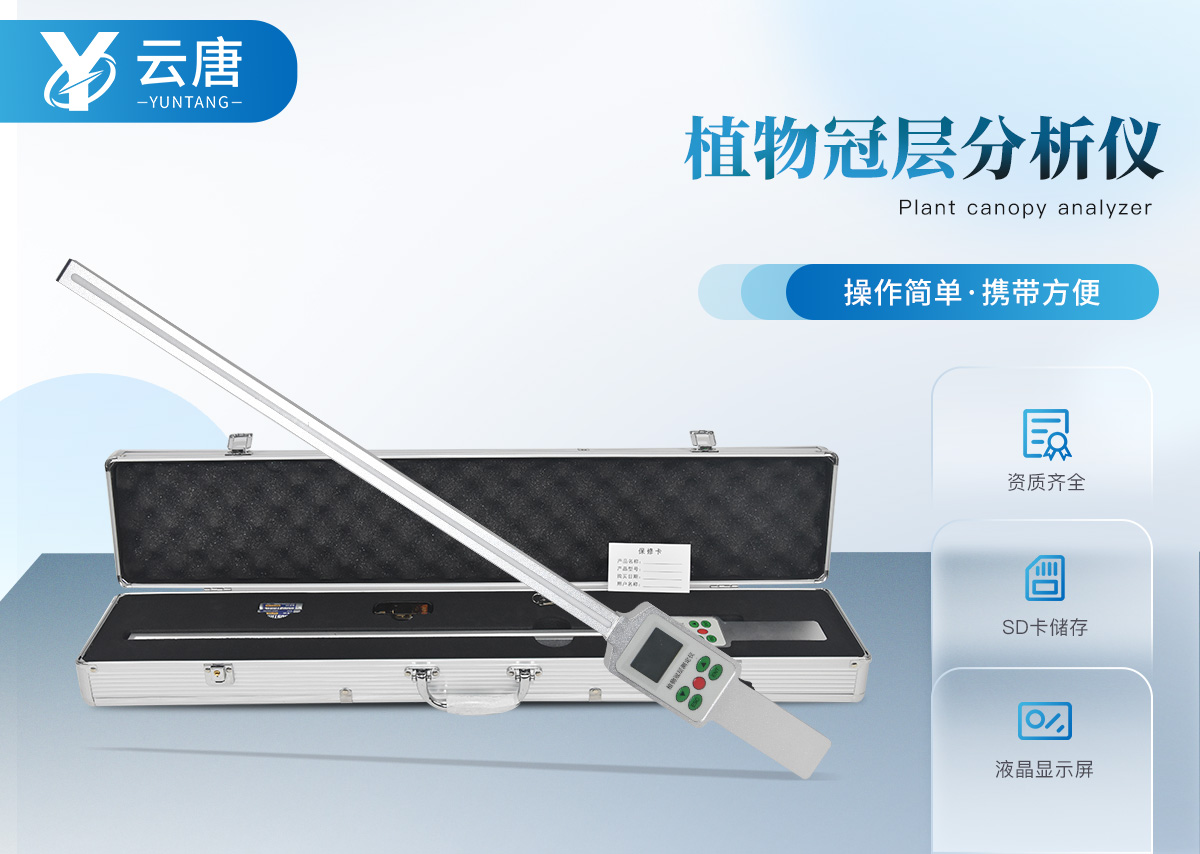

Plant Canopy Analyzer (YT-GC10)

 Function

Widely used in agricultural production and scientific research, this instrument is used for automatic or manual measurement and recording of photosynthetic active radiation (PAR) within a width of 400-700n meters for investigating canopy light resources and studying the relationship between crop growth and development, yield and quality, and light energy utilization. The measurement value is in micromoles per square meter per second（ μ Mols-1m-2).

 Characteristics

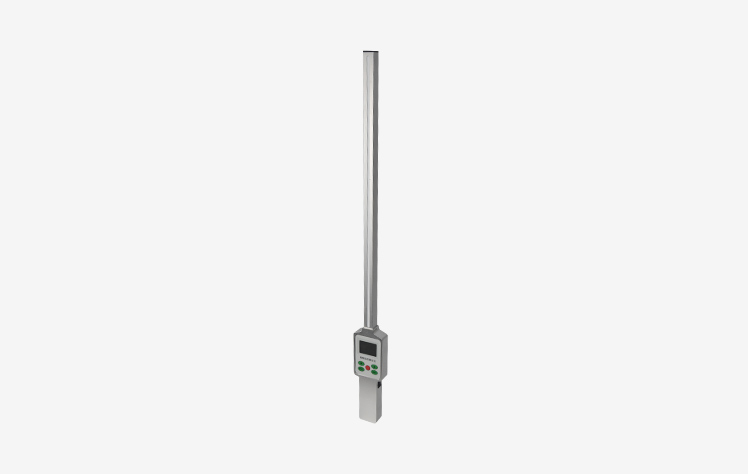

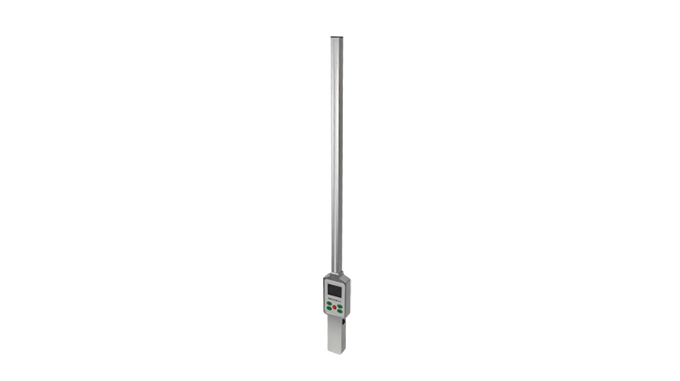

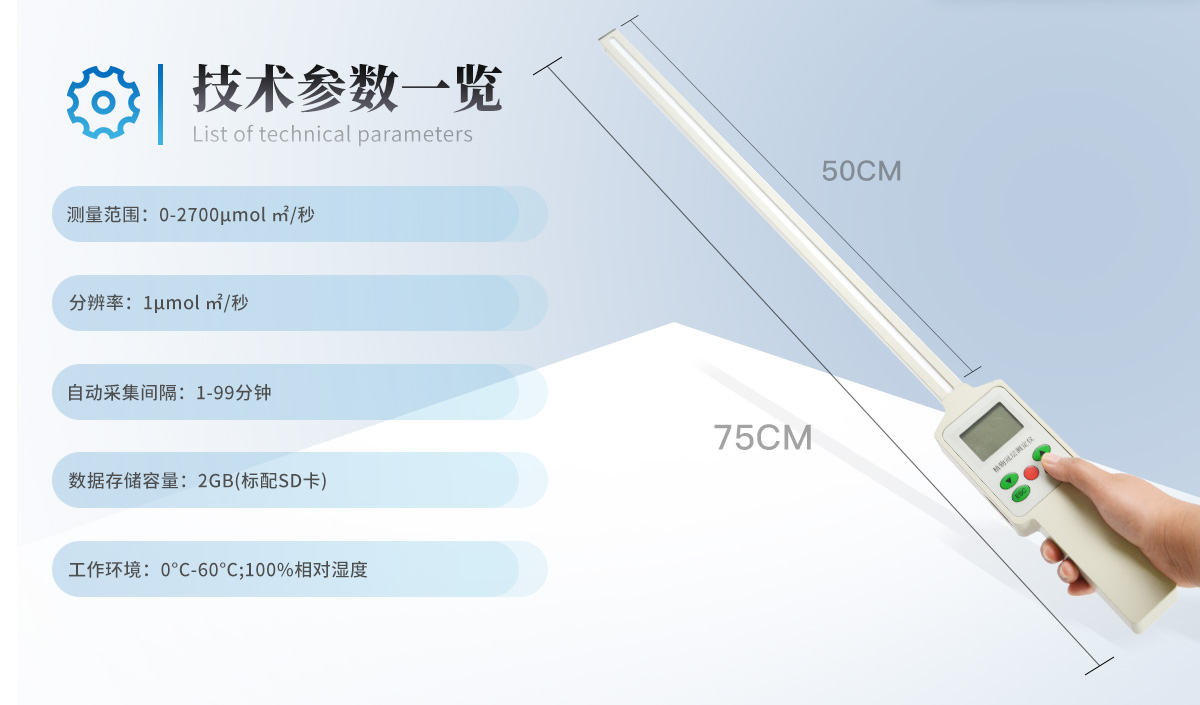

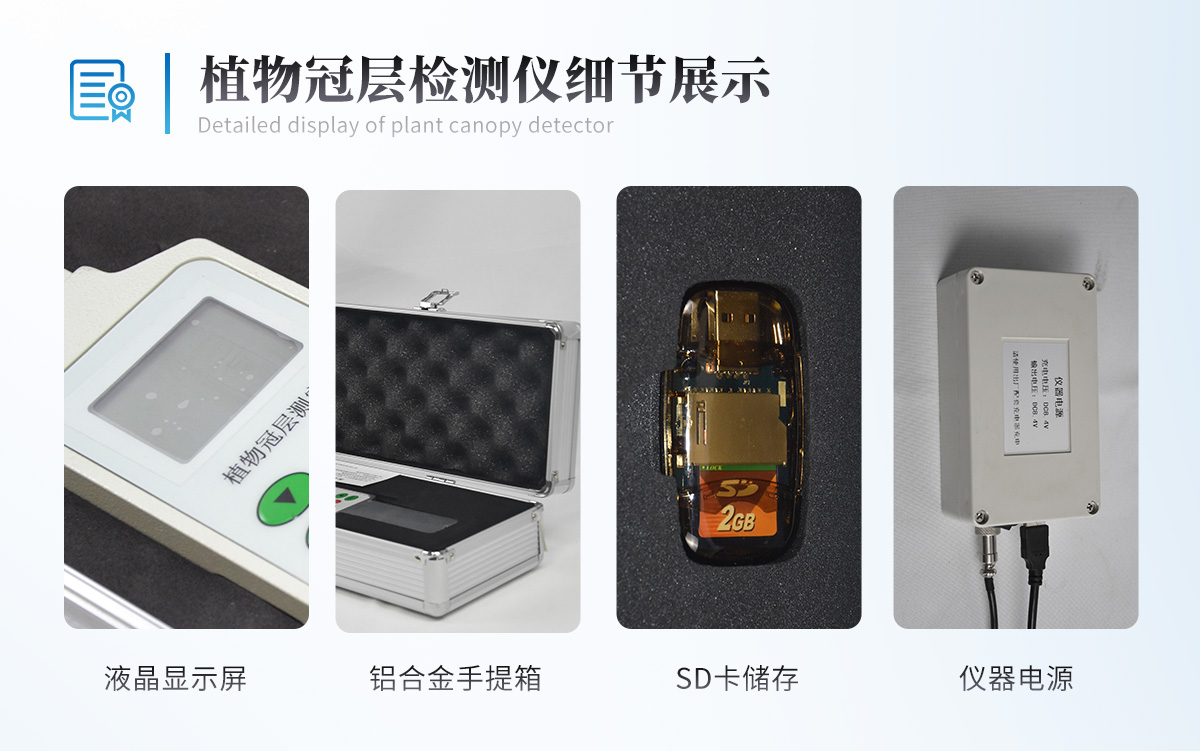

The entire set is composed of two parts: a data collector and a probe rod. The probe rod includes 18 independent sensors that can simultaneously measure the PAR values of the upper and lower canopy layers. Probe length: 50 cm

PAR measurement range: 0-2700 μ Mol m-2s-1, resolution: 1 μ Mol m-2s-1, data storage capacity: 1MB, automatic collection interval: optional 1-60 minutes

 Main technical parameters:

1. Working environment: The working environment of the entire machine is -20-70 ℃, and the relative humidity is 0-100% (without water vapor condensation);

2. Power supply: 4 No. 7 batteries;

3 Data storage: 32K

4 Display: LCD display;

5. Data transmission: USB;

6 Measurement indicators:

Measure the photosynthetic effective radiation within a bandwidth of 400-760n meters, with a measurement range of:

1) Relative difference (spectral response): ＜ 10% (for crown planting)

2) Accuracy:<± 0.5% of measured value ± 1 word

3) Accuracy:<± 5% of measured value ± 1 word (relative to NIM standard)

4) Spectral response characteristics: simulating photosynthetic efficiency function

5) Linear error:<± 0.2% of measured value ± 1 word

6) Temperature characteristic:<± 0.1% of measured value/℃ ± 1 word

7) Stability: Changes within one year ＜ ± 2%

8) Response time: 10 μ S

9) Azimuth angle: When the sun's altitude is 45 °, the error within the 360 ° range is<± 1%

10) Application temperature: -30 ℃ -55 ℃; Relative humidity 0-100% (condensation of anhydrous vapor)
