Four element automatic weather station

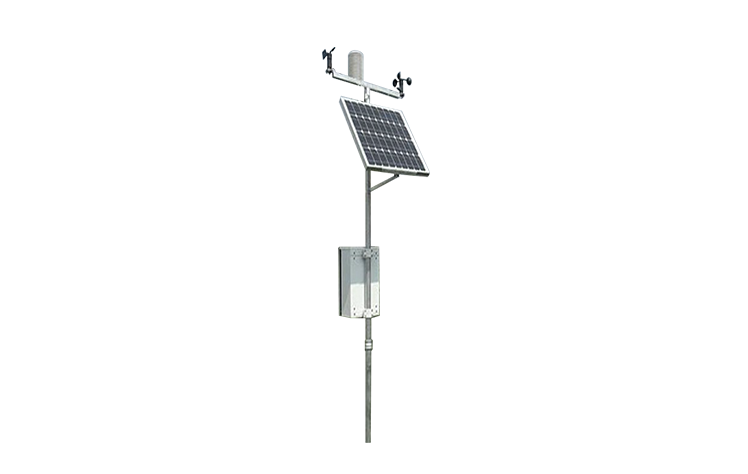

YT-QX04 Five Element Automatic Meteorological Station

YT-QX04 Five Element Automatic Meteorological Station is an intelligent and high-performance automatic station designed by Shandong Hengmei Technology based on years of experience in the meteorological industry and ground meteorological observation standards, aimed at fixed-point monitoring of conventional ground meteorological environment elements. It adopts an open, friendly, and modular combination concept design, and users can change the element components and module coordination by themselves, which can quickly achieve data collection and processing methods and changes and expansion of observation elements; It can economically and conveniently build various regional ground meteorological observation station networks for users.

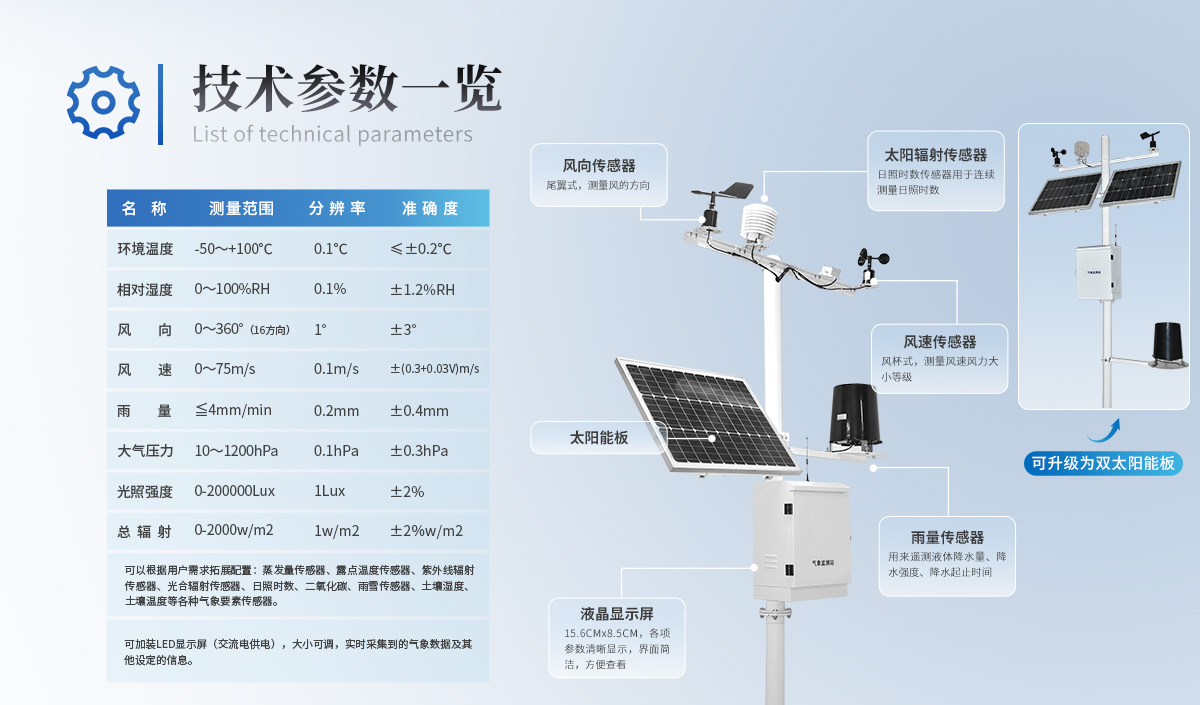

Measurement indicators of sensing elements

Measurement indicators (measurement parameters)

Air temperature: -80 ℃~+60 ℃; Accuracy: ≤ ± 0.2 ℃

Air humidity: 0.8~100% RH; Accuracy: ± 1.2% RH

Wind direction: 0-360 °; Accuracy: ± 3 °

Wind speed: 0-75m/s; Accuracy: ± (0.3+0.03v) m/s

Precipitation: Water bearing diameter: Φ 200mm; Measurement range: 0-4mm/min; Accuracy: ± 4%; Output signal: Pulse (one pulse=1mm precipitation)

Collector and Extension Interface

Collector: SKY-CJ06 Data Collector

Power supply mode and communication interface

Communication interface: RS232/onboard GPRS

Communication method: RS232 wired direct connection/GPRS

Power supply method: AC 220V/solar+battery

Power consumption: 3-5 W

System indicators

Collector: FAMEMS 300 Data Acquisition System

Working environment: -50~+80 ℃, 0-100% RH

Travel time accuracy: Real time clock, with accuracy better than 10 seconds per month

Reliability: Mean time between failures>10000 hours

Power supply: AC/DC/solar power supply

Power control: charge and discharge control/temperature compensation/over discharge protection (AC/DC dual-purpose) Protection level: IP65 standard

Output data: Data collection and storage with adjustable intervals, with a minimum collection interval of 60 seconds

Communication method: RS232/GPRS

Operating environment

Working environment temperature: -50~+80 ℃

Working relative humidity: 0-100% RH

Reliability and maintenance cycle

Protection level: IP65

Reliability: maintenance free, salt spray resistant, dustproof

Mechanical indicators

Main material: aluminum titanium alloy

Surface treatment: hot-dip galvanizing, electrophoretic paint process treatment with white as the main color tone

Installation height: Standard 10 meter wind pole, wind resistance strength not less than 75m/s

Installation method: Regional station observation field standard

Typical applications

Grid based regional meteorological monitoring

Mesoscale encrypted observations

Refined weather forecast data source

Key monitoring of flash flood warning

Customization of localized meteorological forecast services

Regional meteorological environment observation

Climate and environmental monitoring
