Photographic leaf area meter (YMJ-P2)

Product Introduction

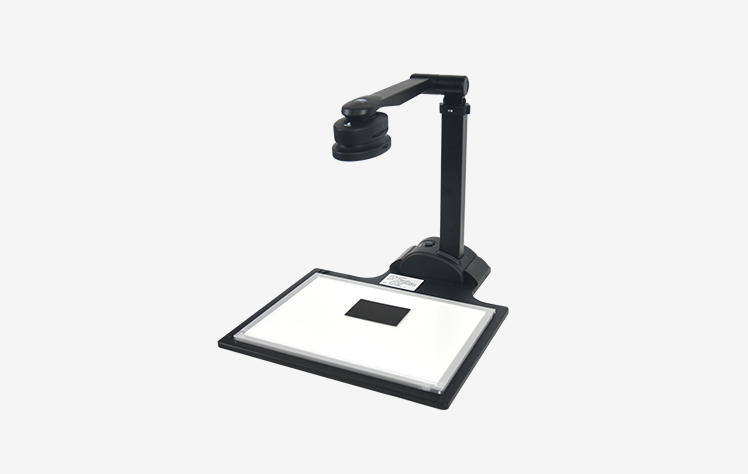

Photographic leaf area meter

The intelligent photo taking leaf area measurement system consists of an image acquisition instrument and a flat panel loaded with self-developed software. It adopts the area measurement algorithm accumulated by our company for many years, and based on technologies such as leaf contour feature extraction, graphic object conversion, and edge detection, it can vividly and quickly obtain parameters such as the measured leaf area, perimeter, and number of wormholes. Compared to traditional leaf area, it has the advantages of faster and simpler measurement, more vivid and objective results, diverse data, and greatly reduces errors caused by human operations.

Main technical parameters

Measurement parameters: leaf area, perimeter, maximum leaf length, leaf width, sphericity, shape coefficient, number of wormholes, wormhole area, etc

Scope of application: Various common leaves that are complete or contain wormholes

Measurement range: 1-600 square centimeters

Blade length: 0-297mm

Maximum leaf width: 0-210mm

Measurable wormhole range: not less than 0.5 square centimeters

Measurement accuracy: 2% (greater than 30cm2), 3% (less than 30cm2)

Host storage capacity: over 2000 sets

Stability: Changes within one year<± 2%

Response time: 50ms

Application temperature: -30 ℃ -80 ℃; Relative humidity 0-100%

Host parameters:

Software system: Android 4.2.2 or above

Size: 7-inch IPS capacitive touch screen

Memory: 32GB

Network support: WLAN (802.11 a/b/g/n) wireless network, Bluetooth 4.0

Interface: micro USB

Standard charging power supply: DC5V1A

Battery capacity: 3000mAH

Size: 187x111x 9.3mm Weight: 266 grams

Packing list

Product name    quantity

Leaf area measuring instrument Android host    1 unit

Scanner (including scanning base)    1 unit

charger    1 set

Instructions for Leaf Area Measuring Instrument    1 copy

OTG adapter cable    1 piece

Warranty Card (Certificate of Conformity)    1 copy
