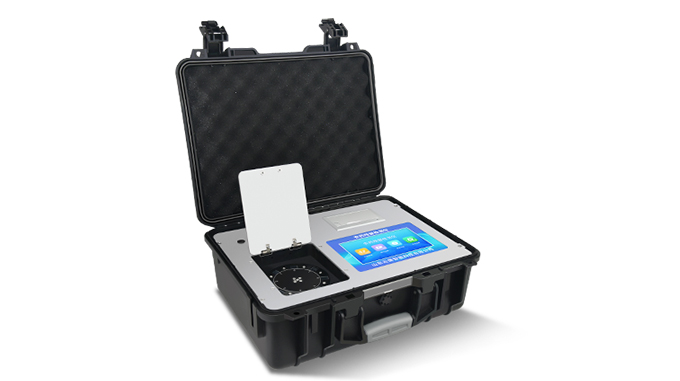

Rotating pesticide residue detector (box type 12 channel)

1. Product introduction:

The pesticide residue detector produced by Shandong Yuntang Intelligent Technology Co., Ltd. is widely used in fast testing of pesticide residues in foods such as vegetables, fruits, tea, grain, agricultural and sideline products, and tests according to the national standard GB/T5009.199-2003. It is suitable for the test of fruit and vegetable tea production bases and the on -site testing of the farmers' wholesale sales market, and the safe speed test before the restaurant, school, cafeteria, family fruit and vegetable processing.

2. Main technical parameters:

1. The machine adopts a new Android intelligent system. The main control chip uses ARM Cortex-A7, RK3288/4 core processors, the main frequency is 1.88GHz, the operating speed is faster and stable.

2. Innovation detection mode:

*The instrument is designed with a precision rotation ratio pool. The consistent use of the light source can solve the problem of the detection results more accurate due to the detection result error problem caused by the light source error.

*The instrument has the function of automatic recognition of the containment dish, that is, after putting the sample container in the instrument, click the sample to detect, and automatically identify the instrument to identify the pame for channel detection.

3. Power supply method: DC dual use, DC 12V power supply, can be connected to the vehicle power supply, can be equipped with a 6AH large -capacity charging lithium battery, which is convenient for outdoor mobile testing.

4. Display: 7 -inch LCD touch screen display, the humanized Chinese operation interface, the readings are intuitive and simple.

5. Detection channel: 12 detection channels can test multiple samples at the same time, cycle detection, that is, to be checked. Each sample is controlled by the program control independently and will not interfere with each other.

6. High -precision light source system:

① The instrument light source adopts an imported ultra -high light and the light diode. The brightness of the light source can be automatically adjusted and calibrated.

② Intelligent constant current stabilization, light strong calibration, long -term continuous working light sources without warm drifting.

7. Intelligent operation analysis system:

① The instrument has more than 100 vegetable names and menu libraries, classified management, and can be added or deleted and edited the name of vegetables on demand; you can automatically correspond to the relevant detection channel at the same detection interface to select 1-24 sample names at one time. Save operation time.

② Built -in new national limited standards, compare the results of the test, and continue to update standards.

8. Complete supporting hardware:

① Use serial port 5V printer, you can choose manual printing or automatic printing, three minutes of printing results, the print format is the detection person's name, the difference in absorbance, detection time, detection mechanism, sample name and results judgment.

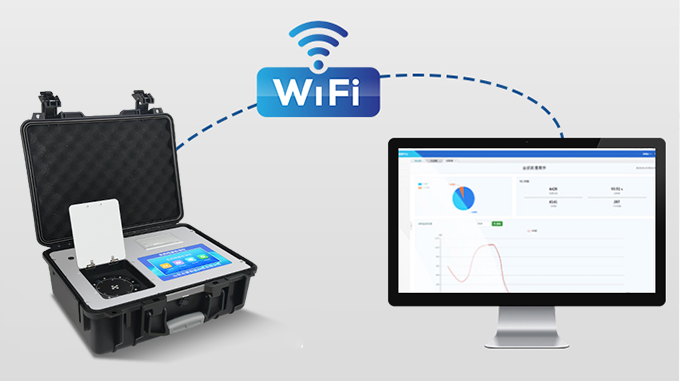

② The instrument has a wireless upload module. The test results can be printed in batches and uploaded in batches.

9. Data call:

① The instrument can store 200,000 test results,

② The test results are Excel tables, which facilitates data analysis and summary report in the later period

③ The instrument adopts USB2.0 interface design, supports U disk storage, facilitates the storage and movement of data, and can be directly connected to the computer at any time to achieve data inquiry, browsing, analysis, statistics, printing, etc.

10. The later product firmware can be upgraded.

11. Safety certificate, rest assured guarantee: The instrument has a calibration certificate for the Chinese Metrology Science Research Institute. Use it with confidence.

Third, performance and characteristics:

1. Android intelligent operating system, more efficient and humanized operations. The instrument has a wireless network upload function, quickly upload data, and perform data statistics and analysis.

2. High degree of intelligence, instruments have self -inspection functions: have the function of boot self -inspection and zero -adjustment, and have automatic detection and repetitive functions. At the same time, the detection can be automatically printed and detected reports and QR codes. The code scanning the mobile phone can show detailed detection information.

3. The instrument has a supervision platform, the data can be uploaded by the local area network and Internet data. The test results are directly transmitted to the food safety supervision platform. Carry out regional food safety supervision and big data analysis processing and data statistics, detect regional food safety long and short -term dynamics, and meet food safety issues and early warning.

4. Sample processing is simple and efficient, and the overall operation is fast, safe and convenient.

5. The instrument has its own protection function, and the user name and password can be set to prevent non -staff operations.

6. Built -in powerful database, you can directly select sample name names, test indicators, inspection units and other information on the instrument. You can also directly edit the sample name, test index, inspection unit and other information on the instrument, and save the database of the sample. It is convenient for post -operation to be retrieved and used.

7. The instrument has the function of re -calibration, locking, and restoring factory settings.

Fourth, parameter configuration：

*Wave length configuration: 410nm;

*Inhibition rate display range: 0%～ 100%;

*Inhibitory measurement range: 0%～ 100%;

*Transmission ratio accuracy: ± 1.5%;

*Repeatability of transmission ratio: ≤0.5%;

*Drift: ≤0.005abs/3min;

*Inhibitory rate Error error: ≤10%

*Repeatability of inhibitory rate: ≤5%

*Instrument size: 42 × 31 × 14cm,

*Net weight: 3.6 kg

Configuration difference：
