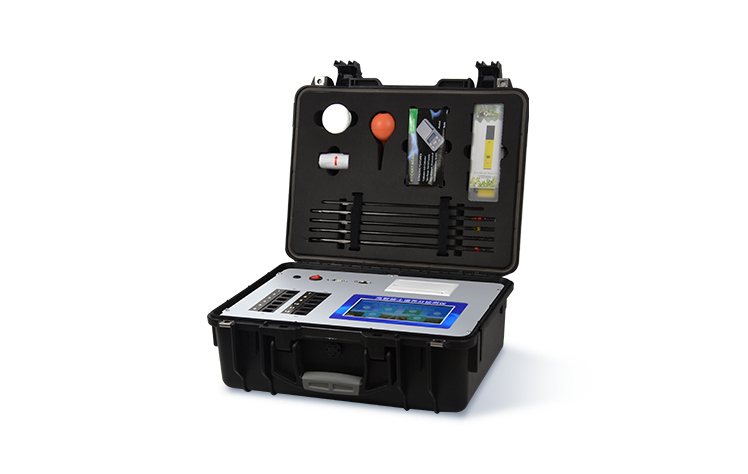

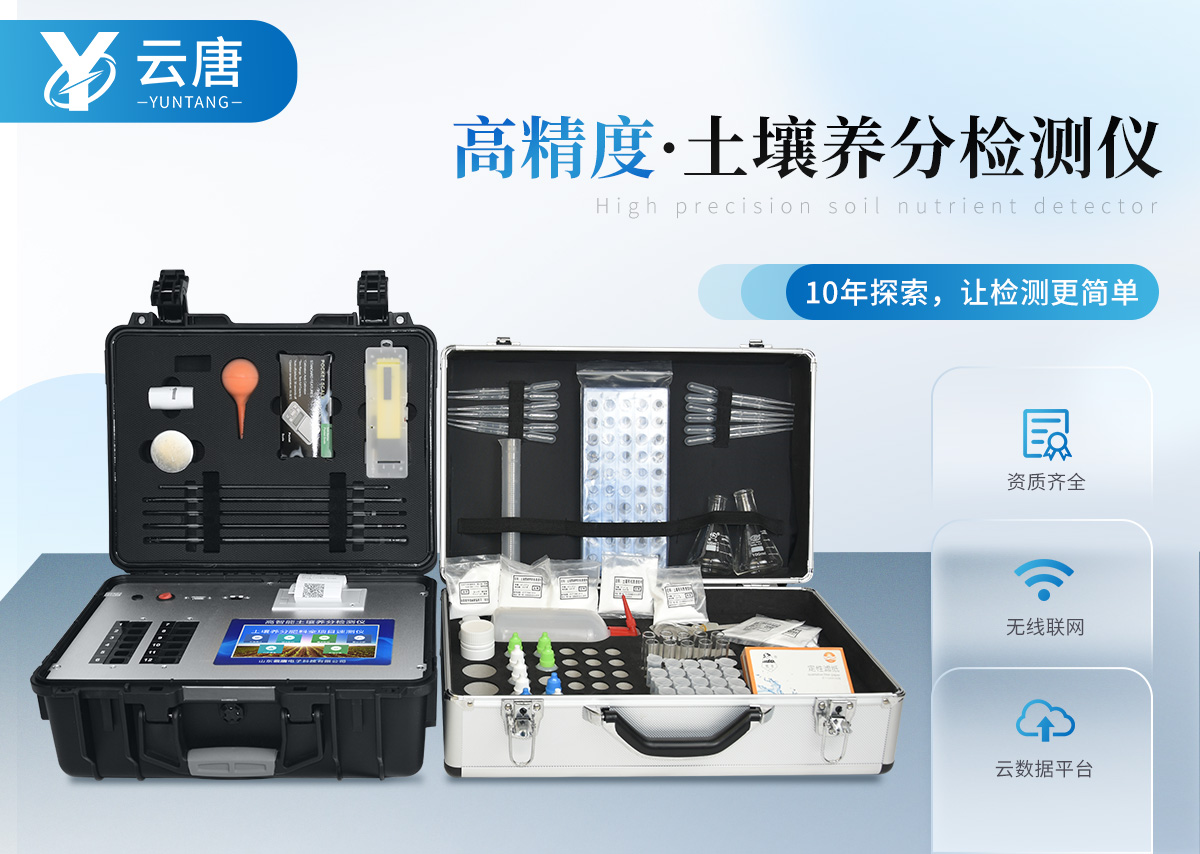

Soil organic matter detector (YT-YJA)

Soil organic matter content detector   Model: YT-YJA

Features:

★ Exclusive national patent design for "Integrated Aluminum Alloy Case/Pharmacy", easy to carry, sturdy and durable, and equipped with finished pharmaceuticals.

★ Micro computer control, digital circuit, programmatic design, LCD display, dual use of AC and DC, capable of field flow testing, minimizing operator errors and labor intensity.

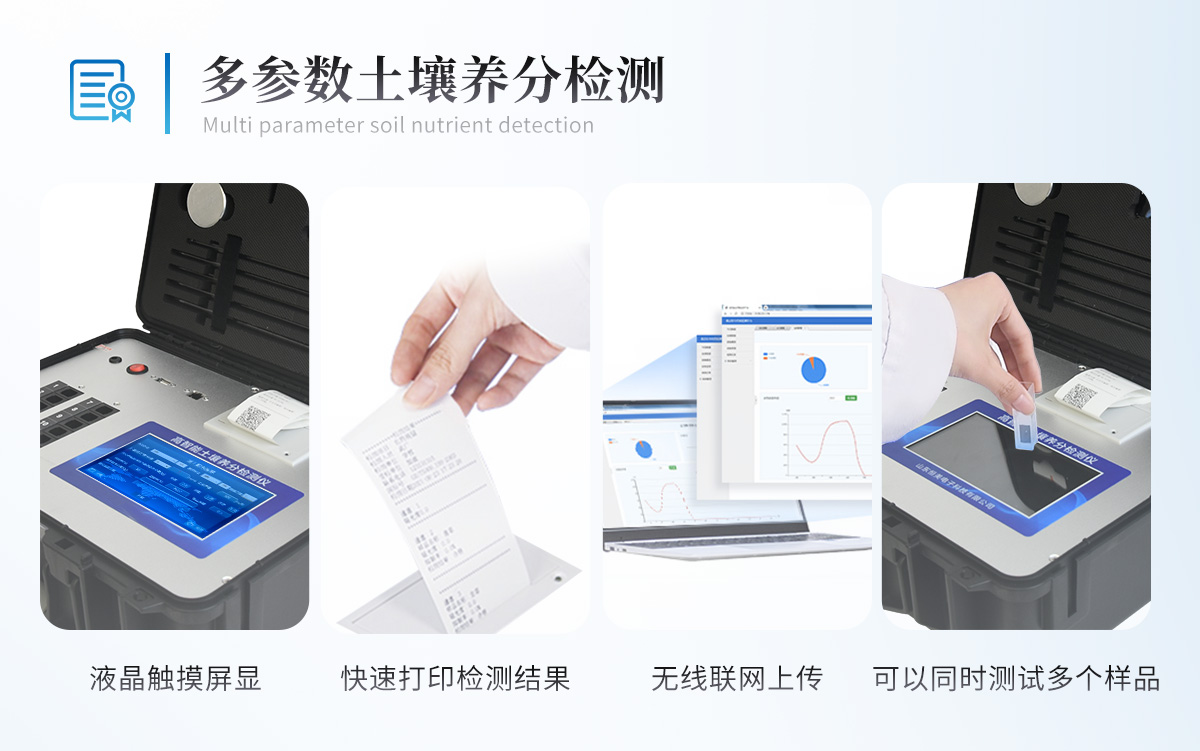

★ Resolution: 0.001, touch button, built-in high-end thermal printer, can print test results.

★ Can detect the organic matter content, soil pH, and salt content (expansion) in soil, fertilizers, organic fertilizers, and plants.

The soil nutrient analyzer uses high brightness LED lights as the light source and silicon semiconductors as the signal receiving system, with a lifespan of up to 100000 hours. The light source is stable and consistent.

The color comparison groove adopts a single channel and dual optical path design, without mechanical displacement and wear. The optical path testing positioning is accurate, ensuring the accuracy of the measurement results.

 Test items:

Soil: ● Organic matter, pH (pH test paper method), etc;

Fertilizer: ● Organic matter in elemental fertilizers; ● Organic matter in Hefei and urea; Organic matter in organic fertilizers;

Plants: ● Organic matter in plants.

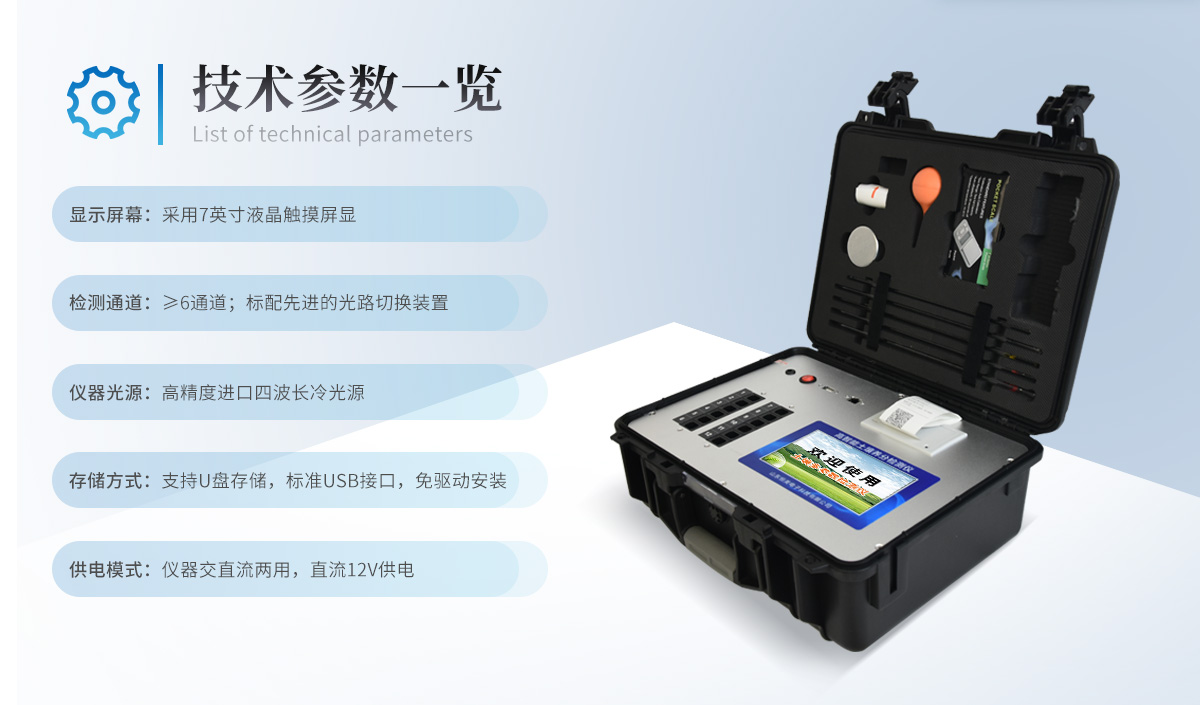

Instrument technical specifications:

1. Power supply: AC power: 180V~240V, 50Hz; DC: 12V (extended)

2. Range and resolution: 0.001-9999

3. Stability: Drift less than 0.003 within three minutes

4. Linear error: ≤ 3% (0.03, copper sulfate detection)

5. Repeatability error: ≤ 0.5% (0.005, potassium dichromate solution)

6. Sensitivity: Red light ≥ 4.5 × 10-5 Blue light ≥ 3.17 × 10-3

7. Wavelength range: Red light 620 ± 8nm Blue light 440 ± 8nm

11. Testing speed: Measure the organic matter of a soil sample for ≤ 60 minutes (including pre-treatment time)

12. Can simultaneously detect 8 soil samples for ≤ hours (including pre-treatment time)

13. Data printing: Built in high-end one click thermal printer (the first patented design in China)

Test speed:

The soil nutrient analyzer can simultaneously detect 8 samples;

Measure the organic matter of one soil sample for ≤ 60 minutes, and simultaneously test the organic matter of three soil samples for ≤ 80 minutes.

Product instrument features:

Complete supporting facilities: The soil organic matter rapid analyzer integrates medicine, instruments, and instruments, making it easy to carry and equivalent to a small laboratory. Suitable for agricultural service departments, agricultural material distributors, and fertilizer manufacturers to test soil fertilization and distinguish the authenticity of fertilizers.

Easy to operate and fast, the finished drug is ready to use upon opening without the need for configuration.

Performance reliability: The working stability is 6 times better than the national standard JJG179-90 index, and the repeatability reaches the level of the grating spectrophotometer index.

After sales service:

The instrument has a one-year warranty (five-year warranty for the host), lifetime free maintenance service, free shipping of instruments, and free training.

Lifetime free agricultural related technical support such as soil and fertilizer!
