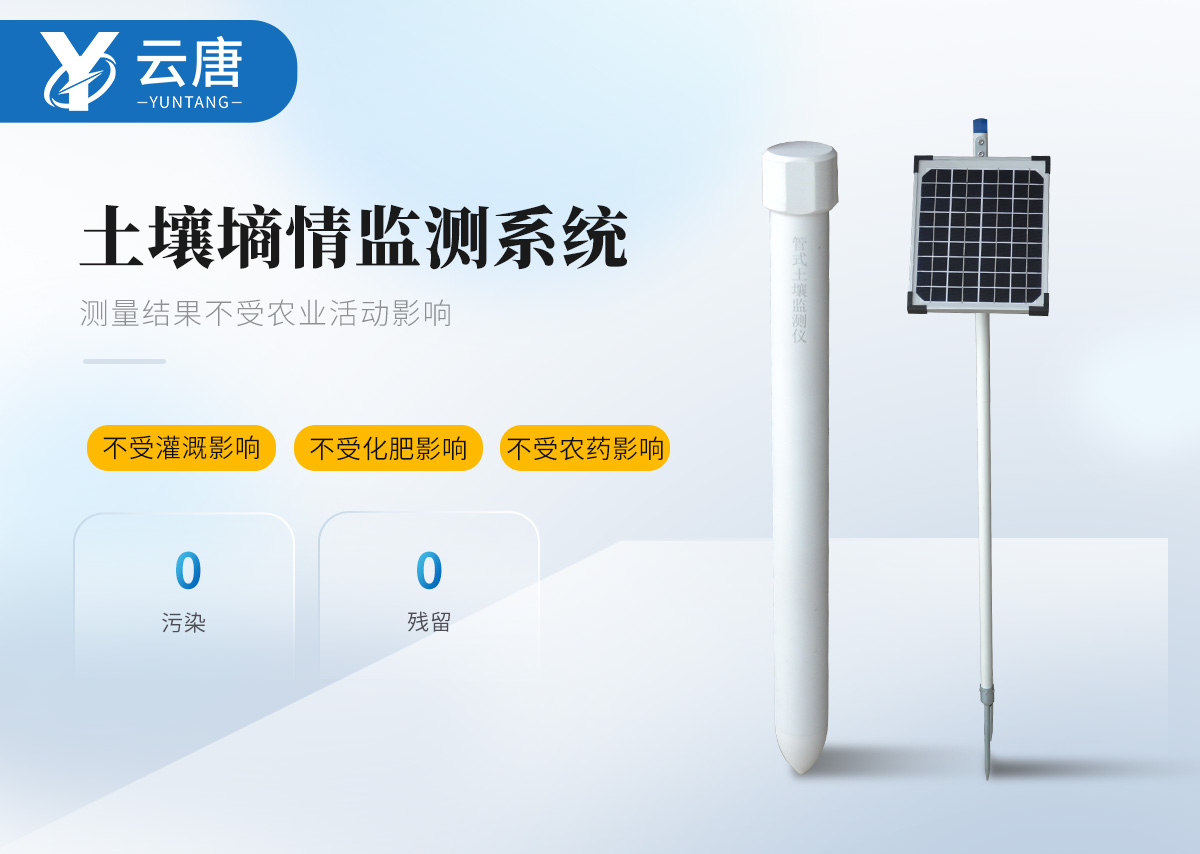

Soil moisture monitoring instrument (YT-TS600)

Product details:

The Soil Moisture and Drought Information Management System aims at drought resistance and disaster reduction, with real-time soil moisture, agricultural conditions, water storage and diversion situation of water conservancy projects as data sources. It utilizes advanced soil moisture sensors and other advanced equipment, combined with mathematical models suitable for the region, and relies on the Internet of Things monitoring platform to establish a decision support system that integrates real-time monitoring, information management, query services, and prediction analysis of soil moisture, Scientifically formulate drought relief scheduling plans to provide decision-making support for correct command of drought relief and minimize disaster losses.

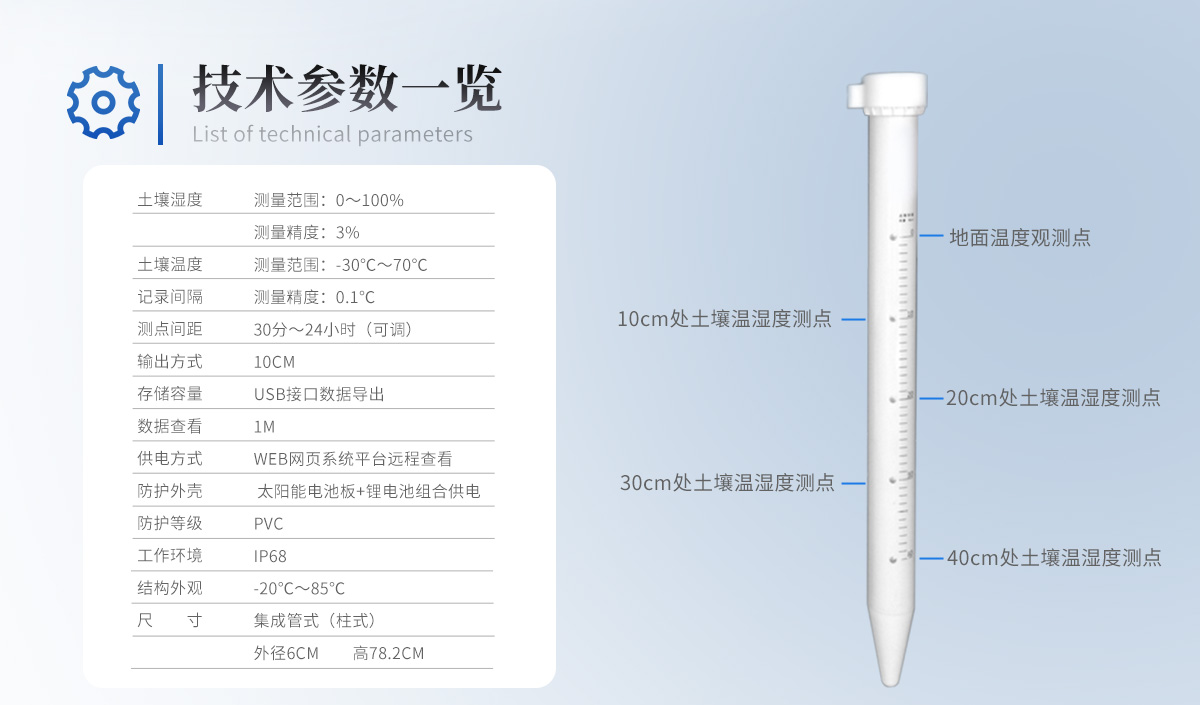

Technical parameters:

★ Technical parameters of the main controller

·Data storage space: ≥ 100000 entries

·Recording interval: adjustable from 1 minute to 24 hours

·Data transmission: wireless transmission

·Working environment: -30 ℃~80 ℃

·Power supply method: 220V mains power and solar power supply system are used simultaneously

★ Sensor technical parameters

·Air humidity: 0-100% Accuracy: ± 3% Resolution: 0.1%

·Lighting: -20~80 ℃ Accuracy: ± 2%

·Rainfall: -20~80 ℃ Rainbearing diameter: φ 200mm accuracy: ± 2% Resolution: 0.2mm

·Soil moisture: measurement accuracy: ± 3% Working temperature range: -20 ℃~50 ℃

·Soil EC: measurement accuracy: ± 4% Soil EC measurement range: 0.2~12mS/cm

·Soil temperature: accuracy: ± 0.2 ℃ Measurement range: -40 ℃~120 ℃

2. Functional characteristics

Real time monitoring of meteorological parameters such as wind speed, direction, air temperature, and humidity;

◆ The meteorological data recorder has meteorological data collection, scheduled storage of meteorological data, parameter settings, parameters, and meteorological historical data. User page 2, 2017-4-1 ◆ It can reliably operate in various harsh outdoor environments, with low power consumption, high stability, high accuracy, and unmanned operation;

◆ Adopting fully spray plastic brackets and outdoor protective boxes, the appearance is beautiful, corrosion-resistant, and anti-interference. The total height of the spray molded bracket is 3.5 meters, and the bracket is divided into three sections, which are detachable and easy to transport and carry; The recorder is designed with a sealed and waterproof concept, which can effectively protect the components inside the box from damage or short circuits.

◆ Install lightning protection measures;

Both hardware and software adopt modular and open design, which can be flexibly combined and used;

◆ Chinese character software human-machine interface, user-friendly human-machine interface;

Meteorological sensors can be selected and configured with different parameters according to needs;

◆ The software is powerful and can import data from the collector into the computer and store it as an Excel spreadsheet file for further data processing by other analysis software;

◆ Flexible and diverse communication methods, 485 communication, and customizable GPRS remote communication or standard USB communication.

Applicable scope:

Widely used in meteorological and environmental monitoring, environmental protection, airports, industry, agriculture, forestry, tourism, geology, hydrology and water conservancy, military, warehousing, scientific research and other fields, as well as in places such as highways, airports, ship berths, and photovoltaic power generation.

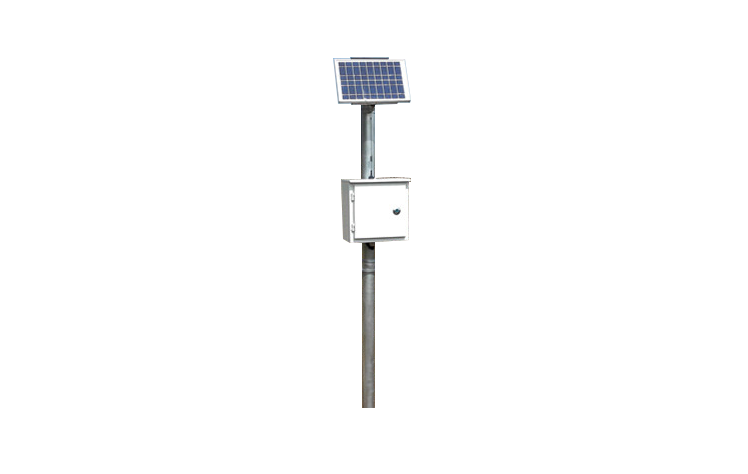

Install accessories:

(1) Main material, stainless steel bracket;

(2) Installation/structure, column and pole. The height can be specially designed according to actual needs;

(3) Installation box, outdoor;

(4) Lightning protection, lightning rod and ground wire device.
