Soil temperature, humidity, salinity, pH detector

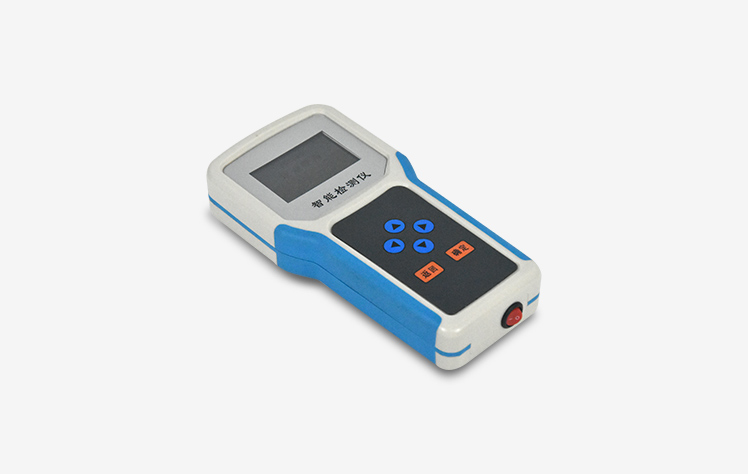

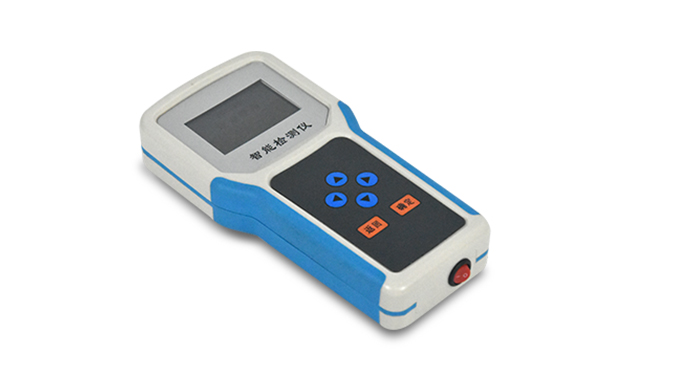

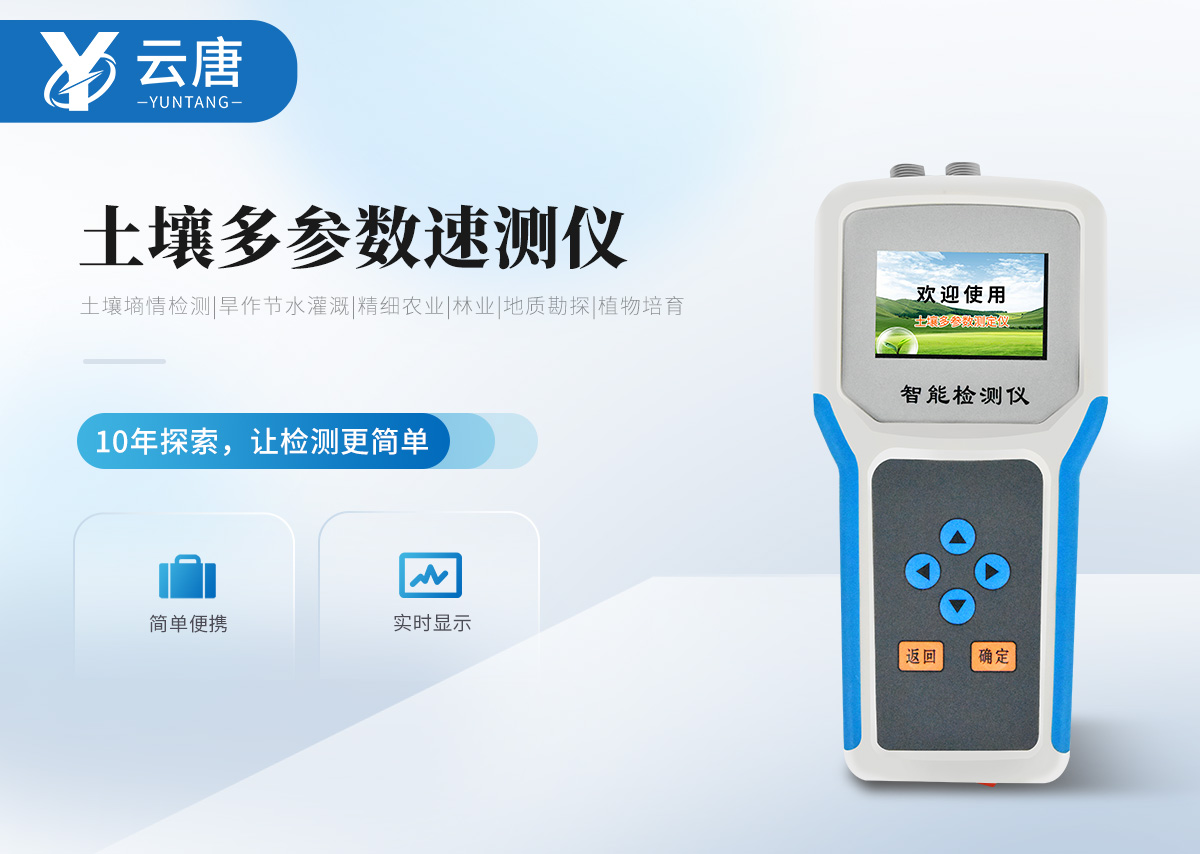

Product Introduction of Soil Moisture Temperature and Salinity PH Rapid Tester:

The soil moisture, temperature, salinity, and pH analyzer adopts an integrated structural design, which can quickly and accurately measure the moisture content, temperature, conductivity (salinity), and pH in the soil. It can quickly detect and continuously monitor the moisture content, temperature, salinity, and pH of multiple sample plots and different soil depths. Widely used in soil moisture detection, dry farming water-saving irrigation, precision agriculture, forestry, geological exploration, plant cultivation, water conservancy, environmental protection and other fields.

Introduction to the functions of the soil temperature, moisture, and salinity pH rapid measuring instrument:

1. The instrument can be equipped with a 4G networking power and energy data management platform, which wirelessly uploads the historical measurement data of environmental factors at the measured point stored on the machine to the smart cloud agriculture platform, facilitating data management and long-term analysis for users.

2. This machine is compact, aesthetically pleasing, easy to operate, reliable in performance, and extremely convenient to carry in the wild. After connecting the sensor to the host, records can be manually stored or automatically stored by setting sampling intervals on the host.

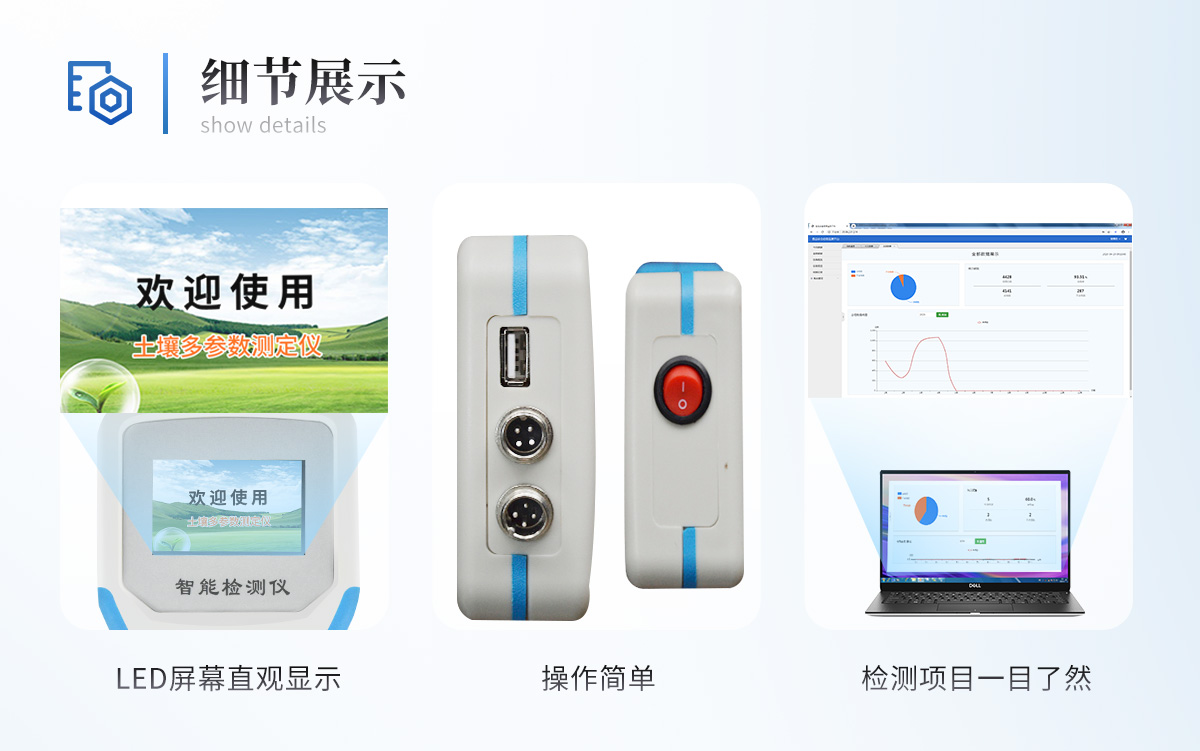

3. A large screen color LCD display screen that tracks and records the values, number of groups, and low voltage alarms of various environmental factors being tested throughout the process. The host is equipped with a large capacity memory that can store 300000 pieces of data and has an automatic storage protection function for power outage data.

4. After each sensor is inserted into the host, the host has an automatic recognition function, good sensor consistency, and can combine sensors according to needs. Sensor interfaces with different parameters can be converted to each other, without affecting measurement accuracy.

5. The instrument has a multi-channel automatic detection extension function, which can achieve synchronous detection of multiple sensors connected simultaneously.

6. The upper computer software has powerful functions and can export the recorded data to the computer at any time through a USB interface, and can be stored as an Excel spreadsheet file to generate data curves for further data processing by other analysis software. It has the function of setting color for exceeding limit areas and providing color warning for exceeding limit data, which can serve as a basis for environmental evaluation.

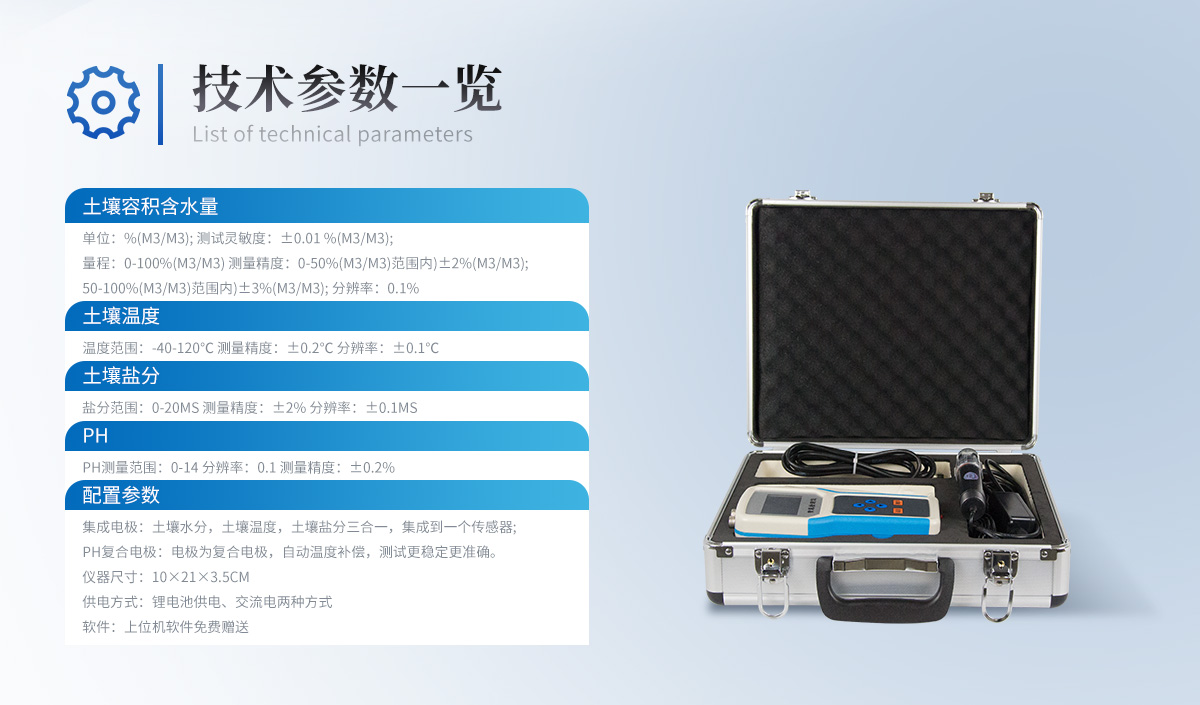

Technical parameters of soil moisture, temperature, salinity, and pH rapid measuring instrument:

Measurement parameters:

Soil volumetric moisture content; Unit:% (m3/m3); Test sensitivity: ± 0.01% (m3/m3);

Range: 0-100% (m3/m3) Measurement accuracy: within the range of 0-50% (m3/m3) ± 2% (m3/m3);

Within the range of 50-100% (m3/m3), ± 3% (m3/m3); Resolution: 0.1%

Soil temperature range: -40-120 ℃ Measurement accuracy: ± 0.2 ℃ Resolution: ± 0.1 ℃

Soil salinity range: 0-20ms Measurement accuracy: ± 2% Resolution: ± 0.1ms

PH measurement range: 0-14 Resolution: 0.1 Measurement accuracy: ± 0.2%

Integrated electrode: soil moisture, soil temperature, and soil salinity integrated into one sensor;

PH composite electrode: The electrode is a composite electrode with automatic temperature compensation, making testing more stable and accurate.

Instrument size: 10 × twenty-one × 3.5cm

Power supply methods: lithium battery power supply and AC power supply

Software: Free gift of upper computer software
