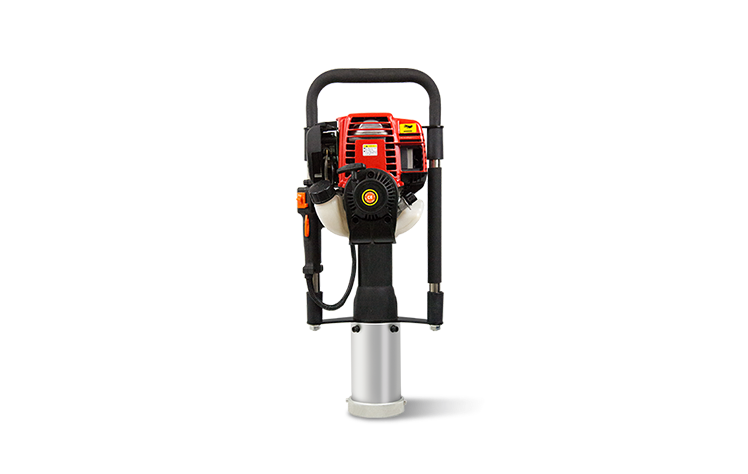

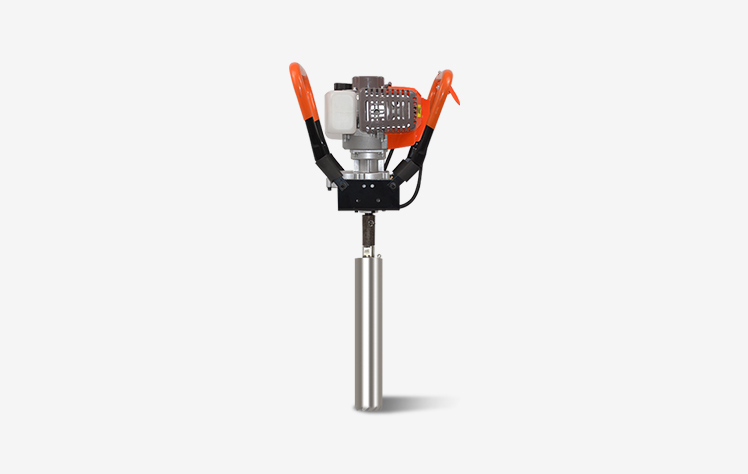

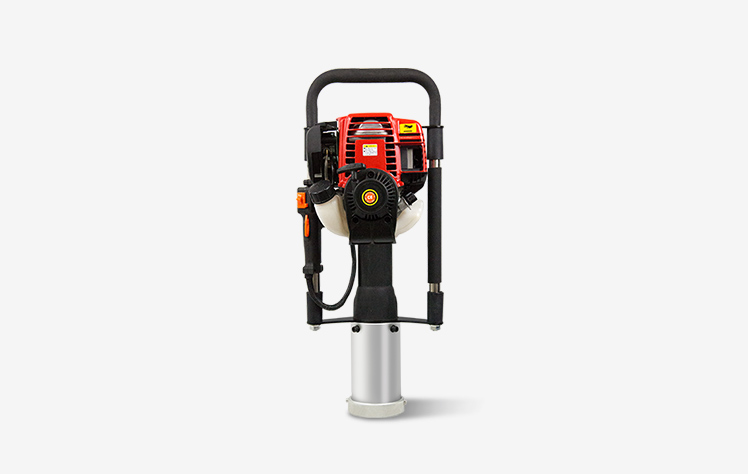

Gasoline powered soil sampler

Power (gasoline) soil sampler (gasoline powered soil drill) soil sampler is a power (gasoline) soil sampler developed by our factory based on the opinions of a large number of customers, multiple user needs, and market research. The instrument is driven by a gasoline engine and is known for greatly reducing the labor force of soil sampling personnel, as well as being fast and easy to sample.

 Usage:

1. Soil structure description

2. Investigate the condition of the root system and obtain the impact of depth and density on the root system

3. Testing the composition and density of undisturbed soil

4. Study the moisture content and dissolved matter of soil for long-term operations

5. Research on the flow of water and dissolved substances, such as the phenomenon of rapid water loss in soil

6. Archaeological investigation

 Instrument features:

1. Rotating, without disturbance from top to bottom, will not damage the soil profile structure

2. Large sampling volume, pin connection, and easy disassembly.

3. The drill bit has serrations and is easy to penetrate into the soil through an impact hammer.

4. The unique detachable cutting design of the cylindrical drill bit makes sampling easy.

5. The sample is located in a relatively loose cylindrical shape, making it very easy to remove

6. The soil is difficult to compress (maintain its original state)

7. Collecting a sample can study the entire soil profile situation

8. Saving time and reducing sample damage compared to excavating a sampling pit

9. Can be effectively used for all types of soil

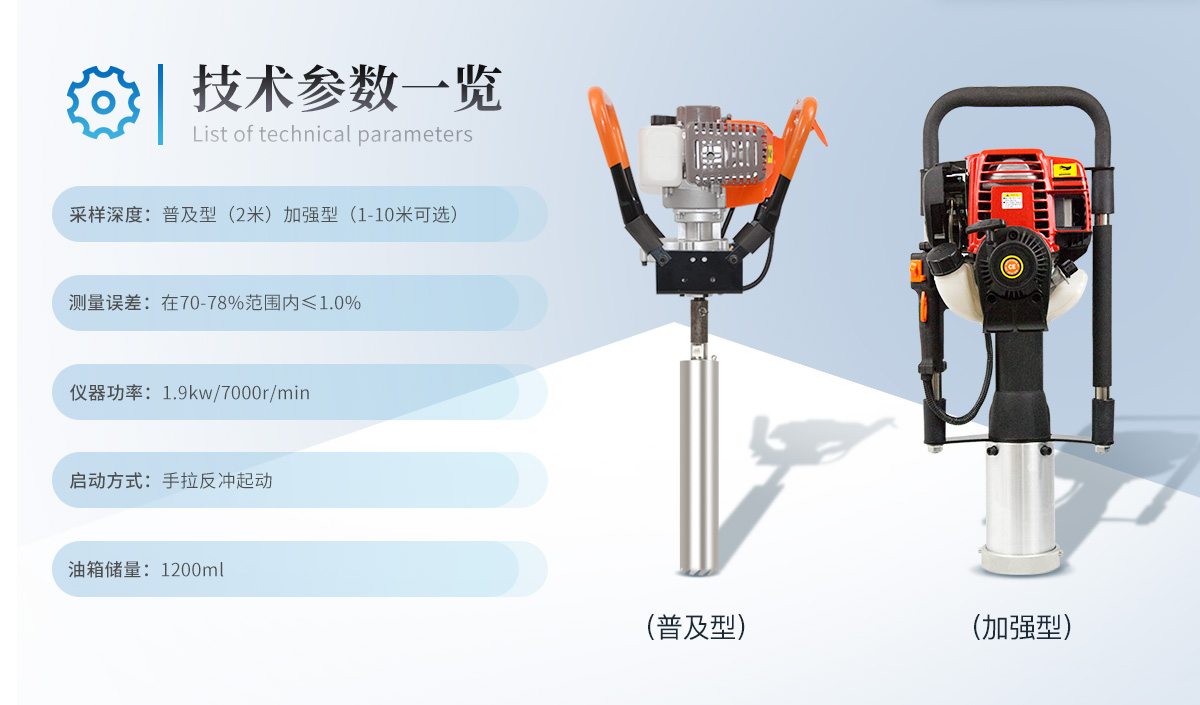

Technical parameters:

Specifications: Sampling diameter 5.1cm, sampling length 25cm at a time (drill bits can be customized according to requirements)

Sampling depth: 2 meters, with extension rod pin connection.

Engine type: air-cooled single cylinder two-stroke

Engine displacement: 52CC

Engine power: 1.9kw/7000r/min

Gearbox configuration: adopts a two-stage gear transmission, with bearings rotating

Transmission mode: gear variable speed transmission

Start method: manual kickback start

Fuel ratio: 93 octane gasoline to two-stroke engine oil 25:1

Fuel tank volume: 1200ml

Net weight: 20kg

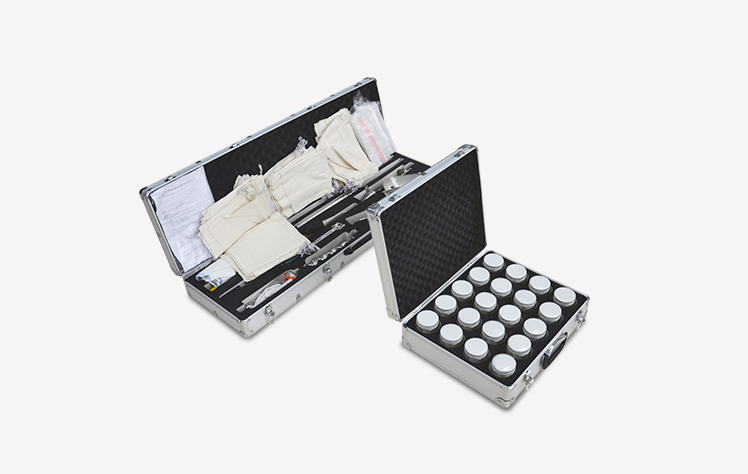

YT-QY02 gasoline powered soil sampler (packing list):

1. One gasoline engine (with increased power to 52CC and stronger horsepower!)

2. One brick (plug connection, opening design)

3. Extension rods (length: 50CM, pin connection) 4 pieces

4. A scraper

5. One steel tape measure (3 meters)

6. A pair of gloves

7. One certificate of conformity

8. One instruction manual

9. One lever (auxiliary extraction equipment)

10. A portable bag

11. One aluminum box
