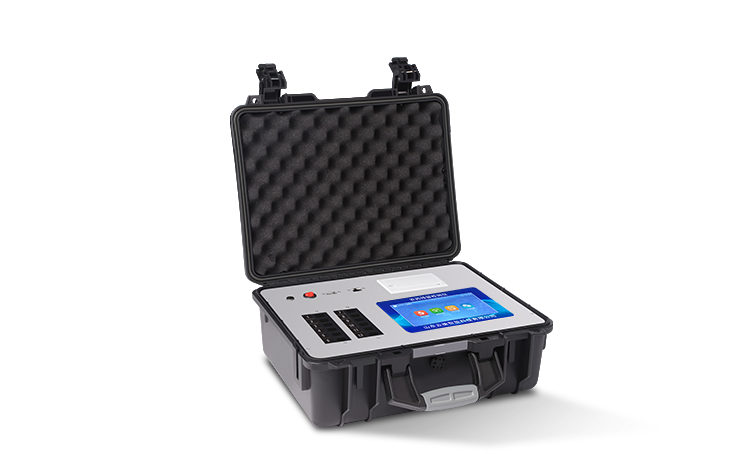

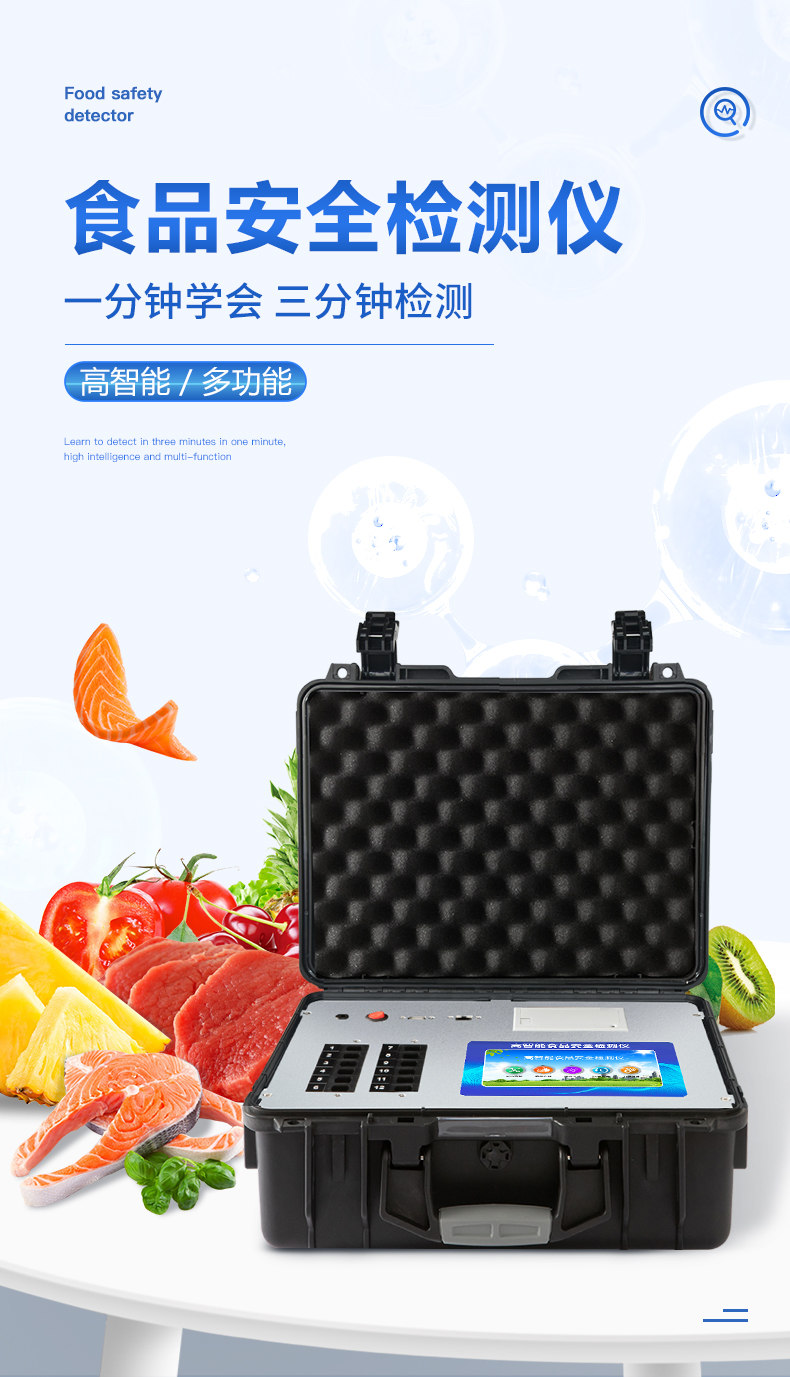

Edible oil comprehensive detector

Product Usage:

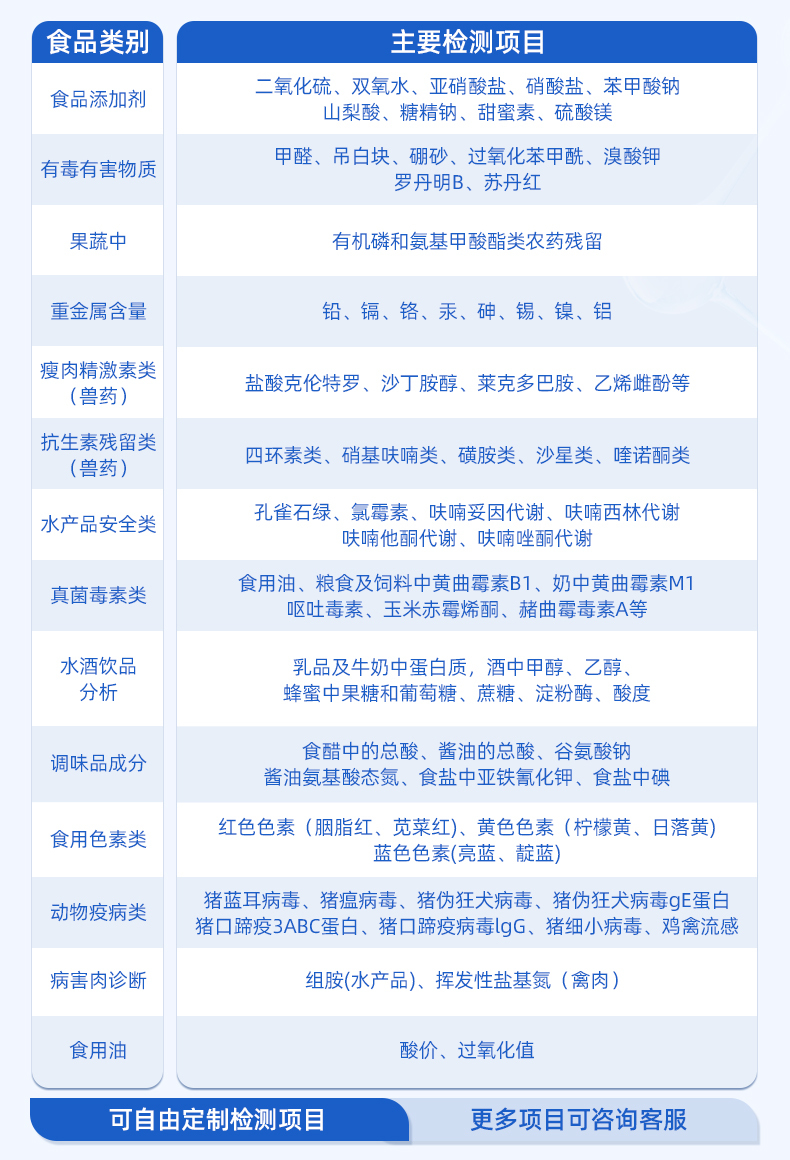

The edible oil comprehensive detection and detection instrument is an integrated oil rapid detection and analysis equipment, which can quickly detect the acid value, peroxide value, aflatoxin and other contents in edible vegetable oil, edible lard, peanut oil, sunflower oil, rice bran oil, food, and meat products; By testing, it can be determined whether vegetable oil meets national standards or whether it is rancid oil, inferior oil, gutter oil, etc. The instrument reserves other project detection programs and ports, and can easily add detection items according to future needs. In the future, it can be upgraded to a comprehensive type of instrument for detecting aquatic and noodle products.

Instrument application:

Widely used in quality supervision and inspection, industrial and commercial management, fried food production bases, food and drug supervision bureaus, health departments, meat and food deep processing enterprises, agricultural departments, inspection and quarantine departments, shopping malls and supermarkets, major food safety monitoring systems, and other units.

Functional features:

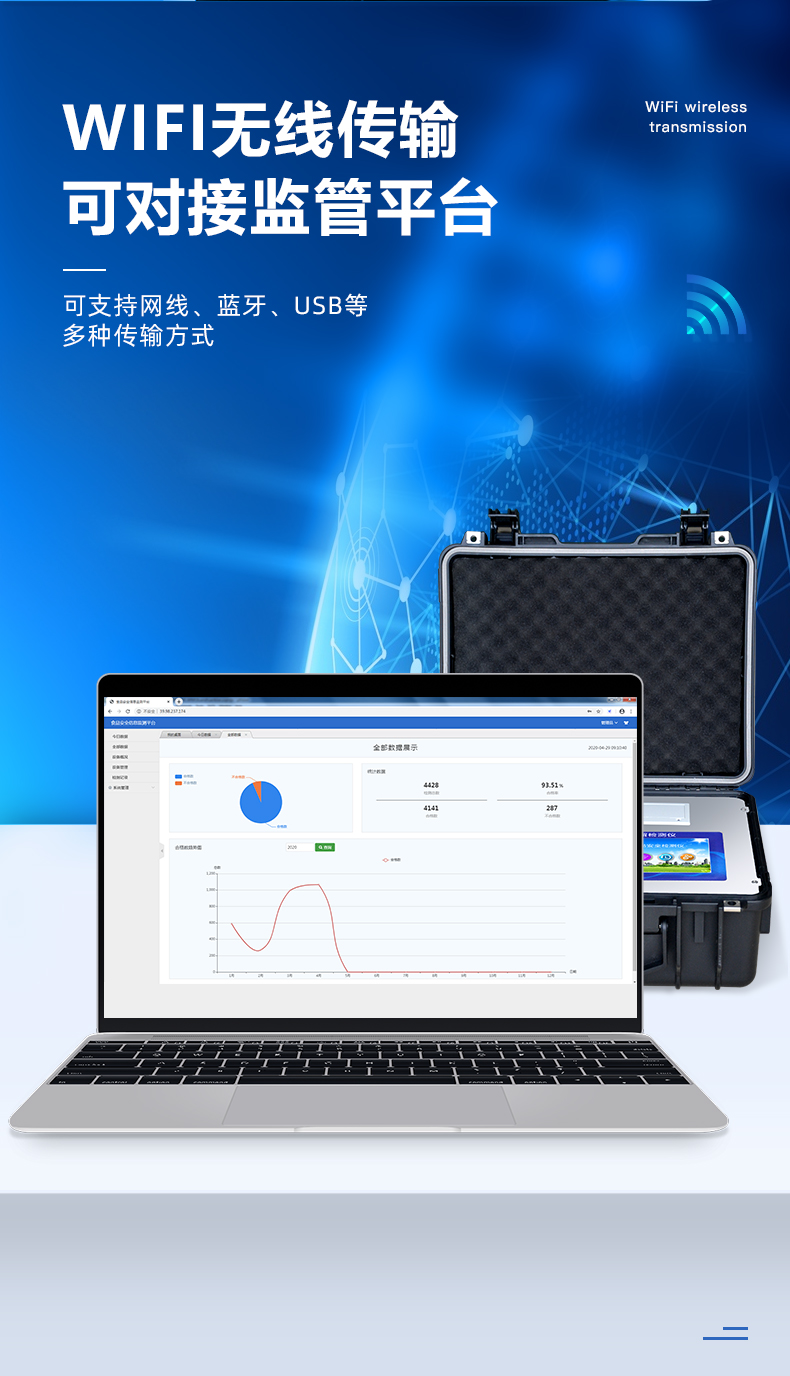

1. The Android intelligent operating system adopts a more efficient UI interaction interface, and the instrument has functions such as WiFi network upload, 4G network transmission, GPRS wireless remote transmission, and network cable connection, allowing for quick batch data upload.

2. High level of intelligence, the instrument has self checking function: it has power on self checking and zero adjustment functions, and automatic detection of duplicates.

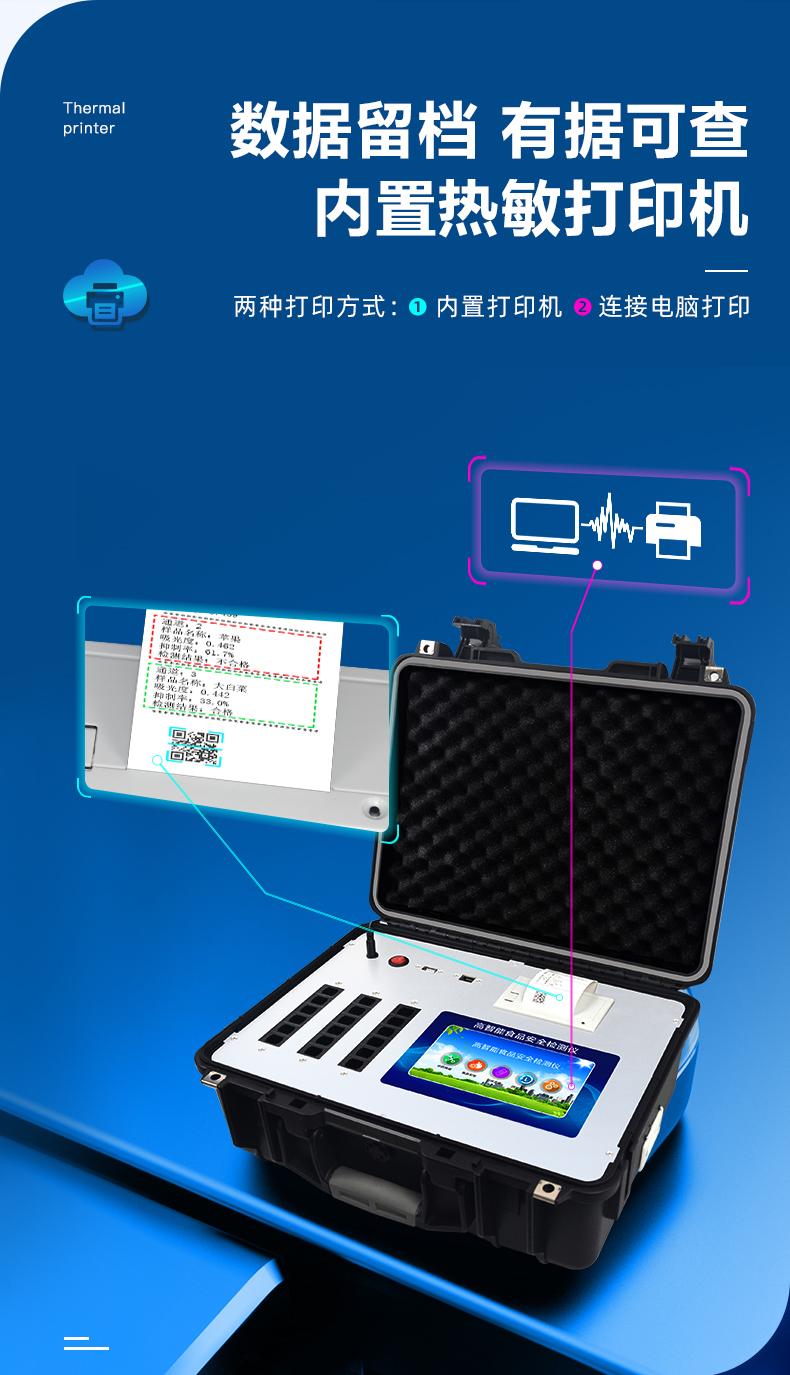

3. The new generation of high-speed thermal printers can automatically print and batch print inspection reports and QR codes after testing is completed.

4. The instrument is equipped with a regulatory platform, and data can be uploaded on both local area networks and the internet. The test results are directly transmitted to the food safety regulatory platform. Conduct regional food safety supervision, big data analysis, processing, and data statistics, detect long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and warning

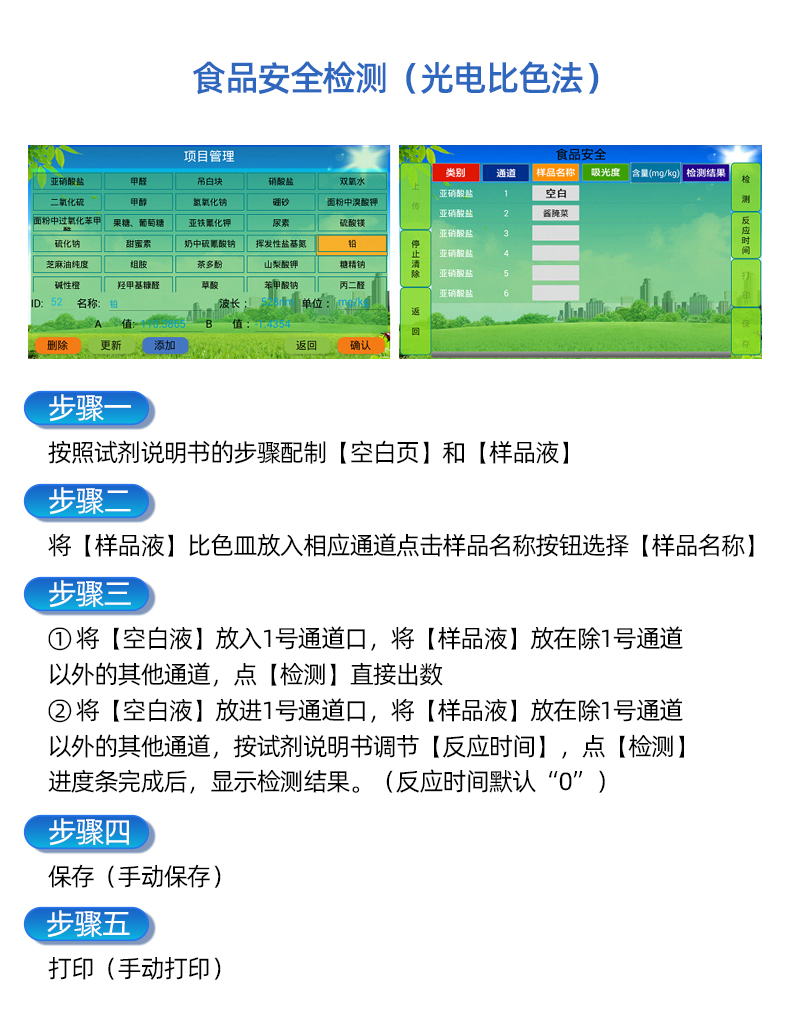

5. Integrated host, including photoelectric colorimetric detection module and colloidal gold immunochromatographic detection module.

6. An integrated portable rapid inspection device that meets the needs of on-site and mobile detection, can achieve the detection of all detection items under the same software, and can visually display the detection results through the same window.

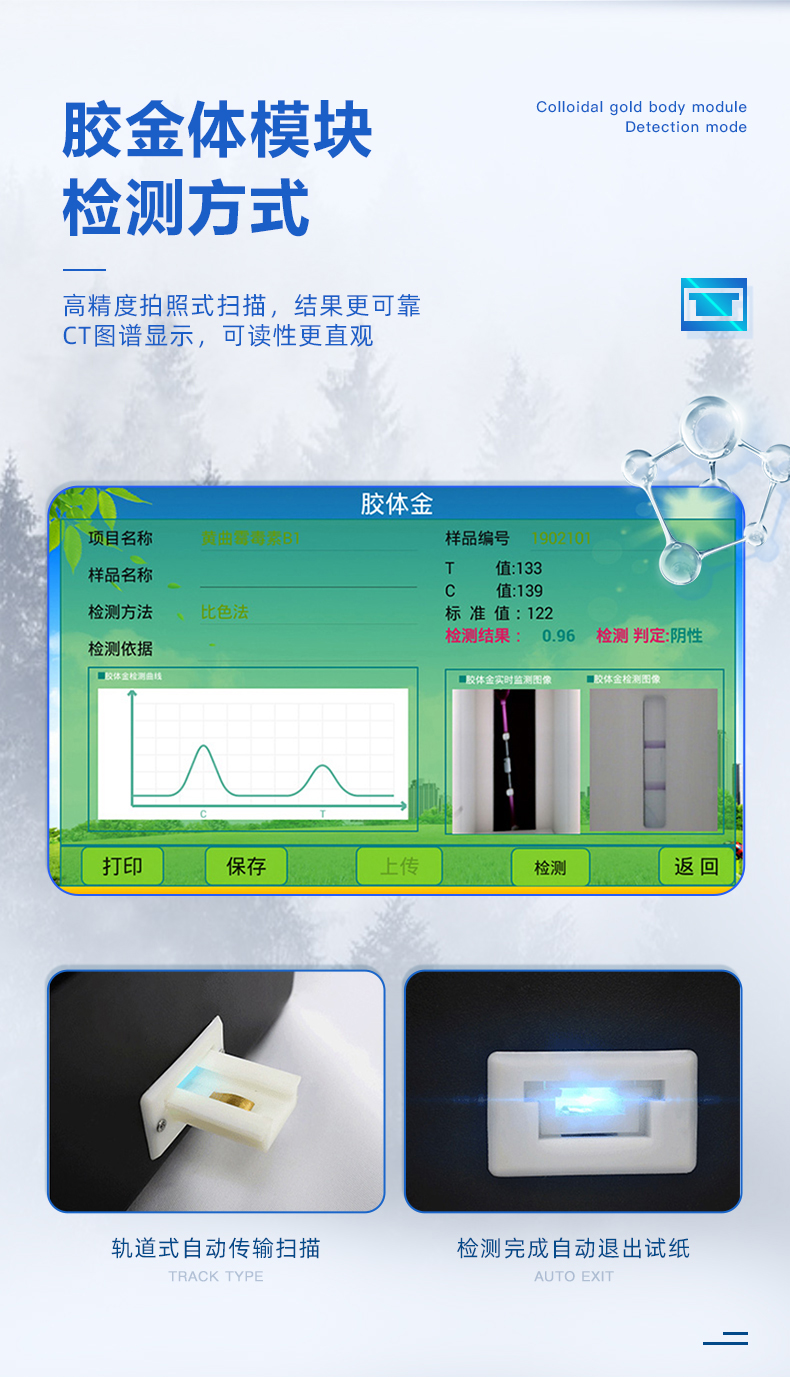

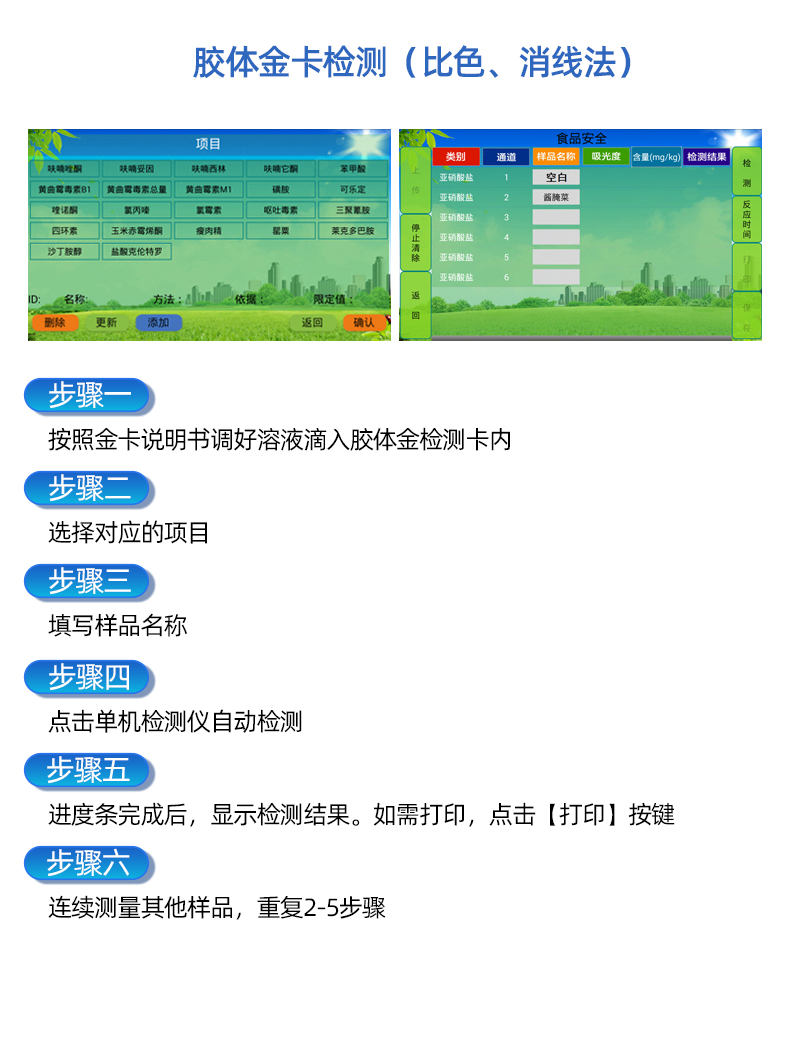

7. Colloidal gold module detection method: track type automatic transmission scanning, automatically exiting the detection card after the detection is completed.

8. The CT line of the food safety detector is automatically recognized without manual adjustment, and the CT coordinate curve is automatically displayed after the detection is completed.

9. Equipped with a powerful database and a menu function for multiple categories and types of samples, it allows for flexible selection of testing samples. Different testing channels can simultaneously test different sample items. You can also directly edit and input sample names, testing indicators, testing units, and other information on the instrument and save them in the sample database.

10. The built-in operation demonstration video of the instrument is your laboratory guidance expert.

11. The sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

12. The instrument has its own protection function, which can be set with a username and password to prevent non staff operations.

13. High sensitivity, high detection accuracy, high repeatability accuracy, scanning type high-precision optical sensor.

14. The result judgment line can be modified, the calibration value of the reference value can be saved, and data will not be lost after power outage.

15. Compatible with all colloidal gold cards in the market, with unrestricted use of consumables, greatly enhancing the user experience.

16. The instrument has functions of recalibration, locking, and restoring factory settings.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, faster operation speed, and stronger stability.

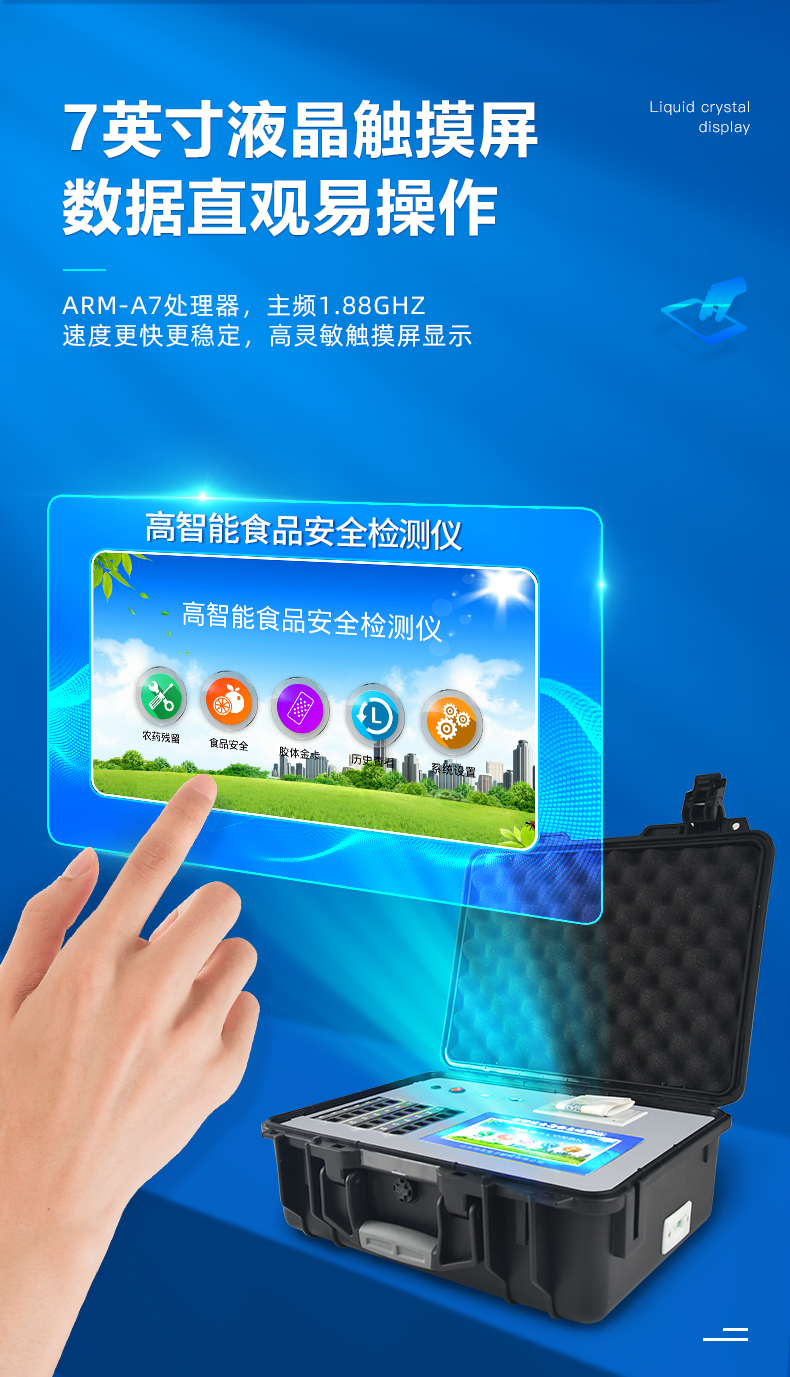

2. Display method: 7-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

3. AC/DC dual purpose, DC 12V power supply, can be connected to car power supply, and can be equipped with a 6Ah large capacity rechargeable lithium battery, convenient for outdoor flow testing.

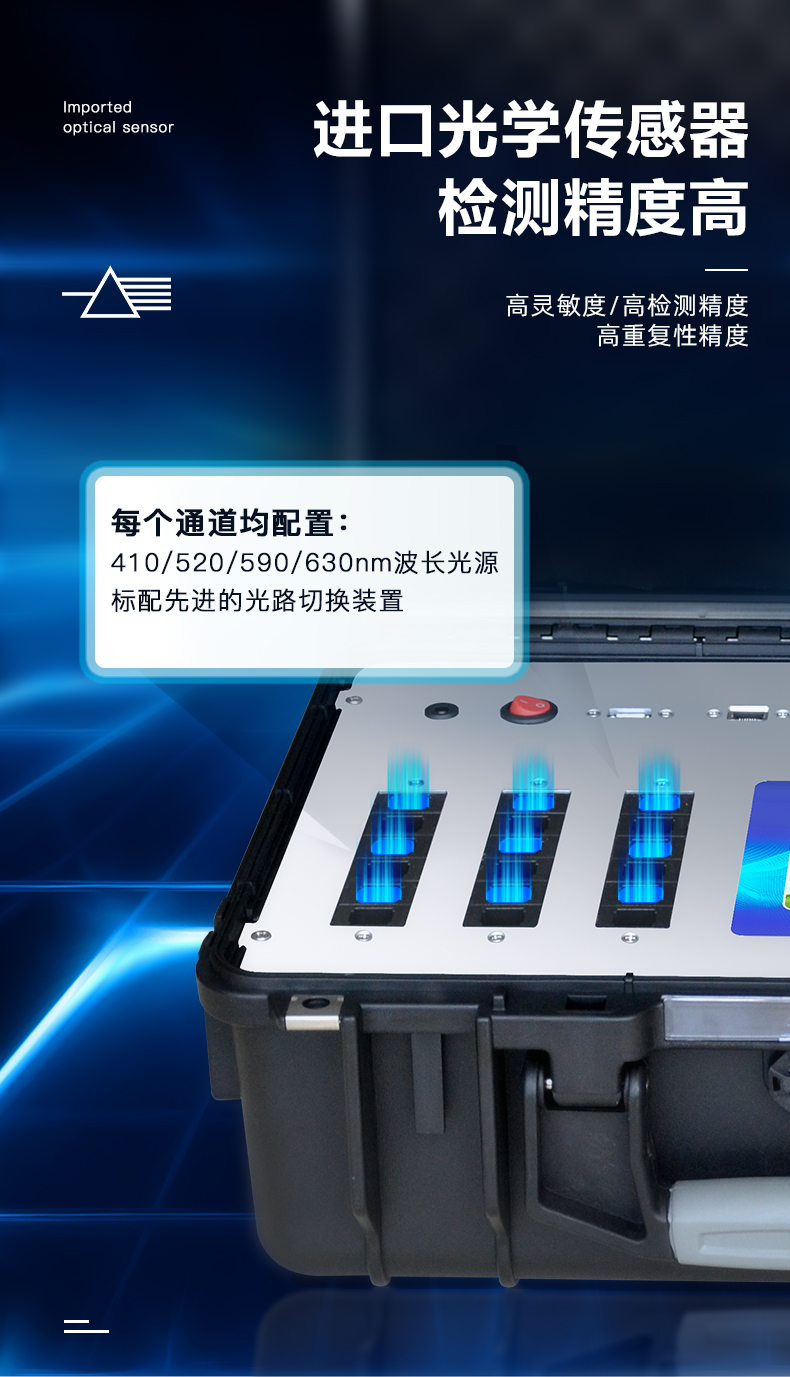

4. Four wavelength cold light source, 12 detection channels, each equipped with 410, 520, 590, and 630nm wavelength light sources, equipped with advanced optical path switching devices as standard, professional optical path switching function can achieve up to 64 wavelengths, and all detection items can achieve simultaneous detection of all channels.

5. Intelligent constant current voltage regulation, automatic adjustment and calibration of light intensity, long-term continuous operation of the light source without temperature drift phenomenon.

6. Built in new national limited edition standards, on-site comparison with measured results, and continuous updating of standards.

7. Continuous injection and detection

8. Sample numbers are automatically accumulated.

9. The data can be wirelessly uploaded to the platform and exported as an Excel spreadsheet from the platform.

10. Storage capacity of 200000 test results

11. Simultaneously supports USB drive copying, standard USB interface, and no driver plugging.

12. The detection items can be expanded and the firmware can be upgraded

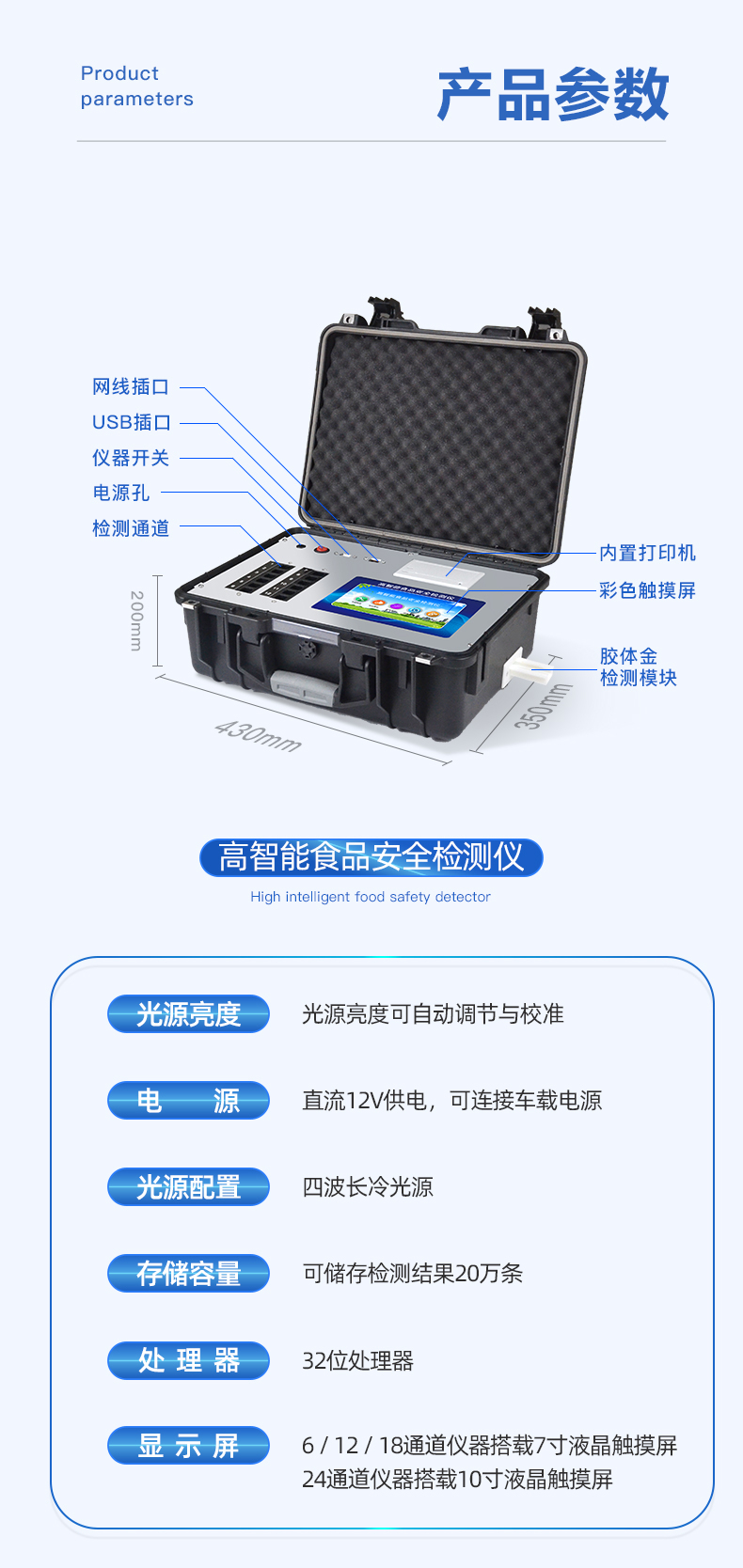

13. Instrument size: 43 × thirty-five × 19cm, net weight of the host: 5.1kg

Technical parameters of edible oil comprehensive detector:

☆ Accuracy error: ± 3%

☆ Linear error: ± 5 ‰

☆ Stability: ± 0.001 A/hr

☆ Wavelength accuracy:<2.0nm

☆ Transmission specific gravity renaturation: ± 1%

☆ Lower limit of edible oil detection: 0.2mg KOH/g

☆ Lower limit of detection for meat products and food: 0.5mg KOH/g

☆ Linear range: 0.2-10 mg KOH/g

☆ Data storage of 200000 pieces

☆ Colorimeter: 10 × 10mm standard sample cell

☆ Appearance size: 415X310X150 (mm)
