Dissolved oxygen analyzer

Product Overview:

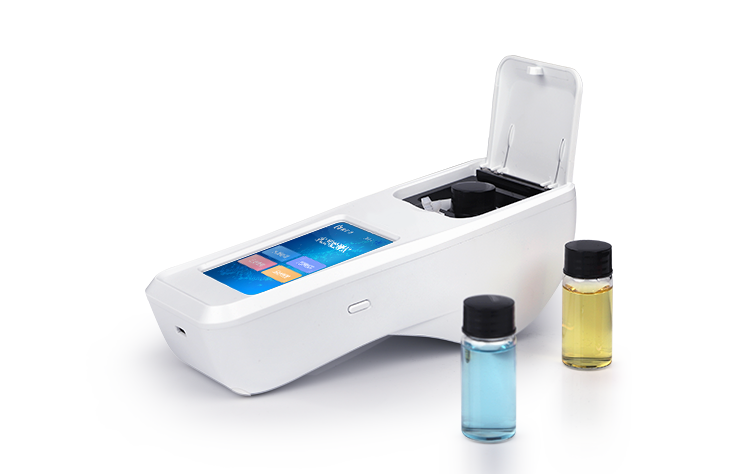

The Yuntang YT-DO water quality detector is a detection device suitable for industrial wastewater, aquaculture, river monitoring, swimming venues and other fields. Coupled with fast color detection reagents, it can measure quickly, simply, accurately, and stably. It has a beautiful appearance, a simple operation interface, and an accurate detection system, helping users obtain precise data, analyze water conditions more accurately and effectively, and prevent aquaculture risks in advance, Timely avoid losses.

Application industry:

Suitable for purified water plants, water treatment plants, domestic sewage treatment plants, industrial wastewater, aquaculture, river monitoring, swimming venues, water source protection, production monitoring, scientific research experiments, etc.

Detection principle:

Extract a certain amount of water sample, and after pre-treatment, drop the detection reagent according to the reagent instructions according to different detection items. The detection reagent will react with the tested substance in the water, and the reaction solution will present a specific color.

Instrument features:

Android intelligent system for better, easier, and faster operation;

Configure a regulatory platform, and the detection results can be directly transmitted wirelessly to the platform for water quality long-term and short-term analysis, assisting management.

Built in operation process, simple operation, no need for training, and easy to get started;

Faster detection speed, on-site data reading;

Portable with small size and light weight, convenient for outdoor testing;

Compact and beautiful in appearance, stable in operation and maintenance free, with good cost-effectiveness;

Adopting imported cold light sources, with stable optical performance and a lifespan of up to 100000 hours;

Dual purpose AC/DC, with built-in rechargeable lithium battery, environmentally friendly and durable, capable of supporting continuous indoor and outdoor work.

Technical indicators:

Test item: Dissolved oxygen

Measurement standard: GB7489-87

Measurement range: 1-12mg/L

Wavelength range: 340~800nm

Measurement method: photoelectric colorimetry

Repeatability:<0.5%

Stability:<0.5%

Wavelength selection: automatic

Operating system: Android intelligent operating system

Display screen: 3.5-inch color LCD touch screen

Sensitivity (absorbance): 0.001

Usage environment: Temperature 0-50 ℃, humidity 0-90%

Data storage: Over 80000 entries

Communication: Type-C, WIFI, hotspot, Bluetooth

Battery: 5600mAh lithium battery

Continuous working time: 8 hours

Power supply voltage: 5V/DC DC

Size: 180mm * 80mm * 70mm

Weight: 700g

Supported languages: Simplified Chinese or English
