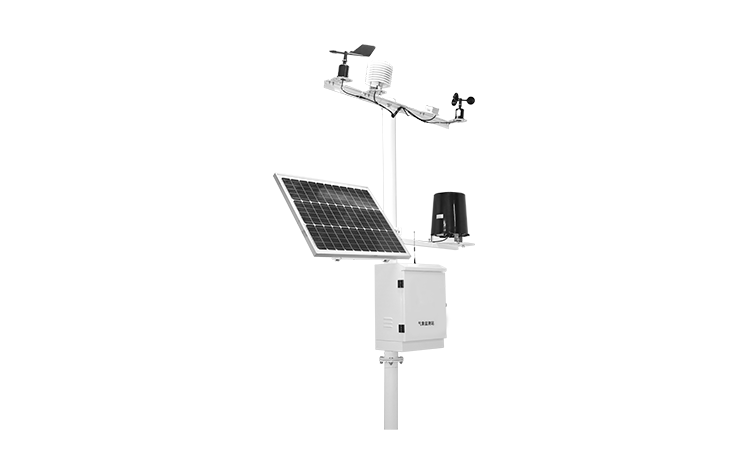

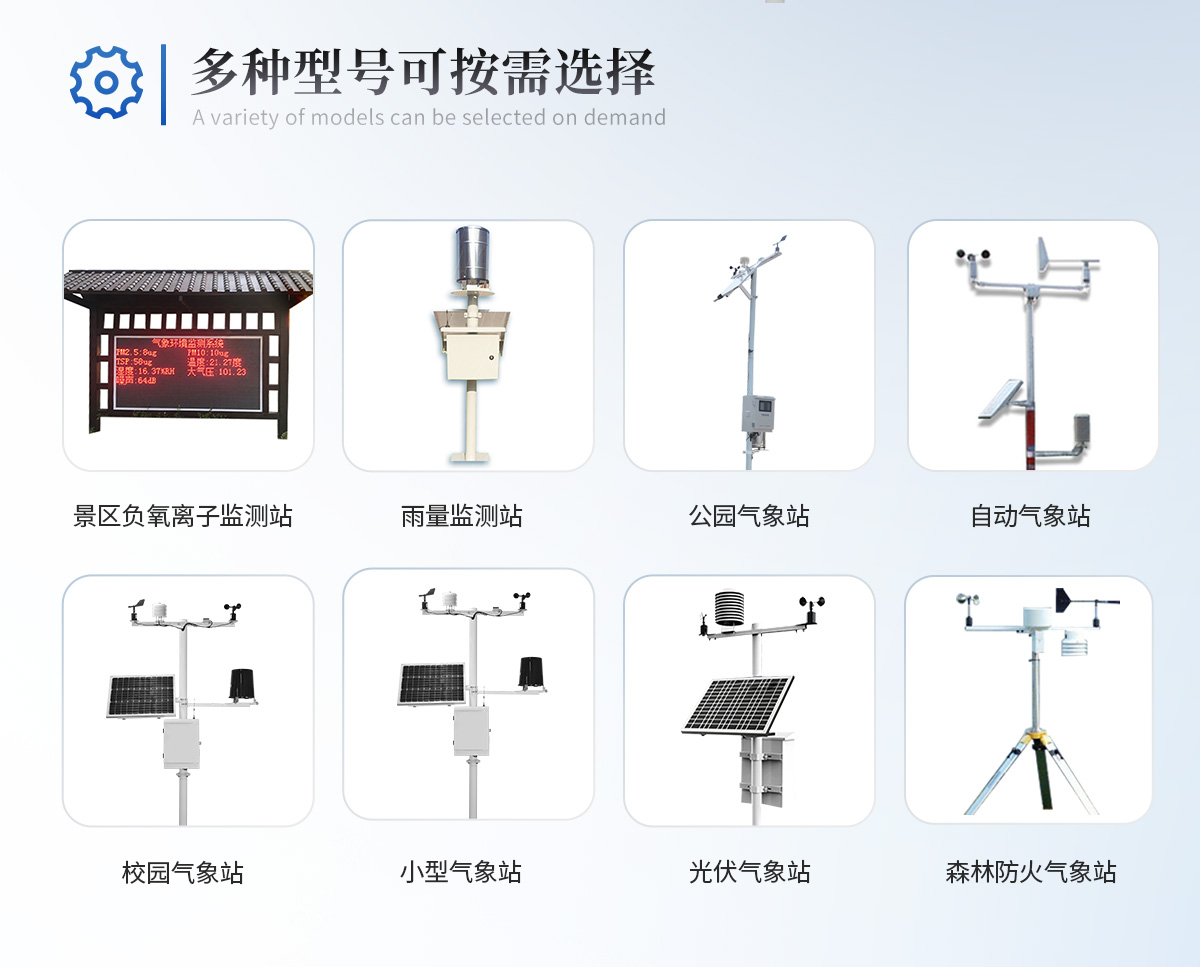

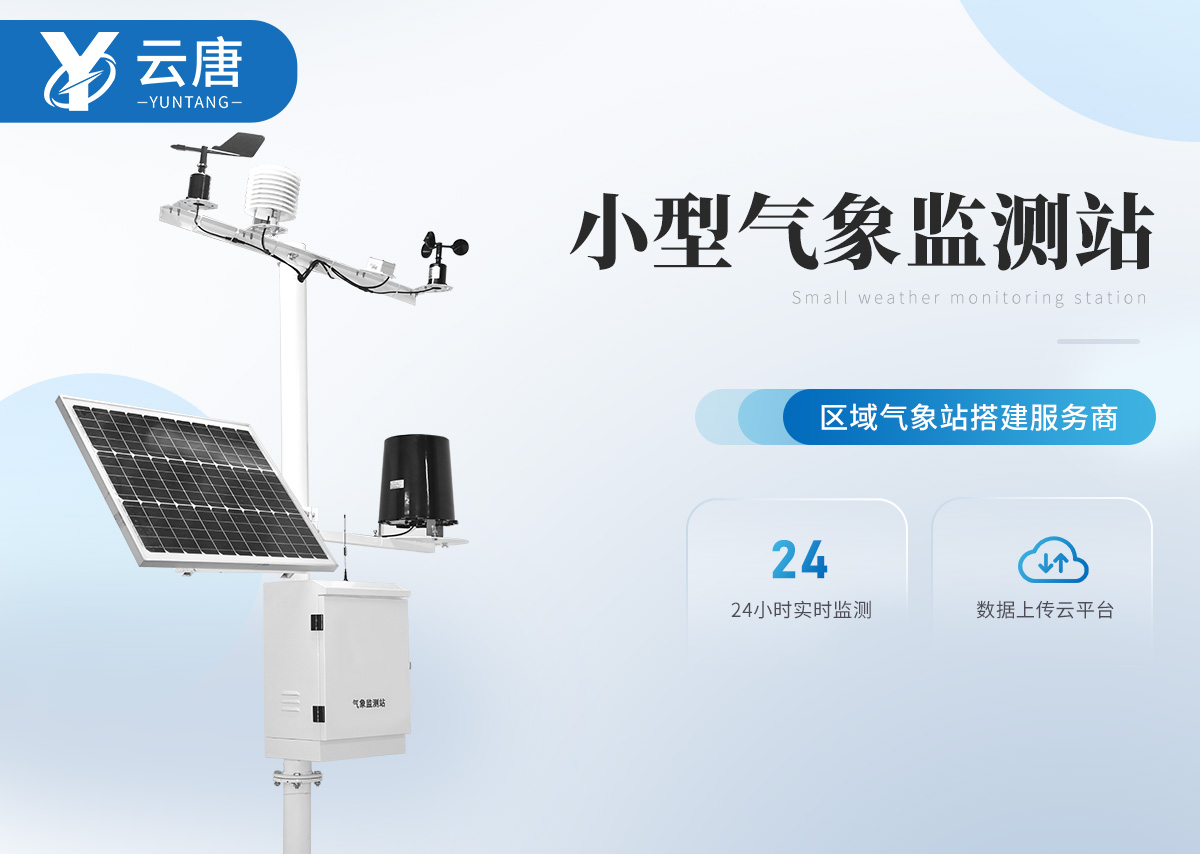

Photovoltaic meteorological station

Product Introduction:

Meteorological environmental data is an important indicator that determines the quality of solar power generation and plays a decisive role in it; At the same time, it also provides effective data assurance for the design of solar power plants. The photovoltaic environmental monitoring instrument is designed and produced in accordance with the meteorological observation standards of the International Meteorological Organization (WMO) and the IEC (International Electrotechnical Commission) standards. The equipment meets national standards and meets the latest data requirements and logical correspondence of the photovoltaic power plant submitted to the provincial survey. It has the characteristics of stable performance, high detection accuracy, and unmanned operation, which can meet the business requirements of professional photovoltaic environmental observation.

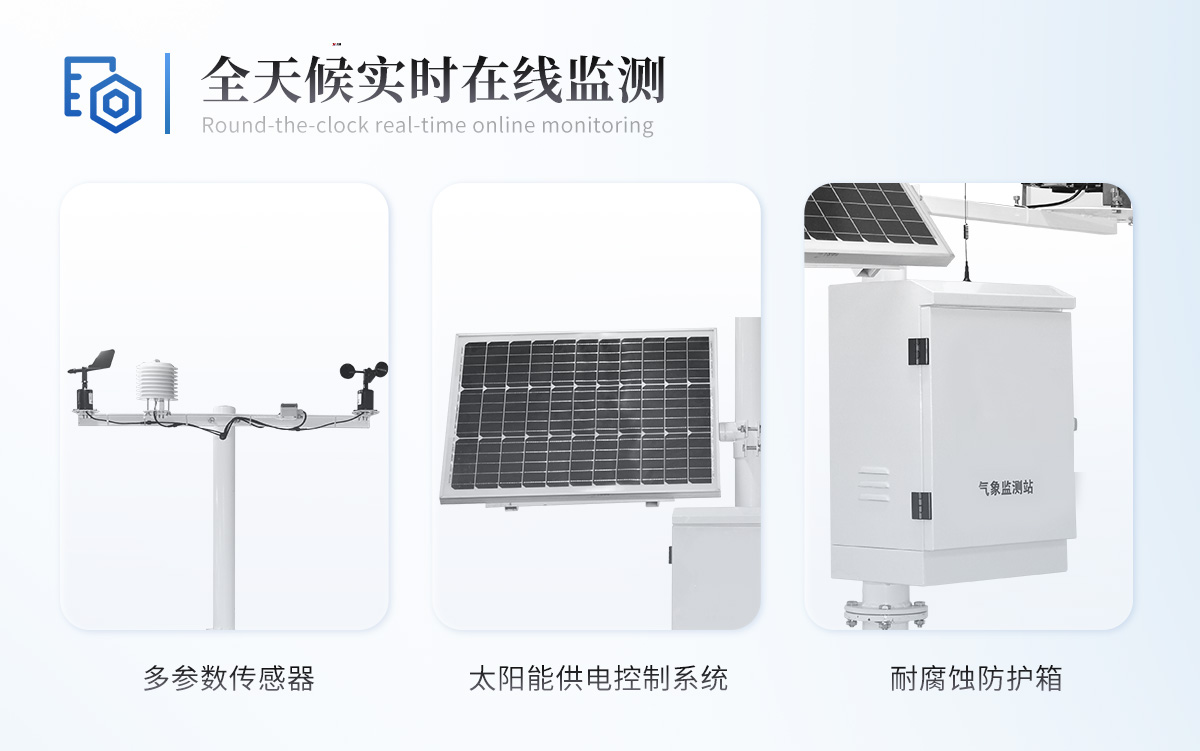

Functional features:

1. Collector: Equipped with industrial grade processing chips and ABS casing, it is lightweight, sturdy, and aesthetically pleasing overall. Equipped with a 192 * 64 full dot matrix LCD display, capable of displaying graphics or 12 * 4 Chinese characters (optional with a 7-inch LCD screen), suitable for various harsh environments.

2. Fully automatic tracker: The tracking methods of the fully automatic sun tracker include sensor tracking and sun trajectory tracking. The sensor tracking method is achieved by real-time sampling through photoelectric converters, calculating and analyzing changes in solar intensity, and driving mechanical mechanisms to achieve solar tracking. Make direct radiation tracking measurements more accurate.

3. Sensors: Various meteorological element sensors such as ambient temperature, humidity, wind speed, wind direction, air pressure, component temperature, direct radiation sensor, scattered radiation sensor, total radiation sensor, sunshine hours, etc. (optional according to needs).

4. Equipped with external USB storage expansion function.

5. Support: The surface of the main pole is treated with hot-dip galvanizing and electrostatic spraying technology, which has strong corrosion resistance and oxidation resistance.

6. 1 set of meteorological data analysis platform:

Data query function: supports the query, export, and printing of various real-time and historical data for any time period.

Data statistics function: supports single element statistics function: can perform statistics on the maximum, minimum, and average values of a single element by year, month, day, hour, 10 minutes, or any time period.

Data chart function: Based on the collected data, real-time curves can be formed and presented in intuitive ways such as bar charts and pie charts.

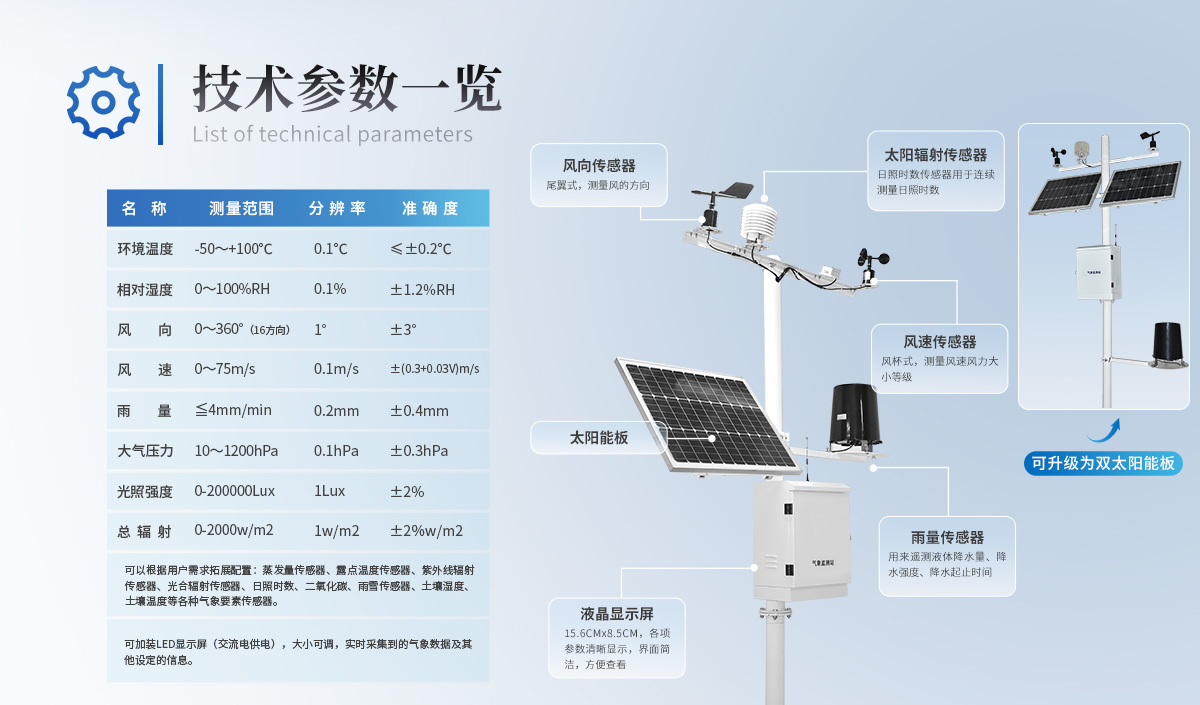

Technical parameters:

Name

measuring range

Accuracy

Resolution

ambient temperature

-50~+100 ℃

± 0.1 ℃

0.1 ℃

relative humidity

0-100% RH

± 2% RH

0.1%

Wind direction

0-360 ° (16 directions)

± 2 °

1 °

Wind speed

0-70m/s

± (0.3+0.03V) m/s

0.1m/s

atmospheric pressure

10-1100KPa

± 0.12hPa

0.1KPa

Component temperature

-40~100 ℃

± 0.1 ℃

0.1 ℃

Direct radiation

0-2000W/m2

Worksheet<5%; Standard Table ＜ 2%

7~14 μ V/W.m-2

Scattered radiation

0-2000W/m ²

＜ ± 5%, usually ± 3%

1 W/m ²

Total radiation

0-2000w/m2

± 2% w/m2

1w/m2

Sunlight hours

0-24 hours

± 2% h

0.1 h

We can expand the configuration according to user needs: dew point temperature sensors, ultraviolet radiation sensors, photosynthetically active radiation sensors, and other meteorological element sensors.

Can be equipped with LED display screen (AC power supply), adjustable in size, real-time collection of meteorological data and other set information.

Lightning protection system

Lightning rod and accessories

Data acquisition instrument

Data collection, storage, communication, analysis, and other functions

power supply system

Optional mains/solar/battery/multi power supply system

communication system

RS232/RS485, USB, wireless GPRS, Ethernet and other communication methods

Special bracket

Install protective boxes, sensors, power supplies, communication equipment, etc

Typical applications

1. Solar photovoltaic power generation and solar resource assessment

2. Monitoring of solar energy systems and research on atmospheric energy balance

3. Calibration and validation of solar radiation data obtained from satellite inversion

4. Research on thermal stress, heat exchange, and climate change

5. Preliminary estimation and processing of light resources and revenue evaluation for the power station

Design Implementation Standards

Guidelines for Meteorological Instruments and Observation Methods, Committee on Instruments and Observation Methods (CIMO) and International Electrotechnical Commission (IEC) of the World Meteorological Organization (WMO)

State Grid Corporation of China Enterprise Standard Q/GDW 617-2011 "Technical Regulations for Connecting Photovoltaic Power Stations to the Grid"

State Grid Corporation of China Enterprise Standard Q/GDW 618-2011 "Test Regulations for Photovoltaic Power Station Connection to the Grid"

Technical Specification for Acceptance of Grid Connected Photovoltaic Power Generation System Engineering

QX/T 61-2007 Ground Meteorological Observation Specification

Industry Standard for QX/T-2000 Ⅱ Automatic Meteorological Stations

Technical Specification for Meteorological Observation and Data Review and Correction of Wind Farms (QX/T74-2007)
