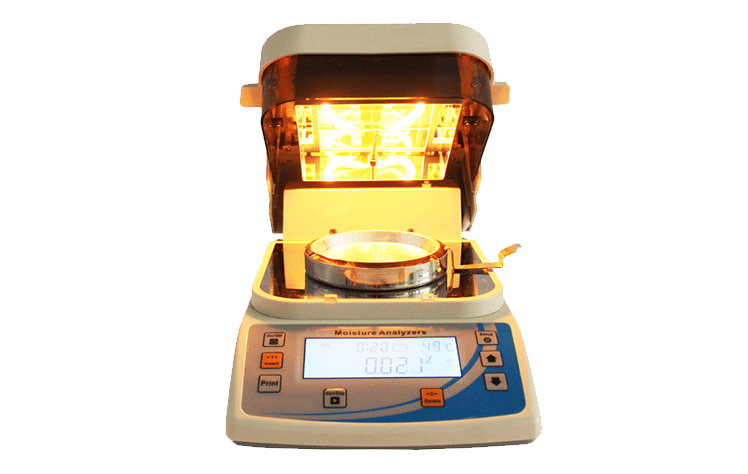

High precision halogen moisture meter

The halogen moisture detector is a new type of rapid moisture detection instrument developed by our company. The halogen moisture analyzer adopts the most advanced international weighing system [electromagnetic balance sensor]. Its characteristics include accurate and reliable weighing, fast and clear display, and automatic detection system, simple automatic calibration device, and overload protection device. It is a new and fast moisture detection instrument.

Working principle:

The circular halogen lamp ensures uniform heating of the sample, making it easy to operate and accurate in measurement. The halogen moisture meter measures the weight of the sample while using a ring tube halogen heating method to quickly dry the sample. During the drying process, the moisture meter continuously measures and immediately displays the lost moisture content% of the sample. After the drying program is completed, the final measured moisture content value is locked and displayed. Compared with the international oven heating method, halogen heating can uniformly and quickly dry the sample at high temperatures, and the surface of the sample is not easily damaged. Its detection results are consistent with the national standard oven method, have good substitutability, and the detection efficiency is much higher than the oven method. Intelligent operation, usually the sample can be determined in just a few minutes. The instrument is easy to operate and accurate in testing. The display part adopts a LCD screen - making the screen clearer and brighter, with clear and visible readings. It can display moisture values, sample initial and final values, measurement time, temperature initial and final values, and other data. It also has the function of connecting with computers and printers, and can output printing data in accordance with GLP specifications.

Usage:

It can be widely used in all industries that require rapid determination of moisture, such as pharmaceuticals, grains, feed, seeds, rapeseed, dehydrated vegetables, tobacco, chemicals, tea, food, meat, and textiles, as well as in laboratories and production processes in industries such as agriculture, forestry, papermaking, rubber, plastics, and textiles. Simultaneously meeting the requirements for measuring the moisture content of solids, particles, powders, gels, and liquids

Technical parameters:

1. Weighing range: 0.0001g-60g

2. Moisture measurement range: 0.001-100% (10PPM-100%)

3. Sensor accuracy: 0.0001g (using electromagnetic force balance sensor)

4. Sample mass: 0.3-60g

5. Heating temperature range: starting at -200 ℃

6. Operating modes: fully automatic, timed, manual

7. Heating mode: fast, standard, soft

8 heating sources: 500W halogen lamp

9. Moisture content readability: 0.001%

10 parameters:% moisture, time, temperature, weight

11 Communication interface: standard RS232 communication interface

12 Pan size (mm) with a diameter of 90
