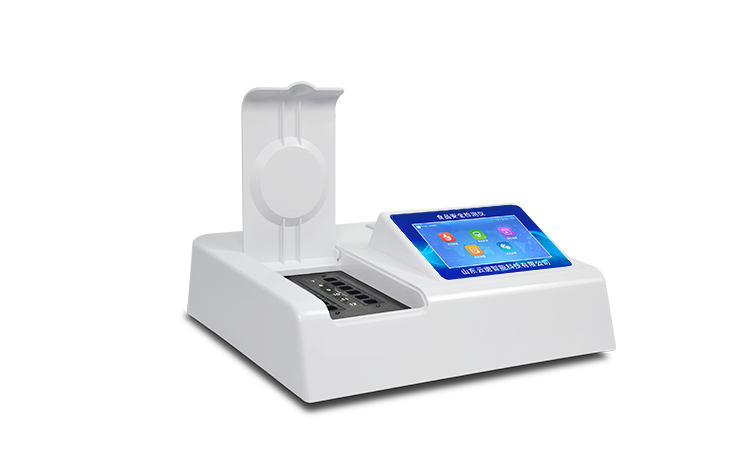

Rapid formaldehyde detector

Main parameters:

Testing items: It can quickly and quantitatively detect the content of formaldehyde in various types of food. The instrument reserves other testing programs and ports, and can easily add testing items according to future needs. In the future, it can be upgraded to a comprehensive type of instrument for testing, aquatic products, meat products, and noodle products.

Instrument features:

1. Instrument composition: composed of a host, sample pre-treatment equipment, and reagent kits, suitable for on-site and laboratory use

2. Optical path system: Adopting imported ultra-high brightness light-emitting diodes, the light source and detector adopt an all solid-state structure, with high accuracy and precision, strong stability, and controllable light source; Adopting an energy-saving design with automatic light source switch, the service life of the light source can reach over 100000 hours.

3. Built-in curve: The instrument has a built-in working curve, which eliminates the need to prepare a standard solution. After zero calibration with matching reagents, rapid quantitative determination of the sample can be achieved.

4. Measurement method: The sample color is developed and measured using a standard 1cm cuvette, without the need for transfer, improving detection accuracy.

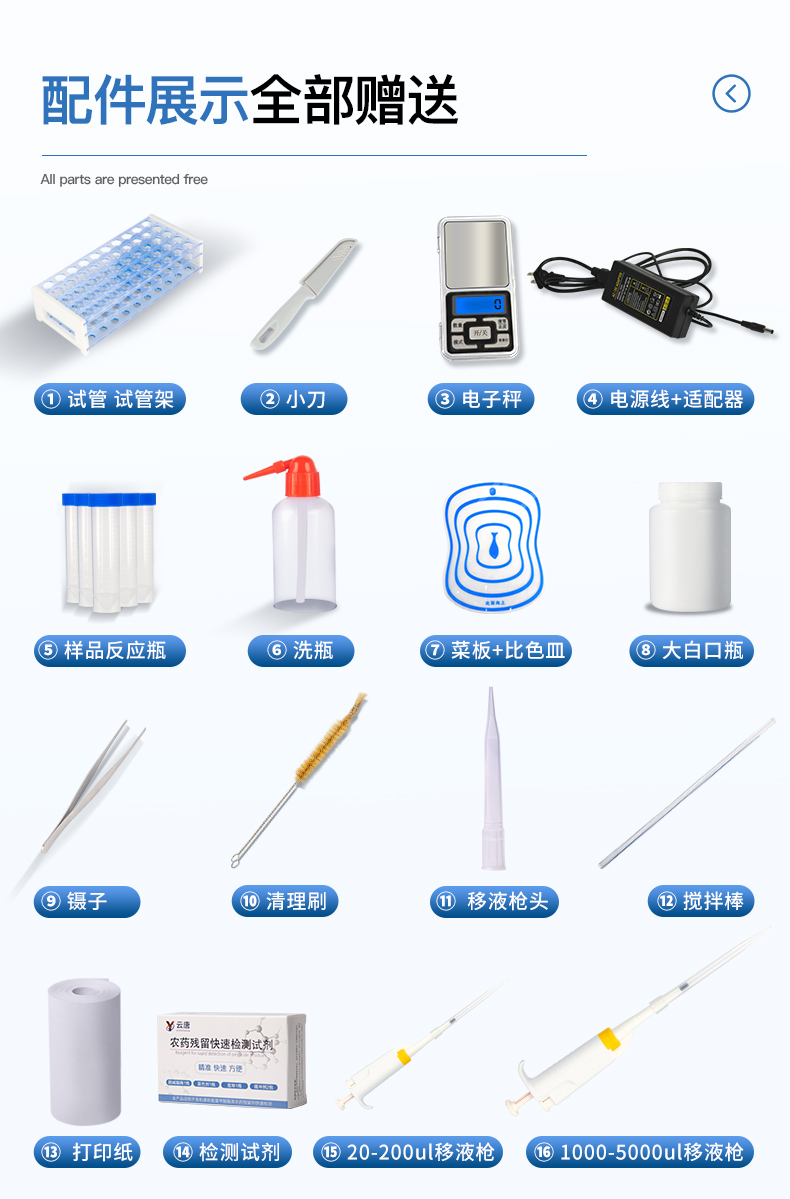

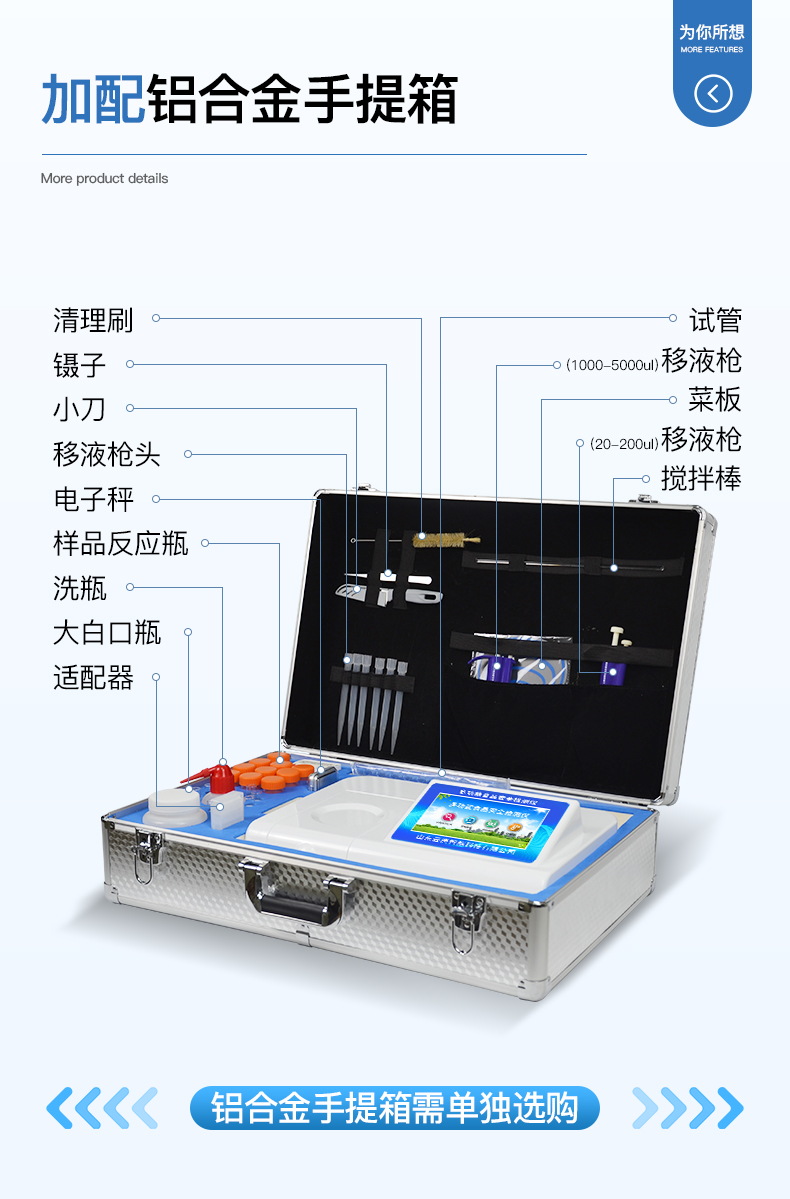

5. Consumable accessories: Provide complete specialized pre-treatment equipment and consumables, one-stop service.

6. Special reagent kit: equipped with specialized pre made reagents, reducing reagent preparation time, simple operation, and convenient use.

Function Introduction:

1. The Android intelligent operating system adopts more efficient and user-friendly operation. The instrument has network cable connection, WiFi networking upload, GPRS wireless remote transmission function, and can quickly upload data.

2. High degree of intelligence, the instrument has self checking function: it has power on self checking and zero setting functions, and has automatic detection of repeatability.

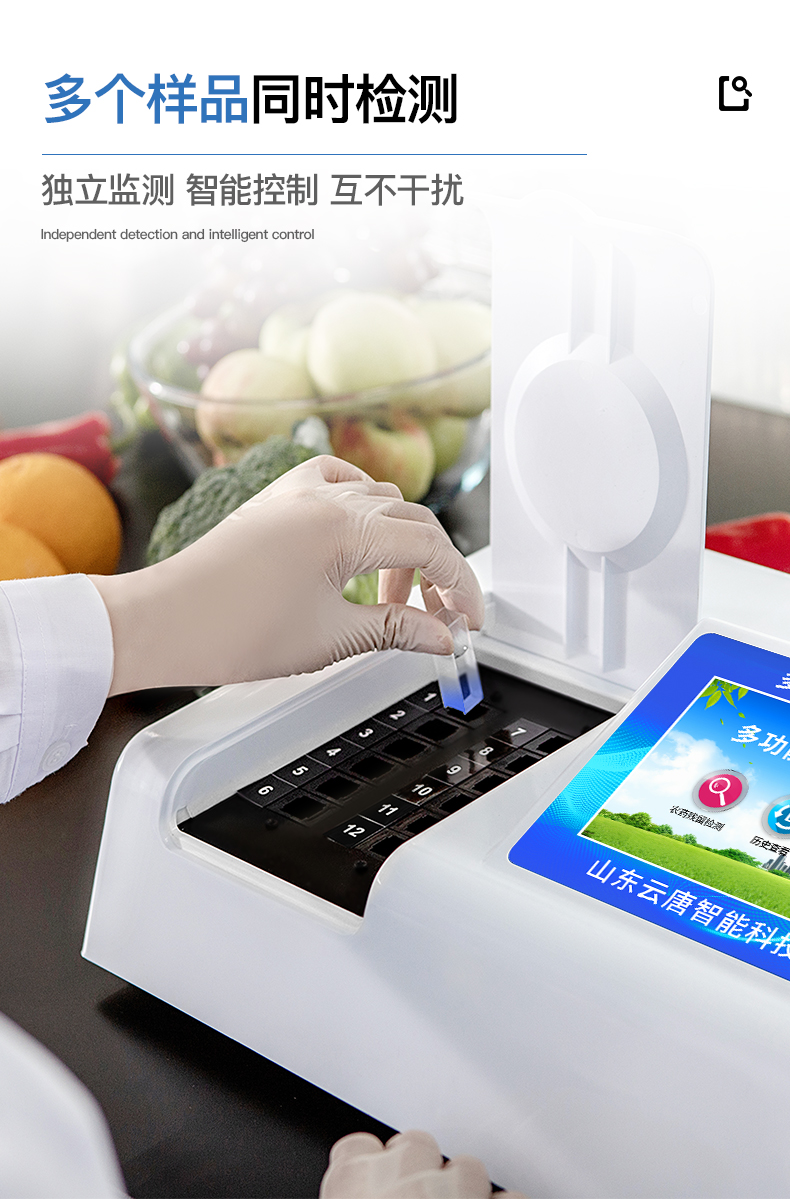

3. Detection channels: ≥ 12 detection channels, capable of testing multiple samples simultaneously. Each sample is controlled by a program and operates independently without mutual interference.

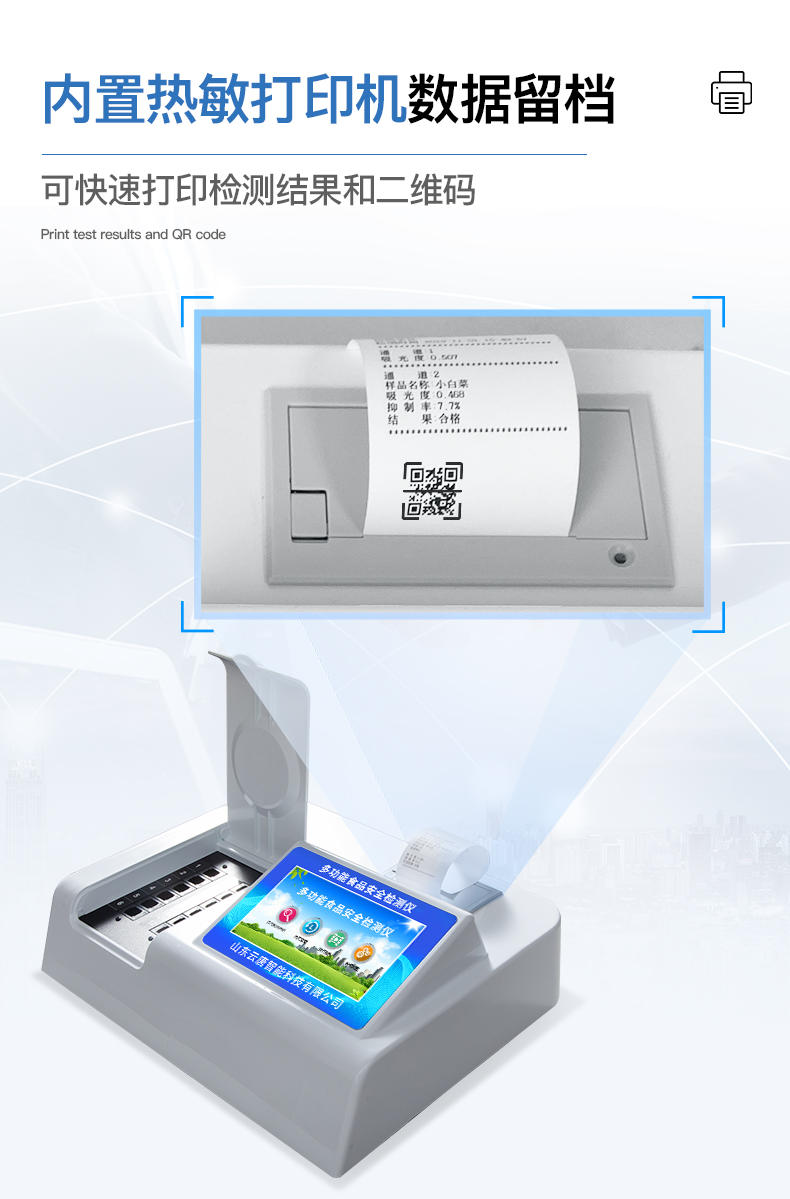

4. Equipped with a new generation embedded thermal printer, it can automatically print detection reports and QR codes after detection is completed.

5. Adopting a standard USB 2.0 interface design, it supports USB storage, without driver insertion and removal, making it convenient for flexible data storage and movement.

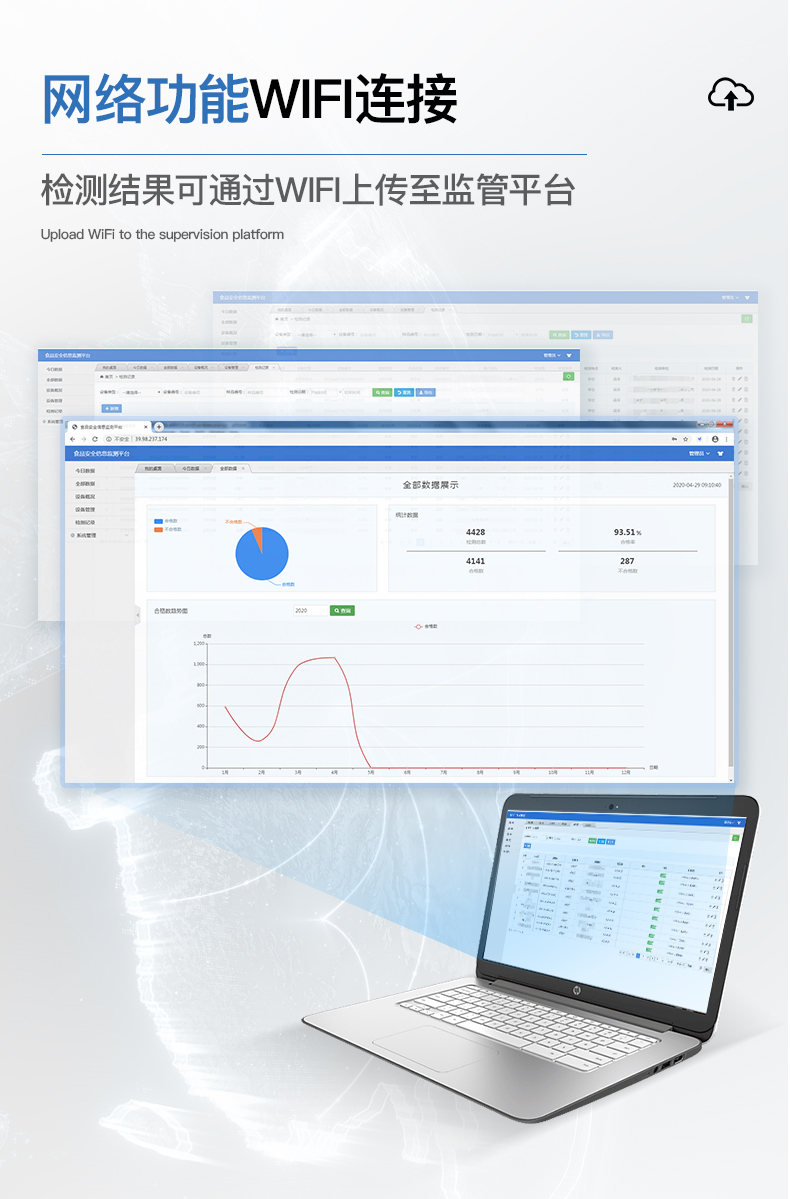

6. The instrument comes with a regulatory platform. The detection results can be directly uploaded wirelessly. Realize data query, browsing, analysis, statistics, printing, etc., and can analyze and process data curves and pie charts, detect long-term and short-term trends such as food formaldehyde, and achieve problem estimation and warning.

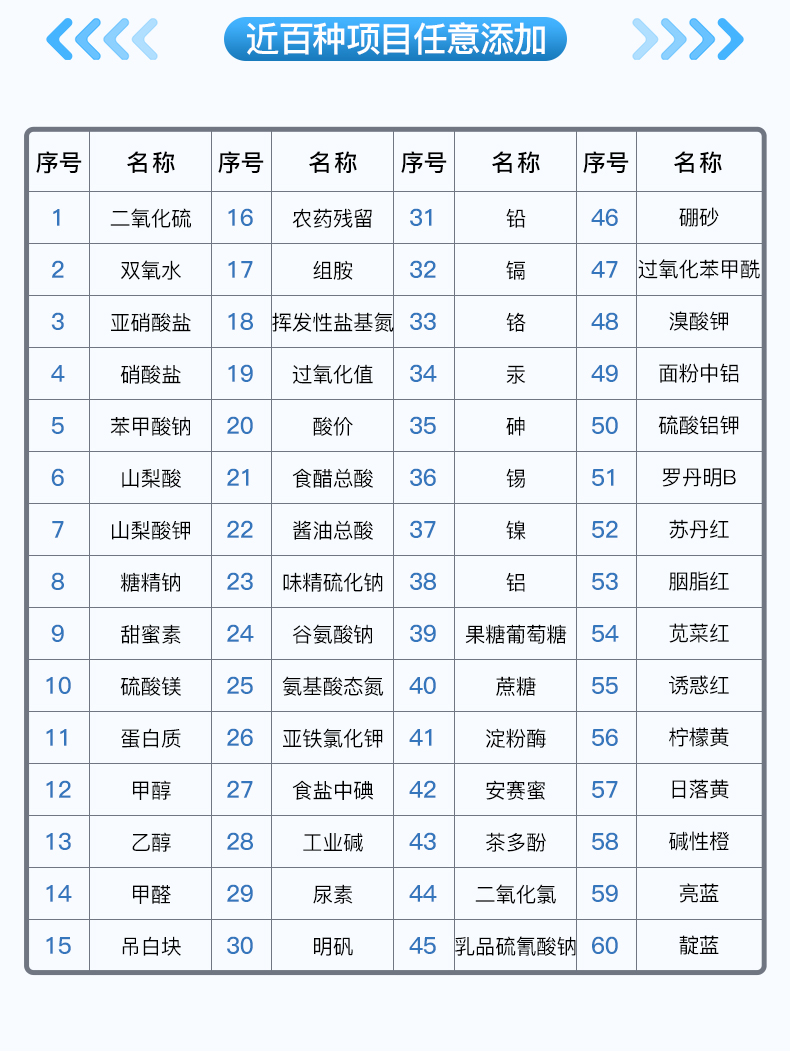

7. The instrument has a menu library of multiple types of samples, allowing for flexible selection of detection samples. Different detection channels can simultaneously detect different sample items.

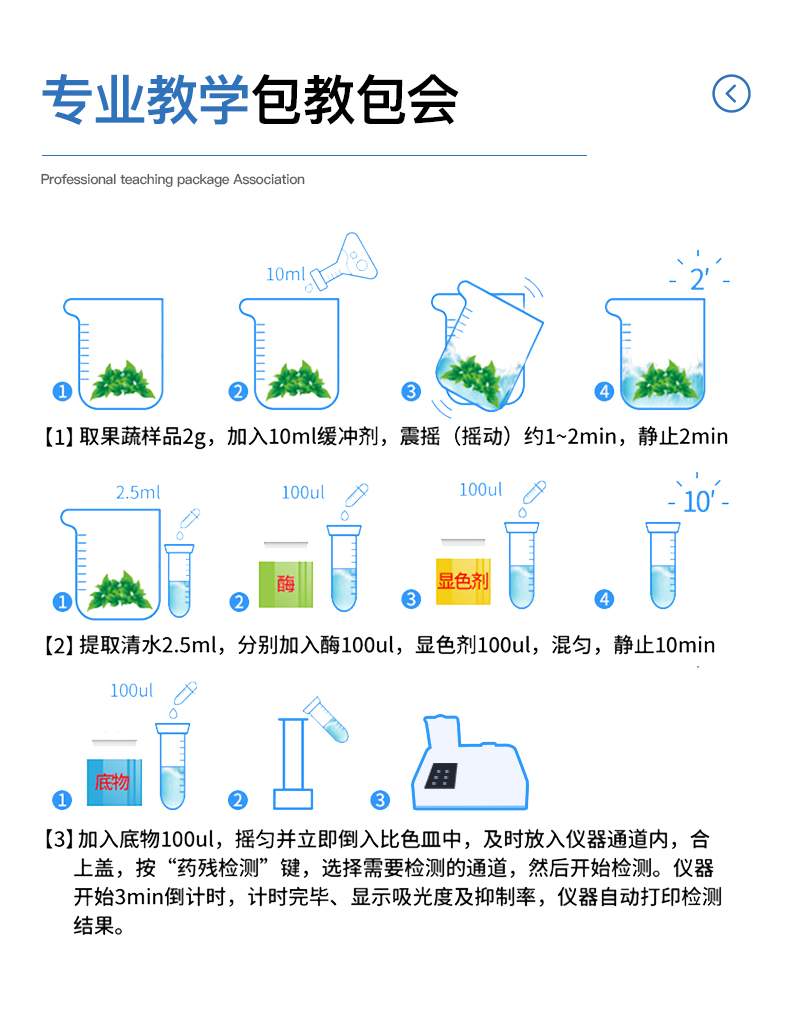

8. The sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

9. The instrument has its own protection function, which can be set with a username and password to prevent non staff operations, etc.

10. The instrument has functions of recalibration, locking, and restoring factory settings.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, faster operation speed, and stronger stability.

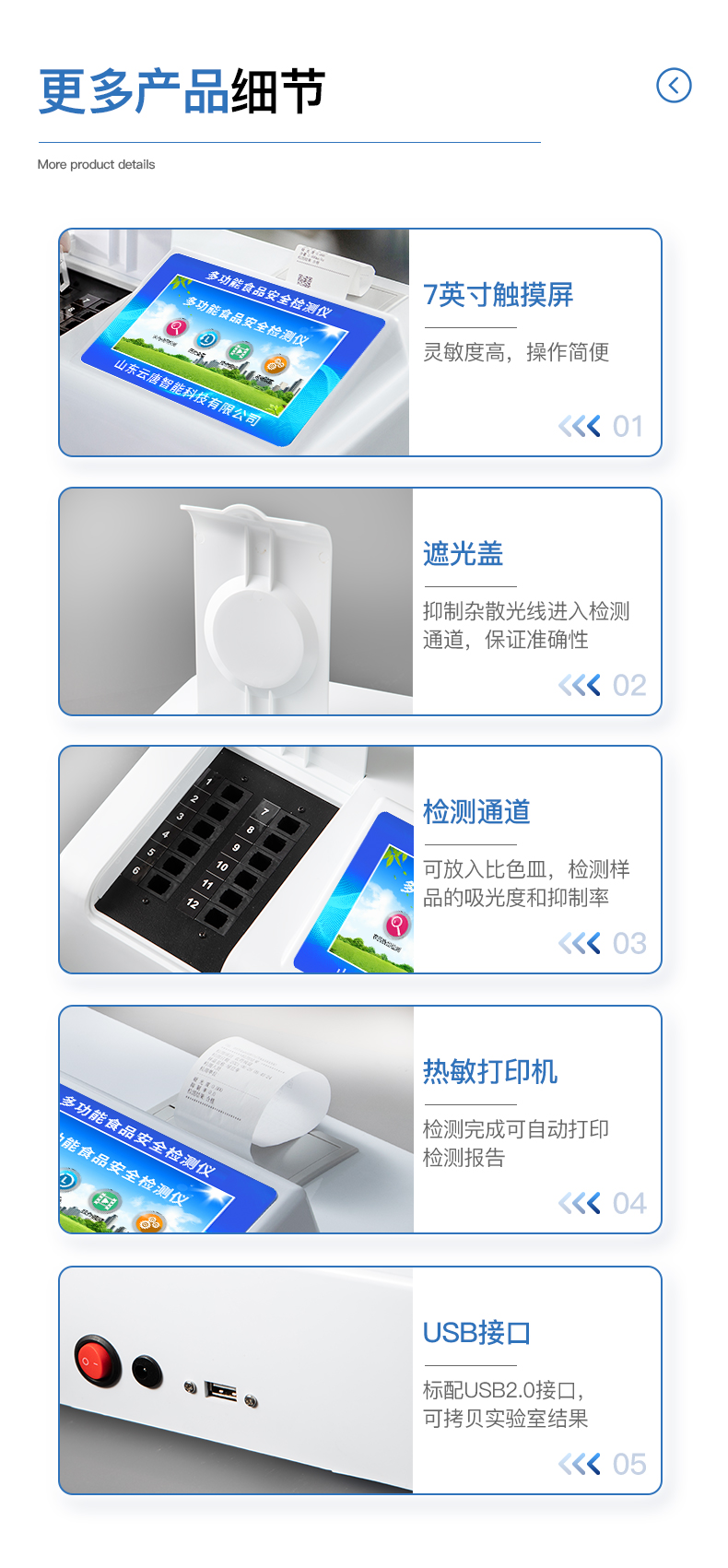

2. Display method: 7-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

3. DC 12V power supply, can be connected to car power supply, and can be equipped with a 6Ah large capacity rechargeable lithium battery, convenient for outdoor flow testing.

4. Intelligent constant current voltage regulation, automatic calibration of light intensity, long-term continuous operation of the light source without temperature drift phenomenon.

5. Continuous injection and detection

6. Sample numbers are automatically accumulated.

7. The detection items can be expanded.

8. The detection results can be printed and uploaded in batches.

9. Configurable large capacity lithium battery, firmware upgradable

Technical parameters:

1. Lower detection limit: 1mg/kg

2. Detection range: (0-100) mg/kg

3. Range of absorbance values: 0.000-4.000A

4. Repeatability: ± 0.1% (A)

5. Repeatability error: absorbance (A) ≤ 0.003

6. Stability: photoelectric drift (A) ± 0.002 (3 minutes)

7. Absorbance accuracy: ± 2.0%

8. Linear error: ± 1.0%
