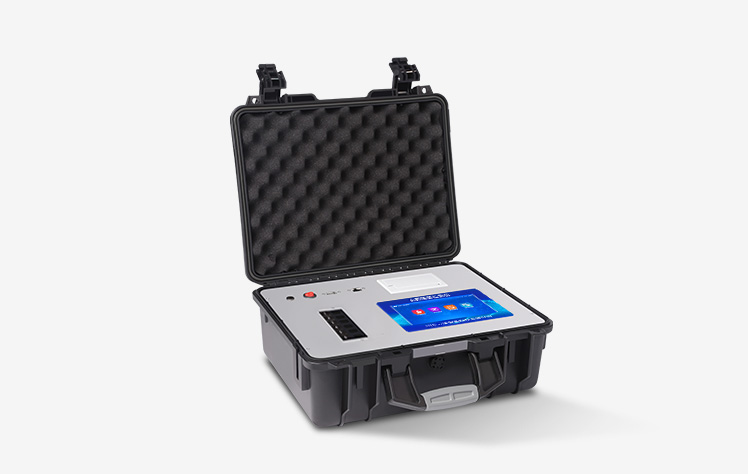

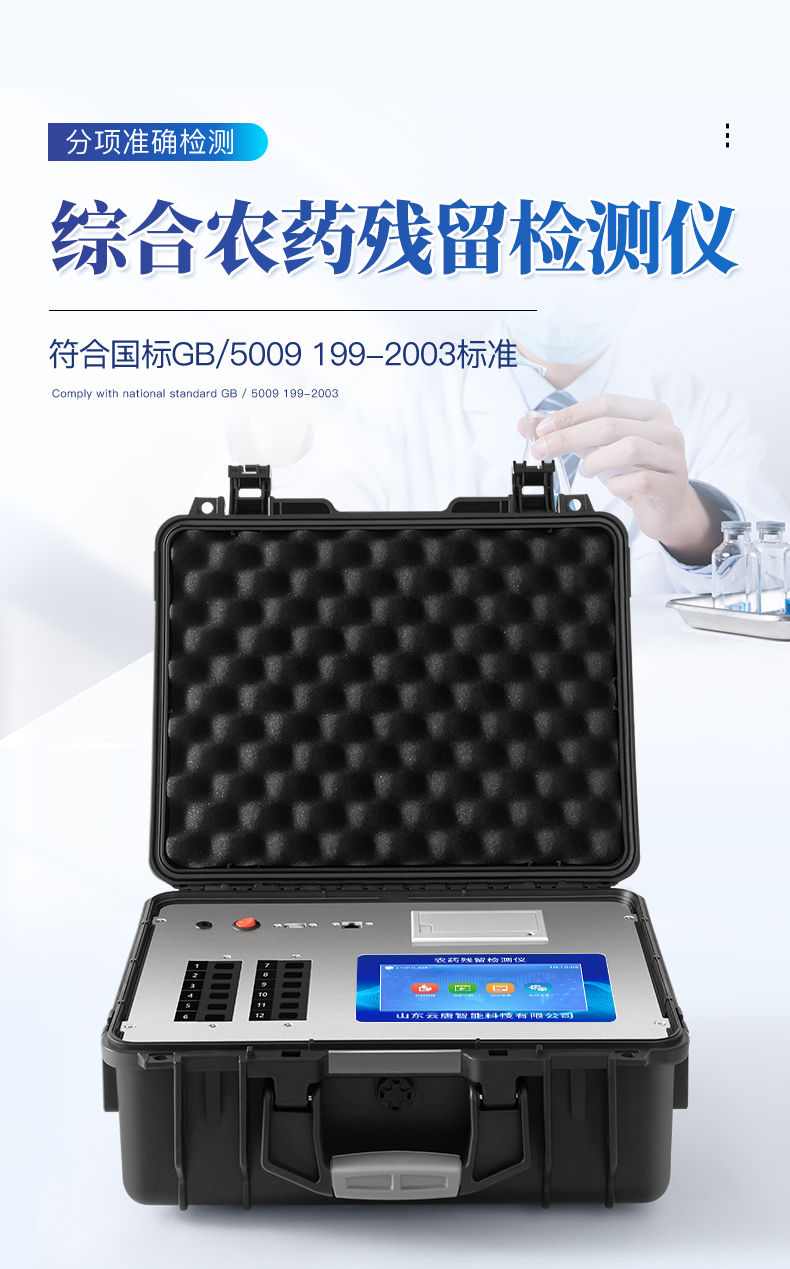

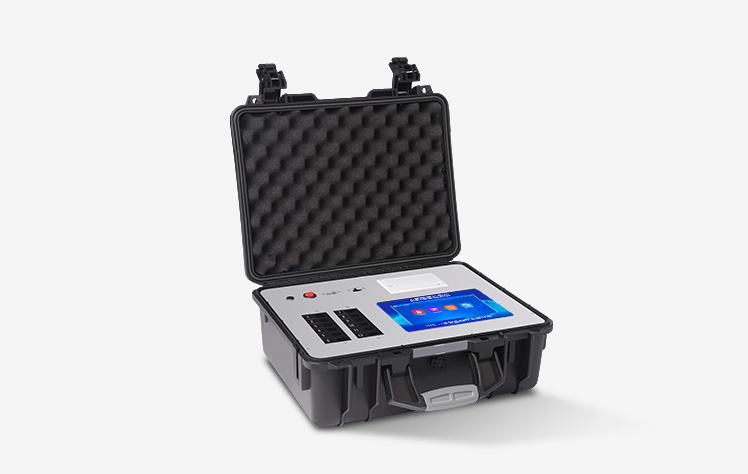

Tea pesticide residue detector (box type 6-channel)

YT-CY05 Main parameters:

1. With the continuous improvement of people's living standards, the market has become increasingly strict in controlling tea. In response to the current situation, our company specializes in the development and production of a pesticide residue rapid detection instrument for tea; Positioning tea farmers, tea merchants, and tea enterprises for use.

In addition, it can also be used for on-site testing in fruit and vegetable tea production bases and agricultural wholesale and sales markets, as well as safety rapid testing before processing fruits and vegetables in restaurants, schools, canteens, and households.

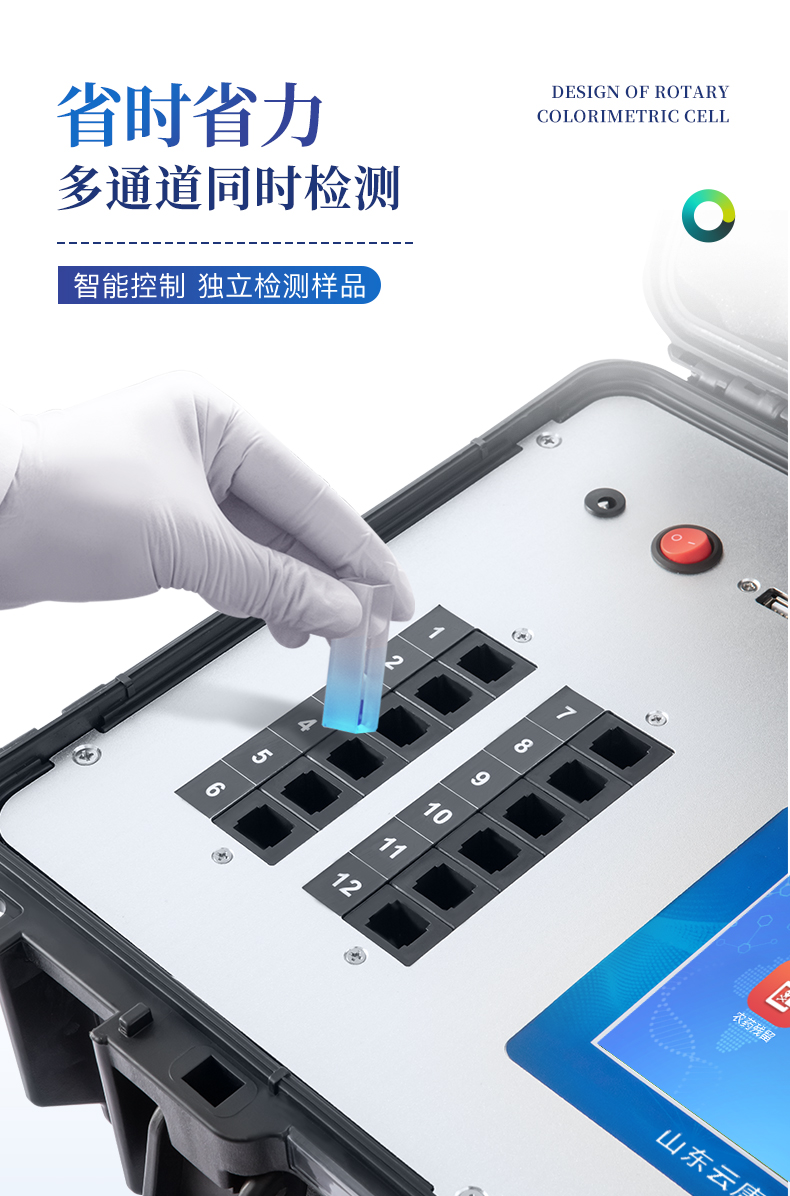

2. Detection channels: 5/12 detection channels, which can test multiple samples simultaneously. Each sample is controlled by the program to work independently without mutual interference.

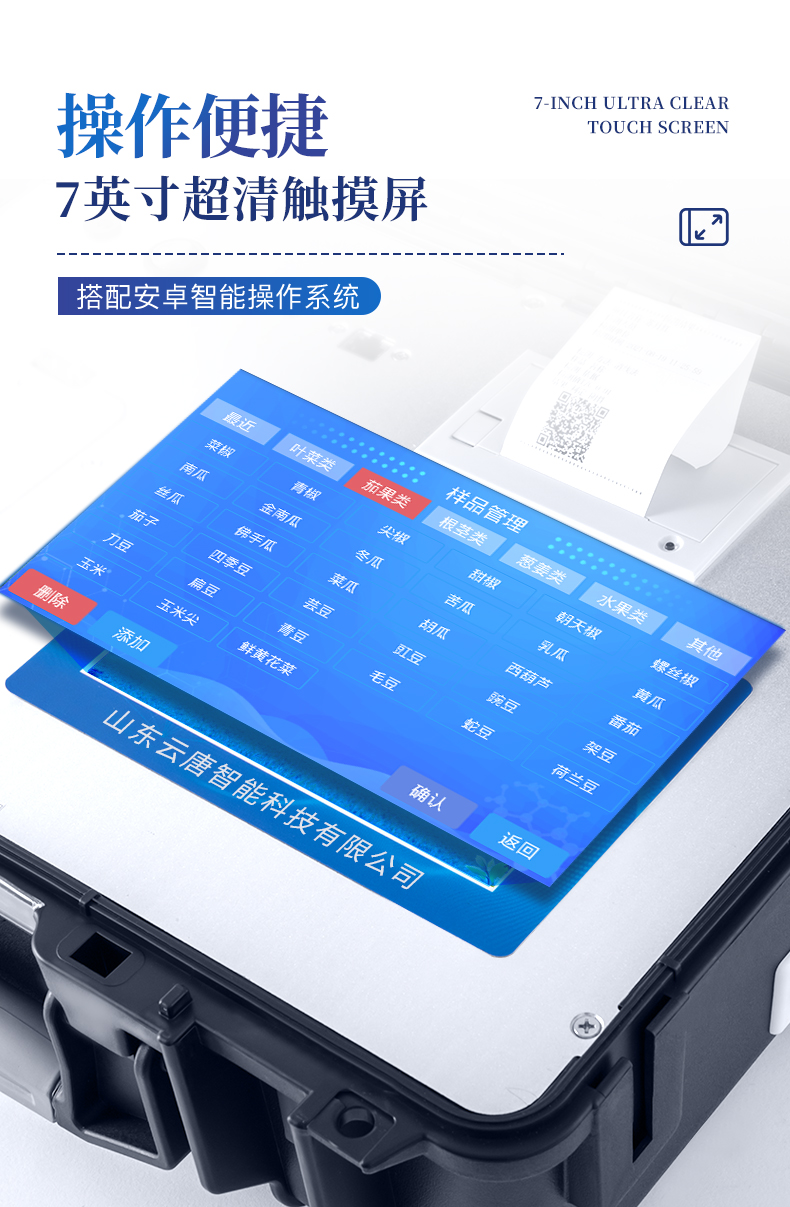

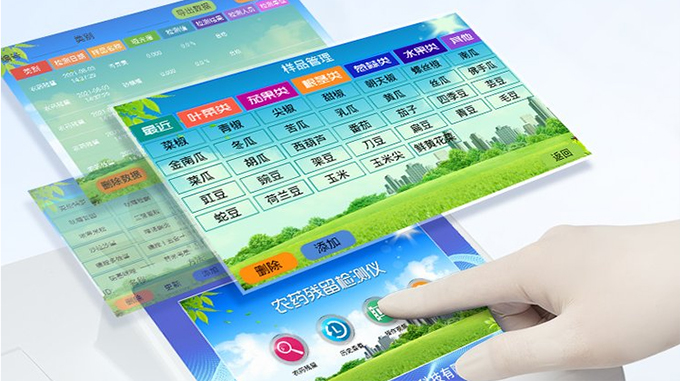

3. Display method: ≥ 5-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

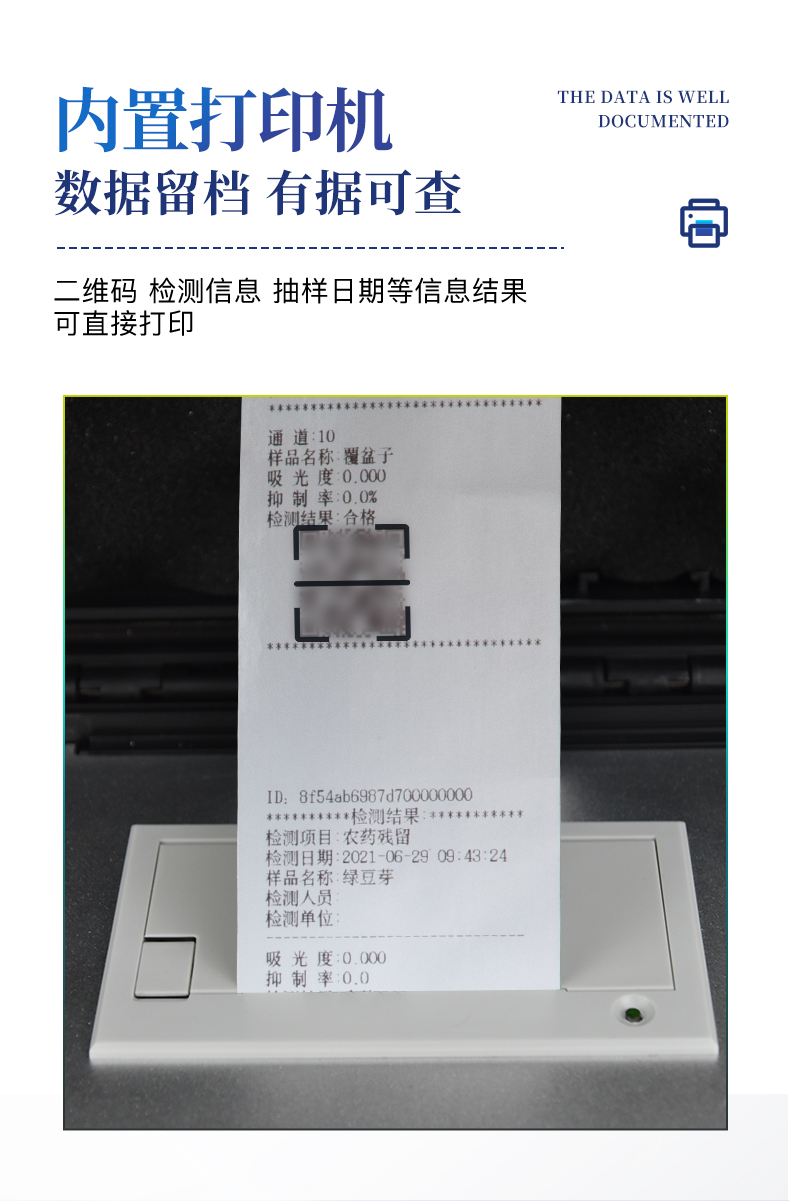

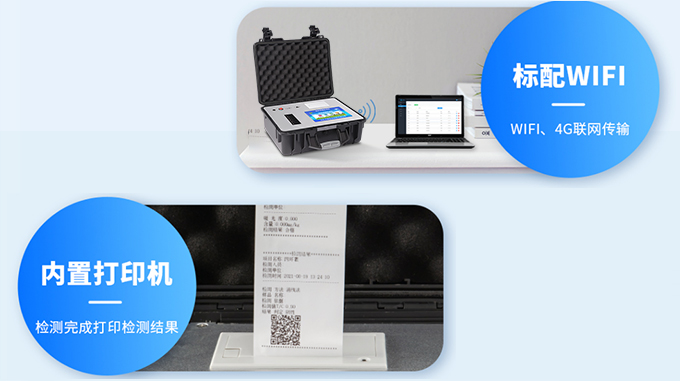

4. Equipped with an embedded high-speed thermal printer, you can choose to print manually or automatically, and the printing result will be output in three minutes.

5. The light source adopts imported ultra-high brightness light-emitting diodes, which have the advantages of low power consumption, strong stability, high sensitivity, high detection accuracy, high repeatability accuracy, controllable light source, and fast response speed.

6. Adopting a standard USB interface design, driver free installation, convenient for data storage and movement, and can be directly connected to a computer at any time, and can be used to control instruments. Implement data query, browsing, analysis, statistics, printing, etc.

7. High degree of intelligence, instrument with self check function: with power on self check and zero adjustment function, and automatic detection of repeatability function

8. Equipped with a powerful database, you can directly select sample names, testing indicators, testing units, and other information on the instrument. You can also directly edit and enter sample names, testing indicators, testing units, and other information on the instrument and save them in the sample database.

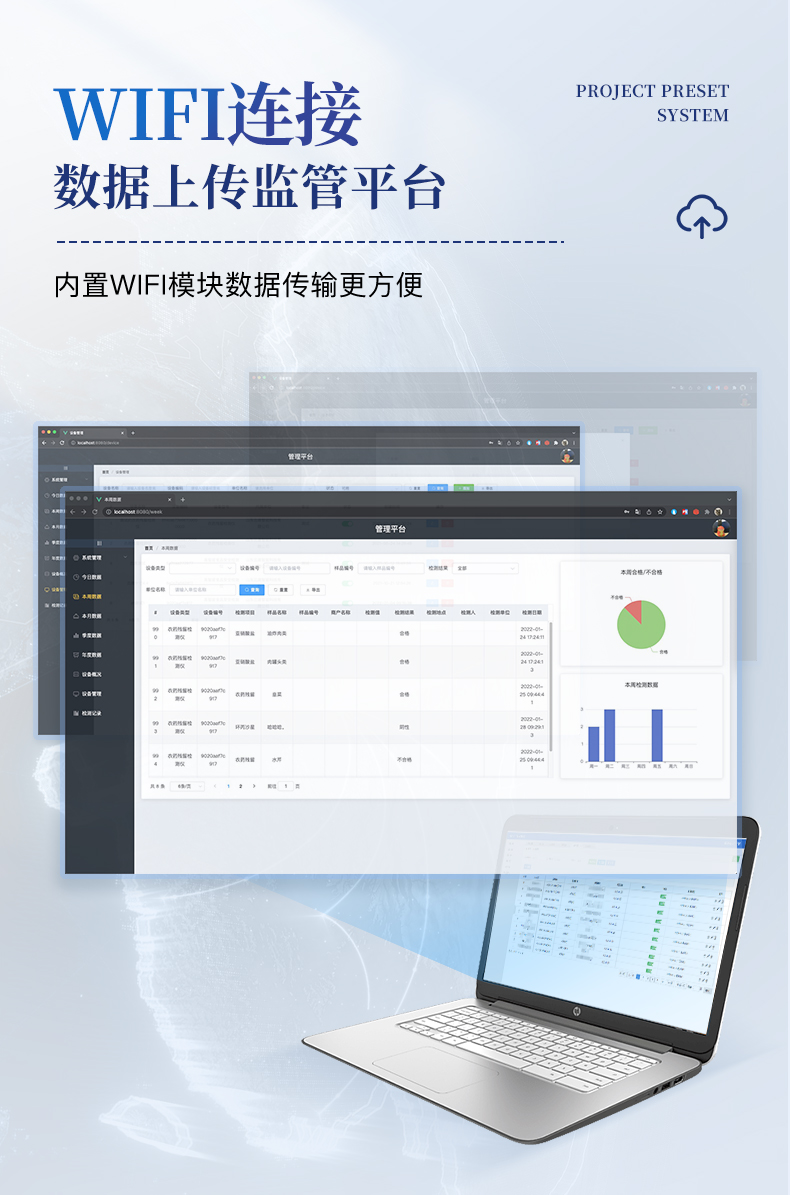

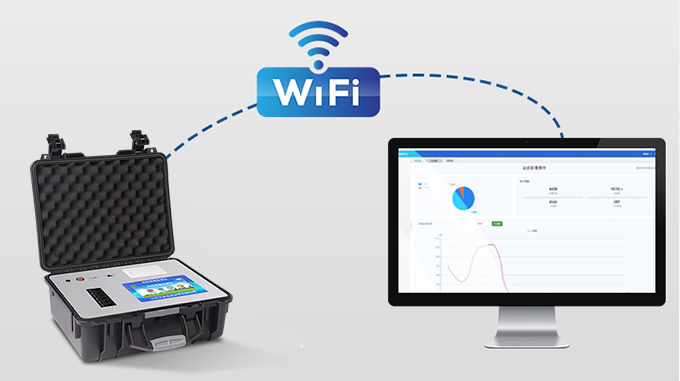

9. Support WiFi network, data can be uploaded on LAN and internet, and test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision and big data analysis and processing, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and warning

8. Technical parameters;

*Wavelength configuration: 410nm;

*Display range of inhibition rate: 0%~100%;

*Measurement range of inhibition rate: 0%~100%;

*Transmission accuracy: ± 1.5%;

*Transmission specific gravity repeatability: ≤ 0.5%;

*Drift: ≤ 0.005Abs/3min;

*Suppression rate indication error: ≤ 10%

*Repeatability of inhibition rate: ≤ 5%

1. The main control chip adopts a 32-bit processor, which runs faster and has strong stability.

3. DC 12V power supply, can be connected to on-board power supply.

5. Automatic adjustment and calibration of light source brightness

6. Pulse type constant current drive, avoiding continuous luminescence causing light decay and temperature drift.

8. Password login can be set

9. Continuous injection and detection

8. Sample numbers are automatically accumulated.

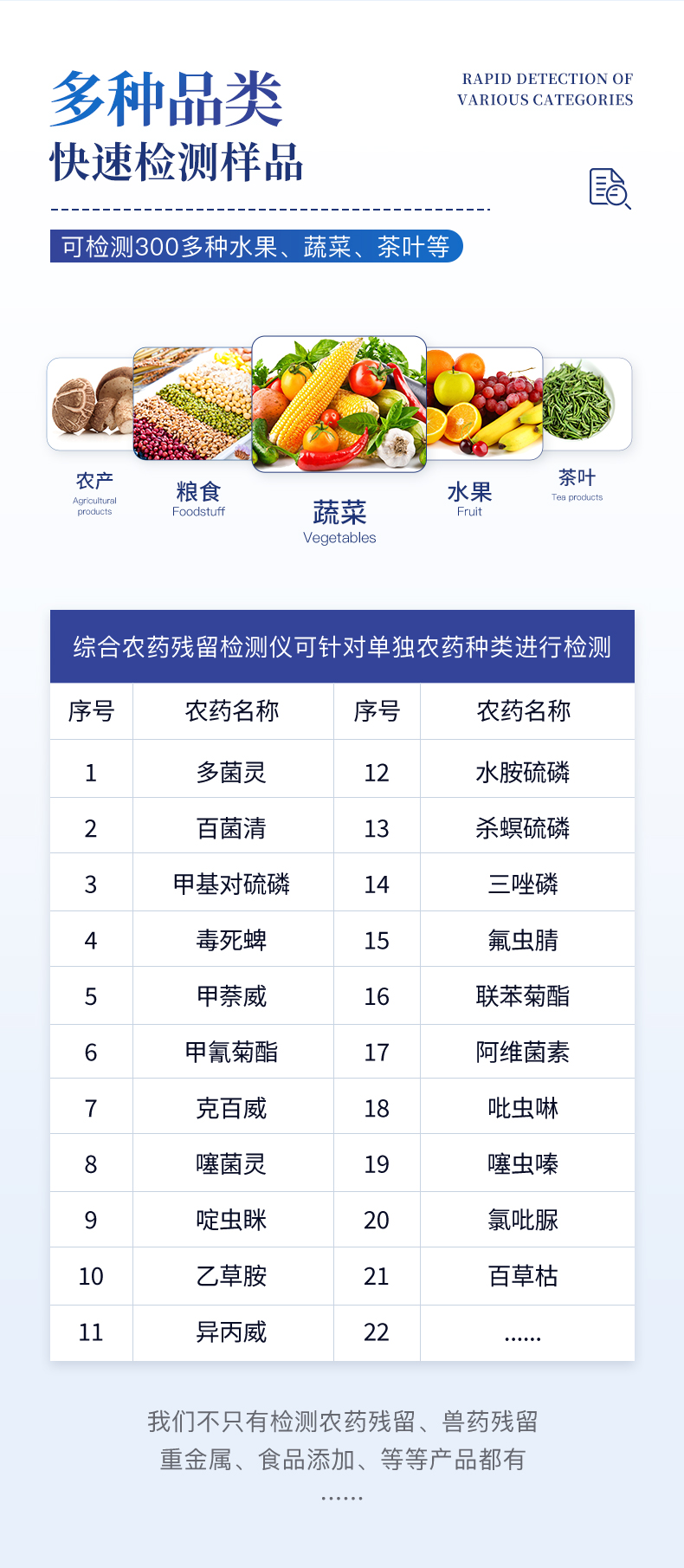

10. The detection items can be expanded.

11. The detection results can be printed and uploaded in batches.

12. The test results are in an Excel spreadsheet, which can be copied by connecting to a computer.

13. Storage capacity of 200000 test results

17. Firmware Upgradable

9. Optional features

1) Yes
